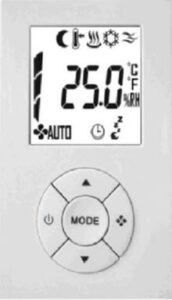

Hexa CONTROL RT226-B4 FAN COIL Thermostat
Features
The “RT226-B” series thermostats are BACnet communication-based thermostats with screen LCD display. The thermostats are designed to on/off control the fans, valves, dampers or in fan coil units, air-conditioners, and heating applications. Models are available for heating/cooling / ventilating control of 2-pipe or 4-pipe fan coil units. Fan speed can be manually controlled by the fan speed control push button. It is wired to run high/medium/low speed continuously or to automatically change the fan speed, while with other models there is a choice of running the fan continuously or cycling it with the thermostat.
SPECIFICATION
- Part Number: RT226-B4
- Power Source:230V AC, 50/60Hz
- Setting Range:10 ~ 30°C (heat / cool mode)
- Accuracy:±1°C
- Load Current:2A (fan output), 0.5A (valve output)
- Valve Control:2 or 3-point actuator On/Off control
- Fan Control:3-speed (H/M/L) thermostatic fan control
- Color: Black
- Installation: Flush mounting
- Dimensions:86X86X15mm
- Warranty:2 years
- Certificates: CE and ISO9001
- Country of Origin: People’s Republic of China (PRC)
RT226-B5
- Part Number: RT226-B5
- Power Source:230V AC, 50/60Hz
- Setting Range:5 ~ 35°C (heat / cool mode)
- Accuracy:±1°C
- Load Current:2A (fan output), 0.5A (valve output)
- Valve Control:2 or 3-point actuator On/Off control
- Fan Control:3-speed (H/M/L) thermostatic fan control
- Color: White
- Installation: Flush mounting
- Dimensions:86X86X15mm
- Warranty:2 years
- Certificates:CE and ISO9001
- Country of Origin: People’s Republic of China (PRC)
|
Part Number |
System |
Comunication Function | Fan Output Signal | Actuator Output Signal | External Sensor | Room Card |
| RT226-B4 | 2 or 4 pipe | Stand-alone | 3 Speed On/Off Thermostatic Control 230V AC | 2 or 3 points On/Off 230V AC | Not Available | ✓ |
| RT226-B5 |
