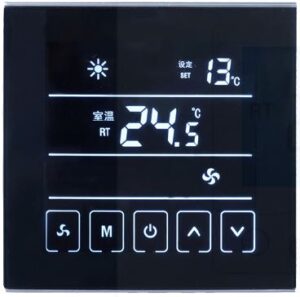

Hexa CONTROL RT226-B12 FAN COIL Room Thermostat
Features
The “RT226-B” series thermostats are stand-alone microprocessor-based thermostats with touch screen LCD display. The thermostats are designed to on/off control the fans, valves, dampers or in fan coil units, air-conditioners, and heating applications. Models are available for heating/cooling / ventilating control of 2-pipe or 4-pipe fan coil units. Fan speed can be manually controlled by the fan speed control push button. It is wired to run high/medium/low speed continuously or to automatically change the fan speed, while with other models there is a choice of running the fan continuously or cycling it with the thermostat.
SPECIFICATION
- Part Number: RT226-B12 / RT226-B14
- Power Source:230V AC, 50/60Hz
- Setting Range:10 ~ 30°C (heat / cool mode)
- Accuracy:±1°C
- Load Current:2A (fan output), 0.5A (valve output)
- Valve Control:2 or 3-point actuator On/Off control
- Fan Control:3 speed (H/M/L) thermostatic fan control
- Color: Black
- Installation: Flush mounting
- Dimensions:86X86X15mm
- Warranty:2 years
- Certificates: CE and ISO9001
- Country of Origin: People’s Republic of China (PRC)
|
Part Number |
System |
Comunication Function | Fan Output Signal | Actuator Output Signal | External Sensor | Room Card |
| RT226-B12 | 2 pipe |
Stand-alone |
3 Speed (H/M/L) On/Off Thermostatic Control 230V AC |
2 or 3 point On/Off 230V AC |
Not Available |
Not Available |
| RT226-B14 | 2 or 4 pipe | |||||
| RT226-B22 | 2 pipe | |||||
| RT226-B24 | 2 or 4 pipe |
