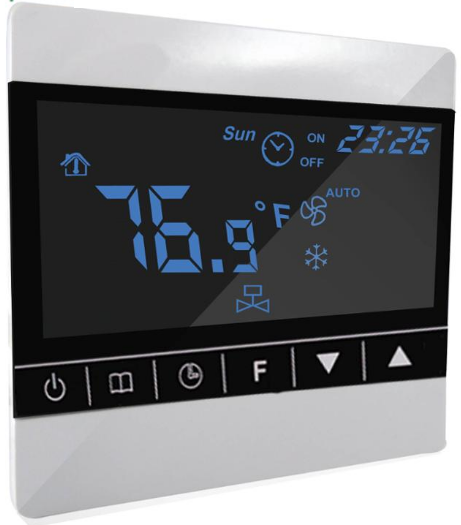

HESSWAY W312-P Programmable Thermostat
Specification
- Theory: Temperature Controller
- Usage: Indoor
- Model Number: W312-P
- Max Measuring Temperature: 49°C & Under
- Display Type: DIGITAL
- Power Type: Charger
- Display Size: 2.0 – 3.9 Inches
- Style: Embedded
- Brand Name: HESSWAY
- Power Supply: AC85~260V, 50/60HZ
- Set Temp: 10°c- 40°c
- Display: LCD
- Operation: Touch screen
- Type: Room Thermostat
- Control object: fan and valve
- Installation Box: 86*86mm
- Current Load: 1A
- Sensor: NTC10K
- Resolution: 0.1 C
Introduction
The HESSWAY W312-P Programmable Thermostat is a versatile and user-friendly device designed to control and manage heating and cooling systems in residential and commercial spaces. With its programmable features and intuitive interface, it provides convenient and precise temperature control for optimal comfort and energy efficiency. The W312-P thermostat features a programmable function that allows users to set customized temperature schedules based on their daily routines and preferences. This feature helps optimize energy usage by automatically adjusting the temperature at different times of the day, ensuring comfort when needed and saving energy when the space is unoccupied. The thermostat typically includes a clear and easy-to-read display that shows the current temperature, setpoints, and other relevant information. It may have a backlit or LCD display, making it easily readable in various lighting conditions.
One of the key features of the HESSWAY W312-P thermostat is its compatibility with a wide range of heating and cooling systems, including gas boilers, electric heating, and heat pump systems. This versatility makes it suitable for various applications and allows it to integrate seamlessly with existing HVAC systems. The W312-P thermostat also offers convenient and user-friendly controls. It typically includes buttons or a touch-sensitive interface for adjusting temperature settings, switching between heating and cooling modes, and accessing various programming options. Some models may even have remote control capabilities, allowing users to adjust settings from a distance.
In addition to its programmable features, the HESSWAY W312-P thermostat may offer additional functions such as temperature calibration, vacation mode, and frost protection. These features provide added convenience and energy efficiency, ensuring optimal temperature control and system performance. The HESSWAY W312-P Programmable Thermostat combines programmability, compatibility, and user-friendly controls to deliver precise temperature control and energy efficiency. Whether for residential or commercial use, this thermostat offers a reliable and customizable solution for managing heating and cooling systems with ease and comfort.
What Is In The Box
- Thermostat
- User Manual
- Screws
- External Sensor
Description
Touch smart thermostat, the use of large-screen black film LCD display, panel cover black acrylic, the appearance of fine high-end. Using the latest capacitive touch button technology, easy to operate function. The thermostat uses microcomputer control technology, cooling and heating mode switching, control fan and valve work, to achieve a comfortable ambient temperature.
Basic Features
- 7 * 24 programming & One day four periods programs schedules
- Output Stop Valve or Stop Valve and Stop Fan Coil Optional.
- Display the ambient temperature and set the temperature
- White backlight
- *C/ F temperature mode switching
- Create a secure child ock
- Three modes: cold, hot, and ventilated.
- Switch control valve, and real-time display on the screen
- Power memory function, to restore the state before the power off
- Black film LCD screen display, touch the button operation
- Brand relay output, three-speed output control; (also suitable for a stage or two-stage fan)
- Real-time display clock
- Highly reliable single-chip control, stable performance, strong anti-interference
- Luxury / elegant/stylish design, suitable for high-end places
Technical parameters
- Power Supply: AC85-260V
- Set-point Range: 10- 40°C
- Accuracy: #1°C
- Resolution: 0.1 °C
- Rated Current: 1A
- Induced current:0.5A
- Display temperature: 0 – 60 °C
- Consumption: <0.5W
- Sensor: NTC <10K)
- Protection GESS:P30
- Dimension: 86*86*15mm (H*W/*D)
- Shell: PC + ABS alloy material

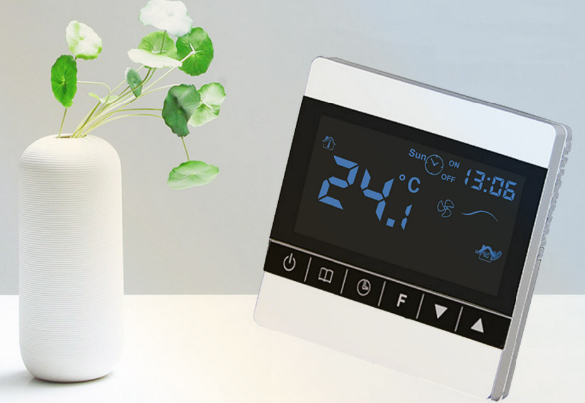

Smart Adjust Thermostat Cool / Heat Switch

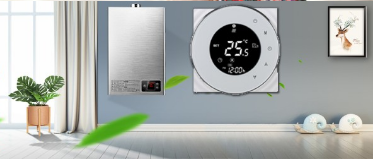

Smart boiler Thermostat Programmable Floor heating switch

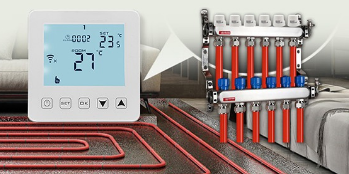

Radiant Floor Heating Thermostat for valve control
Electric Heating
Facing the Sea With Spring Blossoms

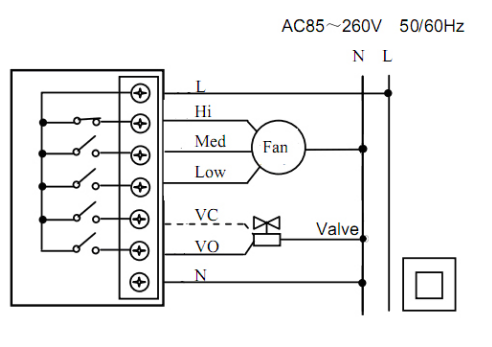

Wiring Diagram
FAQS
Q1: What is the purpose of the HESSWAY W312-P thermostat?
A1: The HESSWAY W312-P thermostat is designed to control and manage heating and cooling systems in residential and commercial spaces.
Q2: Can I program temperature schedules with the thermostat?
A2: Yes, the HESSWAY W312-P thermostat offers programmable features, allowing you to set customized temperature schedules based on your daily routines and preferences.
Q3: Is the thermostat compatible with different types of heating and cooling systems?
A3: Yes, the HESSWAY W312-P thermostat is compatible with a wide range of systems, including gas boilers, electric heating, and heat pump systems.
Q4: Does the thermostat have a clear display?
A4: Yes, the thermostat typically includes a clear and easy-to-read display that shows the current temperature, setpoints, and other relevant information.
Q5: Can I adjust the temperature manually on the thermostat?
A5: Yes, the HESSWAY W312-P thermostat allows manual adjustment of the temperature directly on the device.
Q6: Does the thermostat have remote control capabilities?
A6: Remote control capabilities may vary depending on the specific model. Some models of the HESSWAY W312-P thermostat may offer remote control options, allowing you to adjust settings from a distance.
Q7: Does the thermostat offer temperature calibration?
A7: Yes, the HESSWAY W312-P thermostat typically includes a temperature calibration feature, allowing you to fine-tune the accuracy of the displayed temperature.
Q8: Can I set a vacation mode with the thermostat?
A8: Yes, the thermostat may offer a vacation mode feature, allowing you to set a specific temperature for an extended period when you are away.
Q9: Is there a frost protection function available?
A9: Some models of the HESSWAY W312-P thermostat may include a frost protection feature, which prevents the temperature from dropping too low and protects against freezing.
Q10: Can I set different temperature schedules for different days of the week?
A10: Yes, the HESSWAY W312-P thermostat’s programming feature allows you to set different temperature schedules for each day of the week to accommodate your preferences and routines.
Q11: Does the thermostat have energy-saving features?
A11: Yes, the programmable features of the thermostat help optimize energy usage by adjusting the temperature based on specific schedules, reducing energy waste.
Q12: Is the HESSWAY W312-P thermostat easy to install?
A12: The installation process may vary depending on the specific model and your existing heating and cooling system. It is generally designed to be user-friendly and can be installed by following the provided instructions.
Q13: Can I integrate the thermostat with a smart home system?
A13: The HESSWAY W312-P thermostat may not have native compatibility with specific smart home systems. However, it can be compatible with certain systems that support programmable thermostats. Please check the compatibility and integration options with your specific smart home system.
Q14: Does the thermostat come with a warranty?
A14: Warranty policies may vary depending on the manufacturer and the specific model of the HESSWAY W312-P thermostat. It is recommended to check the warranty information provided by the manufacturer.
Q15: Can the thermostat be used in both residential and commercial settings?
A15: Yes, the HESSWAY W312-P thermostat is suitable for both residential and commercial applications, offering precise temperature control and energy efficiency for various spaces.
