HESSWAY D08WE-3-220V Programmable Heating Thermostat USER MANUAL

HESSWAY D08WE-3-220V Programmable Heating Thermostat

INTRODUCTION

The HESSWAY D08WE-3-220V is a cutting-edge programmable heating thermostat designed to optimize energy efficiency and provide precise temperature control for various heating systems. This advanced thermostat is equipped with innovative features and user-friendly functionalities, making it an ideal choice for both residential and commercial applications.

The HESSWAY D08WE-3-220V allows users to set multiple heating schedules throughout the day. This programming capability enables you to customize your heating preferences according to your daily routines, thereby reducing energy consumption and utility costs.

This thermostat is designed to work with 220-volt heating systems, making it suitable for a wide range of applications, including electric heaters and other heating equipment that require higher voltage.

The thermostat features a clear and intuitive digital display that provides real-time temperature readings, heating mode status, and the current programmed schedule. The display makes it easy to adjust settings and monitor the thermostat’s operation. With precise temperature control, the HESSWAY D08WE-3-220V ensures that your indoor environment remains comfortable and consistent. The thermostat maintains the desired temperature within a narrow range, preventing unnecessary fluctuations and improving overall comfort.

In case of unexpected changes in your schedule or temperature preferences, the thermostat allows manual adjustments to temporarily override the programmed settings, ensuring immediate comfort when needed. The HESSWAY D08WE-3-220V is designed to help you conserve energy. By setting specific heating schedules and utilizing its advanced control features, you can minimize energy wastage and reduce your carbon footprint.

This programmable thermostat is designed for straightforward installation and is compatible with a wide range of heating systems, ensuring seamless integration with your existing setup. Depending on the model, some versions of the HESSWAY D08WE-3-220V may offer smartphone integration. This allows you to control and monitor your thermostat remotely using a dedicated mobile app, offering convenience and flexibility.

The HESSWAY D08WE-3-220V Programmable Heating Thermostat represents a reliable and efficient solution for optimizing indoor comfort while reducing energy consumption. With its programmable functionality, precise temperature control, and user-friendly design, this thermostat provides an excellent way to manage your heating system effectively. Whether you’re looking to enhance comfort or save on energy costs, the HESSWAY D08WE-3-220V is a versatile and feature-rich option to consider for your heating needs.

Specification

• Power: 230Vac 50/60HZ
• Display accuracy0.5°C
• Probe sensorNTC(10k)1%
• Contact capacitySA/250V(WW);16A/250V(WE)
• Working environment temperature0-70°C
• Range of temperature adjustment5-35°C
• Range of temperature display0-40°C
• Output: Switch relay
• Insulating condition: Normal environment
• Running program: Set per 1 week as a cycle
• Installation: Wall mounted or on battery seat
• Size(mm)868627

What Is In The Box

• Thermostat
• User Manual
• Screws
• External Sensor

Feature

• Large LCD touch screen with blue shower display and double temperature display mode
• Time display (minutes, hours, weeks)
• 3 kinds of programming mode, 7 × 24 hours DIY free programming
• Internal and external temperature sensor for choice
• Room temperature display precision is 0.5
• Setting temperature meet user’s demand of room temperature
• Memory function when power failure, protect your setting from power failure
• Room temperature automatically calibration function
• Dual sensor, free switch, floor high temperature protection
• Set comfortable temperature and energy-saving temperature
• Child lock, protective measures, a key more secure

Can control
It can be control motorized ball valve, motorized valve, thermal valve, solenoid valve, heater, electric heating film, electric heating carbon crystal.it is used for floor heating Etc.

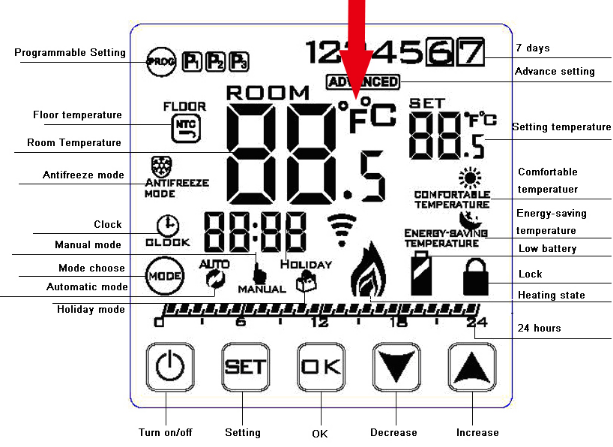

Display Button

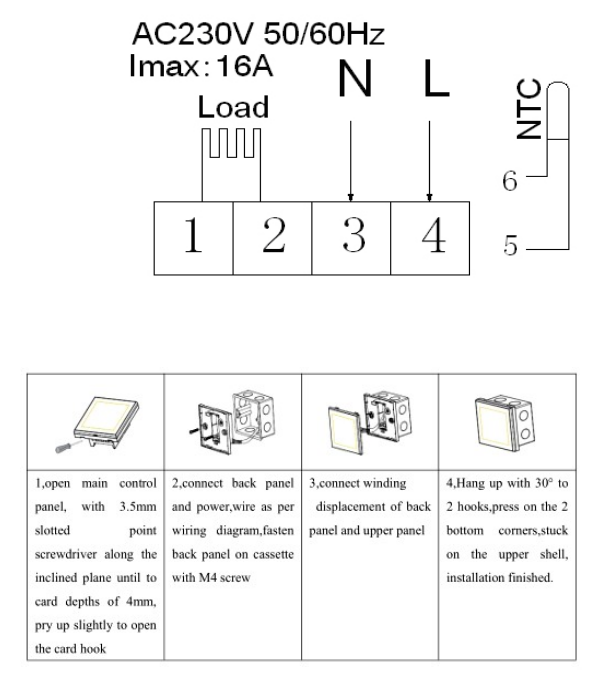

Wiring Diagram

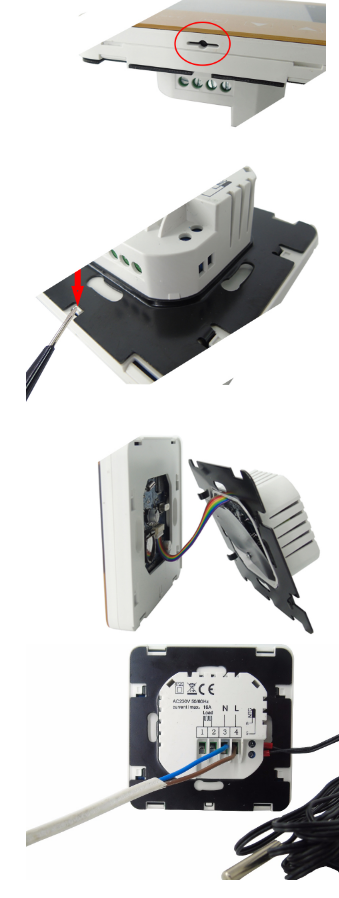

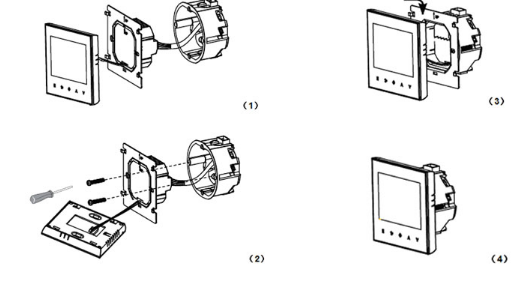

Installation

Dimension

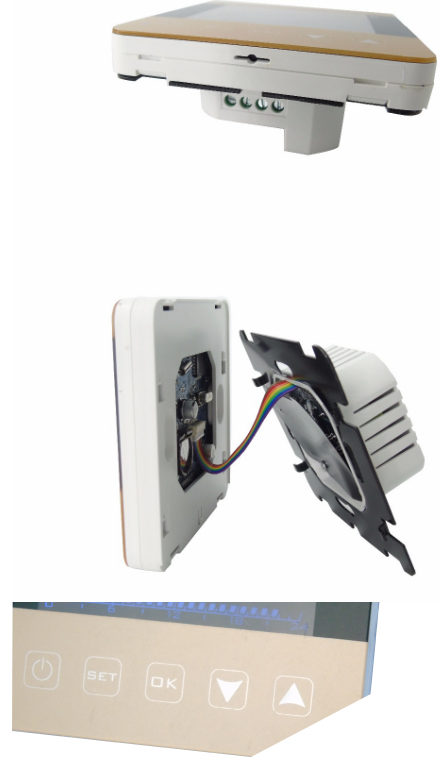

Image Detail

FAQS

1. Q: What is the HESSWAY D08WE-3-220V thermostat used for?
A: The HESSWAY D08WE-3-220V thermostat is designed for controlling heating systems, such as electric heaters or heating elements, in residential and commercial settings.

2. Q: Is the D08WE-3-220V thermostat programmable?
A: Yes, the thermostat is programmable, allowing users to set different temperature schedules for different times of the day or week.

3. Q: What voltage does this thermostat support?
A: The thermostat supports a voltage of 220V.

4. Q: How many daily temperature periods can be programmed with this thermostat?
A: The thermostat allows for up to 6 daily temperature periods to be programmed.

5. Q: Does the thermostat have a touchscreen interface?
A: Yes, the D08WE-3-220V thermostat features a user-friendly touchscreen interface for easy programming and control.

6. Q: Can I manually override the programmed settings temporarily?
A: Yes, the thermostat typically has a “Temporary Override” or “Hold” function, allowing you to set a constant temperature for a specific period.

7. Q: Does it have a backlight for easy reading in the dark?
A: Yes, most modern thermostats, including the D08WE-3-220V, come with a backlight for better visibility in low-light conditions.

8. Q: Can I set different heating schedules for weekdays and weekends?
A: Yes, the thermostat provides the flexibility to set separate schedules for weekdays and weekends.

9. Q: Does the thermostat support Fahrenheit and Celsius temperature scales?
A: Yes, most programmable thermostats offer the option to choose between Fahrenheit and Celsius temperature units.

10. Q: What is the maximum temperature range that can be set with this thermostat?
A: The maximum temperature range depends on the specific model, but it is typically around 40°F to 90°F (5°C to 32°C).

11. Q: Does the thermostat have a vacation mode for energy-saving purposes?
A: Yes, many programmable thermostats include a vacation mode that allows you to set an energy-saving temperature while you are away for an extended period.

12. Q: Can this thermostat be integrated with a smart home system?
A: Depending on the model, some thermostats may support integration with smart home systems for remote control and automation.

13. Q: Is the thermostat compatible with all heating systems?
A: The thermostat is generally designed for electric heating systems, so it’s essential to check the compatibility with your specific heating system before purchasing.

14. Q: Does the thermostat come with a battery backup in case of power outages?
A: Some thermostats have battery backup features, but it’s essential to check the product specifications to confirm this for the D08WE-3-220V model.

15. Q: How can I install and set up the D08WE-3-220V thermostat?
A: The installation and setup process should be outlined in the user manual that comes with the thermostat. It’s advisable to follow the provided instructions or seek professional help if needed.
