Heatmiser Touch v2 Touchscreen Room Programmable Thermostat PRODUCT SPECIFICATION GUIDE

Contents hide
1 Heatmiser Touch v2 Touchscreen Room Programmable Thermostat
2 SPECIFICATION
3 Feature Table – Thermostat Mode
3.1 Product Dimensions (mm) & Wiring Specification
4 REFERENCE:

Heatmiser-logo

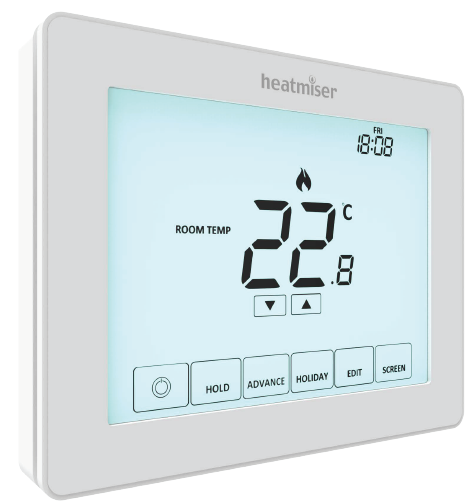

Heatmiser Touch v2 Touchscreen Room Programmable Thermostat

Heatmiser-Touch-v2-Touchscreen-Room-Programmable-Thermostat-product

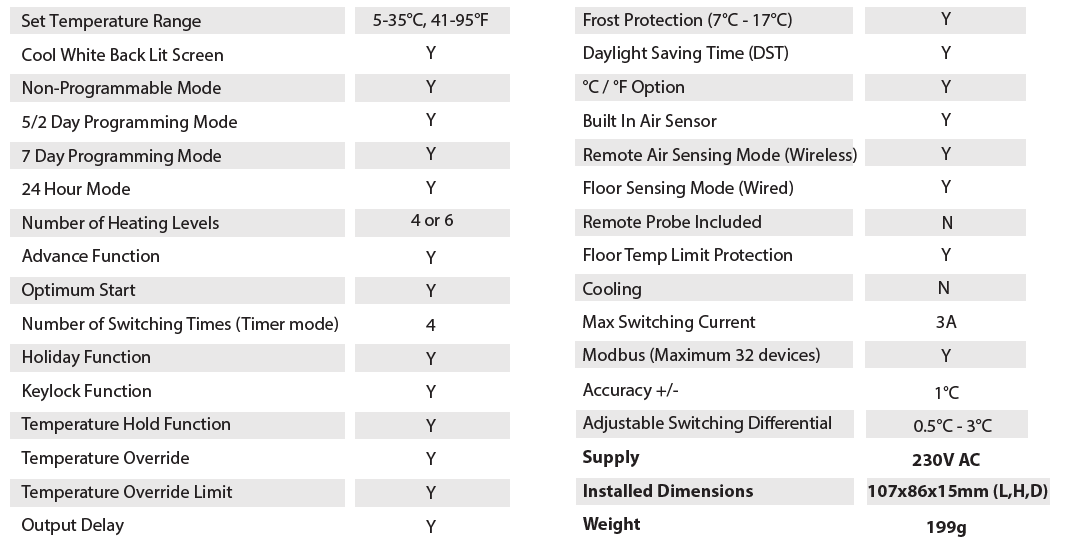

SPECIFICATION

Heatmiser-Touch-v2-Touchscreen-Room-Programmable-Thermostat-fig-1

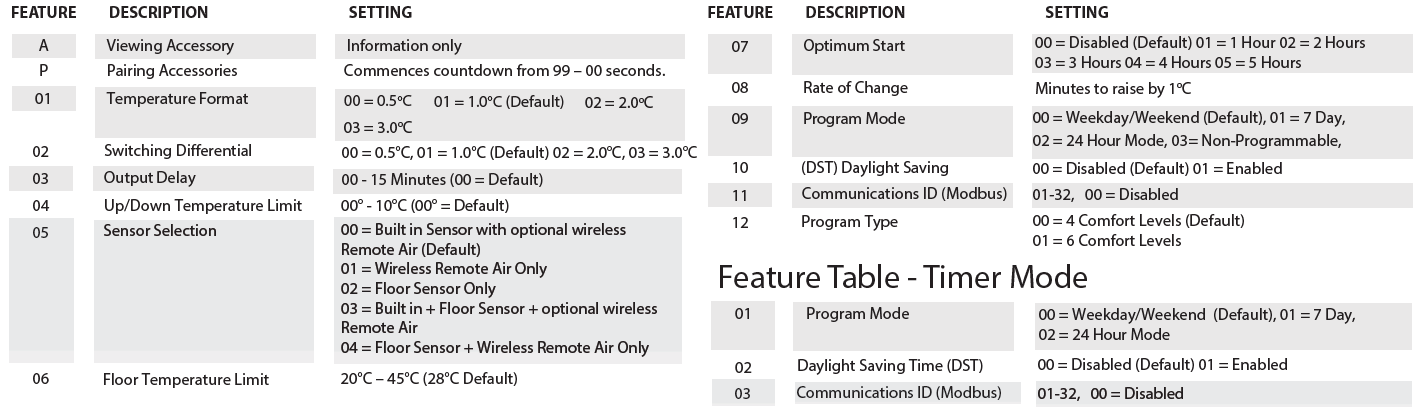

Feature Table – Thermostat Mode

Heatmiser-Touch-v2-Touchscreen-Room-Programmable-Thermostat-fig-2

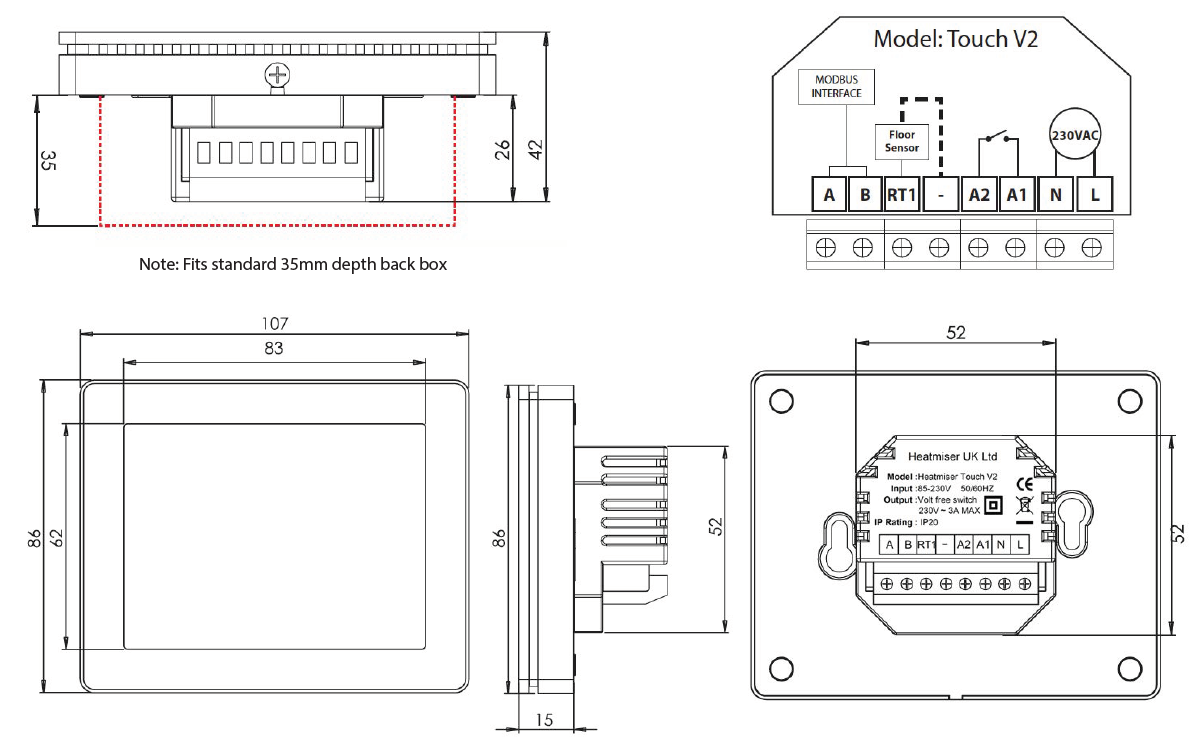

Product Dimensions (mm) & Wiring Specification

Heatmiser-Touch-v2-Touchscreen-Room-Programmable-Thermostat-fig-3

Heatmiser UK Ltd
1 – 5 Hurstwood Court, Mercer Way, Shadsworth Business Park, Blackburn, Lancashire. BB1 2QU, England Registered in England: 3747773
tel. 01254 669090
fax. 01254 669091
email. [email protected]
web. www.heatmiser.com
WEEE Registration Number: WEE/GF0052TQ
