Heatmiser neoStat V2 – 12v Programmable Thermostat PRODUCT SPECIFICATION GUIDE

Heatmiser-logo

Contents hide
1 Heatmiser neoStat V2 – 12v Programmable Thermostat
2 Feature Table – Thermostat Mode
2.1 Feature Table – Timer Mode
3 Product Dimensions (mm) & Wiring Specification
4 Reference

Heatmiser neoStat V2 – 12v Programmable Thermostat

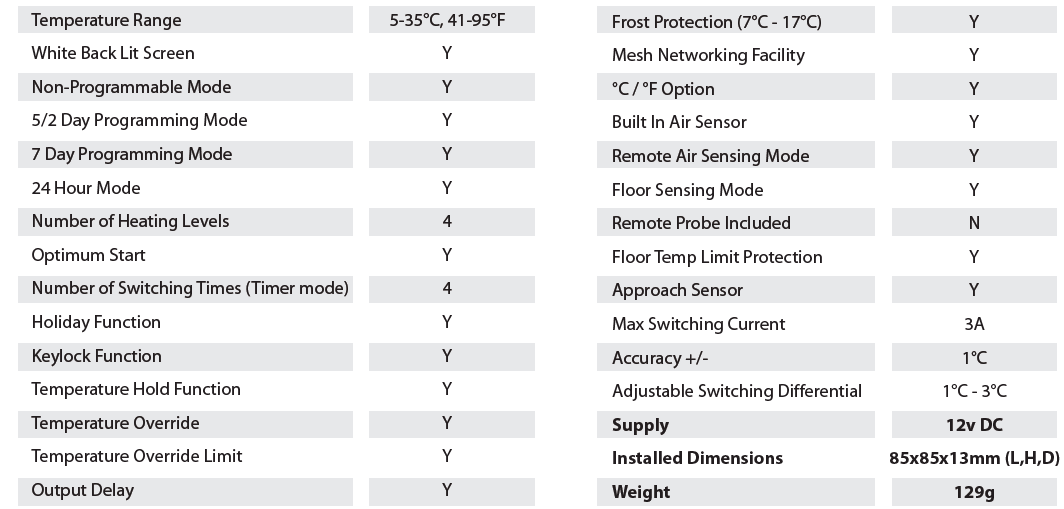

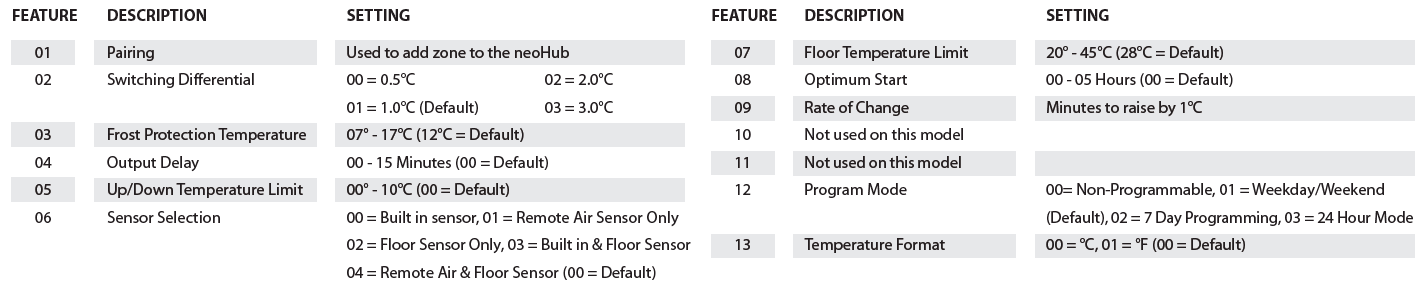

Feature Table – Thermostat Mode

Heatmiser-neoStat-V2-12v-Programmable-Thermostat-fig-2Heatmiser-neoStat-V2-12v-Programmable-Thermostat-fig-1

Feature Table – Timer Mode

Heatmiser-neoStat-V2-12v-Programmable-Thermostat-fig-3

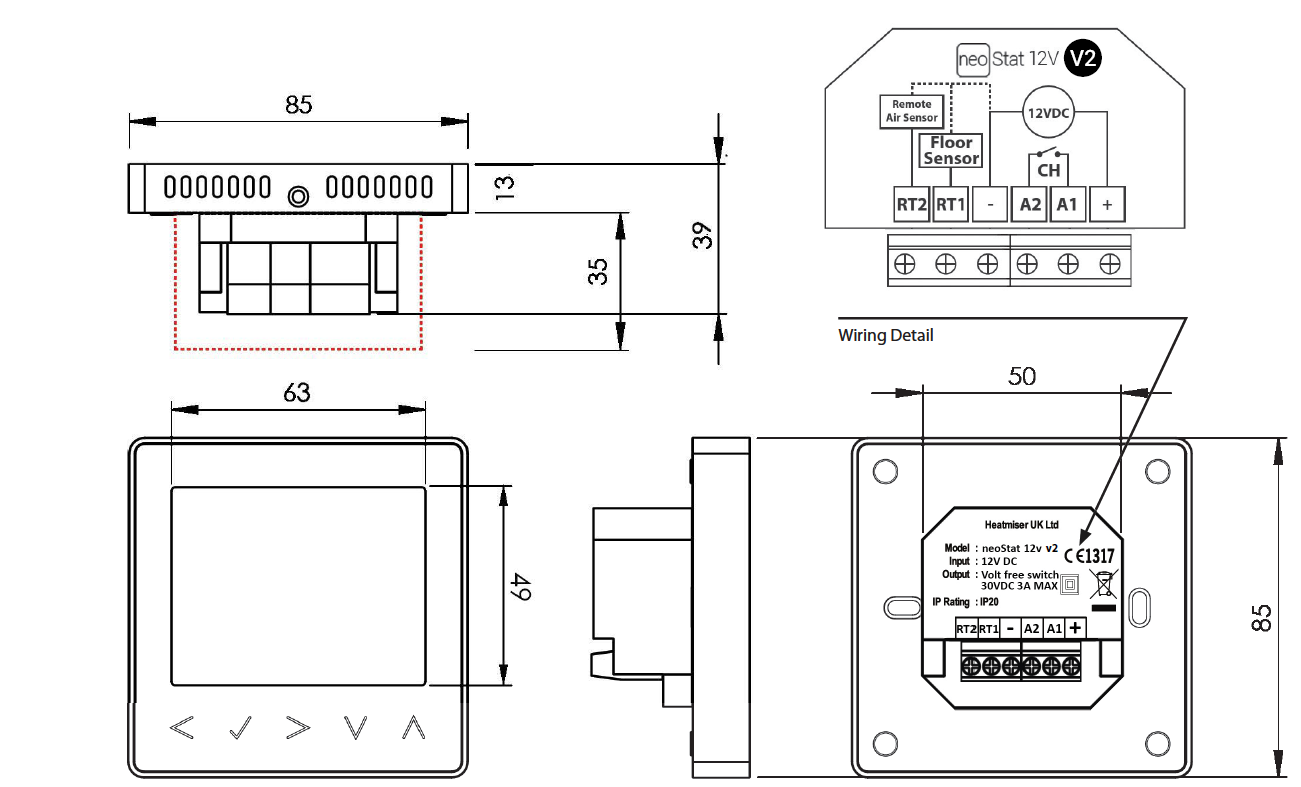

Product Dimensions (mm) & Wiring Specification

Heatmiser-neoStat-V2-12v-Programmable-Thermostat-fig-4

Heatmiser UK Ltd
1 – 5 Hurstwood Court, Mercer Way, Shadsworth Business Park, Blackburn, Lancashire. BB1 2QU, England Registered in England: 3747773
tel. 01254 669090
fax. 01254 669091
email. [email protected]
web. www.heatmiser.com
WEEE Registration Number: WEE/GF0052TQ
