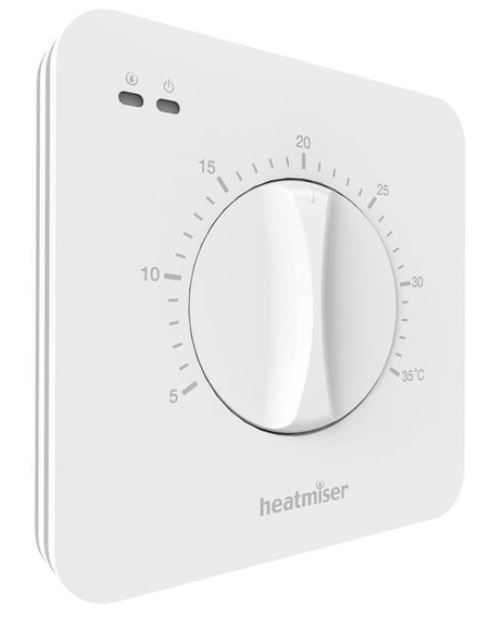

Heatmiser DS1 V2 Dial Thermostat
Specifications
| Temperature Range | 05-35 °C | |
| Mounting Type | Surface | |
| Set Back Function | N | |
| Digital Display | N | |
| Time Clock Override Switch | N | |
| Dial Lock | N | |
| Built In Sensor | Y | |
| Remote Air Sensing Mode | Y | |
| Floor Sensing Mode | N | |
| Remote Probe Included | N | |
| Built In Air & Floor | N | |
| Adjustable Switching Differential | Y | |
| Accuracy | +/- 1.5°C |
| Supply | 230VAC | |
| Rating | 3A | |
| Installed Dimensions (L,H,D) | 92 x 92 x 26mm | |
| Weight | 126g |
Switching Differential Dip Switch Settings:
- oC Switching, Switch 1 & 2 OFF
- oC Switching, Switch 1 ON & 2 OFF
- oC Switching, Switch 1 OFF & 2 ON

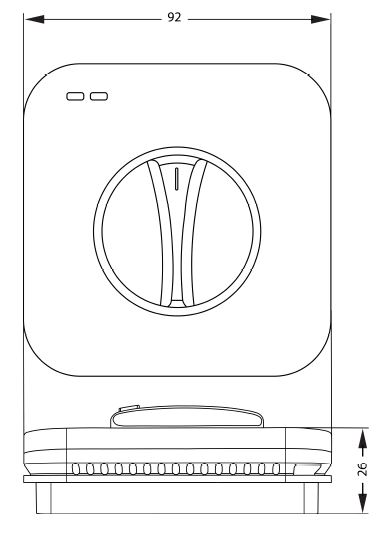

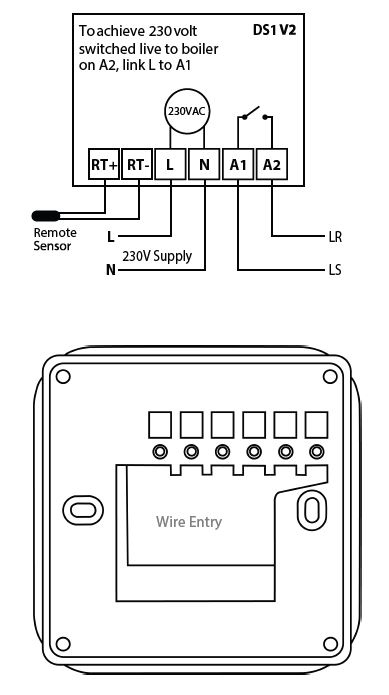

Product Dimensions (mm) & Wiring Specification
Heatmiser UK Ltd
1 – 5 Hurstwood Court, Mercer Way, Shadsworth Business Park, Blackburn, Lancashire. BB1 2QU, England Registered in England: 3747773
tel. 01254 669090
fax. 01254 669091
email. [email protected]
web. www.heatmiser.com
WEEE Registration Number: WEE/GF0052TQ
