Heatit Z-TRM3 Thermostat Z-Wave Product Specifications Guide

heatit-logo

Heatit Z-TRM3 Thermostat Z-Wave

Heatit-4512667-HEATIT Z-TEMP2-Thermostat-Product

Z-Wave battery-operated temperature sensor
Art.no 4512666
GTIN 7071236015307

INTRODUCTION

Heatit Z-Temp2 is a battery-operated thermostat designed for use with water-based heating systems. Used in combination with the Heatit Z-Water you can control your heating system with a Z-Wave primary controller/gateway. This is a “wire-free” solution, saving both time and money.
All communication between the Heatit Z-Temp2 and the controlled device is 100% wireless.
Heatit Z-Temp may be associated with the Heatit ZM Single Relay or another Z-Wave relay in order to control many types of heating solutions. The Heatit Z-Temp2 is an excellent choice when restoring or remodeling existing buildings, as it is easy to install without any need for wiring. We recommend using several 230VAC units to strengthen the mesh network.

SMART HOUSE TECH DATA

  • Z-Wave Frequency Z-Wave – 868.4 MHz (EU)
  • Z-Wave Chip Z-Wave 500 chip
  • Alternate IoT-communication protocols No alternative communication protocols
  • Min radio frequency range 40
  • Over The Air update (OTA) Yes
  • Z-Wave encryption mode S0
    S2 Authenticated Class
    S2 Unauthenticated Class

ELECTROTECHNICALDATA

  • Voltage 230V 50Hz
  • Max load (resistive load) 3600
  • Max current 16A
  • Own power usage 2W
  • Protection grade (IP) IP 21
  • Certifications Z-Wave Plus
  • Switch type One-pole switch
  • The ambient temperature range in use 5 to 40°C
  • Hysteresis 0,3 to 3,0 (default hysteresis 0,5)
  • Max ambient humidity RH 85
  • Declarations CE declaration
  • Max tightening torque connections 2
  • Min. and max ambient humidity (RH%) 10 til 85
  • Connection-type Screw clamps
  • Connection terminals diameter 0.2 til 2.5

AREAS OF USE

  • Z-Wave thermostat
  • Floor sensor
  • Internal room sensor
  • External room sensor (wired by cable)
  • Temperature limiter
  • SmartStart
  • Weekly Schedule
  • The temperature read out in the gateway
  • Firmware update (OTA)
  • Power metering
  • Relay status LED
  • Single pole switch
  • Lock mode/child lock
  • Temperature calibration
  • 5 associations
    Supports encryption modes S0, S2 Authenticated Class, S2 Unauthenticated Class

MAINTENANCE
The device is maintenance-free. Indoor use only.
AREAS OF USE
Approved for use in bathrooms.
The product must be used with a security-enabled Z-Wave Controller in order to fully utilize security/encryption.
PRODUCT INFO RETURN AND RECYCLING
The product must be recycled as electronic waste.

PRODUCT INFO RETURN AND RECYCLING
The product must be recycled as electronic waste

THERMOSTAT DATA
Regulation temperature 5 till 40 Compatible NTC-sensors (kΩ @ 25°C) 10, 12, 15, 22, 33, 47

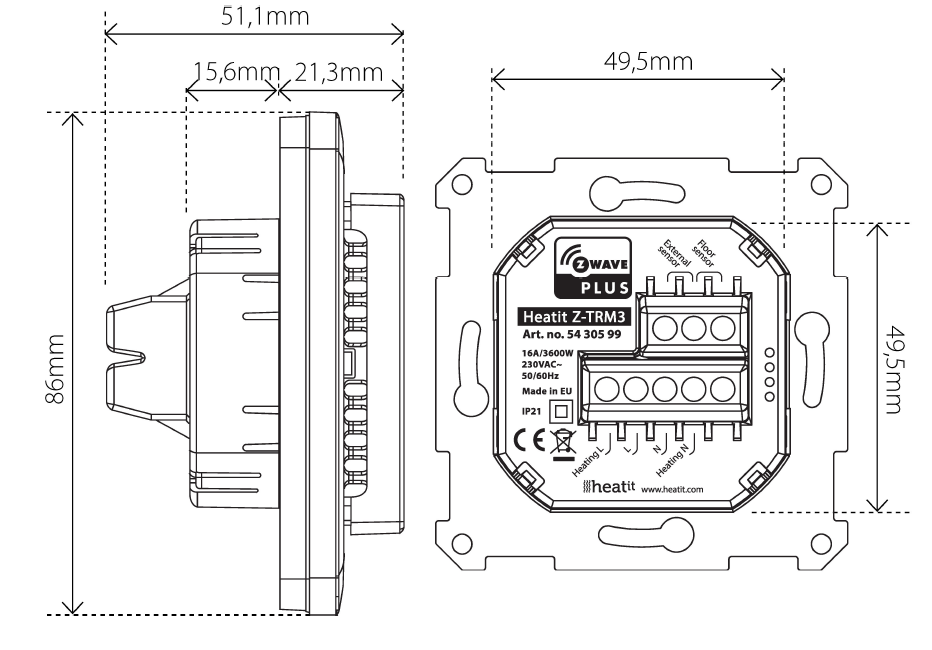

PRODUCT DIMENSIONS
Product height 52mm Product length 87mm
Product weight 109g Product width 87mm
LOGISTICS DATA
Length 114mm Width 125mm
Weight 240g Height/diameter (ø/mm) 78

Heatit-Z-TRM3-Thermostat Z-Wave-Product

Heat it Z-Temp2 White Black can be ordered from www.heatit.com/4512666
All additional documentation is available at the above address and on documents.heatit.com/4512666

Heatit Controls AB Läkarvägen 4, 454 31 BRASTAD, Sweden
+47 61 18 77 77

[email protected]
documents.heatit.com
