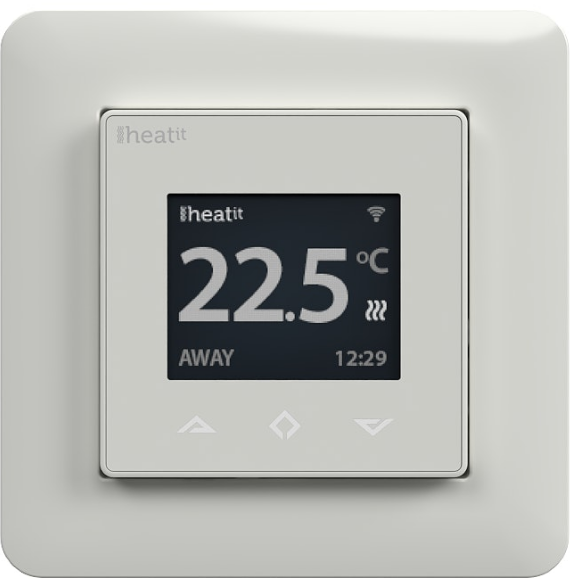

HEATIT RAL-9003 Electronic Thermostat
Introduction
Heatit Z-Therm2 is an electronic thermostat for floor heating in a standard wall box. The thermostat has a built-in Z-Wave chip that can be connected with Home Automation systems like Fibaro, Future Home, Smarthings, Homeseer, Vera, Zipato etc. Heatit Z-Therm2 is equipped with a single pole switch and it fits most System 55 frames (Elko RS16, Schneider Exxact, Gira, Jung etc.). The thermostat can withstand a load of max 13A /2900W at 230V. At higher loads the thermostat must control a contactor. The thermostat may be connected to two wired external sensors. The thermostat has the capacity of up to 8 associations (relays, wall plugs etc.).

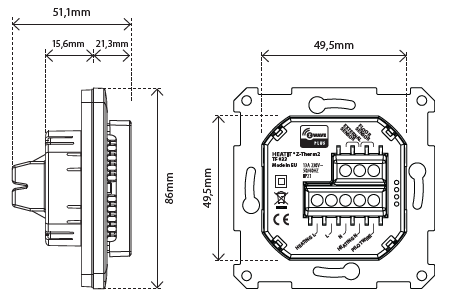

Dimension
FEATURES
- Floor sensor
- Built-in room sensor
- External room sensor
- Temperature limiter
- Z-Wave Plus chip, 500 series
- Weekly program/setback via gateway or pilot wire
- Firmware updates (OTA)
- Power metering
- Multilevel sensor command class
- Supports encryption mode: S0, S2 Access Control Class, S2 Authenticated Class, S2 Unauthenticated Class
- LED-diode
- Can be used in connection with different NTC-sensors
- Lock mode/child lock
- Backlight
- Calibration
- 8 associations
TECHNICAL DATA
- Protocol Z-Wave Plus
- (Pending Certification) – 500 Series
- SDK 6.71.00
- Rated voltage 230V 50/60Hz
- Max load 2900W (resistive load)
- 750W self-limiting heating cable
- Max current 13A
- Power consumption 2,0W
- Power regulator Time cycle 0 – 30 min
- Min/max installation temp -20°C – 40°C
- Min/max operating temp 5°C – 40°C
- Temperature intervals Floor sensor 5°C – 40°C
- External room sensor 5°C – 40°C
- Hysteresis 0,3°C – 3,0°C (default 0,5°C)
- Switch Single-pole switch
- Included in package Floor sensor, Art. no. 54 301 07
- Compatible with NTC sensors with values 10, 12, 15, 22, 33 and 47 kΩ @ 25°C
- IP Class IP 21
- Color White RAL 9003
- Black RAL 9011
| ART. NO. WHITE | ART. NO. BLACK | PRODUCT | Z-WAVE FREQUENCY |
| 54 305 55 | 54 305 56 | Heatit Z-Therm2 thermostat 2900W 13A | EU 868,4 MHz |
| 99 305 98 | 99 305 88 | Heatit Z-Therm2 thermostat 2900W 13A | BR 921,4 MHz |
| 99 305 97 | 99 305 87 | Heatit Z-Therm2 thermostat 2900W 13A | US 908,4 MHz |
| 99 305 96 | 99 305 86 | Heatit Z-Therm2 thermostat 2900W 13A | RU 869 MHz |
| 99 305 95 | 99 305 85 | Heatit Z-Therm2 thermostat 2900W 13A | US2 916 MHz |
| 99 305 94 | 99 305 84 | Heatit Z-Therm2 thermostat 2900W 13A | IND 865,2 MHz |
TERMINAL
Use 1,5mm² or 2,5mm² according to load.
WARRANTY
2 years
