Harmoni Pro-E 16 Amp Wi-Fi Thermostat Product Specification Guide

Harmoni-logo

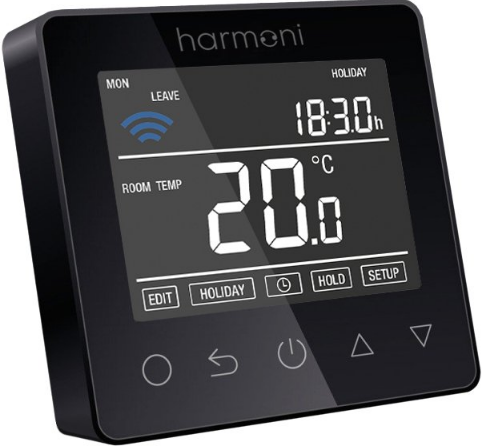

Harmoni Pro-E 16 Amp Wi-Fi Thermostat

Harmoni-Pro-E-16-Amp-Wi-Fi-Thermostat-PRODUCT

Harmoni-Pro-E-16-Amp-Wi-Fi-Thermostat-FIG-1For Wi-Fi versions, the app is compatible with iOS & Android and can be downloaded using the QR code below. Or search for ‘Warmme

The Harmoni Pro series is an intuitive programmable thermostat used to control either electrical or water underfloor heating systems.
It will keep the room at a comfortable temperature whilst minimizing energy use. To control the heating system remotely via the Wi-Fi thermostat, install the app on a smartphone.

KEY FEATURES

Harmoni-Pro-E-16-Amp-Wi-Fi-Thermostat-FIG-2

TECHNICAL SPECIFICATIONS

Electric Water

  • Max switch load 16A 3A
  • Supply voltage 85–265Vac 50/60Hz
  • Standby power <1W
  • IP class IP21
  • Cable specification ≤2.5mm²
  • Switching Differential 0.5°C to 3°C
  • Accuracy +/− 1°C
  • Set Temperature Range 5°C (41°F) to 50°C (122°F)
  • Face Plate Dimensions
  • L×W×D 87mm × 87mm × 15mm
  • Weight 175g
  • Back Box Requirement 35mm single gang
  • Wi-Fi Functionality Yes

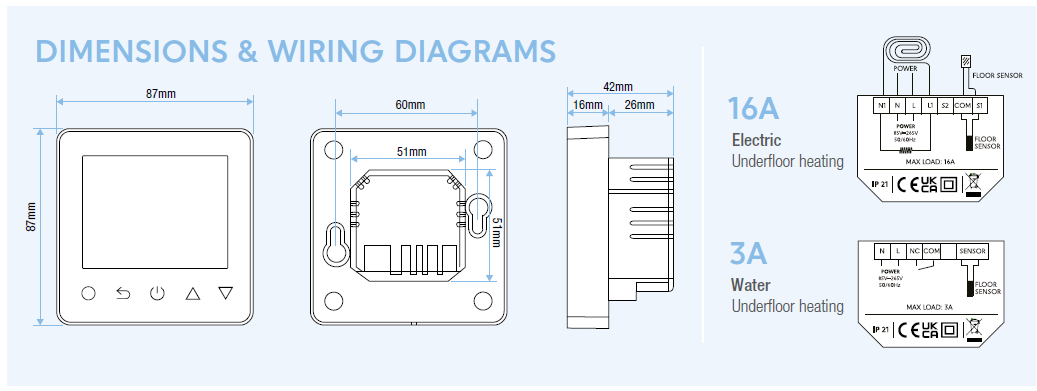

DIMENSIONS & WIRING DIAGRAMS

Harmoni-Pro-E-16-Amp-Wi-Fi-Thermostat-FIG-2

MORE FEATURES

  • Backlit screen Yes
  • Non-programmable mode Yes
  • 7-day programming mode Yes
  • 24-hour mode Yes
  • Set points per day 4
  • Holiday mode Yes
  • Key lock function Yes
  • Energy use function Yes
  • Frost protection (5°c – 15°c) Yes
  • Temperature format °C | °F
  • Sensor selection Air | Floor | Both
  • Built-in air sensor Yes
  • Remote air sensing mode No
  • Remote floor sensing mode Yes
  • The remote probe included Yes
  • Modbus function No
  • Switching differential 1°C to 3°C
  • Supply 230v AC

DEFAULTS & RANGES

Number Name Default Ranges

  1. Room temperature calibration 0°C −5.0°C to 5.0°C
  2. Floor temperature calibration 0°C −5.0°C to 5.0°C
  3. Anti-frozen function ON OF(OFF) | ON
  4. Anti-frozen temperature 5.0°C −5.0°C to 15.0°C
  5. Sensor selection 01: Floor sensor 00: Room sensor | 01: Floor sensor | 02: Both sensors
  6. Floor temperature limit 30.0°C 20.0°C to 50.0°C
  7. Temperature unit 0°C 00: °C | 01: °F
  8. Output delay 0 seconds 0s | 01: 30sec | 02: 60sec | 03: 90sec
  9. Temperature deviation 01: 1.0°C 00: 0.5°C | 01: 1.0°C | 02: 2.0°C | 03: 3.0°C
  10. Reverse output 00: OFF 00: OFF | 01: ON
  11. Schedule 01: 5+1+1 00: 7 | 01: 5+1+1
  12. Adaptive function 00: OFF 00: OFF | 01: ON
  13. Reset 00: NO 00: NO | 01: YES
