Harmoni HTP100 100+ Digital Wifi Thermostat Product Specification Guide

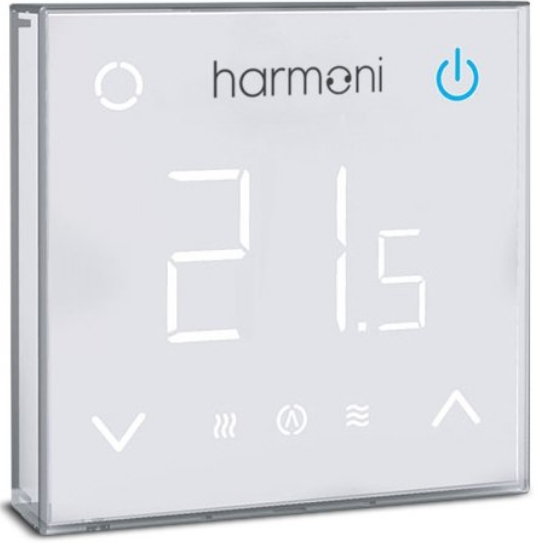

Harmoni HTP100 100+ Digital Wifi Thermostat

Wi-Fi control with Harmoni App is available on the Play Store and App Store. Works on iOS & Android: Search ‘Harmoni Heating’

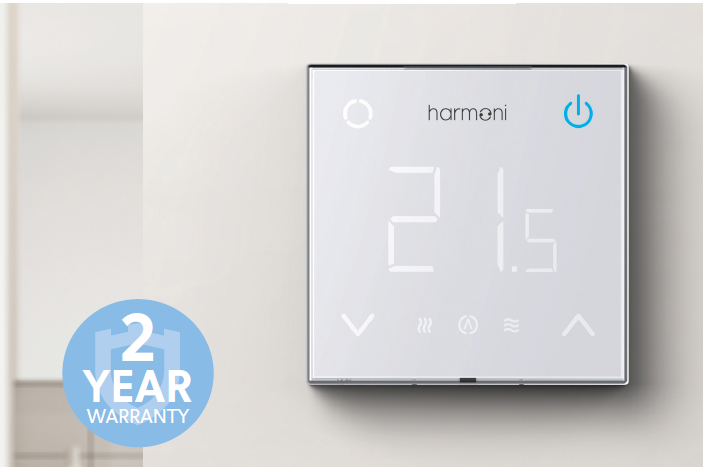

The Wi-Fi-enabled Harmoni 100+ is an intelligent underfloor heating control with a stylish touchscreen display. The Harmoni 100+ can be controlled from a smart device wherever you are, whenever you want via the Harmoni App. And as the 100+ uses a Wi-Fi connection, it doesn’t require a wired installation.

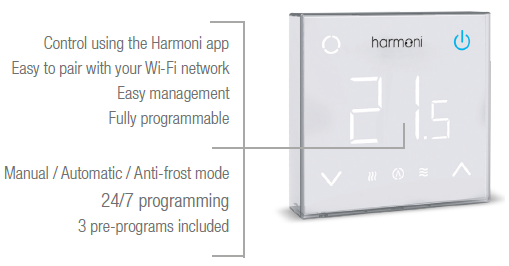

KEY FEATURES

TECHNICAL SPECIFICATIONS

• Model 100+
• Wi-Fi enabled Yes
• Finish White
• Installed depth 35 mm*
• Dimensions 77 (W) × 77 (H) × 15mm (D)
• Weight 130 grams
• Voltage 220–240 V
• Maximum load 3680 W
• Sensor: ground probe NTC 10K (3 m) Yes
• Sensor: air probe
• (ambient temperature) Yes

Requires an electrical enclosure box with 35 mm depth. Not included.
