Haisen HY516WE Electric Underfloor Heating Thermostat User Manual

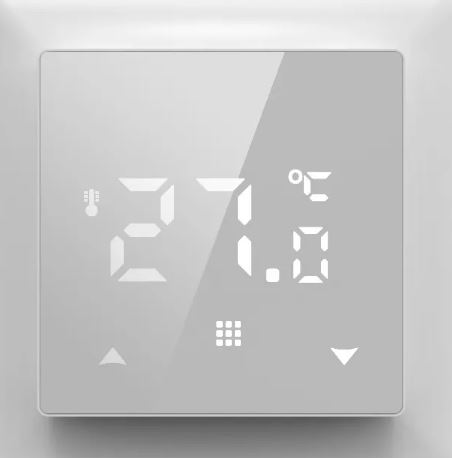

Haisen HY516WE Electric Underfloor Heating Thermostat

Specifications

• Warranty: 2 years
• Voltage: 100-240V 50/60Hz
• Setting Temperature Range: 5~35°C
• Display accuracy: ±0.5°C
• Relay: 16A
• Material: Anti-flammable PC +ABS
• Design: Modern
• Brand: Haisen

Introduction

A state-of-the-art tool for the precise management of electric underfloor heating systems is the HY516WE Electric Underfloor Heating Thermostat. It is particularly designed to regulate the temperature of your underfloor heating system to efficiently maximize comfort and energy efficiency in your living area. A variety of cutting-edge features are available on the HY516WE thermostat to improve your experience with underfloor heating. Accessing different settings and regulating the temperature are simple tasks thanks to the system’s user-friendly controls and intuitive UI.

The programmability of the HY516WE thermostat is one of its primary characteristics. A personalized eating plan that fits your lifestyle and tastes may be simply programmed. With the ability to set various temperatures for various times of the day or days of the week, you can ensure maximum comfort when you want it and save energy when you do not. Your underfloor heating system will run effectively and properly maintaining the appropriate temperature thanks to the thermostat’s precise temperature control. This makes it easier to live comfortably while using less energy and paying less for it. The HY516WE thermostat also has extra features including frost prevention, vacation mode, and temperature calibration. You may adjust the thermostat’s temperature reading for even better precision by using temperature calibration. With the help of holiday mode, you may establish a steady temperature while you’re gone to save electricity. By keeping your underfloor heating system operational in subfreezing conditions, frost prevention helps to avoid pipe zero and subsequent damage.

What’s In the Box?

• Haisen Thermostat
•  Screws
• User Manual

Efficient Energy Control
Only the Heat Rooms when you need them, unnecessary energy consumption will be avoided.

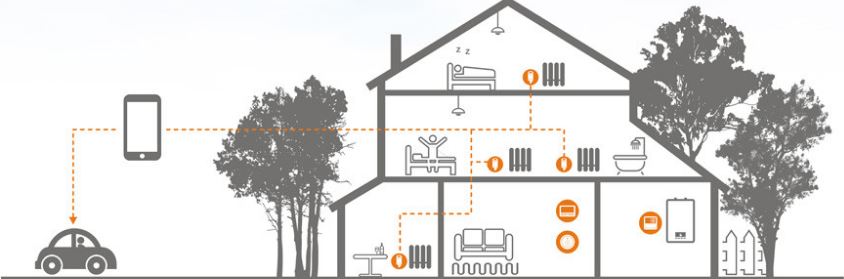

Remotely Control
With Smart heating controls, you have the ability to manage and view energy use for each room in the house from anywhere in the world providing you internet connection.

Make the Heating system more Closely to your daily life
The daily time period is unlimited, you can make your heating schedule close to your daily life.

Boiler Heating

Electric heating

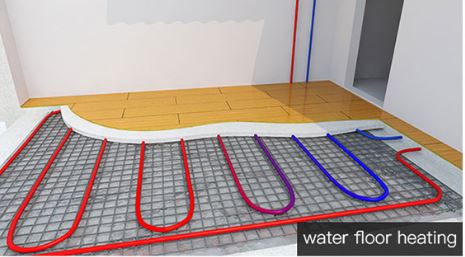

Water Floor Heating

Water Heating

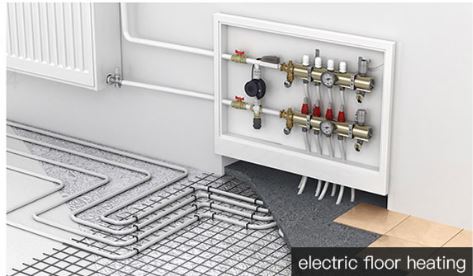

Electric Floor Heating

How To Mount?

To mount the HY516WE Electric Underfloor Heating Thermostat, please follow these general steps:

• Choose an appropriate location
  Select a mounting place for the thermostat that allows for simple access and a good view of the display. It needs to be distant from heat sources like the sun, wind, and direct sunlight.
• Offset the power
  Make sure that the electricity to your underfloor heating system is switched off at the circuit breaker before beginning the installation procedure. Your safety during the installation will be ensured by doing this.
• Get the mounting surface ready
  Use a moderate home cleanser to clean the mounting surface, then let it thoroughly dry. Make sure the surface is clean, smooth, and clear of any debris that can prevent the mounting plate from adhering.
• The mounting plate in place
  Align the mounting plate that came with the thermostat with the desired wall placement. Mark the screw holes on the wall with a pencil. The mounting plate should then be fastened to the wall using the required screws or wall anchors.
• Organize the wiring
  Connect the cabling from your underfloor heating system to the relevant terminals on the back of the thermostat after the mounting plate is firmly in place. If necessary, get expert assistance or adhere to the wiring diagram supplied in the thermostat installation instructions.
• The thermostat should be attached to the mounting plate
  Slide the thermostat downward until it snaps into place after carefully aligning it with the mounting plate. Make sure it is not moving or wobbling and that it is properly fastened to the mounting plate.
• Re-energize, then test
  After installing the thermostat, switch on the circuit breaker to restart your underfloor heating system. By adjusting the thermostat to the appropriate temperature, you may check to see whether the underfloor heating system works as intended.

Frequently Asked Questions

Q: Is the HY516WE thermostat compatible with all types of underfloor heating systems?
A: The HY516WE thermostat is designed to be compatible with a wide range of electric underfloor heating systems. However, it is recommended to verify compatibility with your specific heating system before purchasing. Consult the product specifications or contact the manufacturer for compatibility information.

Q: How do I program the thermostat’s schedule?
A: To program the schedule on the HY516WE thermostat, access the programming menu using the intuitive controls or buttons. Follow the prompts to set different temperature levels for different times of the day or days of the week. Refer to the user manual for specific instructions on programming the thermostat’s schedule.

Q: Can I manually adjust the temperature without affecting the programmed schedule?
A: Yes, the HY516WE thermostat typically allows for manual temperature adjustments. You can temporarily adjust the temperature to your desired level without altering the programmed schedule. The thermostat will revert to the programmed settings at the next scheduled time period.

Q: Does the thermostat have a holiday mode or frost protection feature?
A: Yes, the HY516WE thermostat may offer a holiday mode and frost protection feature. The holiday mode allows you to set a constant temperature while you are away for an extended period, helping to conserve energy. The frost protection feature ensures that your underfloor heating system remains active during freezing temperatures to prevent pipe damage.

Q: Can I calibrate the thermostat’s temperature reading?
A: The HY516WE thermostat typically provides a temperature calibration feature. This allows you to fine-tune the thermostat’s temperature reading for greater accuracy. Consult the user manual for specific instructions on how to calibrate the temperature reading.

Q: Does the thermostat support remote control or smartphone connectivity?
A: The HY516WE thermostat is generally not equipped with remote control or smartphone connectivity features. It operates as a standalone thermostat, relying on its intuitive controls and programming options.

Q: How do I reset the thermostat to factory settings?
A: To reset the HY516WE thermostat to factory settings, access the reset option in the menu settings. Follow the instructions provided in the user manual to perform a reset. Typically, it involves accessing a specific menu option or using a combination of buttons.
