GREENLITE -G2 Wi-Fi- Enabled- Smart -Thermosta-FEA

GREENLITE G2 Wi-Fi Enabled Smart Thermostat G2 Product Specifications Guide

GREENLITE LOGO

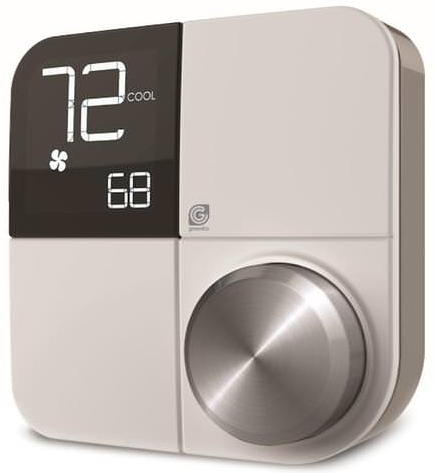

GREENLITE G2 Wi-Fi Enabled Smart Thermostat

 GREENLITE -G2 Wi-Fi- Enabled- Smart -Thermosta-PRO

It’s zero degrees of difficulty…!

Greenlite’s smart thermostat is packed full of smart features like seamless connectivity with major voice assistants Amazon Alexa and Google Assistant so you can enjoy comfort on command. Never worry about whether you forgot to adjust the thermostat before you left home again. Your new thermostat automatically senses your presence and adjusts to your preselected home and away temperatures so you can save green… that’s both dollars and energy savings! You can also set a schedule that best works for you. Greenlite’s airz smart thermostat is here to make life simple as possible

GREENLITE -G2 Wi-Fi- Enabled- Smart -Thermosta-PRO - 1

Dimensions

Dimensions Height: 4.5” (114.3 mm), Width: 4.5” (114.3 mm),

Depth: 1.0” (25.4 mm)

Heat/Cool Terminals Heat: 2 total (W1/2, W2/O/B) Cool: 1 total (Y1)
Electrical Voltage Range: 20-30V AC

Max Avg. Current Draw: 120mA at 24V AC Total Output            (Max Combined Load): 30V AC and 4.2A               load

Temperature Control Range Control Range: 45F to 90F (7C to 32C) Display Range: 32F to 99F (0C to 37C)
Environmental Limits Limits: 14F to 122F (-10C to 50C) Storage Limits: -4F to 140F (-20C to 60C)

Humidity: 20% to 80% non-condensing

Moisture and Dust: Up to IP20

WiFi 2.4GHz: 802.11 b/g/n SHA256RSA data

Network commissioning through iOS/Android app or WPS

Program and system              stored on the device

for set up and               – with or without WiFi

 With Universal  with forced air, gas, oil and electric furnaces up to 2h/1c and heat

pump systems with or without aux/emergency heat. Power with C-wire or Power Bridge

(included)

Not  With 120V/240V line voltage systems

ENERGY SAVING FEATURES

  • Geofencing: Home & Away Aware ™
  •  Smart Scheduling
  •  Utility: Demand Response Capable
  • Reporting: Energy & Run Time Usage
  • Apps: IOS & Android

CONNECTIVITY

  • Radio: WiFi certified 802.11 b/g/n
  •  Frequency:2.4 GHz
  •  Encryption: SHA256RSA System
  • Conventional: Forced air, gas, oil and electronic furnaces (up to 2h/1c)
  •  Heat Pumps: With or without
  • Aux/Emergency Heat
  • Power: C Wire or PowerBridge (Included)

Greenlite

Reference

Download Manual:

GREENLITE G2 Wi-Fi Enabled Smart Thermostat G2 Product Specifications Guide

GREENLITE LOGO

GREENLITE G2 Wi-Fi Enabled Smart Thermostat G2 Product Specifications Guide
