Google Nest T3007ES Programmable Smart Thermostat SPECIFICATION DATA SHEET

Google Nest T3007ES Programmable Smart Thermostat

IN THE BOX

• Display
• Base
• Optional trim kit
• Mounting screws and labels
• Nest screwdriver
• Installation Guide
• Welcome Guide
• Nest Pro installation card

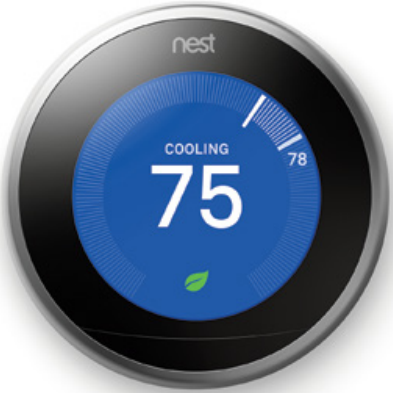

Meet the Nest Learning Thermostat.
It learns what temperatures you like, turns itself down when you’re away and connects to your phone. It has a big, sharp display. And it’s proven to help save energy. In independent studies, the Nest Thermostat saved an average of 10% to 12% on heating bills and 15% on cooling bills. We’ve estimated average savings of $131 to $145 a year.

How does it work?

Auto-Schedule
No more confusing programming. It learns the temperatures you like and programs itself.

Remote control
Connect the Nest Thermostat to Wi-Fi to change the temperature from your phone, tablet or laptop.

Nest Leaf
You’ll see the Leaf when you choose a temperature that saves energy. It guides you in the right direction.

Early-On
Nest learns how your home warms up and keeps an eye on the weather to get you the temperature you want when you want it.

Home/Away Assist
The Nest Thermostat automatically turns itself down when you’re away to avoid heating or cooling an empty home.

Energy History
See when heating and cooling were on and what affected your energy use.

Safety Temperature Alerts
Get an alert on your phone or tablet if your home gets dangerously hot or cold.

Farsight
When the Nest Thermostat spots you across the room, it lights up beautifully to show you the time, temperature or weather.

FEATURE

• Auto-Schedule
• Home/Away Assist
• Energy History
• Home Report
• Nest Leaf
• Nest app
• Farsight
• Airwave
• System Match: Early-On,
• Heat Pump Balance,
• True Radiant
• Time-to-Temperature
• Weather aware
• Advanced Fan Control
• Sunblock
• Cool to Dry
• Thermostat Lock
• Software updates over Wi-Fi
• Safety Temperature Alert
• Furnace Heads-Up
• Filter Reminder
• System Test

SPECS

Color

• Stainless Steel
• White
• Black
• Copper
• Polished Steel
• Mirror Black
• Brass

Display

• 24-bit color LCD
• 480 x 480 resolution
• 2.08 in (5.3 cm) diameter

Sensors

• Temperature
• Humidity
• Near-field activity
• Far-field activity
• Ambient light

Size and weight

• Display
  • Mass: 7.25 oz (205.4 g)
  • Diameter: 3.3 in (8.4 cm)
  • Height: 1.06 in (2.69 cm)
• Base
  • Mass: 1.35 oz (38.3 g)
  • Diameter: 3 in (7.6 cm)
  • Height: 0.42 in (1.1 cm)
• Assembled
  • Mass: 8.6 oz (243.7 g)
  • Diameter: 3.3 in (8.4 cm)
  • Height: 1.21 in (3.08 cm)

Remote control requirements

• Wi-Fi connection with internet access
• Nest app on phone or tablet with iOS or Android
• Latest version of Safari, Chrome,
• Firefox or Internet Explorer on
• Mac OS X v10.9 or later and
• Windows 7 or later
• Free Nest Account

Languages

• English
• French
• Spanish
• Dutch

Wireless

• Working Wi-Fi connection:
• 802.11b/g/n @ 2.4GHz, 5GHz
• Wireless interconnect:
• 802.15.4 @ 2.4GHz
• Bluetooth Low Energy (BLE)

Battery

• Built-in rechargeable lithium-ion battery

Power consumption

• Less than 1 kWh per month

Warranty

2-year limited warranty. For help, visit nest.com/support. Our support team is also available by phone 24/7.

COMPATIBILITY

The Nest Learning Thermostat works with 95% of 24V heating and cooling systems, including gas, electric, forced air, heat pump, radiant, oil, hot water, solar and geothermal.

• Heating: 1, 2 and 3 stages (W1, W2, W3)
• Cooling: 1 and 2 stages (Y1, Y2)
• Heat pump: with auxiliary and emergency heat (O/B, AUX, E)
• Humidifier or dehumidier (HUM, DEHUM)
• Fan (G)
• Power (C, RH, RC)
