Genebre 3917 Heat – Cool Digital Thermostat

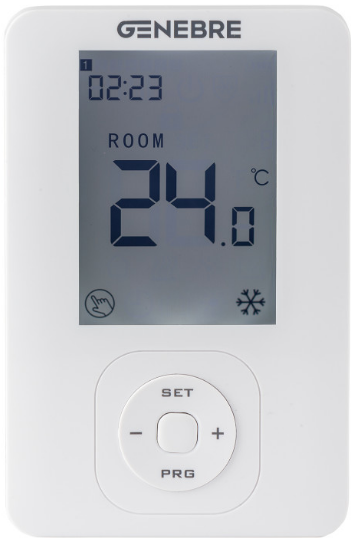

Genebre 3917 Heat - Cool Digital Thermostat  PRO

Features

  • Heat / cool thermostat
  • 7 days programmable
  • Surface mounting
  • CE, Rohs approved

Technical Data

  • Power supply: 2*AAA battery
  • Relay contact: 250 VAC (0,25A)
  • Set Point Range: 5ºC – 35ºC (0.5 ºC increase)
  • Ambient: 0ºC ~ 50ºC
  • Relative Humidity: 85%
  • Backlight: White
  • Sensor: NTC 10K
  • Accuracy: ± 1ºC
  • Protection Class: IP30
  • Housing: ABC+PC

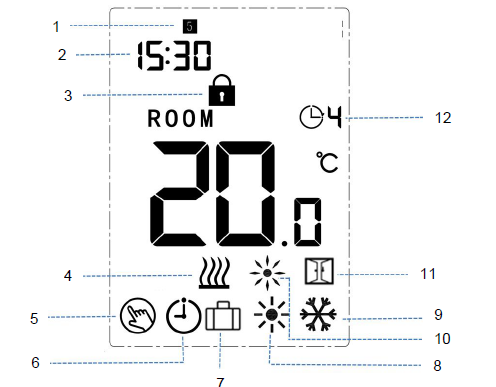

Display

  1.  Weekday
  2.  Clock
  3.  Child lock
  4.  Heating on
  5.  Manual mode
  6.  Program mode
  7.  Away mode
  8.  Heating mode
  9.  Cooling mode
  10.  Cooling ON
  11.  Window opened mode
  12.  Current program period

Genebre 3917 Heat - Cool Digital Thermostat Product 1

Child lock
Under child lock ON (refer to Menu 11 of parameter Setting), the buttons will lock once backlight off. Press and hold the SET button for 5s to unlock it for temporary adjust

Mode select

Short Press SET button to select between Heating Mode & Cooling Mode. Short press PRG button to select between MAN Mode & PRG Mode

  • Heat mode:Genebre 3917 Heat - Cool Digital Thermostat  2  Cool modeGenebre 3917 Heat - Cool Digital Thermostat  3
  • Heating on:Genebre 3917 Heat - Cool Digital Thermostat  8  Cooling onGenebre 3917 Heat - Cool Digital Thermostat  4

Clock & Weekday Setting
 Press and hold SET button for 5s, set the clock (Min-Hour-Weekday) by pressing + and – button, each press of SET button will go to the next item setting

Description

  • Clock setting – minute
  • Clock setting – hour
  • Weekday setting
  • Pre-set temp. for away mode

7 Days Programmable Setting

  •  Press and hold PRG button for some time to enter program setting.
  •  Set the schedule (Weekday-Period-Start time-Temp.) by pressing + and – button, each press of PRG button will go to next item setting.

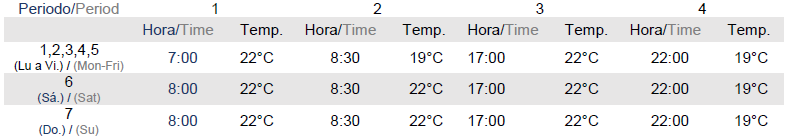

ExampleGenebre 3917 Heat - Cool Digital Thermostat Product 7

Open Window Detect Function (OWD function)

When the Open Window mode is enabled in the parameter setting, the system will automatically stop heating when it detects a sudden drop of room temperature (2°C in 15 minutes as default). This is normally caused when a window or door is opened without turning off the heating device.The device will return to the previous mode of operation after 30mins, then disappear. Press any button will exit OWD function during the heating off period

Parameter setting

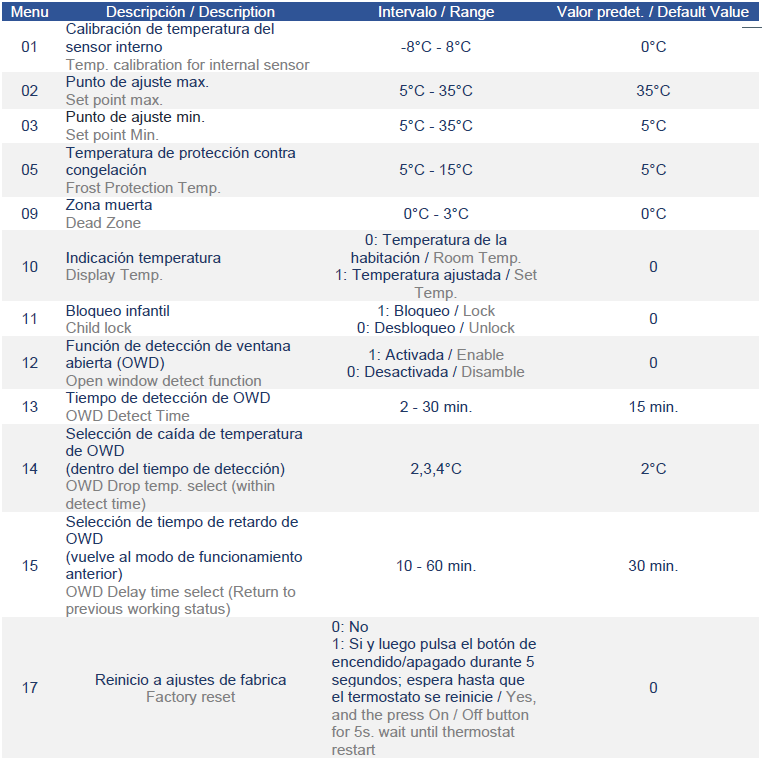

Under off mode, press and hold SET button and + button for 6 seconds to enter parameter setting. Each press of SET button will go to next item setting. Adjust the value by pressing + or – button.Genebre 3917 Heat - Cool Digital Thermostat Product 4

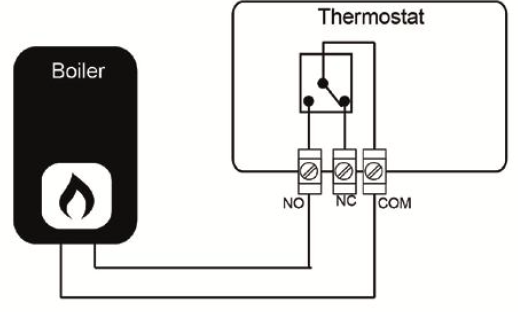

WIRING DIAGRAMGenebre 3917 Heat - Cool Digital Thermostat Product 5

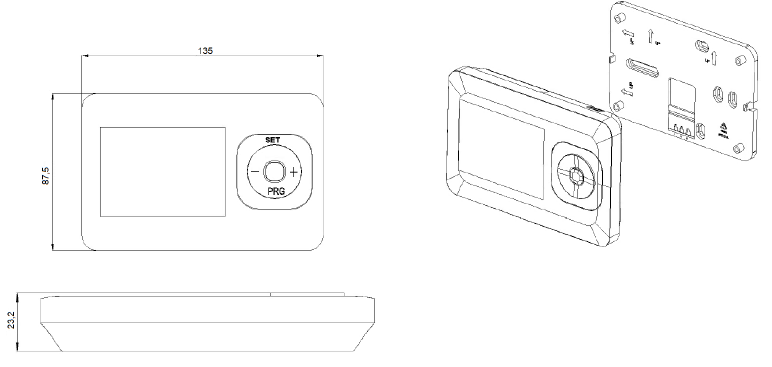

INSTALLATION AND DIMENSION

Genebre 3917 Heat - Cool Digital Thermostat Product 6
