Genebre 3917 Heat – Cool Digital Thermostat
KEY FEATURES
• Heat / cool thermostat
• 7 days programmable
• Attractive modern styling
• Surface mounting.
• CE, Rohs approved
TECHNICAL DATA
- 2*AAA battery power supply
- Relay contact: 250 VAC (O,25A)
- Set Point Range: 5 – 350C 0.50C increase)
- Ambient: OOC – 500C
- Relative Humidity: 85%
- Backlight: White
- Sensor: NTC 10K
- Accuracy: ± IOC
- Protection Class: IP30
- Housing: ABC+PC

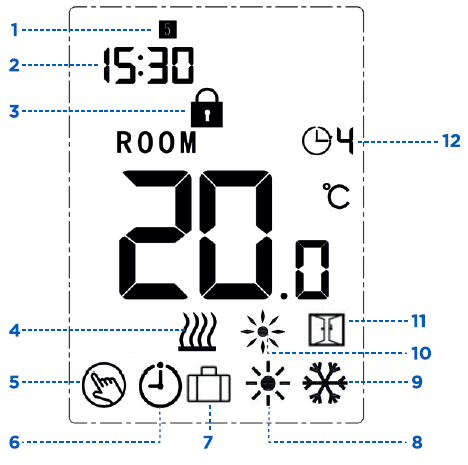

DISPLAY
- Weekday
- Clock
- Child lock
- Heating on
- Manual mode
- Program mode
- Away mode
- Heating mode
- Cooling mode
- Cooling on
- Window opened mode
- Current program period
CHILD LOCK
Under child lock ON (refer to menu 11 of parameter setting), the buttons will lock once backlight off. Press and hold the SET button for Ss to unlock it for temporary adjust.
| Menu | Description | Range | Default value |
| 01 | Temp. calibration for internal sensor | -8oC – 8oC | 0oC |
| 02 | Set Point Max. | 5oC – 35oC | 35oC |
| 03 | Set Point Min.. | 5oC – 35oC | 5oC |
| 05 | Frost Protection Temp. | 5oC – 15oC | 5oC |
|
10 |
Display Temp. |
0: Room Temp.
1: Set Temp |
0 |
| 09 | Dead zone | 0oC – 3oC | 0oC |
|
11 |
Child Lock |
1: Lock
0: Unlock |
0 |
|
12 |
Open window detect function |
1: Enable
0: Disable |
0 |
| 13 | OWD Detect Time | 2 – 30 min. | 15 min. |
| 14 | OWD Drop temp. select
(within detect time) |
2,3,4oC. | 2oC |
| 15 | OWD Delay time select
(Return to previous working status) |
10 – 60 min. | 30 min. |
|
17 |
Factory reset |
0: No
1: Yes, and the press On/Off button for 5s. wait until thermostat restart |
0 |
MODE SELECT
Short Press SET button to select between Heating Mode & Cooling Mode. Short press PRG button to select between MAN Mode & PRG Mode.
- Heat mode:
Cool mode
- Heating on:
Cooling on
CLOCK & WEEHDAY SETTING
Press and hold the SET button for 5s, set the clock (Min-Hour-Weekday) by pressing and – button, each press of SET button will go to next item setting.
| Menu | Description |
| 01 | Clock setting: minute |
| 02 | Clock setting: hour |
| 03 | Weekday setting |
| 04 | Pre-set temp. for away mode |
7 DAYS PROGRAMMABLE SETTING
- Press and hold PRG button for some time to enter the program setting.
- Set the schedule (Weekday-Period-Start time-Temp.) by pressing the + and • buttons, each press of PRG button will go to next item setting.
Example:
| Period | 1 | 2 | 3 | 4 | ||||
| Time | Temp. | Time | Temp. | Time | Temp. | Time | Temp. | |
| 1,2,3,4,5
(Mon- Fri.) |
7:00 | 22oC | 8:30 | 19oC | 17:00 | 22oC | 22:00 | 19oC |
| 6 (Sat.) | 8:00 | 22oC | 8:30 | 22oC | 17:00 | 22oC | 22:00 | 19oC |
| 7 (Sun.) | 9:00 | 22oC | 8:30 | 22oC | 17:00 | 22oC | 22:00 | 19oC |
OPEN WINDOW DETECT FUNCTION (OWD function)
When the Open Window mode is enabled in the parameter setting, the system will automatically stop heating when it detects a sudden drop of room temperature (2°C in 15 minutes as default). This is normally caused when a window or door is opened without turning off the heating device The device will return to the previous mode of operation after 30mins, then disappear. Pressing any button will exit the OWD function during the heating-off period.
PARAMETER SETTING
Under off mode, press and hold SET button and + button for 6s to enter parameter setting. Each press of SET button will go to next item setting. Adjust the value by pressing + or – button.

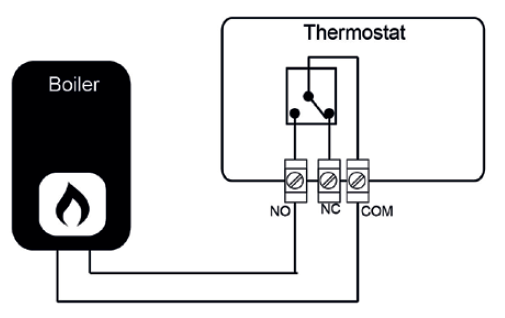

WIRING DIAGRAM

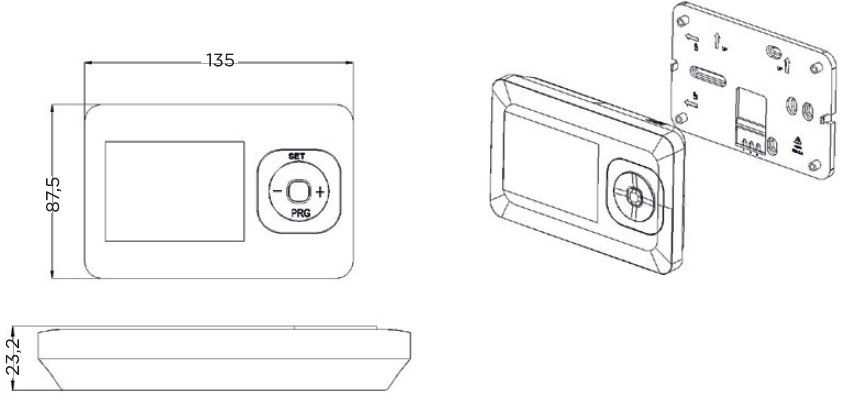

INSTALLATION AND DIMENSION
IMPORTANT INFORMATION FOR THE CORRECT DISPOSAL OF A THE PRODUCT
At the end of its working life, the product must not be disposed of as urban waste. It must be taken to special differentiated waste collection centers, set up by local authorities or to dealers providing this service. Disposing of an electric or electronic appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of electric and electronic appliances separately, the product is marked with a crossed-out wheeled dustbin.
