GE Appliances RAK180W1 Energy Management Wireless Thermostat
THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME. Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family. We take pride in the craftsmanship, innovation, and design that goes into every GE Appliances product, and we think you will too.
IMPORTANT SAFETY INFORMATION
WARNING: FIRE AND SHOCK HAZARD
- Always turn off power at the main power supply before installing, cleaning, or removing the thermostat. Failure to do so could result in an electrical shock hazard.
- Do not use on voltages over 30 VAC. Higher voltages will damage the thermostat and could cause shock or fire hazards.
NOTICE
- All wiring must conform to local and national electrical and building codes.
- Use this thermostat only as described in this manual.
Specifications
- Electrical rating: 24 VAC (18–30 VAC)
- 1 amp maximum per terminal
- 4 amp maximum total load
- Operating temperature range: 40°F–99°F (4°C–37°C)
- System Configurations: 1 stage cool, 2 stage heat (heat pump/resistance heat)
- 1 stage cool, 1 stage heat (resistance heat)
- Terminations: *R, C, W, Y, GH, GL, B for 2-stage heat
- R, C, W, Y, GH, GL, for 1-stage heat
- Wiring: Maximum wiring length is 66ft (20 meters) for AWG18
- The maximum wiring length is 60ft (18 meters) for AWG20
Before You Begin
- Determine the appropriate installation location for the thermostat The thermostat should face the bed area of the room.
- The thermostat must not be installed near or on metal structures or surfaces including metal air ducting that may be in the wall. reduce the range of the wireless signal.
- Refer to the Zoneline Owner’s Manual to change the AUX setting to 6A (class 2 mode). The unit will display “use wall thermostat” when finished.
- Zoneline output is 24VAC. Be sure the jumper on the wireless control card is on the AC position – the jumper is connecting “R” and “C” (common) pins. This is the default position.
- Other Zoneline Auxilary Control Settings for use with
- DBM & *EBM Models
- Mode E: Enables Zoneline Makeup air vent door control turned on to utilize this feature.
- Refer to the Zonelines Owner’s Manual for instructions on how to change this AUX setting/mode.
NETWORK INSTALLATION ONLY
NOTE: This section is not required unless the thermostats are networked Pairing the Thermostat and the Control Card: In the case of Network Installation with online management, the thermostat and the Control Card must be paired with a Network Programmer specific to the property before the installation.

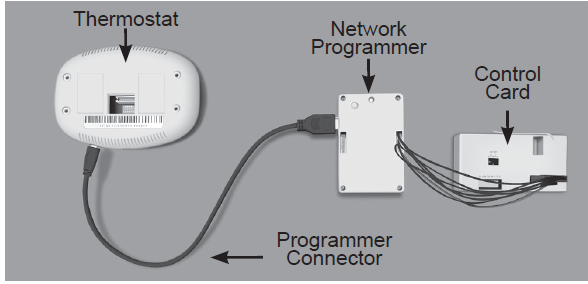

Note: The thermostat and Control Card are factory paired.
The thermostat and control card must not be powered during the pairing procedure – remove the batteries from the thermostat and unplug the control card from the HVAC unit during the pairing procedure.
- Plug one programmer connector into the thermostat;
- Plug the other programmer connector into the control card.
- Push the black button on the programmer.
- The red light on the programmer should turn on and remain steadily lit.
- If the red light on the programmer is blinking or is not steadily lit, unplug the programmer from the thermostat and the control card and repeat the steps above.
- Unplug the programmer from the thermostat and the control card.
Thermostat Installation
Installing the Wireless Control Card
- Power off the Zoneline

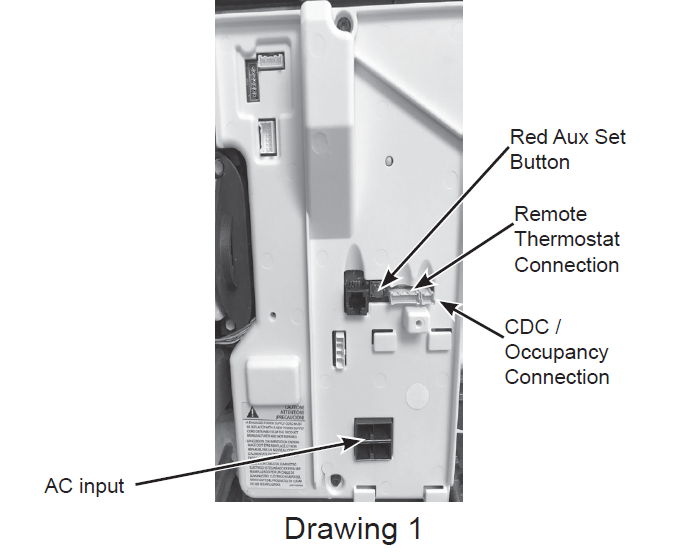

- Insert the Control Card wiring harness into the thermostat connection port on the front of the Zoneline control box cover.
- For Makeup Air Models (*DBM and *EBM), insert the small connector into the mating CDC Connection port next to the thermostat port. (See Drawing 1)
NOTE: If not a Makeup Air Model, DO NOT plug in the CDC/ occupancy connection.
Installing the Wireless Control Card (cont.)

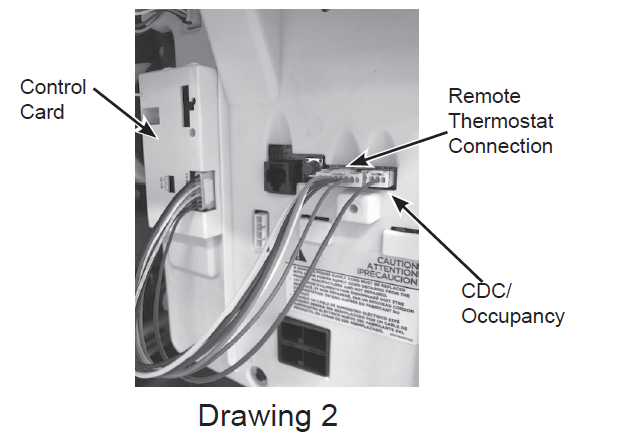

- Using the supplied double-sided tape, attach the control card to the Zoneline control box cover. (See Drawing 2)Mount the control card inside of the HVAC unit.
- The wireless control card antenna must not be touching any metal components of the HVAC unit.
- The wireless control card antenna must face the thermostat on the wall and be oriented so that any metal parts of the Zoneline do not obstruct the wireless communication to the thermostat and, in the case of a network installation, to other wireless control cards, and to the server.
- The wireless control card must not be placed in the Zoneline condensation pan and must be mounted so it cannot fall into the condensation pan.
- For wired applications, join the common and 24VAC wires with any code-approved low voltage field supplied connection method.
Wiring Table – 24V AC
Wire Color | Terminal Letter | Terminal Connection |
Black | C | Common |
Red | R | 24V |
Yellow | Y | Compressor |
White | W | Heat |
Orange | O or B | Reversing Valve |
Green | GH | Fan High |
Purple | GL | Fan Low |
Brown | AUX | Occupancy |
NOTE: If the PTAC unit has only one (1) fan speed, connect both fan control wires – Green and Purple – to the fan terminal (G).

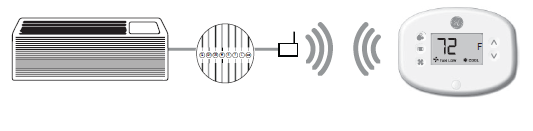

Wireless Installation
Mounting the thermostat to the wall
- Remove the thermostat cover;
- Use the supplied wall anchors and mounting screws to secure the thermostat to the wall;
- Insert two (2) AA-cell batteries (not supplied) into the thermostat battery compartment;
- Follow the “Thermostat Configuration” instructions starting on page 11.
- Replace the thermostat cover and screw in the locking screw.

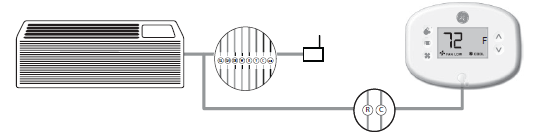

Wired Installation
Mounting the thermostat to the wall
- Connect R & C from the HVAC unit to the corresponding
- wires on the harness by splicing 24VAC and common
- wires from the thermostat into the 24VAC and common wires to the zone line.
- Remove the thermostat cover;
- Use the supplied wall anchors and mounting screws to secure the thermostat to the wall;
- Follow the “Thermostat Configuration” instructions starting on page 11.
- Replace the thermostat cover and screw in the locking screw.
Thermostat Configuration
Once the thermostat is powered, the thermostat configuration settings will appear on the thermostat screen. In order to properly operate the HVAC unit:
- Set the thermostat clock
- Enter the room number
- Configure the equipment settings
- Select Energy Savings Preset (Zoneline custom settings are the default).
- The thermostat configuration screens have a 30-second time-out. If no action is taken within thirty (30) seconds, the thermostat will exit configuration settings.
NOTE: If the thermostat is connected to a network, the settings configured online will be applied.

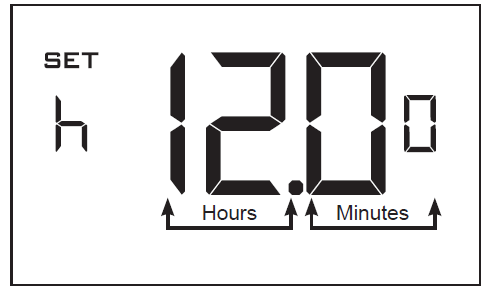

Setting the thermostat clock
Set the thermostat clock to the current time in 24h (Military Time) format.
- Use the “Up” and “Down” buttons to set the hours
- Press the “Fan” button to advance to the minutes setting
- Use the “Up” an “Down” buttons to set the minutes
- Press the “F/C” button to advance to the next menu Setting the clock correctly is crucial for the proper operation of the thermostat.
NOTE: The thermostat clock will need to be reset each time the batteries are replaced.

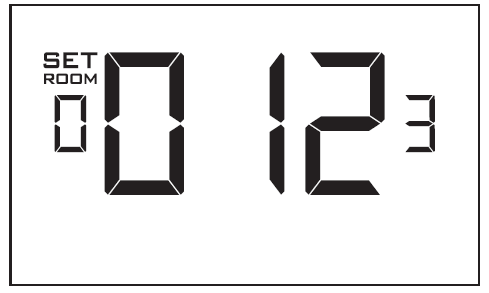

Entering the room number
Enter the room number by changing the digits on the screen. Leading zeros “0” preceding other digits will be ignored, i.e. Room number “123” should be entered as “00123”.
- Use the “Up” and “Down” buttons to change the digit;
- Press the “Fan” button to advance to the next digit;
- Press the “F/C” button to advance to the next menu; Entering the room number correctly is crucial for the proper operation of networked systems.

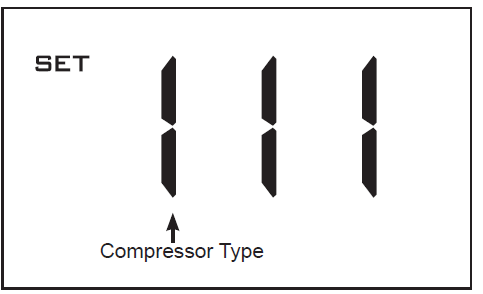

Configuring the Equipment Settings – Compressor Type
Use the “Up” and “Down” buttons to change the compressor type by changing the first digit
0 – No Compressor
1* – Heat pump
2 – Air Conditioner
- Press the “Fan” button to advance to the next setting; Indicates default setting
NOTE: If the Zoneline is an AZ45 model, change the compressor type to a 2.

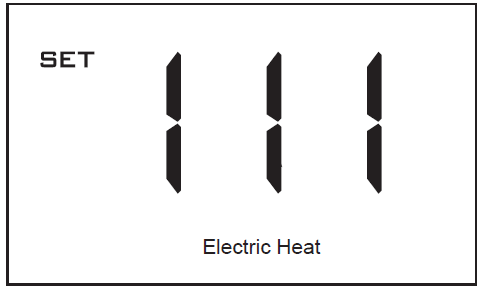

Configuring the Equipment Settings – Electric Heat
Use the “Up” and “Down” buttons to change the Electric Heat setting by changing the second digit;
0 – No Electric Heat- All Zonelines have Electric heat –
Do not select this option.
1* – Electric Heat Press the “Fan” button to advance to the next setting; Indicates default setting

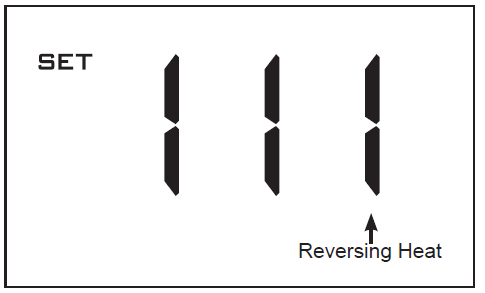

Configuring the Equipment Settings – Reversing Valve
Use the “Up” and “Down” buttons to change the reversing valve type by changing the first digit
0 – OB contact is energized to cool
1* – OB contact is energized to heat (default operation for
Zoneline heat pump models)
Refer to the HVAC unit documentation to determine the correct OB VALVE setting. If incorrect OB VALVE Setting is selected, the HVAC unit will turn on the heating when air conditioning is requested and turn on the air conditioning when heating is requested.
- Press the “F/C” button to advance to the next menu
- Press the “Fan” button to advance to toggle to equipment settings. Indicates default setting
NOTE: Zonelines OB is energized in heating mode.

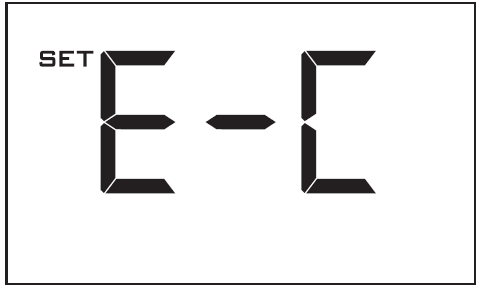

Configuring the Energy Saving Settings
Use the “Up” and “Down” buttons to select the Energy Saving preset: E-C*: Custom Energy Savings
- Refer to the APPENDIX 1 on page 48 for Energy Saving Preset details.
- For details on changing the custom settings, refer to the
- “Custom Energy Savings Settings” section on page 19.
- E-0: Energy Savings Off – No Temperature Setback;
- E-1: Lowest Energy Savings;
- E-2: Lower Energy Savings;
- E-3: Standard Energy Savings;
- E-4: Higher Energy Savings;
- E-5: Highest Energy Savings;
- Press the “Power” button to save the Thermostat Configuration and start using the thermostat. Indicates default setting
Testing the thermostat
Following the thermostat configuration, test if the thermostat is controlling the Zoneline unit.
- Press the “Power” button to turn the thermostat ON;
- Press the “Down” button to change the temperature set point below the current room temperature to confirm that the thermostat initiates air conditioning.
- Press the “Up” button to change the temperature set point above the current room temperature to confirm that the thermostat initiates heating.
- Change the fan speed by touching the “Fan” button to test if the thermostat is controlling the fan speed.
Custom Energy Savings Settings
This thermostat comes preprogrammed to use a custom energy setting. To change any of these presets, follow the instructions below.
Accessing the Thermostat Settings

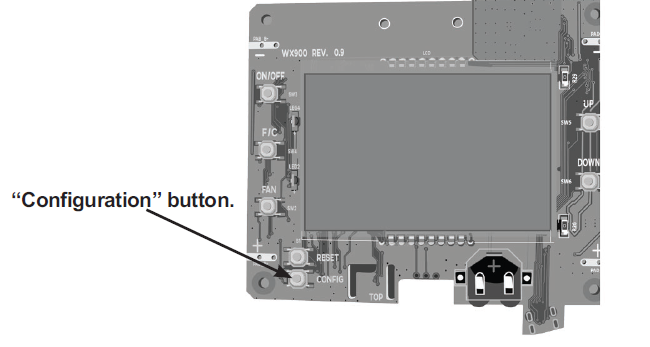

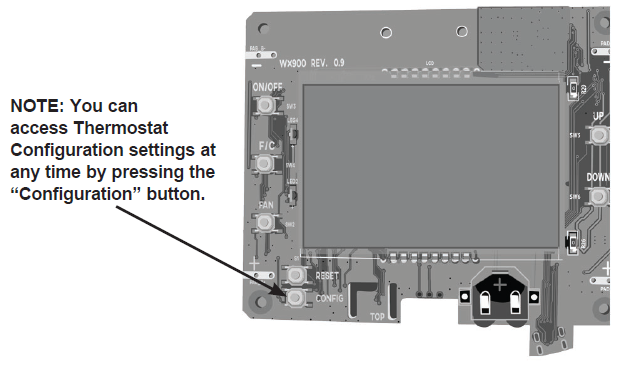

With the thermostat turned on, press and hold the “Configuration” button until the first thermostat settings screen appears. The thermostat must be turned on to access the thermostat settings.
NOTE: If the thermostat is connected to a network, the settings configured online will be applied.
- Use the “Up” and “Down” buttons to change the setting;
- Press the “F/C” button to advance to the next setting;
- Press the “Fan” button to return to the previous setting;
- Press the “Power” button to save and exit thermostat settings.
Custom Energy Savings Settings
Using the Thermostat Settings Screens
- Use the “Up” and “Down” buttons to change the setting.
- Press the “F/C” button to advance to the next setting.
- Press the “Fan” button to return to the previous setting.
- Press the “Power” button to save and exit thermostat settings.

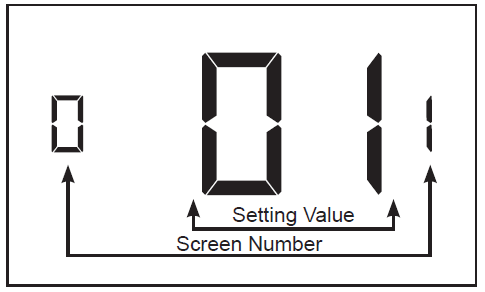

The above is a representation of how to read the digits on the thermostat screen.
FAN CONTROL MODE

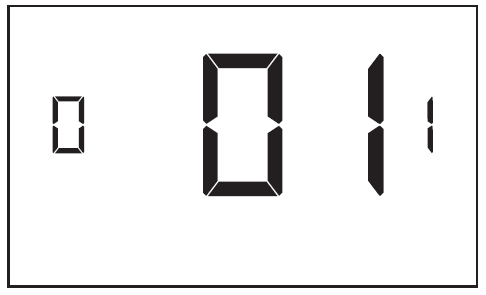

Select Fan Control Mode: 00 – MANUAL – guest can select automatic or continuous fan mode.
01* – AUTOMATIC – fan runs only when there is a demand for heating or air conditioning. ndicates default setting.

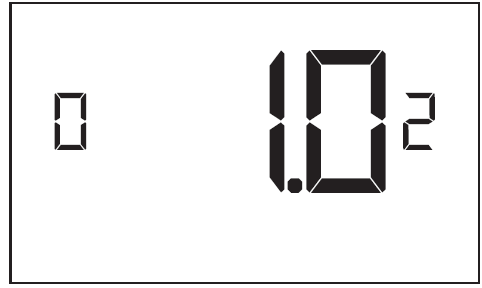

1ST STAGE DIFFERENTIAL – HEAT
(0.2°F – 3.0°F; 1.0°F* default setting) Select the number of degrees** the thermostat has to sense between the automatic changeover temperature for heat and the room temperature before a call for the 1st stage heating is initiated. above the dead band offset (refer to page 40)
2ND STAGE DIFFERENTIAL – HEAT
(1.0°F – 2.0°F; 1.0°F* default setting) Select the difference between 1st stage heating and 2nd stage heating initiation.

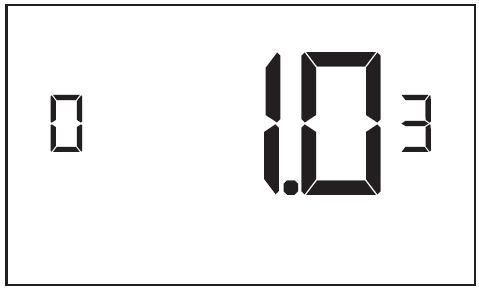

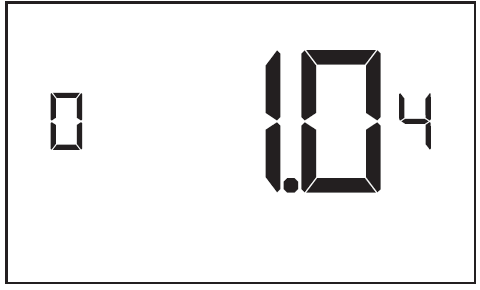

1ST STAGE DIFFERENTIAL – COOL
(0.2°F – 3.0°F; 1.0°F* default setting) Select the number of degrees** the thermostat has to sense between the automatic for cool and the room temperature before a call for the 1st stage cooling is initiated. below the dead band offset (refer to page 40)

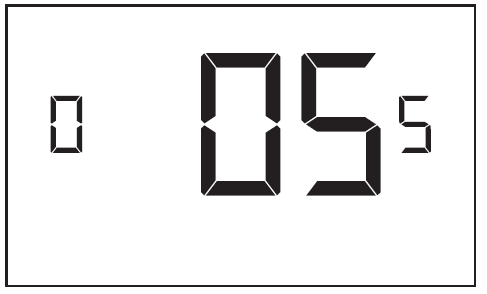

INCIDENTAL OCCUPANCY THRESHOLD
(00 – 60; 05* default setting) Select the minimum period of time (in minutes) for which occupancy needs to be detected to enter the guest occupancy mode.
When occupancy is detected, thermostat will switch to occupied mode for a duration of “Incidental Occupancy Threshold” selected here. If occupancy is detected for a period of time shorter than the “Incidental Occupancy Threshold” selected here, the thermostat will automatically revert to unoccupied mode at the end of the “Incidental Occupancy Threshold” period and continue to observe energy saving functions that were in effect before the room became occupied. This setting allows ignoring incidental room visits. If occupancy is detected for a period of time longer than the “Incidental Occupancy Threshold” selected here, the thermostat will enter the guest occupancy mode. When the thermostat is in the guest occupancy mode, it will revert to unoccupied mode and initiate the setback temperature only when occupancy is not detected for the duration of the setback delay (Heat or Cool) period.

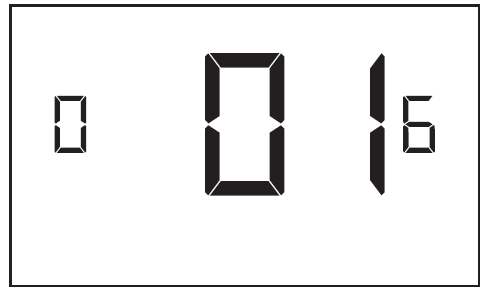

NIGHT OCCUPANCY THRESHOLD
(00 – 60; 01* default setting) Select the minimum period of time (in minutes) for which occupancy needs to be detected in order to consider the room occupied during the “Night Occupancy”period. When occupancy is detected during the “Night Occupancy Period” for longer than the “Night Occupancy Threshold” selected here, the thermostat will instantaneously switch to occupied mode. If occupancy is detected for a period of time shorter than the “Night Occupancy Threshold” selected here, the thermostat will automatically revert to unoccupied mode and continue to observe energy saving functions that were in effect before the room became occupied. If occupancy is detected for a period of time longer than the “Night Occupancy Threshold” selected here, the thermostat will disable the occupancy sensor and consider the room occupied until the end of the “Night Occupancy” period. This feature ensures that energy saving functions that may affect guest comfort will not come in effect during the “Night Occupancy” period.
FORCED 2ND STAGE HEATING
(00 – 60; 15* default setting) Select a number of minutes 1st stage heating will run before 2nd stage heating is automatically initiated if the guest set point is not reached and the 2nd stage heating is not initiated through differential settings. This feature allows automatically turning on 2nd stage heating to avoid excessive compressor use. Set to 00 to disable the feature.
NIGHT OCCUPANCY START

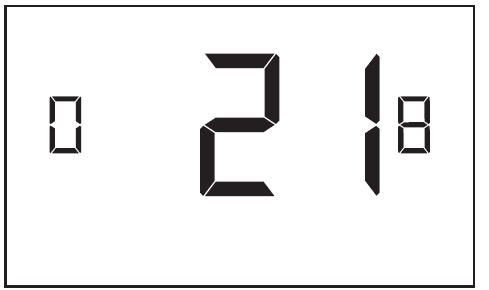

(00 – 23; 21* default setting) Select the start time (in hours – 24-hour clock) for “Night Occupancy” If occupancy is detected for a period of time longer than the “Night Occupancy Threshold” during “Night Occupancy” period, the thermostat will disable the occupancy sensor and consider the room occupied until the end of the “Night Occupancy” period. This feature ensures that energy saving functions that may affect guest comfort will not come in effect during the “Night Occupancy” period if room was occupied for a period of time longer than “Night Occupancy Threshold”.

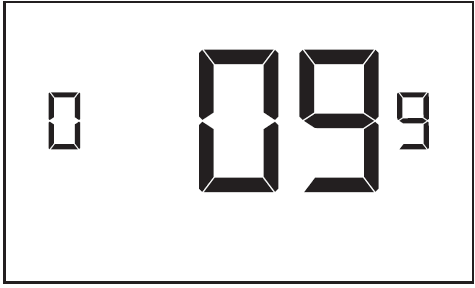

NIGHT OCCUPANCY END
(00 – 23; 09* default setting) Select the time (in hours – 24-hour clock) for “Night Occupancy” to end. This is the time of day the “Night Occupancy” ends and the thermostat switches back to the room sensing settings chosen in the other occupancy modes.

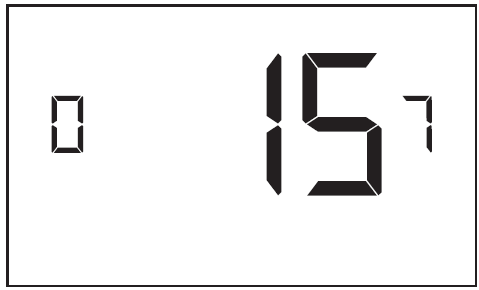

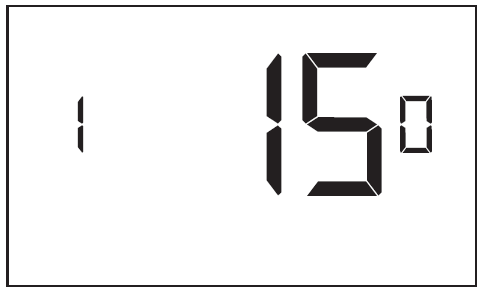

TEMPERATURE RECOVERY TIME
(00 – 60; 15* default setting) Select the maximum time allowed for a HVAC unit to attain temperature as defined by Heat and Cool Recovery Temperature. Temperature Recovery Time selected here and the actual temperature recovery ability of the HVAC unit are used to calculate setback temperatures. Calculated setback temperatures maximize energy savings and at the same time ensure that a comfortable room temperature (defined as Heat and Cool Recovery Temperature) will be restored within the selected Temperature Recovery Timeâ Setting the Temperature Recovery Time to , disables temperature recovery. When temperature recovery is disabled, thermostat will use the Minimum and Maximum Setback Temperatures as setback set points.
RECOVERY TEMPERATURE – HEAT
(62°F – 82°F; 69°F* default setting) Select the room temperature in °F that a HVAC unit will have to attain within the selected “Temperature Recovery Time” when there is a need for heating.

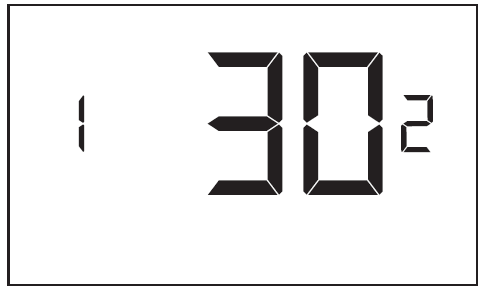

TEMPERATURE SETBACK DELAY – HEAT
(00 – 120; 30* default setting) Select the time delay (in minutes) for which the room that is in the guest occupancy mode needs to be unoccupied before the temperature setback is initiated. This feature prevents initiating temperature setback prematurely while the guest is still in the room but in an area where occupancy cannot be detected by the occupancy sensor. Setting the “Temperature Setback Delay – Heat” to “00”, disables the setback in the heat mode.

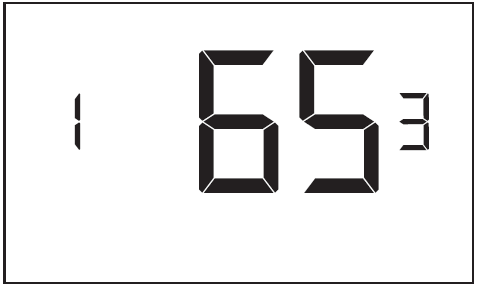

MINIMUM SETBACK TEMPERATURE – HEAT
(52°F – 72°F; 65°F* default setting) Select the Minimum Setback Temperature in °F. Setback temperature is calculated by measuring HVAC unit’s ability to attain “Recovery Temperature – Heat withinTemperature Recovery Time. If recovery is disabled (“Temperature Recovery Time is set to or if setback temperatures have not yet been calculated, the “Minimum Setback Temperature value will be used as the setback temperature for heating. If calculated setback temperature for heating is lower than Minimum Setback Temperatureâ then the Minimum Setback Temperature will be used as setback temperature for heating. This feature allows defining the minimum temperature in a room when room is unoccupied and the thermostat is in the setback mode.

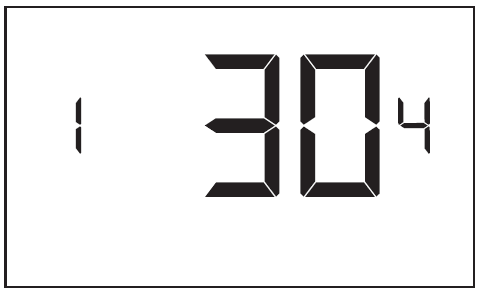

TEMPERATURE SETBACK DELAY – COOL
(00 – 120; 30* default setting) Select the time delay (in minutes) for which the room that is in the guest occupancy mode needs to be unoccupied before the temperature setback is initiated. This feature prevents initiating temperature setback prematurely while the guest is still in the room but in an area where occupancy cannot be detected by the occupancy sensor. Setting the “Temperature Setback Delay – Cool” to “00”, disables the setback in the cool mode. Set to “00” to disable EMS.

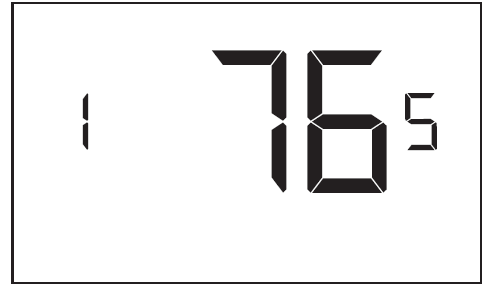

MAXIMUM SETBACK TEMPERATURE – COOL
(72°F – 92°F; 76°F* default setting) Select the “Maximum Setback Temperature in °F. Setback temperature is calculated by measuring HVAC unit™s ability to attain “Recovery Temperature – Cool within Temperature Recovery Time. If recovery is disabled (“Temperature Recovery Time is set to ) or if setback temperatures have not yet been calculated, the Maximum Setback Temperature value will be used as the setback temperature for cooling. If calculated setback temperature for air conditioning is higher than Maximum Setback Temperatureâ, then the Maximum Setback Temperature will be used as setback temperature for air conditioning. This feature allows defining the maximum temperature in a room when room is unoccupied and the thermostat is in the setback mode.

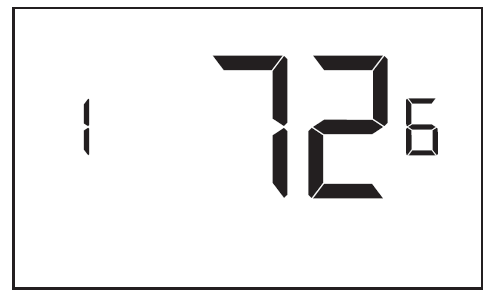

RECOVERY TEMPERATURE – COOL
(62°F – 82°F; 72°F* default setting) Select the room temperature in °F that a HVAC unit will have to attain within the selected “Temperature Recovery Time” when there is a need for air conditioning.

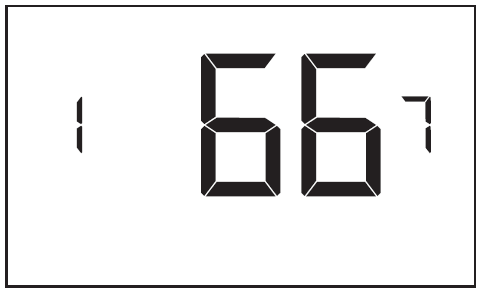

MINIMUM SET POINT
(64°F – 84°F; 66°F* default setting) Select the minimum set point in °F that a guest can select.

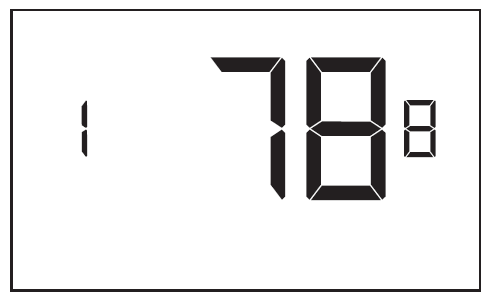

MAXIMUM SET POINT
(60°F – 82°F; 78°F* default setting) Select the maximum set point in °F that a guest can select.

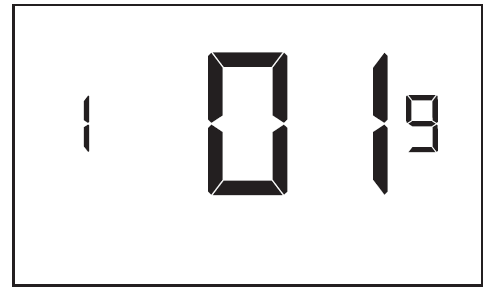

TEMPERATURE CONTROL MODE
- Select Temperature Control Mode:
- 00 – MANUAL – Allows users to select HEAT only or
- COOL only temperature control mode to maintain the room temperature.
- 01* – AUTOMATIC – Thermostat automatically turns on heating or air conditioning to maintain the room temperature at the selected temperature set point.
- Indicates default setting

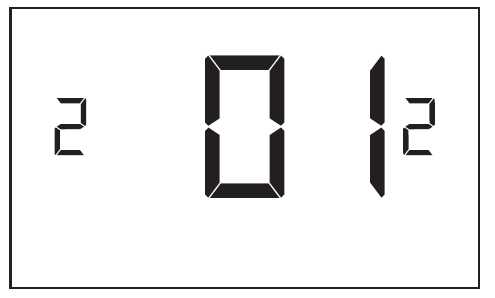

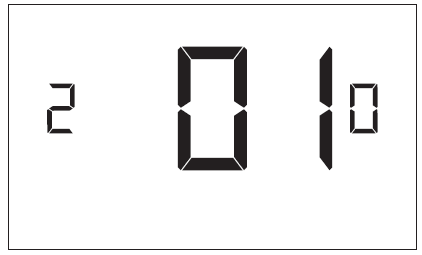

AUTO CHANGEOVER SET POINT OFFSET (DEAD BAND)
(00°F – 04°F; 01°F* default setting) Select the difference between the guest-selected set point and the heat and the cool set point when the thermostat is in the automatic temperature control mode.
This value plus the 1st stage differential defined in steps 02 and 04, defines the temperature at which the thermostat would automatically change heating/cooling modes. This feature allows adjusting the dead band between the heat and the cool set points in automatic changeover mode in order to avoid the system from bouncing back and forth between heating and cooling under normal operating conditions.
SETBACK SET POINTS / AUTO-RESTORE
Select Temperature Control Mode:
- When room is unoccupied and the thermostat is in the setback mode or turned off, it will NOT maintain the temperature between heat and cool setback set points. When guest enters the room, the thermostat will be turned off – it will not automatically restore the most recent guest settings.
- When room is unoccupied and the thermostat is in the setback mode or turned off, it will maintain the temperature between heat and cool setback set points. When guest enters the room, the thermostat will be turned off – it will not automatically restore the most recent guest settings.
- When room is unoccupied and the thermostat is in the setback mode or turned off, it will NOT maintain the temperature between heat and cool setback set points. When guest enters the room, the thermostat will automatically restore the most recent guest settings.
- When room is unoccupied and the thermostat is in the setback mode or turned off, it will maintain the temperature between heat and cool setback set points. When guest enters the room, the thermostat will automatically restore the most recent guest settings. Indicates default setting

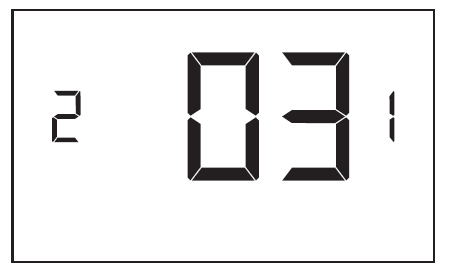

AUTOMATIC HUMIDITY CONTROL
- Disable automatic humidity control
- Enable automatic humidity control When “Automatic Humidity Control” is enabled, thermostat will turn on air conditioning in an unoccupied room when humidity raises above 60% and room temperature is above 72°F until either room humidity is below 55% or room temperature is below 72°F. Indicates default setting

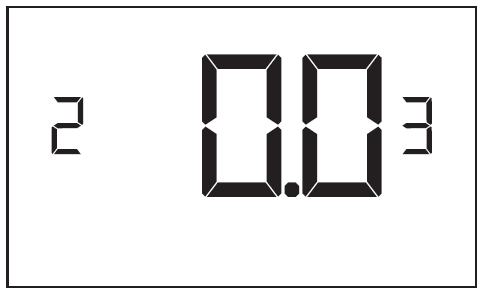

TEMPERATURE CALIBRATION
(-5.0°F – 5.0°F; 0.0°F* default setting) Calibrate the temperature display: +/- 5.0°F
Thermostat Maintenance
Replacing Thermostat Batteries
The low battery indicator will be displayed on the thermostat screen when it is necessary to replace batteries in the thermostat. Under normal operating conditions, new brand-name alkaline batteries will last for a period of approximately one (1) year. Please replace batteries every twelve (12) months to ensure continuous thermostat operation. To replace thermostat batteries:
- Remove the thermostat cover;
- Replace the two (2) AA-cell batteries (not-supplied);
- Replace the thermostat cover;
- Follow the “Thermostat Configuration” instructions to set the thermostat clock;
- Press the “Power” button to start using the thermostat;
NOTE: The thermostat maintains all the “Thermostat Configuration” settings in a non-volatile memory. There is no need to configure the thermostat again after battery replacement.
NOTE: While batteries are not required in a wired installation, batteries should be installed to prevent re-configuring the time on the thermostat if a power failure occurs.
Troubleshooting
Error Codes
- ERR1 – Thermostat Temperature Sensor Hardware Defect ERR2 – Thermostat Radio Hardware Defect
- ERR3 – Thermostat Radio Software Defect
- ERR4 – No link with the Wireless Control Card
- ERR5 – Thermostat Memory Defect
NOTES:
For ERR1, ERR2, ERR3, and ERR5, call GE Appliances service. (Phone number located in Limited Warranty section on page 50. For ERR4, reset the configurations starting on page 5.The thermostat is not controlling the HVAC unit. Check if the HVAC unit is set to “External Thermostat” (Class 2) mode. Refer to Zoneline Owner’s Manual, Aux settings. Verify the status of the red light on the Wireless Control Card.
- The red light is off
- The Wireless Control Card is not powered. Verify that the Wireless Control Card is properly wired to the HVAC unit-specifically make sure that the RED and the BLACK wire are properly connected.
- If the red light is blinking with one (1) flash.
- The Wireless Control Card is powered but it is not communicating with the thermostat, turn the thermostat off and on to re-initiate the linking procedure.
- In case of a Network Installation, re-link the thermostat and the Wireless Control Card with the Network Programmer.
- The red light is blinking with three (3) flashes.
- The Wireless Control Card is communicating with the thermostat. Verify that the Wireless Control Card is properly wired to the HVAC unit and that equipment settings on a thermostat – compressor type, electric heat and reversing valve – are properly configured.
Initiating a Master Reset
If there are reported errors or configuration issues, the user may master reset the thermostat to its default parameters.
Procedure:
- Remove the faceplate of the thermostat
- Power down the thermostat by either removing the batteries or cutting power to the thermostat.
- While the thermostat is powered off, press and hold the “config” button located on the control board inside the thermostat.
- Restore power to the thermostat by reinstalling the battieries.
- Once the screen lights up, release the “config” button.
- If the master reset was successful, the thermostat will display “12:00”,indicating all settings will be reset to default and the thermostat needs to be re-configured. Please see “configuring thermostat” in the manual on page 9.Contact GE Appliances technical support at 1-844-GE4-PTAC (or 844-434-7822) if the issues are not resolved.
Appendix 1 – Energy Saving Presets
Screen # | Energy Level | Default Setting | ||||||
0 | 1 | 2 | 3 | 4 | 5 | E-C | ||
01 | Fan Control Mode | Auto | Auto | Auto | Auto | Auto | Auto | Auto |
02 | 1VW 6WDJH ‘LႇHUHQWLDO +HDW | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 1.0 |
03 | 2QG 6WDJH ‘LႇHUHQWLDO
Heat |
1.0 | 1.0 | 1.0 | 2.0 | 2.0 | 2.0 | 1.0 |
04 | 1VW 6WDJH ‘LႇHUHQWLDO &RRO | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 1.0 |
05 | Guest Occupancy Threshold | 00 | 05 | 05 | 05 | 05 | 05 | 05 |
06 | Night Occupancy Threshold | 01 | 01 | 01 | 01 | 01 | 01 | 01 |
07 | Force 2nd Stage Heating After | 30 | 30 | 30 | 30 | 30 | 30 | 15 |
08 | Night Occupancy Start | 18 | 19 | 20 | 21 | 22 | 23 | 21 |
09 | Night Occupancy End | 12 | 11 | 10 | 9 | 8 | 7 | 09 |
10 | Recovery Time | 00 | 15 | 20 | 25 | 30 | 00 | 15 |
11 | Recovery Temperature Heat | 70 | 69 | 68 | 67 | 66 | 65 | 69 |
12 | Setback Delay – Heat | 00 | 30 | 25 | 20 | 15 | 10 | 30 |
13 | Minimum Setback Temperature | 67 | 66 | 65 | 64 | 63 | 62 | 65 |
14 | Setback Delay – Cool | 00 | 30 | 25 | 20 | 15 | 10 | 30 |
15 | Maximum Setback Temperature | 72 | 74 | 76 | 78 | 80 | 82 | 76 |
16 | Recovery Temperature Cool | 71 | 72 | 73 | 74 | 75 | 76 | 72 |
17 | Minimum Set point | 64 | 64 | 65 | 66 | 67 | 68 | 66 |
18 | Maximum Set point | 82 | 82 | 80 | 78 | 76 | 74 | 78 |
19 | Temperature Control Mode | Auto | Auto | Auto | Auto | Auto | Auto | Auto |
20 | Auto Changeover Set Point | 01 | 01 | 01 | 01 | 01 | 01 | 01 |
21 | Setback Set Points / Auto Restore | OFF | ON | ON | ON | ON | ON | ON |
22 | Automatic Humidity Control | ON | ON | ON | ON | ON | ON | ON |
23 | Temperature Calibration | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
Technical Specifications
Thermostat | Wireless Control Card | |
Case Dimensions (Imperial) | 4.015 x 5.5118” x 0.925” | 3.875” x 2.125” x 0.75” |
Case Dimensions (Metric) | 102mm x 140mm x 23.5mm | 98mm x 54mm x 19mm |
Screen Dimensions (Imperial) | 3.625” x 2.125” | N/A |
Screen Dimensions (Metric) | 92mm x 54mm | N/A |
Operating Voltage | 3V DC – 2 “AA” Cell Bat-
teries OR(Optional) 24V AC/DC |
24V AC/DC |
Control Outputs | Fan High (GH) | |
Fan Low (GL) | ||
Compressor (Y) | ||
Heat Pump (OB) | ||
Electric Heat (W2) | ||
Occupancy Out (AUX) | ||
Occupancy Sensor Beam Width | ±47° (94°) | N/A |
Wireless Frequency | 900MHz | 900MHz |
Temperature Accuracy | ±1°F | N/A |
FCC ID | XEYWX | XEYV8ACCC |
FCC STATEMENT
This device complies with part 15 of the fcc rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inter-ference received, including interference that may cause undesired operation. Pursuant to part 15.21 of the FCC rules, any changes or GE Appliances may void the user’s authority to operate the equipment.
THERMOSTAT LIMITED WARRANTY
Staple your receipt here.
Proof of the original purchase date is needed to validate the warranty. For The Period Of: GE Appliances Will Replace
One Year
From the date of the original purchase For help with thermostat troubleshooting, call 1-844-GE4-PTAC (or 844-434-7822)Full Replacement of the thermostat which fails due to a defect in materials or workmanship.
What GE Appliances Will Not Cover:
- Service trips to your location.
- Improper installation. If you have an installation problem, contact your installer.
- You are responsible for providing adequate electrical connections to the product.
- Failure of the product resulting from modifications to the product or due to unreasonable use, including failure to provide reasonable and necessary maintenance.
- In commercial locations, labor is necessary to move the unit, after it has been initially installed, to a location where it is accessible for service by an individual technician; or, if the instructions included in this manual have been disregarded.
- replacement of location fuses or the resetting of circuit breakers.
- damage to the product caused by improper power supply voltage, accident, fire, floods or acts of God.
- incidental or consequential damage caused by possible defects with this thermostat.
EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product exchange as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law. This limited warranty is extended to the original purchaser and any succeeding owner for products purchased for use within the USA and Canada. In Alaska, the limited warranty excludes the cost of shipping or service calls to your site. Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province. To know what your legal rights are, consult your local, state or provincial consumer affairs office or your state Attorney General. Warrantor: GE Appliances, Louisville, KY 4022549-
Reference
Download Manual:
GE Appliances RAK180W1 Energy Management Wireless Thermostat Installational Instruction
OTHER MANUALS
GE Appliances RAK180W1 Energy Management Wireless Thermostat Product Specification Guide
GE Appliances RAK180W1 Energy Management Wireless Thermostat Installational Instruction
Leave a Reply
