Gaobiao GM4936 Smart WiFi Touch Screen Thermostat fea

Gaobiao GM4936 Smart WiFi Touch Screen Thermostat User Manual

Gaobiao logo

Gaobiao GM4936 Smart WiFi Touch Screen Thermostat

Gaobiao GM4936 Smart WiFi Touch Screen Thermostat pro

Specification

  • Aftersale Service: Online technical support, Free spare parts, Return and Replacement
  • Project Solution Capability: graphic design
  • Application: Villa, Hotel, Apartment, Office Building, Hospital, Mall, Supermarket 142592.75
  • Design Style: Contemporary, Modern, EUROPEAN
  • Place of Origin: Beijing, China
  • Brand Name: Gaobiao
  • Model Number: GM4936
  • Name: Smart WiFi Touch Screen Thermostat
  • Buttons: Touch Screen
  • Power supply: AC/DC 24V, 4* AA dry battery
  • Material: Toughened glass + PC alloy
  • Installation: Surface mounting without flush box
  • Output: <1A
  • Color: White
  • Dimension: 114*114*22mm
  • Temperature setting range: 10-37 ℃

Introduction

The Gaobiao GM4936 Smart wifi touch screen. The thermostat is a cutting-edge home automation device that allows you to conveniently control and manage your heating ventilation and air conditioning (HVAC) system. This Thermostat Combines Advanced technology with a user-friendly touchscreen interface and Wi-Fi connectivity to offer enhanced comfort, energy efficiency, and convenience.4936 thermostat is used to control up to 3 stages of heating and 2 stages of the cooling system with 8 types of control systems, EM heat activation, adjustable compressor delay time, and O/B changeover. It is with a tempered touch-sensitive screen, and quick connecting terminals to save installer time. 7 days programmable and four modes every day make users’ life convenient and comfortable.

Key features of the Gaobiao GM4936 Smart WiFi Touch Screen Thermostat include:

  • Touchscreen interface: The thermostat features a sleek touchscreen display, which provides an intuitive and easy-to-use interface for adjusting temperature settings, accessing menus, and navigating through various functions and settings.
  • Wi-Fi connectivity: By connecting to your home’s Wi-Fi network, the GM4936 thermostat enables you to control and monitor your HVAC system remotely using your smartphone or other smart devices. This allows you to adjust settings and temperature, even when you’re away from home, providing flexibility and convenience.
  • Smart scheduling: The GM4936 thermostat allows you to create personalized schedules to automatically adjust the temperature based on your preferred settings at different times of the day or week. This feature helps optimize energy efficiency by ensuring that your HVAC system operates according to your specific needs and routines.
  • Energy-saving features: The thermostat incorporates various energy-saving features, such as adaptive learning algorithms that analyze your usage patterns and make intelligent adjustments to save energy without compromising comfort. It may also provide energy consumption reports and insights to help you monitor and manage your energy usage effectively.
  • Compatibility and integration: The GM4936 thermostat is designed to be compatible with a wide range of HVAC systems, including most standard heating and cooling systems. It may also integrate with other smart home devices and platforms, allowing for seamless automation and control of your entire home ecosystem.
  • Voice control: Depending on the model and compatibility, the GM4936 thermostat may support voice control through popular voice assistants like Amazon Alexa or Google Assistant. This allows you to adjust the temperature and control other thermostat functions using simple voice commands.
  • User-friendly installation and setup: The GM4936 thermostat is typically designed for easy installation, with clear instructions and labeled wiring terminals. The setup process may involve connecting the thermostat to your HVAC system and configuring Wi-Fi connectivity through the accompanying mobile app or web interface.

What Is In The Box

  • Thermostat
  • User Manual
  • Screws
  • External Sensor

Feature

  • 8 types of control system
  • Time synchronization once connected to WIFI
  • Connect wires in a simpler way without a screwdriver
  • EM heat activation to protect the compressor
  • Adjustable compressor delay time
  • Apps for iOS and Android Devices
  • Work with Amazon Echo and Google Assistant

Memory function, data storage when power failure

7-day programmed functions for the schedule Each day, there are four time periods that may be adjusted to fit the demands of different groups. This allows users to achieve the most energy-efficient and comfortable conditions.Gaobiao GM4936 Smart WiFi Touch Screen Thermostat 1

Gaobiao GM4936 Smart WiFi Touch Screen Thermostat 2

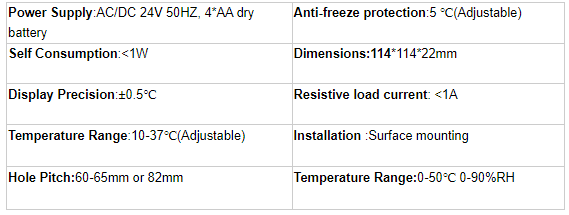

ParametersGaobiao GM4936 Smart WiFi Touch Screen Thermostat 3

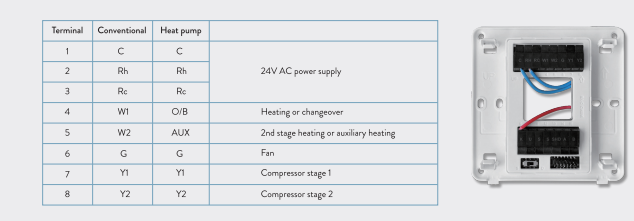

Back Wiring DiagramGaobiao GM4936 Smart WiFi Touch Screen Thermostat 4

Installation

  • Step 1: First, separate the device’s display panel and bottom into two pieces.
  • Step 2: Connect all wires to the appropriate terminals, then tighten all screws.
  • Step 3: Mount the touch panel’s back after pushing the bottom into the junction box and fastening it with two screws.
  • Step 4: Verify that the gadget is securely attached, powered on, and prepared for use.

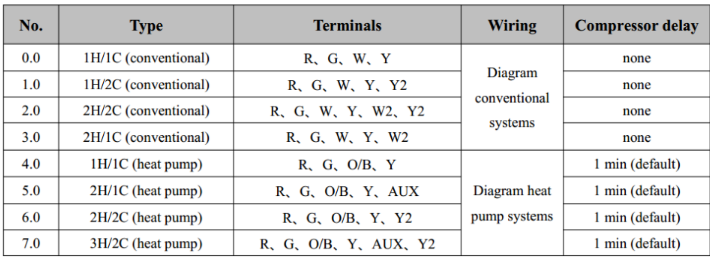

Controlling TypeGaobiao GM4936 Smart WiFi Touch Screen Thermostat 5

FAQS

Q: Is the Gaobiao GM4936 thermostat compatible with my HVAC system?
A: The GM4936 thermostat is designed to be compatible with most standard heating and cooling systems.

Q: How do I install the Gaobiao GM4936 thermostat?
A: The installation process typically involves connecting the thermostat to your HVAC system and following the provided instructions for wiring and setup.

Q: Can I control the GM4936 thermostat remotely?
A: Yes, the GM4936 thermostat has built-in Wi-Fi connectivity, allowing you to control and monitor it remotely using your smartphone or other smart devices.

Q: Does the GM4936 thermostat support voice control?
A: Depending on the model and compatibility, the GM4936 thermostat may support voice control through popular voice assistants like Amazon Alexa or Google Assistant.

Q: Can I create personalized schedules with the GM4936 thermostat?
A: Yes, the GM4936 thermostat allows you to create customized schedules to automatically adjust the temperature based on your preferred settings at different times of the day or week.

Q: Does the GM4936 thermostat offer energy-saving features?
A: Yes, the GM4936 thermostat incorporates energy-saving features such as adaptive learning algorithms that analyze your usage patterns and make intelligent adjustments to save energy.

Q: Can I integrate the GM4936 thermostat with other smart home devices?
A: Yes, the GM4936 thermostat is designed to integrate with other smart home devices and platforms, allowing for seamless automation and control of your home ecosystem.

Q: Does the GM4936 thermostat provide energy consumption reports?
A: Some models of the GM4936 thermostat may provide energy consumption reports and insights to help you monitor and manage your energy usage effectively.

Q: How do I adjust the temperature with the GM4936 thermostat?
A: The GM4936 thermostat features a touchscreen interface where you can easily adjust the temperature by tapping on the screen and selecting your desired settings.

Q: Can I override the schedule on the GM4936 thermostat?
A: Yes, the GM4936 thermostat typically allows you to manually override the programmed schedule and make immediate temperature adjustments as needed.

Q: Does the GM4936 thermostat have a backlight for easy visibility?
A: Yes, most models of the GM4936 thermostat feature a backlight on the touchscreen display for easy visibility in different lighting conditions.

Q: Can I set up multiple user accounts for the GM4936 thermostat?
A: Depending on the specific model and firmware, the GM4936 thermostat may support multiple user accounts, allowing each user to have their own customized settings and preferences.

Q: Does the GM4936 thermostat have a vacation mode?
A: Yes, the GM4936 thermostat often includes a vacation mode that allows you to set a specific temperature while you are away for an extended period, helping save energy during your absence.

Q: Can I receive alerts or notifications from the GM4936 thermostat?
A: Some models of the GM4936 thermostat offer alerts and notifications, such as maintenance reminders or abnormal temperature fluctuations, which can be sent to your smartphone or email.

Q: Is the GM4936 thermostat easy to use for beginners?
A: Yes, the GM4936 thermostat is designed with a user-friendly touchscreen interface and intuitive controls, making it easy for beginners to navigate and adjust settings.Gaobiao logo

Gaobiao GM4936 Smart WiFi Touch Screen Thermostat User Manual
