fontastic 255083 Smart Home Thermostat Product Specifications Guide

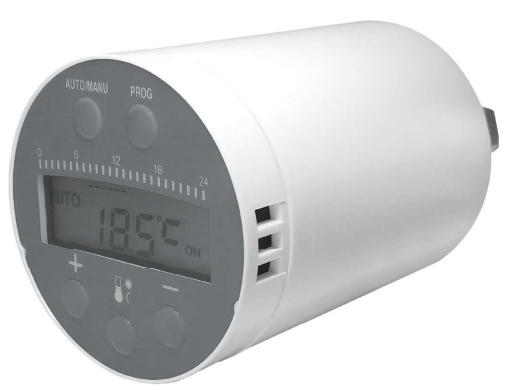

fontastic 255083 Smart Home Thermostat

INTRODUCTION

With the FontaHome thermostat you can control and program your radiators conveniently from your smartphone or tablet. Scenes and automations can be set up via the FontaHome App. For example, you can set programs for weekdays and determine exactly when which temperature should be reached. Settings can also be made directly on the thermostat with LCD display.
The device is also equipped with an anti-freeze mode which enables the radiatior to keep the temperature automatically between 5°C and 8°C while you are not at home.
The thermostat can be installed on ordinary radiators with M30 screw connection. Adapter for radiators of the brands
Danfoss (1/2 and 3/4 valve), Caleffi and Giacomini are inclu

ded.
Function only in combination with Smart Gateway!

Technical data

• Batteries: 2 x AA
• Valve connection: M30 x 1.5mm
• Adapters: Danfoss (1/2 & 3/4 valve), Caleffi (1/2 valve), Giacomini (1/2 valve)
• Temperature Setting Range: 5°C-30°C
• Temperature Display Range: 0°C-50°C
• Temperature Accuracy: ±0.5°C
• Operating Temperature: 0°C-50°C
• Radio Frequency: 2.4GHz
• Radio Range: Up to 100m (unhindered)
• Dimensions: 90 mm x 50 mm x 50 mm
• Weight: 190 g

Art.Nr:255083

EAN:4024559255083
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. ©2020 Google LLC All rights reserved. Google, Google Play, and the Google Play logo are trademarks of Google LLC.
Technische Änderungen vorbehalten / Improvement and changes of the technical specifications and other data could be made without prior notice.
FONTASTIC®, powered by D-Parts
Postfach 1208
63505 Langenselbold
Tel +49 (0) 6184-93140
www.d-parts.de
