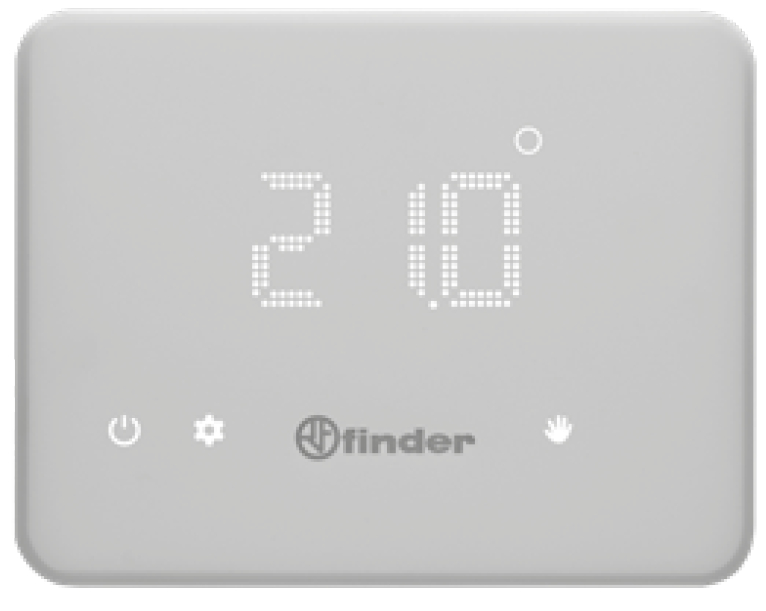

FINDER 1C.91 PROGRAMMABLE THERMOSTAT
TECHNICAL INFORMATION
Power supply type 01C.02.8.230.0300 for Bliss Thermostat 1C.91
- Rated power: 2 W
- Nominal voltage: 110…230 V AC
- Output voltage: 3.3 V DC
- Ambient temperature range: 0…40°C
- Maximum cable length between power supply and Bliss: 10 m (2×1.5 mm2 flexible cable)

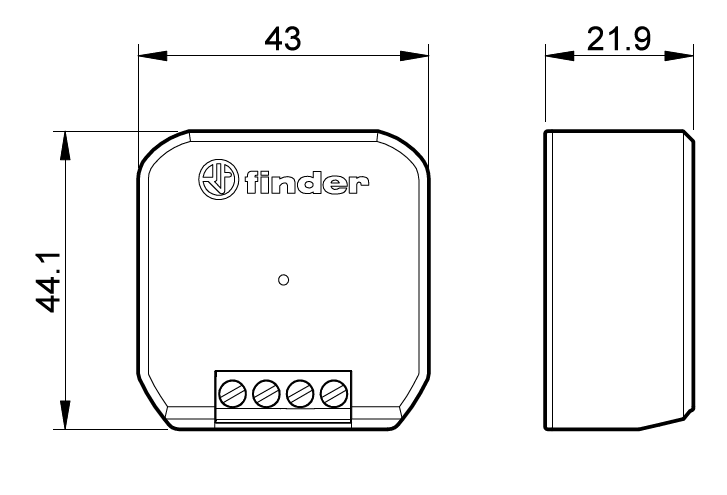

DIMENSION

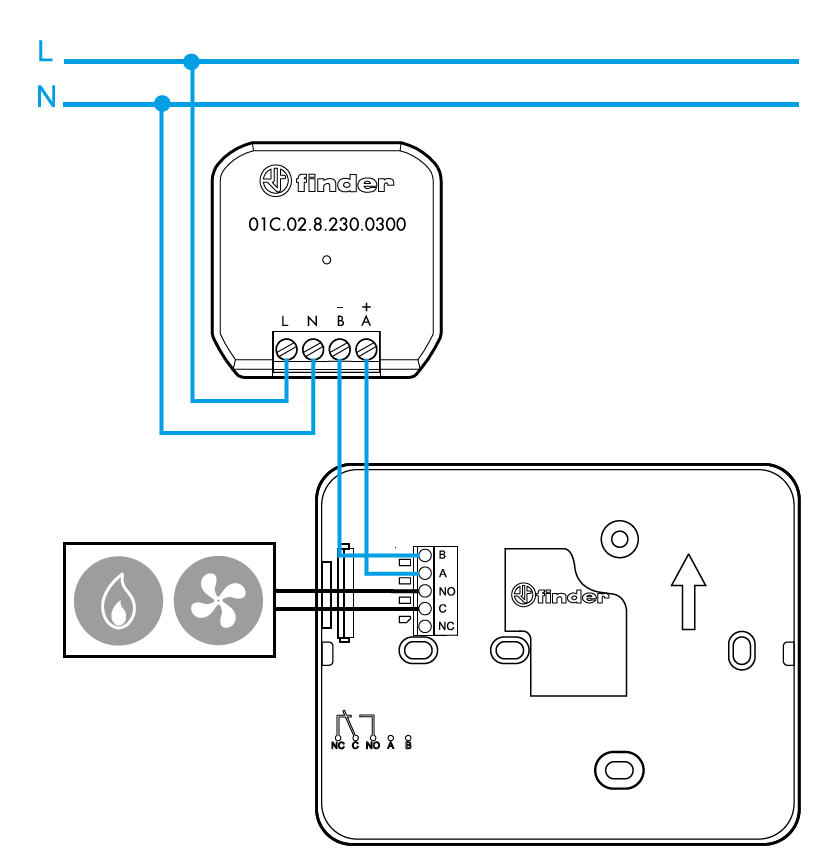

WIRING
NOTE
- When using the Chrono thermostat with the external power supply, the batteries MUST be removed. Within the application, in the “Update time” section, Level 4 (fast connection) can be set
- To make the connections, first refer to instructions for your heating system (pump, valve, boiler, etc …), then remove the terminal cover and connect the appropriate wires to terminals C (COM) and NO of the thermostat
IB01C02FIT – 01/21 – Finder S.p.A. con unico socio – 10040 ALMESE (TO) – ITALY
