FASTWARM 16AMP Smart WiFi Thermostat Product Specification Guide

FastWarm

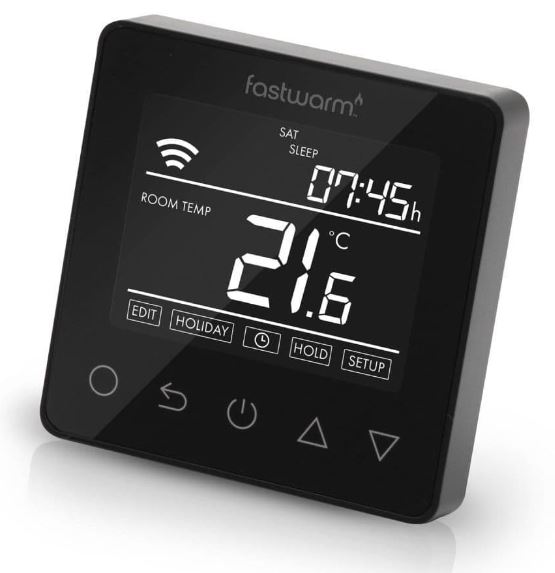

FASTWARM 16AMP Smart WiFi Thermostat

FASTWARM 16AMP Smart WiFi Thermostat

DATA SHEET

Set Temperature Range 5*c(41*f) – 40*c (104*f)
Back Lit Screen Y
Non- Programmable Mode Y
5/2 Day Programming Mode * Y
7 Day Programming Mode ** Y
24 Hour Mode *** Y
Set Points Per Day 4
Advance Function N
Adaptive Function Y
Holiday Mode Y
Key Lock Function Y
Temperature Hold Mode Y
Temperature Override Y
Temperature Override Limit Y
Output Delay N
Open Window Function N
Energy Use Function Y
Frost Protection (5*c-15*c) Y
Day Light Saving Time (DST) N
Temperature Format *c -*f
Sensor Selection Air / Floor / Both
Built in Air Sensor Y
Remote Air Sensing Mode N
Remote Floor Sensing Mode Y
Remote Probe Included Y
Modbus Function N
Max Switch Load 16A (Electric) / 3A (Water)
Switching Differential 1*c – 3*c
Accuracy +/- 1*C
Wifi Functionality Y
Supply 230v AC
Face Plate Dimensions LxWxD 87mm x 87mm x 16mm
Weight 150g
Back Box Requirement 35mm Single Gang

FEATURE TABLE

Number Name Default Ranges
1 Room temperature calibration 0.0°C -5.0°C — 5.0°C
2 Floor temperature calibration 0.0°C -5.0°C — 5.0°C
3 Anti-frozen function ON OF(OFF) ON
4 Anti-frozen temp 5.0°C -5.0°C — 15.0°C


5



Sensor selection



01:Floor sensor

00: Room sensor

01: Floor sensor

02: Both sensors

6 Floor temp limit 30.0°C 20.0°C — 50.0°C


7



Temp unit



0.0°C

00:°C

01:°F





8





Output delay





00.00s

00: 00s

01: 30s

02: 60s

03: 90s





9





Temp deviation





01:1.0°C

00: 0.5°C

01: 1.0°C

02: 2.0°C

03: 3.0°C



10



Reverse output



00: OFF

00: OFF

01: ON



11



Schedule



01: 5+1+1

00: 7

01: 5+1+1



12



Adaptive function



00: OFF

00: OFF

01: ON



13



Reset



00: No

00: NO

01: YES

PRODUCT DIMENSIONS

FASTWARM 16AMP Smart WiFi Thermostat-fig-1

WIRING SPECIFICATION

FASTWARM 16AMP Smart WiFi Thermostat-fig-2
