Fantini Cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT
PRELIMINARY INFORMATION
The complete English manual is available at the following link: pdf.fantinicosmi.it
CONTENTS OF PACKAGE
- 1 programmable thermostat
- 2 6/32UNC American standard thread screws to secure onto 503 flush mounting box (approximately Ø 3.5mm)
- 1 quick guide

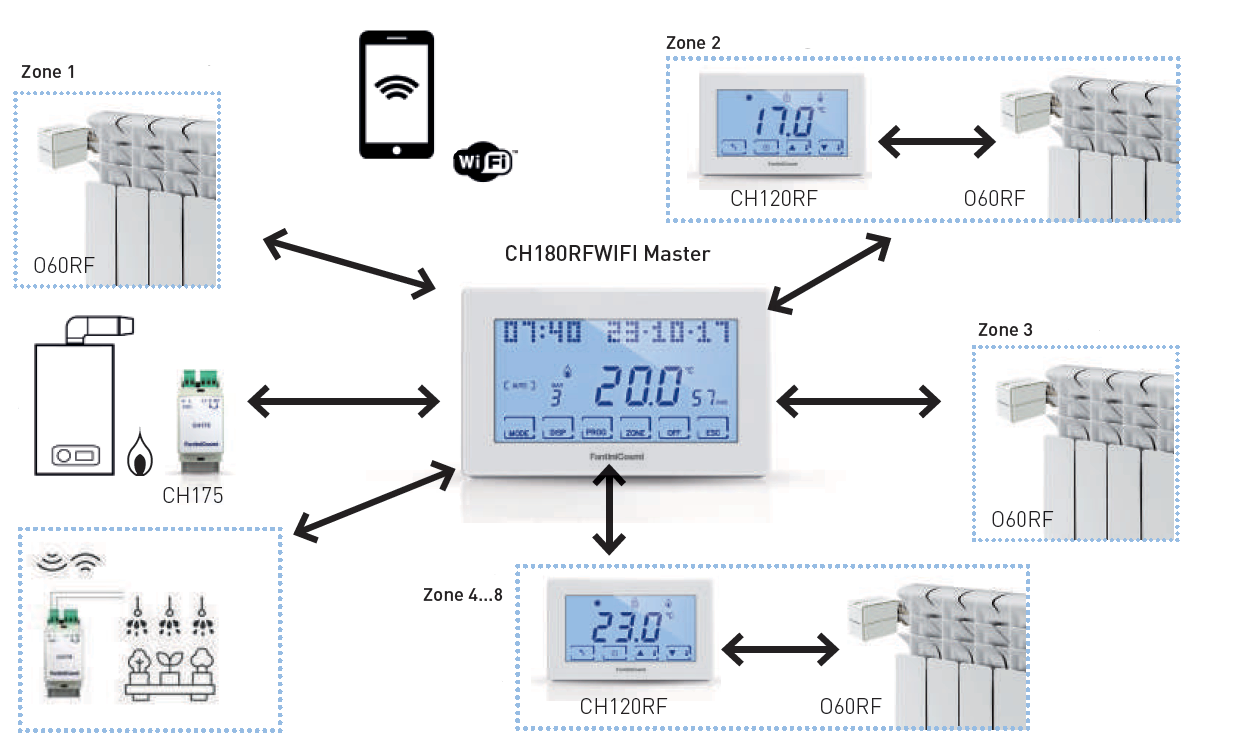

INTRODUCTION TO THE SYSTEM
The CH180RFWIFI is a programmable thermostat with a WiFi connection to control the wireless multi-zone temperature control system either directly or via the Intelliclima+ APP on a smartphone or tablet. With the multi-zone system, different temperature and humidity levels can be controlled within the same home. The values of each zone are set on the CH180RFWIFI master unit and changed locally by one or more devices installed inside the rooms. Communication between all devices takes place through radio waves.

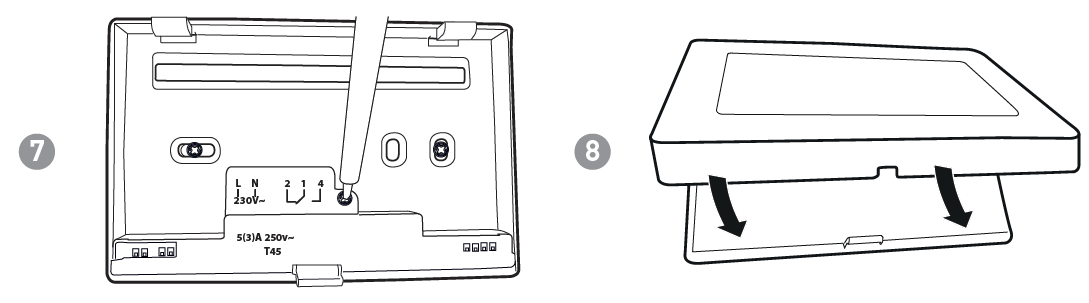

INSTALLATION
ATTENTION!
Installation must be done by qualifi ed personnel in compliance with the requirements concerning installation of electrical equipment. Installation operations must be done with the system’s power disconnected.
The CH180RFWIFI programmable thermostat must be installed on the wall or on a fl ush mounting box, in 3 units or round, at a height of about 1.5m from the fl oor, in a position to properly detect room temperature.
ELECTRICAL CONNECTION
DESCRIPTION OF DISPLAY KEYS
Pressing any key for the first time lights up the display.
- Day of the week
- Activation status: heating, cooling or dehumidification
- Bar graph to display messages and daily programming
- Room temperature (Celsius/ Fahrenheit) measured
- Measured humidity
- Multi-function touch icons
- Zone
- Operating mode
- Icon for various faults
Please note: the function of the multi-function keys varies depending on the situation and is described by the symbol that appears on the display next to the key.

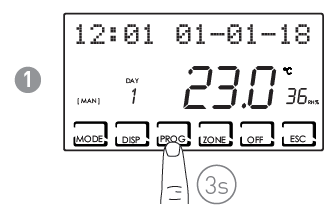

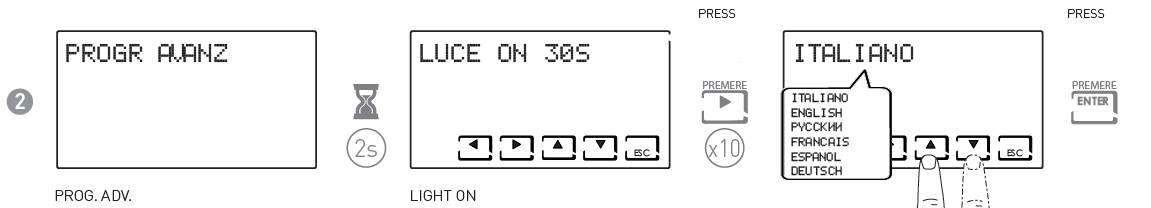

LANGUAGE SELECTION

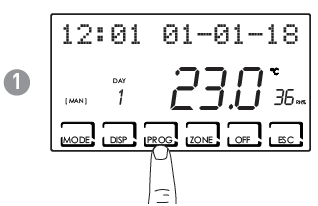

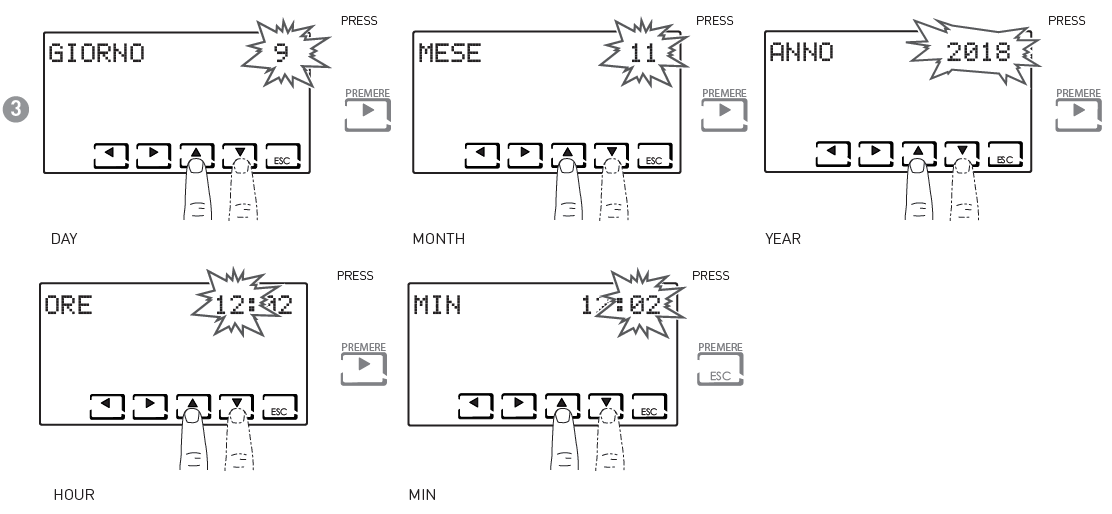

DATE AND TIME SETTING
TECHNICAL FEATURES
| Temperature adjustment scale | 2 ÷ 40 °C, increase 0,1°C |
| Measurement scale/ room T display | – 50 ÷ + 50 °C |
| Relative humidity adjustment scale | 30 ÷ 70%, increase by 0.1°C |
| Measurement scale/room relative humidity display | 0 ÷ 100%, increase by 1°C |
| Power supply | 230V 50 Hz |
| Output type | 1 relay with dry changeover contact (COM/NA/NC) 3 screw clamps (closed + open) |
| Contact range | 5(3)A 250 Vca |
| Type of action | 1 B.U. (connection micro-switch) |
| Software | class A |
| Minimum adjustment differential | 0,3 ÷ 5 K |
| Thermal gradient of reference | 4 K/h |
| Maximum room temperature | 45°C |
| Storage temperature | -10°C ÷ +60°C |
| WiFi connection | 2,4 GHz |
| Transmission and reception frequency | 868 MHz |
| Maximum radio frequency power transmitted | < 10 mW |
| Electric insulation | Double insulation |
| Degree of protection | IP40 |
| Pollution degree | 2 |
| Pulse voltage | 4000V |
| Assembly | on wall or on flush mounting box |
| Dimensions | 127 x 82 x 24 mm |
| Compliant with | EN 60730-1 standards and second parts; Directive 2014/53/ EU (RED) |
| ErP classification | ErP Class IV; 2% [Reg. EU 811/2013 – 813/2013] class VIII; 5% if used with 060RF actuators to create three or more heated zones |
DISPOSAL OF PRODUCTS
The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres. The black bar indicates that the product was placedon the market after August 13, 2005. By participating in separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health. For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.
FANTINI COSMI S.p.A.
Via dell’Osio, 6 20090 Caleppio di Settala, Milano – ITALY
Tel. +39 02 956821 | Fax +39 02 95307006 | [email protected]
www.fantinicosmi.it
