Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT

Fantini-cosmi-CH180RFWIFI-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-product

Thank you for purchasing a FANTINI COSMI S.p.A. product.
Read this instructions manual carefully and always keep it handy for any consultation.
This documentation reflects the specific product features; however, due to regulatory or commercial developments, customers are advised to check for the availability of updates to this documentation on the website FANTINI COSMI S.p.A.: pdf.fantinicosmi.it

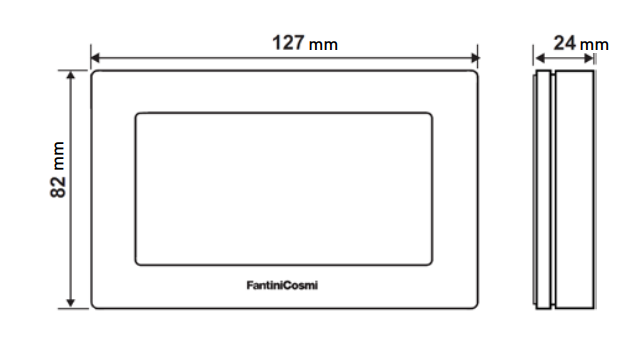

Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT FIG 1 (1)

OPERATION

  • The CH180RFWIFI is a programmable thermostat with a WiFi connection for direct control or control through the APP Intelliclima + for Smartphones and Tablets of the wireless multi-zone temperature control system.
  • It monitors the various zones in the home, communicating with the CH120RF room thermostats and the O60RF wireless radiator actuators, with the CH175 boiler actuators or zone solenoid valve.
  • This system uses a program that allows you to set and edit as needed the temperature, humidity, and time profiles for each zone.
  • It is equipped with a room temperature and humidity sensor, also performing the function of zone heating, cooling, and humidity control, commanding the O60RF and CH175 actuators.
  • It can also manage an auxiliary electrical device (for example an irrigation, ventilation, curtain, etc. system) with ON/OFF control through an outside CH175.
  • It has an internal configurable relay and users can view the energy consumption of the entire system via the intuitive graphics on its white backlit, positive LCD touchscreen.
  • CH180RFWIFI can communicate directly with 15 wireless devices (thermostats, actuators) and can manage up to 8 zones. In total, the network can be connected to a maximum of 114 devices.
    NOTE: wireless transmission toward other devices occurs maximum within 2 minutes.

MULTI-ZONE SYSTEM

The multi-zone system allows users to manage different temperature and humidity levels within the same home.
The values of each zone are set on the master CH180RFWIFI and modified locally by one or more devices installed inside the rooms. Communication between all the devices occurs via radio waves.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT FIG 1 (2)

Once powered, the “MASTER” CH180RFWIFI must be included in the Intellicomfort+ system wireless network. This operation requires the use of the configurator (code 1590880) which provides the operating instructions through its display. When requested by the message on the display, you must move the tip of the configurator toward the point indicated on the device to be configured to perform touch recognition.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT FIG 1 (3)

DESCRIPTION OF DISPLAY KEYSFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT FIG 1 (4)

The first press of any touched button allows you to activate the functions of the buttons themselves and to light up the display.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT FIG 1 (5)

  1. Day of the week
  2. Activation status: heating, cooling or dehumidification
  3. Bar graph for viewing messages and daily programming
  4. Measured room temperature (Celsius/Fahrenheit)
  5. Measured humidity
  6. Multi-function touch icons
  7. Zone
  8. Operating mode
  9. Various faults icon

The function of the multi-function keys varies depending on the situation and is described by the symbol which appears on the display near the key itself.

TECHNICAL FEATURES

  • Temperature adjustment scale: 2 – 40°C, increase 0.1°C
  • Measurement scale/room T display: – 50 – + 50°C
  • Relative humidity adjustment scale: 30 – 70%, increase 0.1°C
  • Measurement scale/room relative humidity display: 0 – 100%, increase 1%
  • Power supply: 230V 50 Hz
  • Type of output: 1 relay with potential-free change-over contact (COM/NA/NC)
  • 3 screw terminals: (closed + open)
  • Relay contact range: 5(3)A 250 Vca
  • Type of action 1BU: (micro connection)
  • Software: Class A
  • Minimum adjusting differential: 0.3 – 5 K
  • The thermal gradient of reference: 4 K/h
  • Maximum room temperature: 45°C
  • Storage temperature: -10°C – +60°C
  • WIFI connection: 2.4 GHz (802.11 b/g/n)
  • Router communication port: 1080
  • Transmission and reception frequency: 868 MHz
  • Maximum radio frequency: power transmitted < 10 mW
  • Electric insulation: Double insulation
  • Protection rating: IP40
  • Pollution rating: 2
  • Pulse voltage: 4000V
  • Wall or recessed: mounting
  • Dimensions: 127 x 82 x 24 mm
  • Compliant with standards
    • EN 60730-1 and second parts
    • Directive: 2014/53/EU (RED)
    • ErP Class IV; 2% [Reg. EU 811/2013 – 813/2013]
  • ErP classification
    • Class VIII; 5% when used with O60RF actuators to create three or more heating zones

PACKAGE CONTENTS

  • 1 programmable thermostat
  •  2 screws for fixing on recessed mounting box 503 with American pipe thread 6/32UNC (approx. Ø 3.5mm)
  • 1 quick guide

INSTALLATION

ATTENTION!
Installation must be carried out by qualified personnel in compliance with the requirements concerning installation of electrical devices.Make sure that the power supply is disconnected before performing the installation.

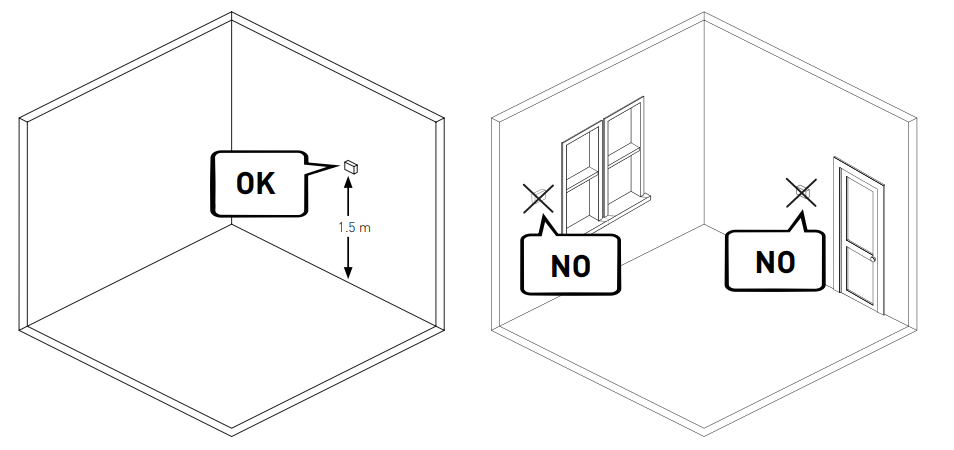

The CH180RFWIFI programmable thermostat must be wall or recess mounted, with 3 modules or round box, at a height of about 1.5 m from the floor, in a position suitable to correctly detect the room temperature.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT FIG 1 (6) Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT FIG 1 (7)

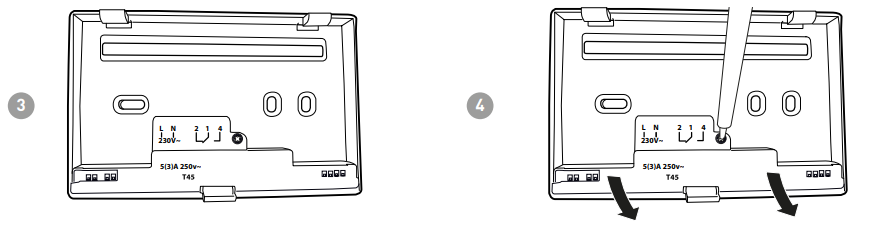

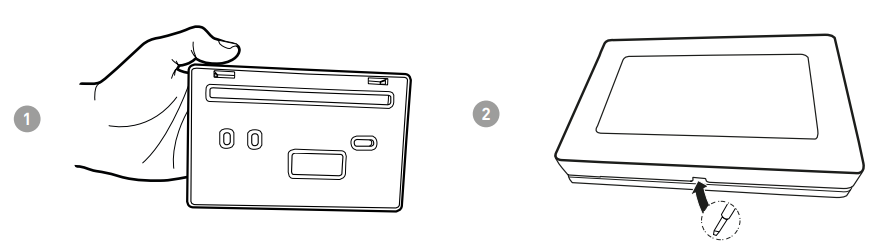

  • Pry the back panel off the body by applying pressure to the specific groove at the bottom.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT FIG 1 (8)
  • Remove the insulating protection by unscrewing the specific waterproof screw.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT FIG 1 (9)
  • Make the electrical connections (refer to the “Electrical connections” paragraph) and secure the panel to the wall with the supplied screws.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT FIG 1 (10)

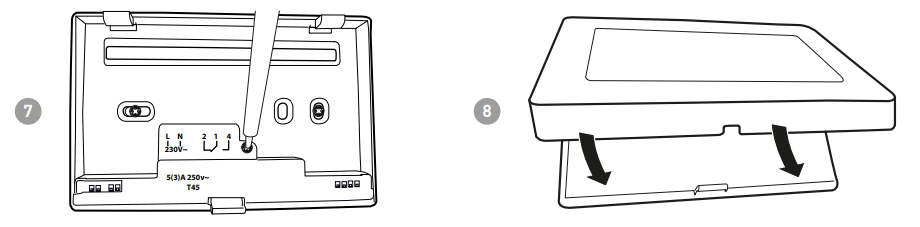

  • Tighten the screw shown and hook the body onto the panel on the wall.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT FIG 1 (11)

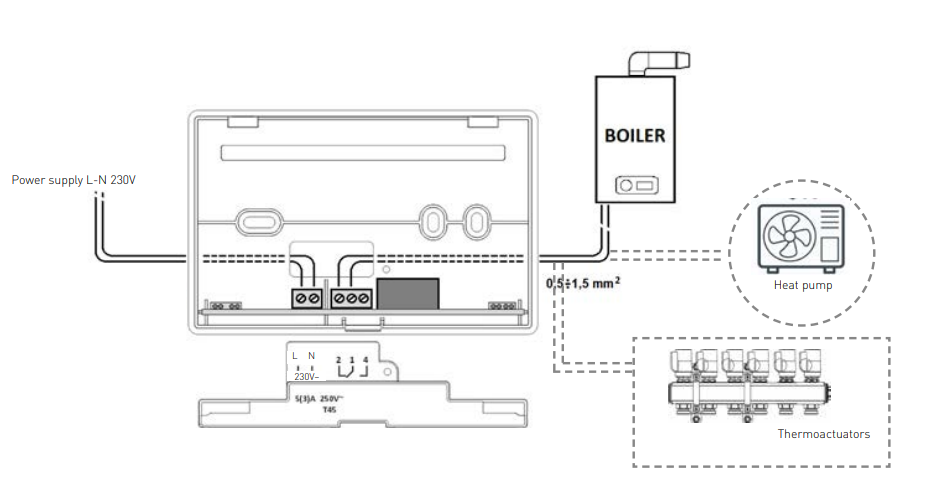

ELECTRICAL CONNECTION

ATTENTION!
Electrical connections must be made by qualified personnel. Electrical connection operations must be done with the system’s power disconnected.

Electrical connections must be made referencing the following diagram.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT FIG 1 (12)

QUICK GUIDE FOR PROGRAMMING (PROG)

The first time any touch key is pressed has no effect, but only activates the functions of the buttons themselves and lights up the display.
After 30 seconds of no interaction, the display goes back to the main screen.

DATE AND TIME SETTINGFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT FIG 1 (14)

Note: ESC always allows you to go back to the previous page.

WINTER/SUMMER SETTINGFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT FIG 1 (16)

HOURLY PROGRAMMING SETTING (PROFILE)Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT FIG 1 (17)

The profiles are set based on whether WINTER or SUMMER mode was previously selected.

Note: pressing or allowing you to move within hours.

PressingFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT (19)allows you to select the profile depending on the time.

SETTABLE PROFILES:Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT (18)

  • tC (comfort) = SUMMER, WINTER
  • tE (economy) = SUMMER, WINTER
  • tA (antifreeze) = for WINTER only
  • OFF = for SUMMER only
    In winter tE < tC; in summer tC < tE.

Note:

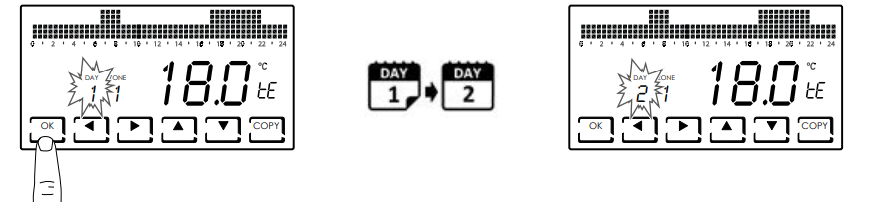

  • Pressing OK allows you to go to the next day.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT (20)
  • Pressing COPY allows you to copy the temperature profile being displayed to the following day.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT (21)

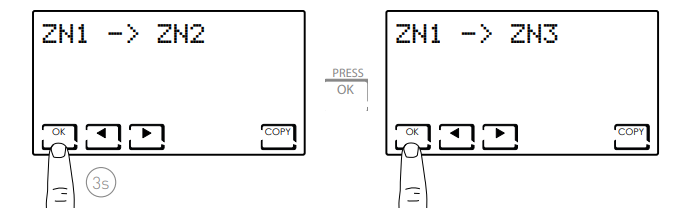

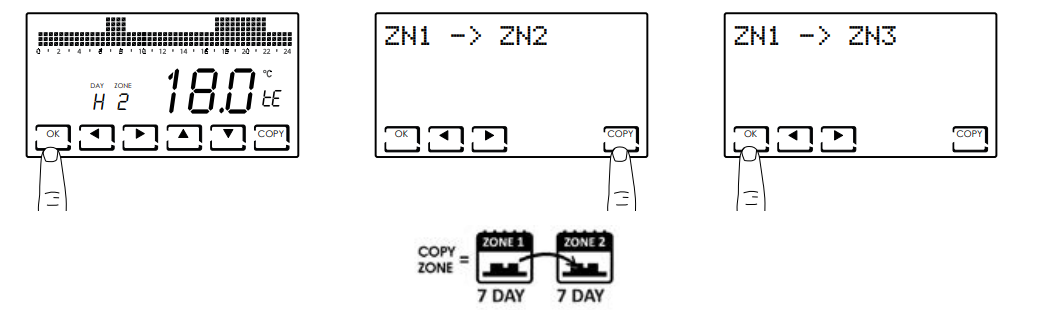

  • Pressing and holding OK allows you to go to the next zone.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT (22)
  • Once you have reached DAY H (HOLIDAY), pressing OK allows you to copy the profile of the whole zone set to the next one.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT (23)

AUX1 SETTING

It is possible within the multi-zone system to autonomously manage an additional ON/OFF device (for example irrigation, shutter darkening, outside lights, fan, air conditioner, etc. systems).
You must have a CH175 connected to this device and it must be configured as an auxiliary AUX1 actuatorFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 24

Note: if the symbol! appears on the screen, it means that the command was set with the hourly profile and therefore cannot be edited on this page. To edit it, follow the instructions in paragraph 7.

SETTING KEYBOARD LOCK WITH PASSWORD

Lets you lock the CH180RFWIFI keyboard and any CH120RF included in the network through a 3-digit numerical code. It works only once, then it must be enabled againFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 25

Note: selecting LOCK YES displays the OK key. Then follow the procedure described in points 3 and 4.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 26

Note: with the KEYBOARD LOCK WITH PASSWORD function running, the CH120RF keys connected to the MASTER CH180RFWIFI will also be locked.
A blackout does not reset the password

OPERATION MODE

  • On CH180RFWIFI, it is possible to activate and display the main operating modes either for the whole system or for a single zone.
  • To select a zone, exit from STAND-BY mode and press the ZONES key until the selected zone number is displayed.
  • To exit from the zone, press the ESC key, or else the CH180RFWIFI will go back to the main screen after 30 secondsFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 27

Note:

  • If the LOCAL SET message appears in a zone, it means that the set-point has been changed for a finite time for the CH120RF of the indicated zone (see TEMPORARY MODIFICATION in the CH120RF manual).
  • If WAIT appears in a zone, this means that no data relating to the selected zone has arrived after the creation of the network.
  • Any function set from the MAIN SCREEN affects the entire multi-zone system, while any function set in a SINGLE ZONE only affects the related area.

OPERATING PROGRAMS

The CH180RFWIFI programmable thermostat has different operating modes, called programs.

Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 28

  • [ MAN ]
    MANUAL PROGRAM
    The device regulates room temperature using a set temperature specified on a case-by-case basis, for an unlimited amount of time until another program is selected.
  • [ AUTO ]
    WEEKLY PROGRAM
    The device manages the temperatures set based on the hourly programs on a weekly profile. You can set the following temperature levels: tC, tE, tA/ OFF (every half hour).
  • [ JOLLY ]
    TEMPORARY PROGRAM
    The device manages the system using a temperature that can be set over a variable amount of time (you set the hour and the day up to when you wish to keep the set temperature).
  • [ HOLIDAY ]
    HOLIDAY PROGRAM
    The device manages the system through an extra daily profile (in the event you stay home for a holiday). You can set two temperature levels: tC, tE, tA, OFF (every half hour).

Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 29

  • SYSTEM OFF or ANTIFREEZE PROGRAM
    Press the OFF key to switch off the system. The antifreeze temperature is maintained during WINTER mode.
    If the OFF key is pressed again in SYSTEM OFF mode, the system will return to the previously set operating mode

SELECTING THE OPERATING PROGRAM

The programs are selected in cyclical order.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 30

Note: press the MODE key to select from the [MAN] – [AUTO] – [JOLLY] – [HOLIDAY] operating modes in cyclical order. If MODE is pressed from the main screen, all zones will be in the mode selected.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 31

Note: press ZONE and then press MODE to set the operating mode for every single associated zone. The name of the operating mode is displayed in square brackets (e.g. [AUTO]).

DISP: Pressing the DISP key allows the user to view some parameters set based on the active operating program

SETTING “AUTO” PROGRAMFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 32

  • The device manages the temperatures set based on the hourly programs on a weekly profile. You can set the following temperature levels: tC, tE, tA/ OFF (every half hour).
  • The CH180RFWIFI has weekly pre-set profiles in both winter and summer, but the user can edit them. See par. 3.3, page 10

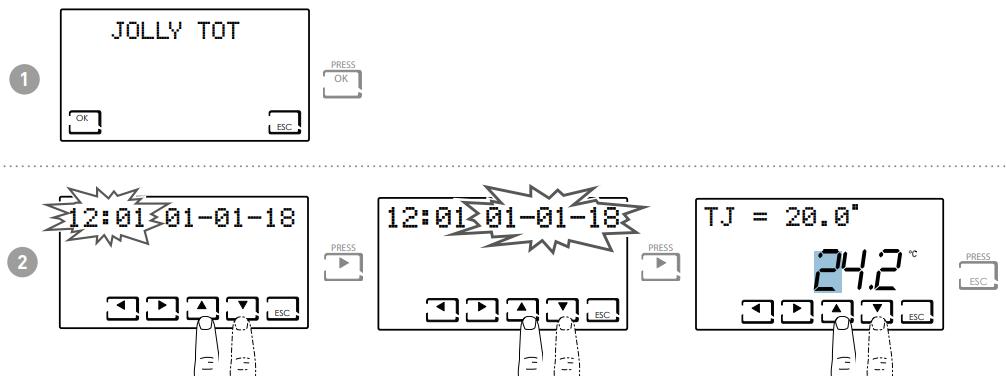

SETTING GENERAL “JOLLY” PROGRAM

  • The device manages the system using a temperature that can be set over a variable amount of time (you set the hour and the day up to when you wish to keep the set temperature).
  • From the main screen, press MODE until JOLLY appears. The JOLLY TOT screen is displayed.
  • Press OK and use theFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 33arrows to set the time (with 30 min. resolution) and the day until which you want to maintain the set temperatureFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 34

Set the time and day until you which you want to maintain the set temperature.
At the end of JOLLY mode, the programmable thermostat will return to the previously set operating status.

SETTING ZONE “JOLLY” PROGRAM

  • Press ZONE to select the desired zone and then press MODE until JOLLY appears. The JOLLY screen is displayed.
  • Press OK and use theFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 33arrows to set the time (with 30 min. resolution) and the day until which you want to maintain the set temperatureFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 35

Set the time and day until you which you want to maintain the set temperature

SETTING “AUTO” and “HOLIDAY” PROGRAM TEMPERATURE

If the device is in AUTO or in HOLIDAY, you can set a tCOMF (comfort temperature) and tECO (economy temperature) temperature value between 2° and 40°C.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 37

Note: the same procedure applies to single zones.

SETTING “MANUAL” and “JOLLY” PROGRAM TEMPERATURE

If the device is in MAN or in JOLLY, you can set a TMAN and TJ temperature value between 2° and 40°C.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 38

Note: the same procedure applies to single zones.

DISPLAYING PARAMETERS (DISP)

Press the DISP key to view the most significant parameters cyclically.

SET TEMPERATURE MODE

Note: according to the active operating mode, the set temperature will be displayed and it will be possible to change it :Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 39

  • TECO ( Economi temperature )
  • TCOMF ( Comfort temperature)
  • TA ( Antifreeze temperature)
  • TMAN ( Manual temperature)

SEASONFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 40

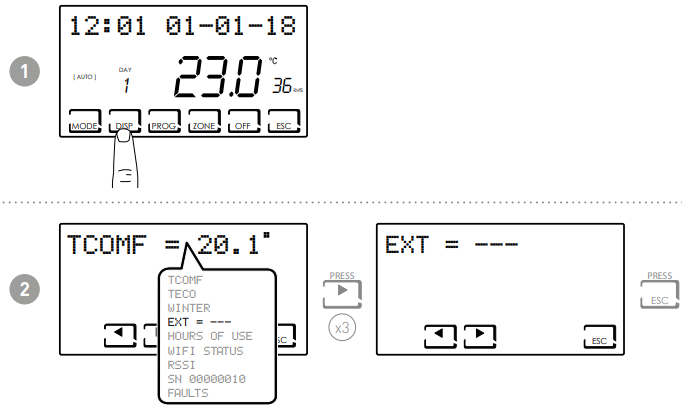

EXTERNAL PROBEFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 41

Note: “—” will be displayed if no external probe is present

DEW POINTFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 42

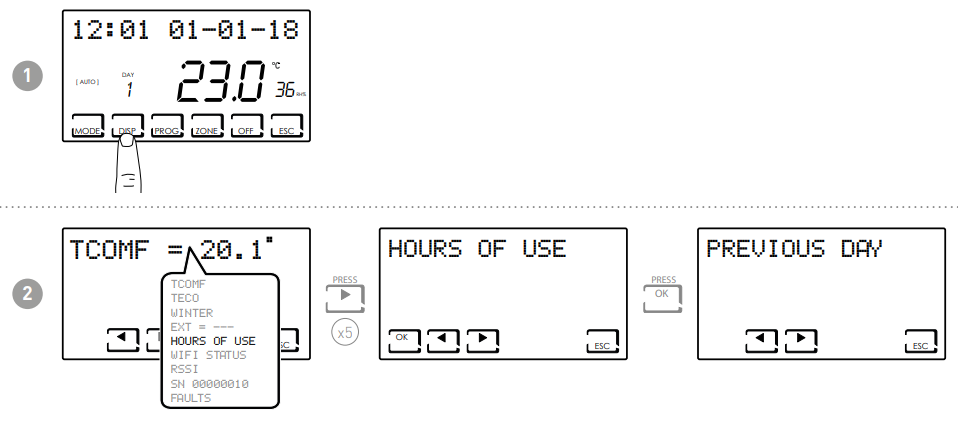

HOURS OF USE

The programmable thermostat records the total consumption of the heating and cooling hoursFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 43

Note: it is possible to vary the use of statistics by

  • PREVIOUS DAY = total operating hours on the previous day
  • CURRENT MONTH = total operating hours in the current month
  • PREVIOUS MONTH = total operating hours on the previous month
  • CURRENT YEAR = total operating hours in the current year
  • TMAX = maximum room temperature measured from the previous day
  • TMIN = minimum room temperature measured from the previous day
  • RESET

Press OK on the CURRENT MONTH, PREVIOUS MONTH and CURRENT YEAR screws to view a chart with the details of use (shown below).Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 44

PressFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 72to move and view the day of the month (or month or year, depending on the page displayed) and hours of use.

WIFI STATUS

Allows you to view the WiFi signal quality.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 45

If the icon Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 46 is:

  • STEADY ON = status is OK
  • FLASHING ON = device cannot find the server
  • OFF = the device is not connected to the router (OFF will appear on the display)

RSSI

Displays the quality of the signal received from the devices connected directly to the programmable thermostat.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 47

SERIAL NUMBER

Allows you to view the device serial numberFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 48

Note: this number identifies the single device and is used for WiFi activation via the “Intelliclima+” app

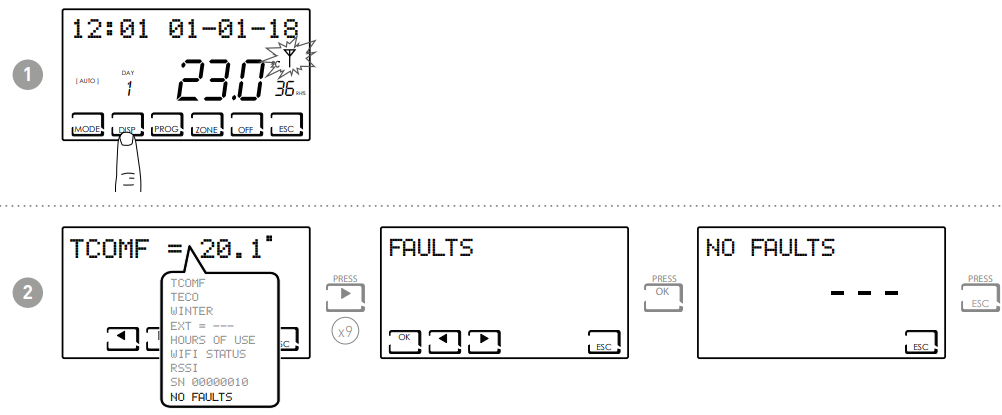

FAULTS

Allows you to view the presence of any faults on the programmable thermostat.
The flashing Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 49 icon on the display indicates that a fault is present on one of the devices making up the multi-zone system.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 50

ERROR DEVICE FAULT ACTION
020 O60RF Incorrect assembly Make sure that the head is mounted properly on the valve; contact technical support if the problem persists.
010/ 021/ 030 O60RF Mechanical / electronic error Contact technical support.
022 O60RF Temperature reading error Contact technical support.
040 O60RF Low battery Replace the batteries.
001 CH120RF Low battery Replace the batteries.
006 CH120RF No radio communication Replace the batteries; contact technical support if the problem persists.
050 O60RF No radio communication Replace the batteries; contact technical support if the problem persists.
050 CH175 No radio communication Check the mains power supply; contact technical support if the problem persists.

LOCK FOR SCREEN CLEANING

(ESC)

Press ESC for 5 seconds. The message LOCKED will appear on the display for 30 secondsFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 51

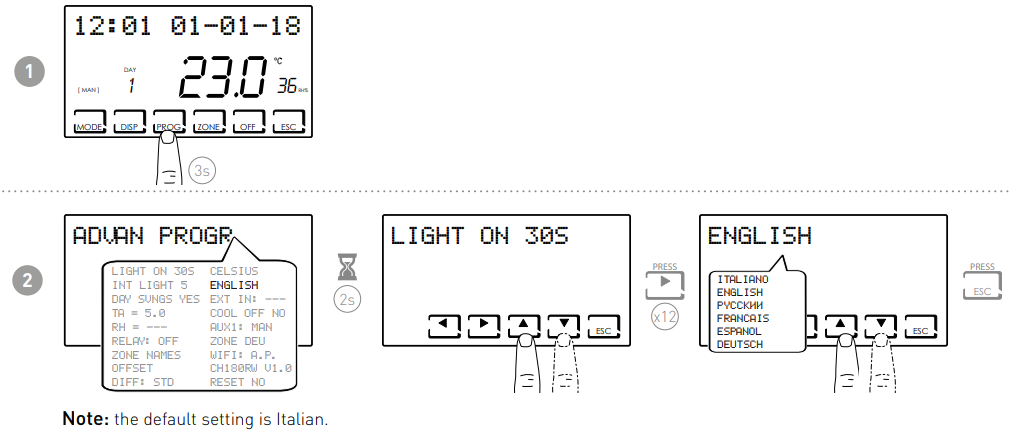

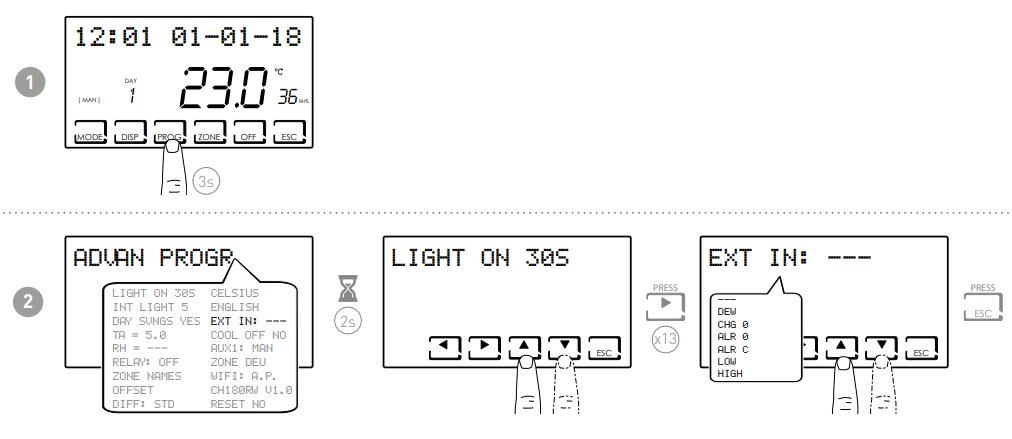

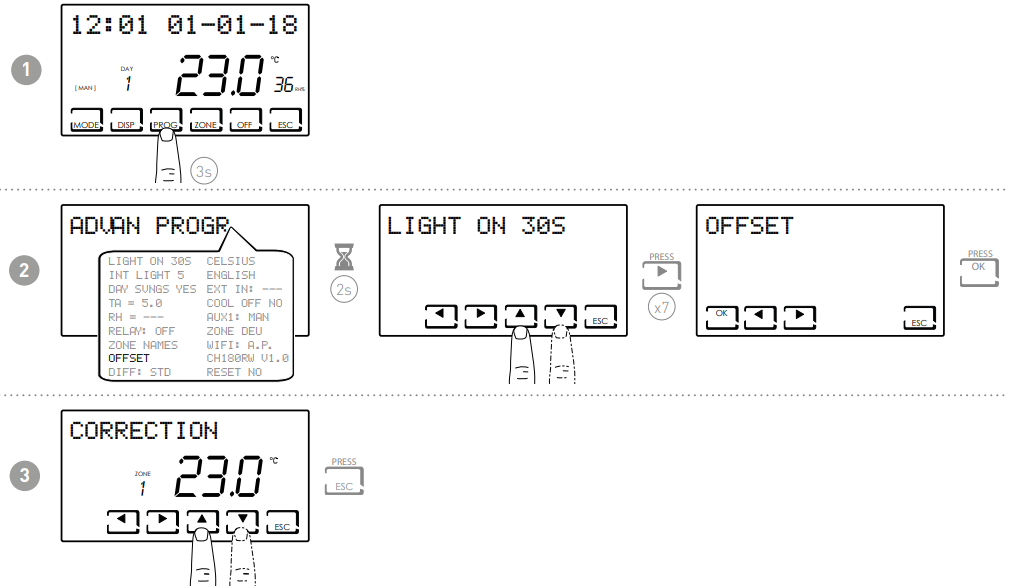

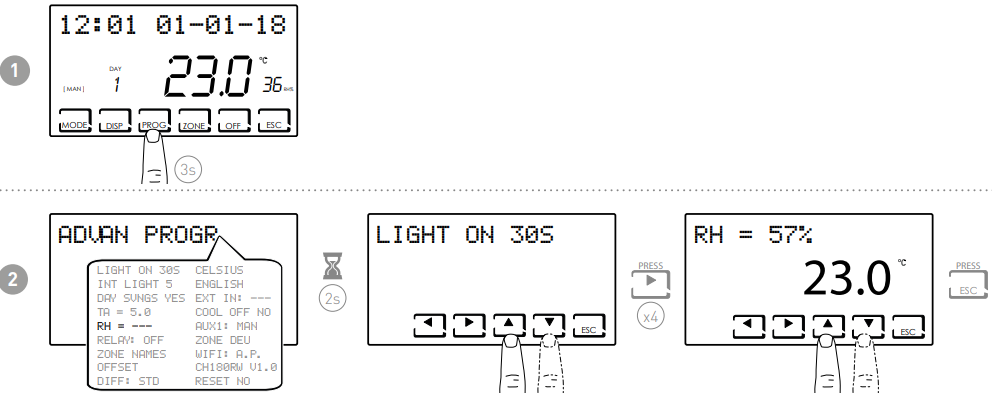

ADVANCED FUNCTIONS

(PROG)

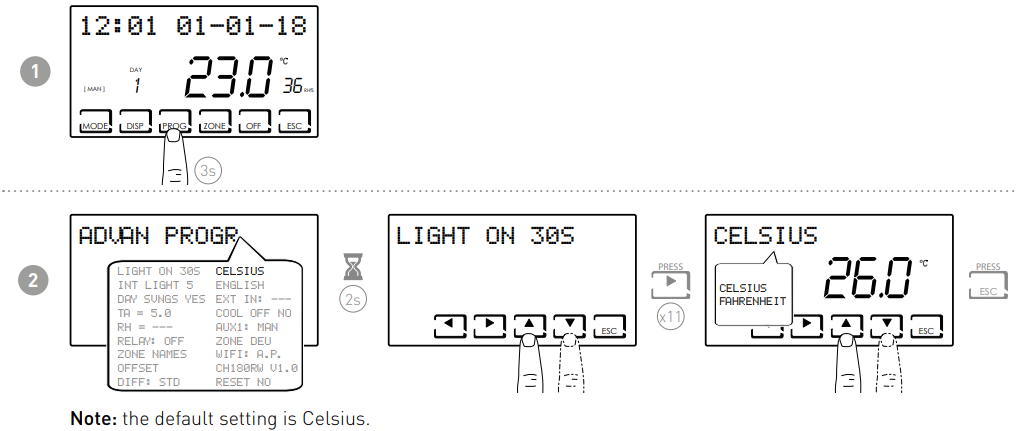

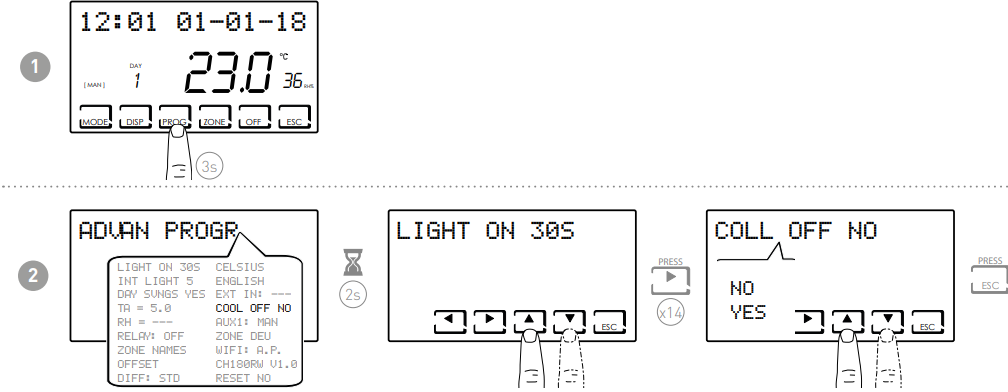

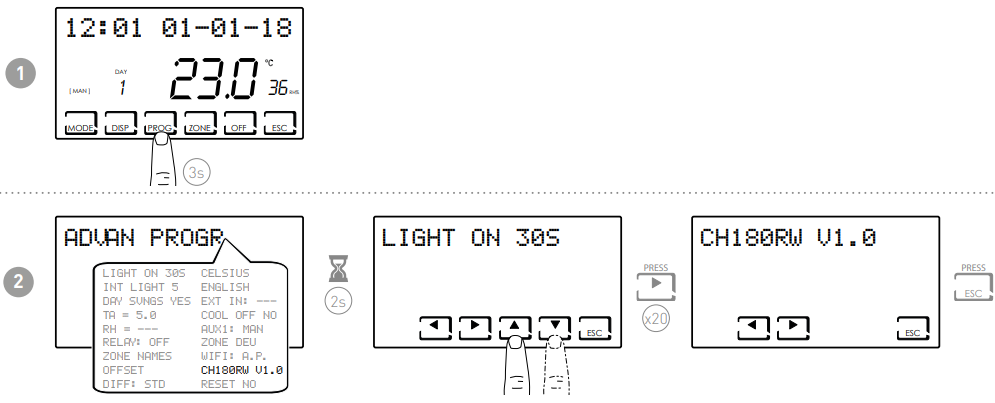

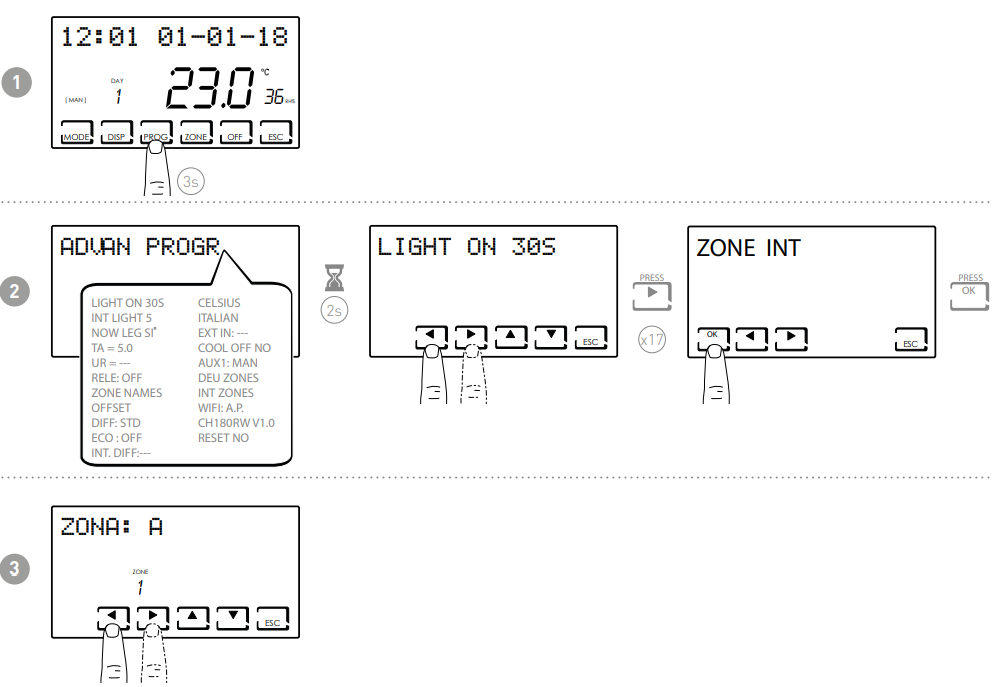

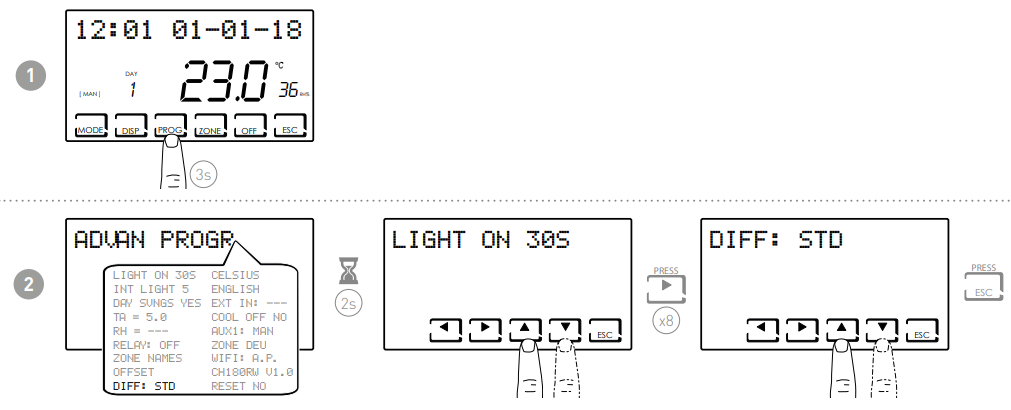

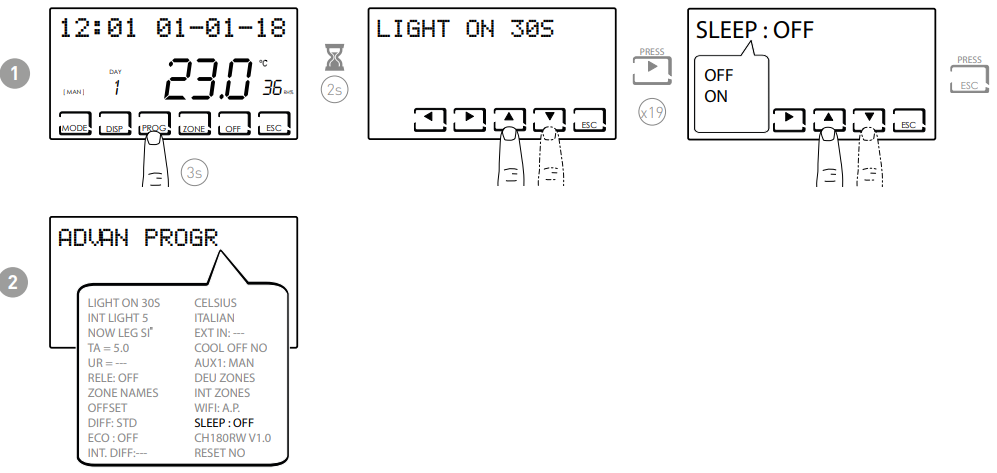

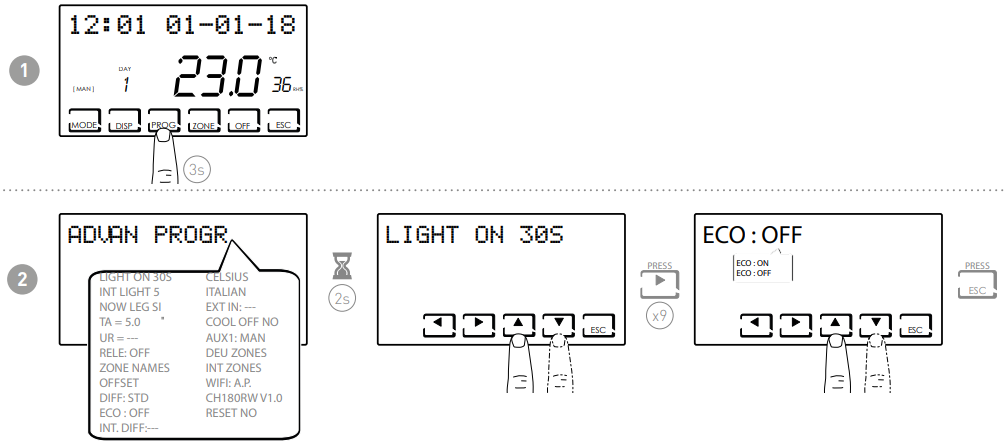

Press and hold the PROG key for a few seconds to access ADVANCED PROGRAMMING.

DISPLAY ON TIME

Allows you to adjust the display backlight time (with white light) from 5 to 30 seconds (default = 5s).Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 52

DISPLAY INTENSITY

Allows you to modify the luminous intensity of the display on 10 levels + 0 Off (default = 5s).Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 53

DAYLIGHT SAVINGS TIME

Automatically selects daylight saving time, applicable in European and some other countries. This allows you to automatically update the time at the time change (March and October) (default = YES).Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 54

ANTIFREEZE TEMPERATUREFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 52

Note:

  • The tA can be set from a range between 2.0 and 7.0 °C and an OFF value (default = 5.0°C).
  • This function cannot be activated in SUMMER.

RELATIVE HUMIDITY

This parameter allows you to set the relative humidity limit above which makes a dehumidifier starts to operateFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 57

Note: this set-point value can be adjusted from 30% to 70%, or “—” not present (default = —). This function cannot be activated in WINTER

RELAY FUNCTION

This parameter allows you to set the relay inside the programmable thermostat for various uses. The available functions are:

  • OFF = always off because unused
  • INT.Z.B = activation of an integration device in zone B only;
  • INT.Z.A = activation of an integration device in zone A only;
  • INT.Z. = activation of an integration device in zone 1 only;
  • DEU.Z. = activation of a dehumidification unit only in zone 1
  • RAF.Z = activation of a cooling unit only in zone 1
  • RIS.Z = activation of a heating unit only in zone 1
  • R.R.Z. = activation of a heating and/or cooling unit only in zone 1
  • INT.G = activation of a general integration device;
  • DEU.G. = activation of a general dehumidification unit
  • RAF.G. = activation of a general cooling unit
  • RIS.G. = activation of a general heating unit
  • R.R.G. = activation of a general heating and/or cooling unitFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 58

ZONE NAMES

Allows you to assign a name to each zone of the system.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 59

The names of the zones range between

  • Master Bedroom
  • Bedroom
  • Living Room
  • Kitchen
  • Bathroom
  • Entrance
  • Hallway
  • Attic
  • Family Room
  • Closet
  • Guest Room
  • Foyer
  • Cellar
  • Garage
  • Laundry Room
  • Boiler Room
  • Day-time area
  • Night-time area
  • Floor
  • Zone

OFFSET

Allows to modify the temperature measured by CH180RFWIFI and by the heads O60RF which act as a zone. Due to an incorrect wall installation or assembly of the heads on radiators located in non-ideal positions (behind walls, curtains or in crannies), the sensors might not indicate the correct temperature perceived by the devices. This function corrects the measured temperature for the selected zone by ± 5.0 °C (default = 0.0 °C).Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 60

DIFFERENTIAL MANAGEMENT

Allows you to manage the temperature difference between the OFF and ON status.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 61

Note: the differential value can be set between 0.3 and 5.0, or STD standard (default = STD).

OPTIMIZATION

This function optimizes the energy consumption of the heating and/or cooling system by acting on its on and off times. Depending on the type of system installed and the differential set, the required set point temperature can be reached, minimizing energy consumptionFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 62

INTEGRATIONFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 54

  • This function integrates the heating/cooling of the main system with the VMC of Fantini Cosmi (ASPIRCOMFORT PROxx models), to reach the required temperature set point more quickly.
  • For more information read the CH193VMC manual for ASPIRCOMFORT PROxx machines.
  • When the integration is in operation on the CH180RFWIFI the symbol of the unit of measurement used “° C” or “° F” flashes.
  • Set AUX1 (page 35) for the activation relay.

Note: the value of the integration differential that can be set is between 0.3 and 5.0, or standard STD (default = —).

CELSIUS / FAHRENHEITFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 64

Allows you to choose the set the temperature display scale between degrees Celsius and degrees Fahrenheit.

Note: the default setting is Celsius.

LANGUAGE

Allows you to choose which language to use during programmingFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 65

Note: the default setting is Italian

EXTERNAL PROBEFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 66

The CH180RFWIFI does not have an auxiliary input but, inside a multi-one system with at least one CH120RF, it can manage the auxiliary input of the CH120RF itself, if correctly configured (see “ANTI-CONDENSATE ADJUSTMENT” and “EXTERNAL PROBE” in the CH120RF manual).

Note: in a multi-zone system only CH120RF associated to zone 2 can be configured with an external probe set as a remote probe for CH180RFWIFI.

  • — = action disabled Connecting to
  • CH120RF you can use the following functions after connecting an EC18-EC19-EC20 temperature probe:
    • DEW = floor system condensate formation control in summer through control of the dew point (a floor probe is required).
      Note: with the control active, when a zone switches the cooling system off, the symbol Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 67 flashes in the corresponding zone.
    • LOW = minimum safety temperature exceeded alarm. This is a safety threshold, only active in the SUMMER season, and disables the system. To activate, press OK and set the desired minimum threshold using theFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 68 keys.
    • HIGH = maximum safety temperature exceeded alarm. This is a safety threshold, only active in the WINTER season, and disables the system. To activate, press OK and set the desired minimum threshold using theFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 68keys.
  • Connecting to CH120RF a voltage-free contact allows you to use the following functions:
    • CHG O = switch-over to SUMMER mode with closed contact and WINTER mode with open contact
    • ALR O = display of alarm message in the presence of open contact
    • ALR C = display of alarm message in the presence of closed contact

COOL OFF

Allows you to control floor system condensate formation in SUMMER without having a floor probe.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 69

If COOL OFF = YES, the CH180RFWIFI controls the cooling system shut down at the same time as dehumidifier activation (it is necessary to set an RH% threshold and the DEW function must be disabled).
Note: with the control active, when a zone switches the cooling system off, the symbol flashes in the corresponding zone.

AUX1

This parameter allows to operation the relay of CH175 associated to the programmable thermostat in different modes. The following functions are available:

Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 70

  • PROG = sets the on/off time profile of an external utility (e.g. irrigation, yard light, etc.) in a 24-hour span;
  • MAN = sets relay2 in manual/ ON-OFF mode, activated locally by USER PROG (see paragraph 3.4).
  • Pressing Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 68allows you to scroll through the different time bands.
  • Press theFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 68arrows to switch the AUX1 relay on/off.

Note: CH175 in AUX 1 mode can only be associated with the programmable thermostat CH180RFWIFI and must be configured as an auxiliary actuator AUX 1.

ZONE DEU

Allows to associate the zone groups (consisting of CH180RFWIFI and CH120RF) to a dehumidifier/VMC connected to a CH175. There can be 2 groups:

  • DEU A GROUP;
  • DEU B GROUPFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 71

The keysFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 72allow you to scroll the zones in CH180RFWIFI.
TheFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 68arrows associate the DEU A, and DEU B groups or—for each zone displayed.

Note: Only the zones with CH180RFWIFI and CH120RF are displayed. CH175 in DEU ZONE A or in DEU ZONE B can only be associated with the programmable thermostat CH180RFWIFI and must be configured as an auxiliary actuator DEU ZONE A or DEU ZONE B.

ZONE INT

It allows you to associate groups of zones (formed by CH180RFWIFI and CH120RF) to a VMC connected to a CH175. Groups can be 2

  • INT GROUP A;
  • INT GROUP B.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 73

The keysFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 72the zones on the CH180RFWIFI scroll.
The arrowsFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 68they associate the INT A, INT B or — group for each displayed zone.

Note: Only the zones with CH180RFWIFI and CH120RF are displayed. CH175 in INT ZONE A or INT ZONE B mode can only be associated with the chronothermostat CH180RFWIFI and the INT ZONE A or INT ZONE B auxiliary actuator must be configured

WIFI

Displays device WiFi connection status.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 74

  • — = off
  • NORM. = normal
  • A.P. = access point (allows you to connect a smartphone)

SLEEP

It allows to set the entire heating system in the “energy saving” mode.
This function is displayed with [OFF] both on the main screen and in all zones.

NOTE: to restart the system it is compulsory to set a new functioning mode ONLY from the main screen or from the Intelliclima+ APP. To allow the system functioning completely, it could be necessary to wait up to 8 hours maximum.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 75

INFORMATION

Displays the software version of the programmable thermostatFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 76

RESETTING DEFAULT PARAMETERS
Allows you to reset all parameters (except the date and time) to the factory settings.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 77

REMOTE PROGRAMMING VIA THE APP

The WiFi signal on the programmable thermostat allows you to remotely control the device via the Intelliclima+ app, available free of charge from the Google Play Store and Apple App Store.

WIFI ACTIVATION
The programmable thermostat WiFi connection is off upon first start-up. To activate it, go to ADVANCED PROGRAMMING and follow the instructions.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 78 Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 79

  • — = off
  • NORM. = normal
  • A.P. = access point (allows you to connect a smartphone)

Select A.P. and press ESC.
Start up the guided installation procedure on the app as described in the “INSTALLATION PROCEDURE” paragraph.

INSTALLATION PROCEDURE

  1. Install the app and, upon first activation, create an account by entering a username and password.Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 80
  2. Create a new house by pressing the Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 82key. Enter the desired name and pressFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 81
  3. Add the programmable thermostat by pressing Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 82 the key and selecting CH180RFWIFI
  4. At the end of this procedure, the new programmable thermostat will be displayed inside the homeFantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT fig 84

CONNECTION PROBLEMS

If the router does not connect to the server:

  1. Check that the router password is correct, repeating the steps in paragraphs 8.1 and 8.2;
  2. Check that the router supports standard 802.11 b/g/n;
  3. Contact your Internet provider and have port 1080 opened at the IP address of the server: 92.48.107.8

DISPOSAL

The symbol of the crossed-out wheeled bin indicates that the products must be collected and disposed of separately from household waste. The batteries and integrated accumulators may be disposed of together with the product. They will be separated at the recycling facilities. A black bar indicates that the product was placed on the market after August 13th, 2005. Participating in the separate collection of products and batteries contributes to the correct disposal of these materials and therefore avoids possible negative consequences for the environment and human health. For more detailed information on the collection and recycling programmes available in your country, contact the local authorities or the sales point where you purchased the product.

GENERAL WARRANTY CONDITIONS

The conventional warranty lasts 24 months, starting from the date the equipment is installed. The warranty covers all parts of the equipment, with the exception of those subjected to normal wear.

FANTINI COSMI S.p.A.

Reference

Download Manual:

Fantini cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT INSTRUCTIONS Manuals

Other Manual:

Fantini Cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT QUICK GUIDE

Fantini Cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT Product Specification Guide

Fantini-cosmi-LOGO

Fantini Cosmi CH180RFWIFI TOUCH-SCREEN PROGRAMMABLE THERMOSTAT INSTRUCTIONS Manuals

Comments

Leave a Reply

Your email address will not be published. Required fields are marked *

To respond on your own website, enter the URL of your response which should contain a link to this post’s permalink URL. Your response will then appear (possibly after moderation) on this page. Want to update or remove your response? Update or delete your post and re-enter your post’s URL again. (Find out more about Webmentions.)
