Fantini cosmi CH180 TOUCH-SCREEN PROGRAMMABLE THERMOSTAT Installation Instructions

Fantini-cosmi-logo

Fantini cosmi TOUCH-SCREEN PROGRAMMABLE THERMOSTAT

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-product

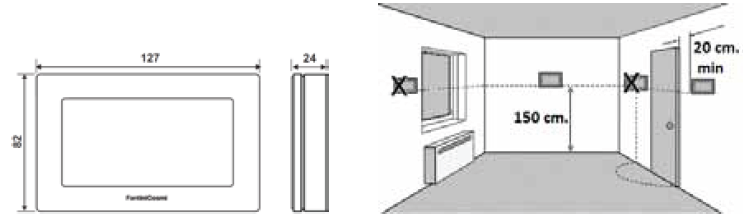

Dimension

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-1

  • Is supplied with a base suitable for flush mounting on round boxes or for wall mounting.

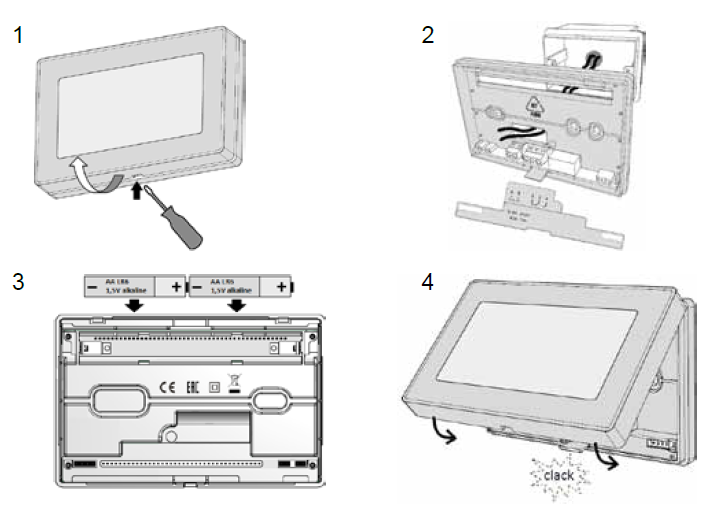

Installation

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-2

The installation must be done by qualified personnel in accordance with the prescriptions concerning the electric equipment installation. Before making any connections or operating the device, ensure that the power line is disconnected. Carry out the electrical connections according to the wiring diagram.

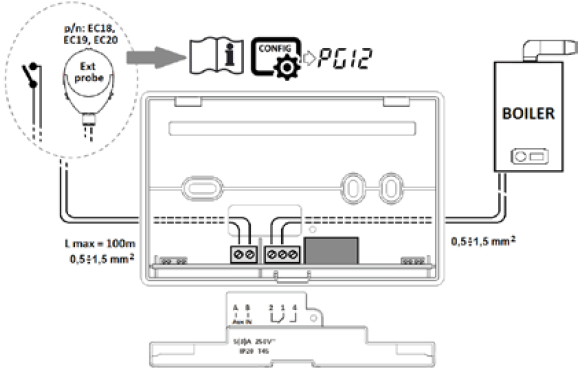

Examples or connection

Wiring connection example

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-3

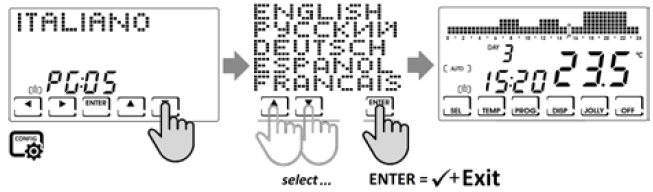

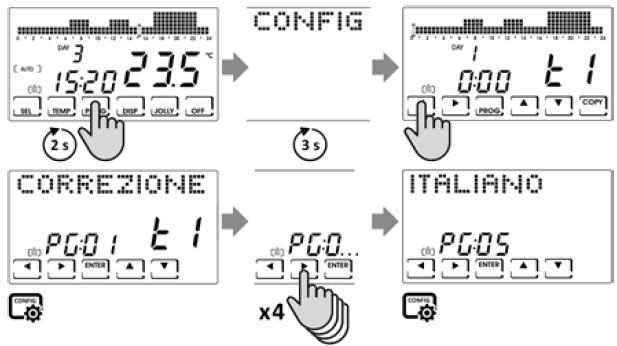

Menu language selection

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-4

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-5

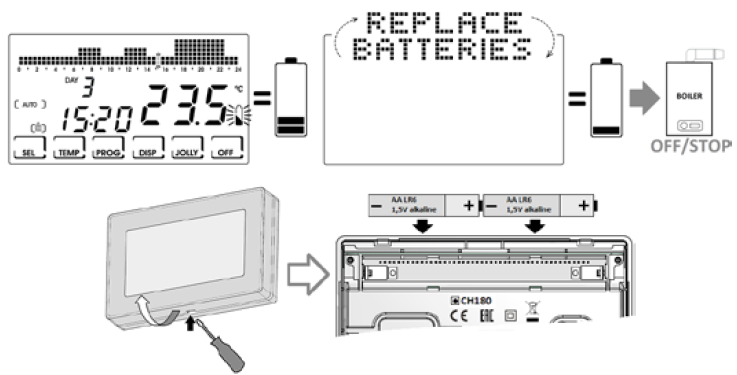

Replace batteries

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-6

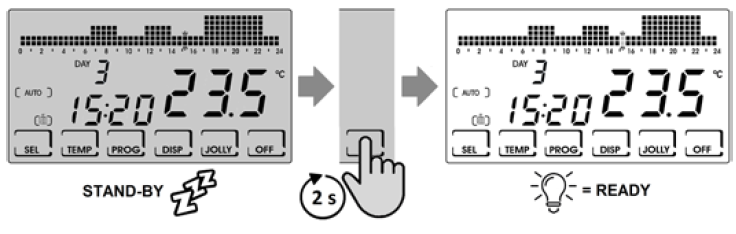

RELEASE FROM STANDBY

Unlock stand-by

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-7

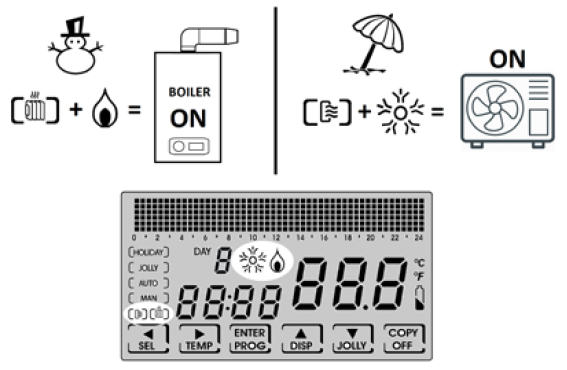

INDICATIONS OF HEATING OR COOLING ACTIVE

Heating or cooling system on indication

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-8

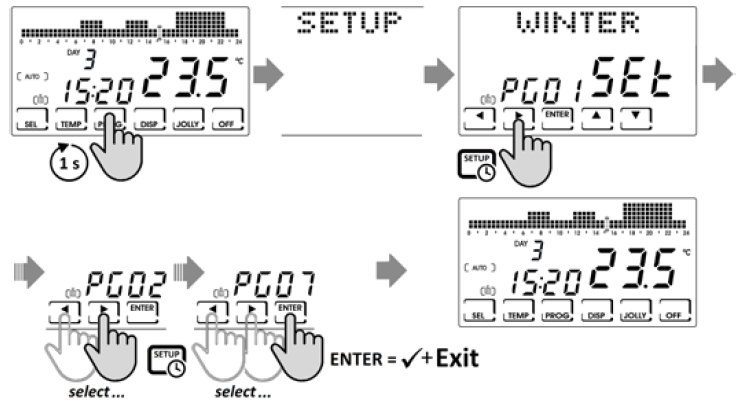

SETTINGS MENU (SETUP)

Setup menu

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-9UK The weekly thermostat has an index menu to change the main parameters (winter, summer, time, date etc.)

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-10

Description of the “settings” menu

Index       Parameter Factory setup
PG01       WInTER/SUMMER setup WInTER
PG02       HoUR setup
PG03       MInUTES setup
PG04       YEAR setup
PG05       MonTH setup
PG06       DAY setup
PG07       SUMMER TIME setup YES

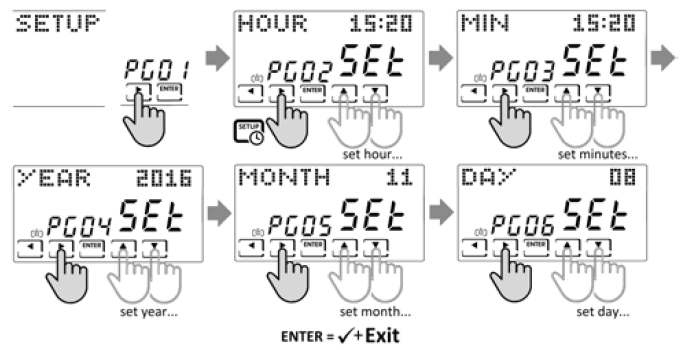

TIME AND DATE SETTING

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-11

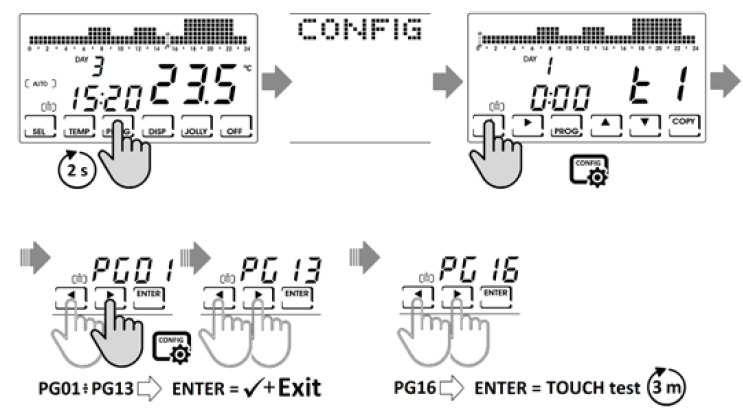

Configuration menu (config )

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-12Daily programs and some functional configurations are edited in the “configuration” menu.

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-13

Description of the “configurations” menu

Index Parameter Factory setup Value
DaY 1÷7, H Daily programs: Mon÷Sun, Holiday See more details at pag. 27-29
PG01 Room temperature correction 0.0°C. ± 5.0°C by steps of 0.1
PG02 Scale temperature CELSIUS CELSIUS / Fahrenheit
PG03 Back-light timeout 10 s. 2÷30 = time delay (seconds)
PG04 Back-light intensity 5 1÷10 = light levels
PG05 Setting the language menu ITALIAn English, Russian, Deutsh, Espanol, francais
PG06 Activating screen lock with password no no = not used

YES = screen lock with password

PG7 Restoring default parameters no no = no editing of set parameters YES = restoring default settings
PG08 Software version
PG12 Auxiliary input functionality 1 – – – = not connected/used

VIS = external probe temperature visualization (*) REG = thermal regulation using external probe (*) UP = interruption regulation with max temperature (*)

LoW = interruption regulation with min temperature (*)

ALR C = LCD message for input closed ALR o = LCD message for input opened

PG13 UP or LOW limits temperature setup 40° x UP

2° x LoW

2 ÷ 40°C by steps of 1 (#)
PG16 Touch keys test
  • (*): this option requires the external probe (mod. EC18, EC19, EC20 o equivalent).
  • (#): this option PG13 appears only with option ALRC or ALRO in the PG12.

“AUTO” & “HOLIDAY” PROGRAMS (Factory settings)

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-14

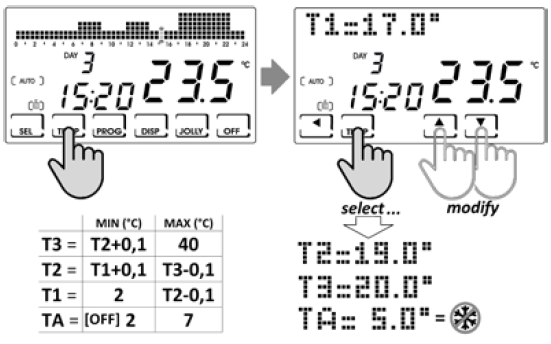

T1-t2-t3-ta temperatures setup

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-15

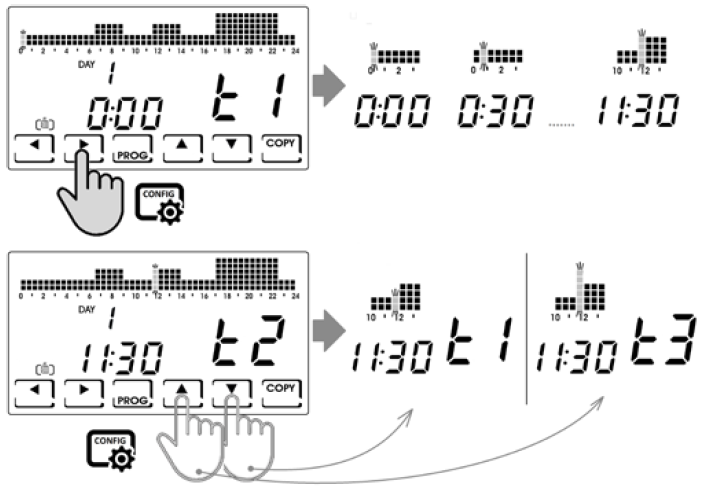

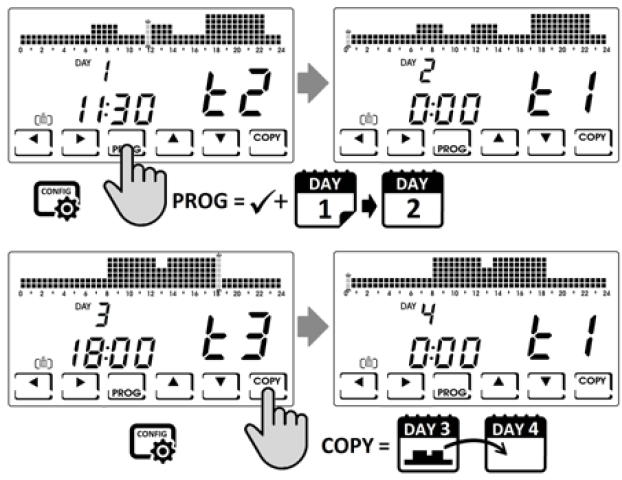

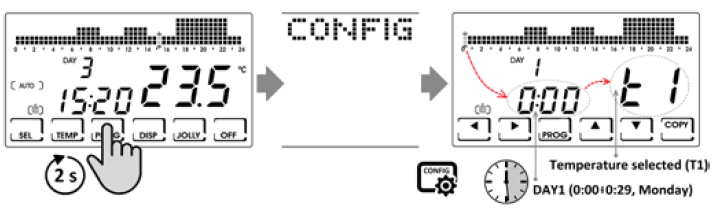

“Auto ” program editing

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-16

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-17

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-18

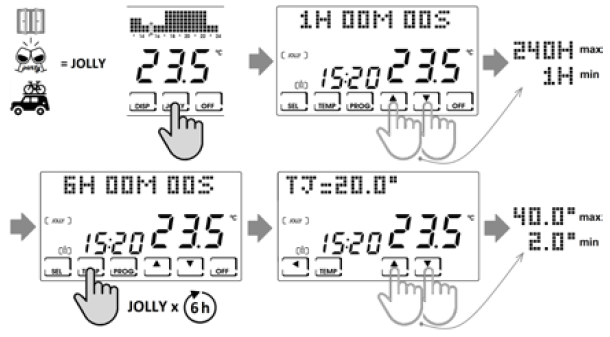

Temporary program “jolly ” (range: 1÷240 hours)

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-28+

Function

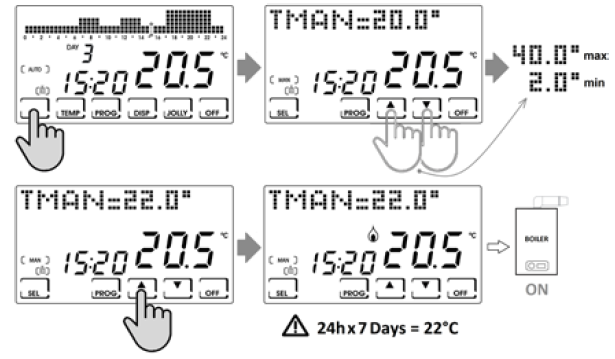

“MAN” function for manual operation

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-20

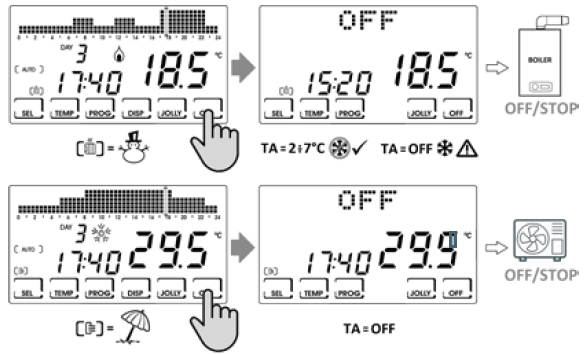

“Off” function for heating/cooling shutdown

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-21

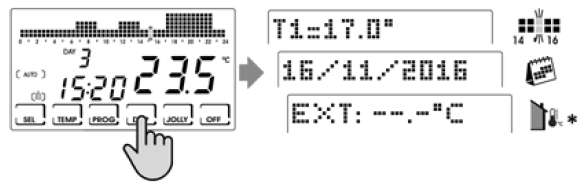

ALTERNATIVE VIEWS

Alternative displaying on LCD

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-22

SCREEN CLEANING BLOCK

Screen lock for cleaning

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-23

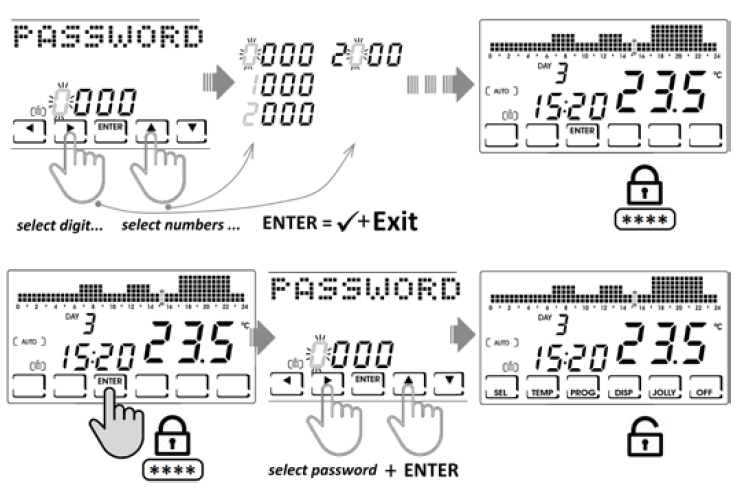

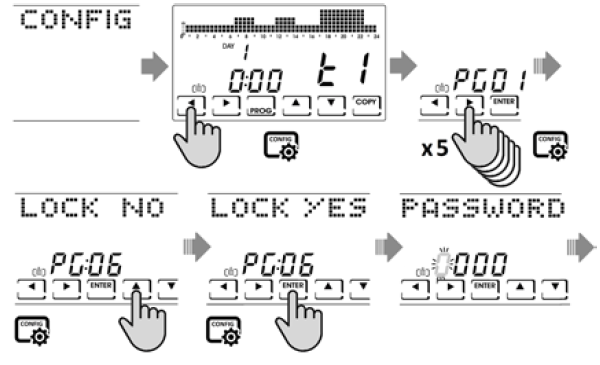

LOCK AND UNLOCK KEYS WITH A PASSWORD

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-24

Fantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-25

Technical characteristics

  • Temperature regulation range: 2÷40 °C, by step 0,1°C
  • Range of temperature indication: -35 ÷ +60 °C
  • Powered by: 2 alkaline AA 1.5V, battery life about 1 year
  • Relay contact rating: 5(3)A 250V~ – free voltage type
  • Action type: Micro-disconnection 1BU
  • Software: A class
  • Reference thermal gradient: 4K/h
  • Max ambient temperature operating: 45°C
  • Electrical insulation: doubleFantini-cosmi-CH180-TOUCH-SCREEN-PROGRAMMABLE-THERMOSTAT-fig-29
  • Protection degree: IP40
  • Pollution degree: 2
  • Impulse voltage: 4000V
  • Compliance: EN 60730-1 and second parts.
  • ErP classification: ErP Class IV; 2% (EU Reg. 811/2013 – 813/2013)

Disposal of Products

The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres. The black bar indicates that the product was placed on the market after August 13, 2005. By participating in separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health. For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

FANTINI COSMI S.p.A.

Via dell’Osio, 6 20090 Caleppio di Settala, Milano – ITALY

SUPPORTO TECNICO

EXPORT DEPARTMENT

5679798B
