Fantini Cosmi CH110R Electronic Room Thermostat

Fantini Cosmi-CH110R-Electronic-Room-Thermostat-PRODUCT

CH110R
Room thermostat powered by wiring center

Electronic room thermostat with a microprocessor to control heating and air conditioning installations with a 2-wire connection directly to the wiring center model EVWC8R.

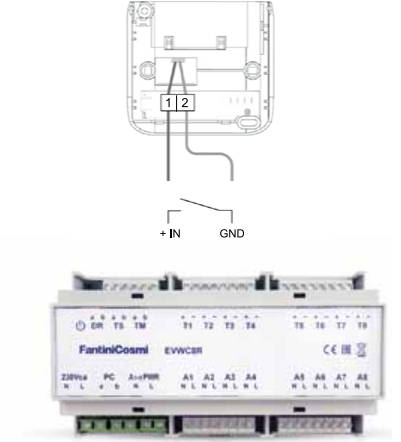

ELECTRICAL FEATURES

Fantini Cosmi-CH110R-Electronic-Room-Thermostat-FIG.3

  • 24Vdc supply from the wiring center model EVWC8R
  • ON-OFF input through 2 wire connection to the wiring center model EVWC8R

HOMOLOGATION AND STANDARDS

Complies with EN 60730-2-9 standards
ErP Class IV; 2% (Reg. EU 811/2013 – 813/2013)

INSTALLATION

Fantini Cosmi-CH110R-Electronic-Room-Thermostat-FIG.4

  • Mounting on the wall or in round box with axle spacing of 60 mm.
  • Two-wire connection with the user.
  • No changes are necessary to the existing system.

OPERATION

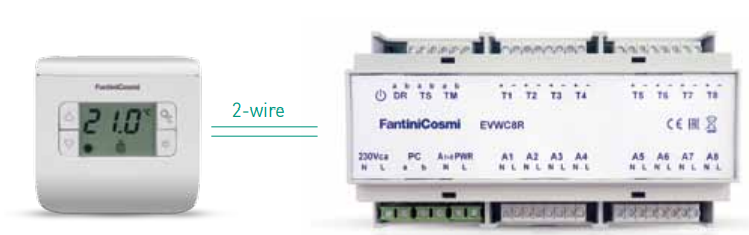

According to the set point the thermostat communicates with the wiring center EVWC8R to manage the therrmoactuator.

Fantini Cosmi-CH110R-Electronic-Room-Thermostat-FIG.5

3 operation modes:

  • Fantini Cosmi-CH110R-Electronic-Room-Thermostat-FIG.6COMFORT
  • Fantini Cosmi-CH110R-Electronic-Room-Thermostat-FIG.7ECONOMY
  • Fantini Cosmi-CH110R-Electronic-Room-Thermostat-FIG.8OFF can be used as “antifreeze” mode or to shut down completely the system (OFF).

3 set temperatures:

  • COMFORT operates the system’s comfort temperature that can be set from 2°C to 40°C.
  • ECONOMY operates the system’s economy temperature that can be set from 2°C to 40°C.
  • OFF temperature set in the “regulation” mode from 0 to 7°C to ensure frost protection function.
    SUMMER-WINTER control by pressing simultaneously the keys

FEATURES

  • Wide display with graphic icons combined with the frontal keys for choosing the operation mode.
  • Possibility to visualize Celsius or Fahrenheit temperature values.
  • Maximum ambient temperature 45 °C.
  • Dimensions 85 x 83 x 21mm.
