Fantini cosmi C800WIFI SMART PROGRAMMABLE THERMOSTAT Technical Data Sheet

Fantini cosmi logo

Fantini cosmi C800WIFI SMART PROGRAMMABLE THERMOSTAT

Fantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- pro

SMART FUNCTIONS

  • Minimalist design with only 3 LED digits and 3 keys
  • To control the heating and cooling systems
  • Remote control through APP for Smartphone and Tablet
  • SMART functions for an innovative approach to environmental comfort

CODES

  • C800WIFIPRO Smart Programmable Thermostat with power supply kit, square and rectangular bases
  • C800WIFIQ Smart Programmable Thermostat with square base
  • C800WIFIR Smart Programmable Thermostat with rectangular base
  • C800AL Power supply kit 230Vac/3.3Vcc for C800 series

Specification

  • Power supply 2 batteries 1,5V AA or 3,3 Vdc @1500mA Max (by C800AL)
  • Contacts rating 5(3)A 250 Vac
  • WiFi connection 2.4 GHz (802.11 b/g/n)
  • Temperature regulation range 2 ÷ 40 °C, increment 0.1°C
  • Adjustable differential STD, 0,3 ÷ 5 K
  • Thermal gradient 4 K/h
  • Ambient RH display range 0 ÷ 99 %, increase 1%

HOMOLOGATION AND STANDARD

  • Complies with EN 60730-1 standards and second parts;
  • Responding to Directive 2014/53/UE (RED); 2014/30/UE (EMC); 2014/35/UE (LVD)
  • ErP Class IV; 2% (Reg. EU 811/2013 – 813/2013);

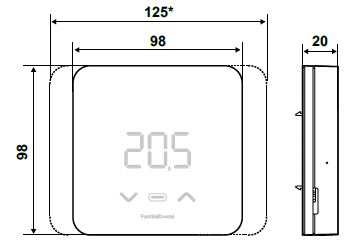

DIMENSIONS mmFantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 1

INSTALLATION

  • C800WIFIQ could be installed on the wall or in a 2 modules or round flush mounting box, at about 1.5 meters above the floor.Fantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 2
  • C800WIFIR could be installed on the wall or in a 3 modules flush mounting box, at about 1.5 meters above the floorFantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 3

ELECTRIC FEATURES

  • Power supply 2 batteries 1,5V AA or 3,3 Vdc @1500mA Max (by C800AL)
  • Maximum absorbed power 5 W
  • Contacts rating 5(3)A 250 Vac
  • Type of action 1 B.U. (connection micro-switch)
  • Output type  1 relay for heating and cooling system} (3 screw clamps (closed + open)
  • Software Class A
  • Electric insulation Double insulation
  • Pulse voltage 4000V

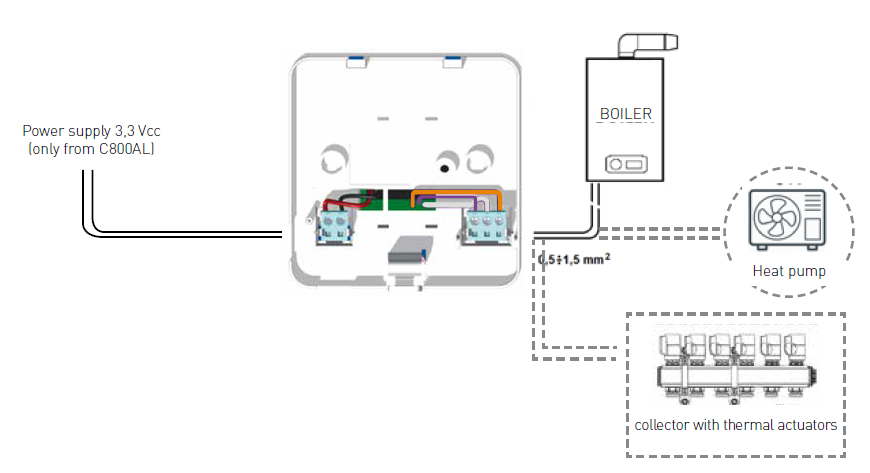

ELECTRICAL CONNECTIONFantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 4

GENERAL FEATURES

  • Temperature regulation scale 2 ÷ 40 °C, increment 0.1°C
  • Measurement scale/room T display – 50 ÷ + 50 °C
  • Differential 0.3 ÷ 5 K
  • Thermal gradient 4 K/h
  • Maximum room temperature 45°C
  • Ambient RH display range 0 ÷ 99 %, increase 1%
  • WiFi connection 2.4 GHz (802.11 b/g/n)
  • Router communication port 1080
  • Maximum radio frequency power transmitted <10mW
  • Storage temperature -10°C ÷ +60°C
  • Protection degree IP32
  • Pollution degree 2

ADVANCED FUNCTIONS

C800WIFI is a smart programmable thermostat for an innovative approach in the environmental comfort management. Thanks to the continuous temperature and humidity parameter monitoring (suitable to detect the perceived temperature) and the data processing by “Artificial Intelligence” algorithms, this system crosses all the information useful to optimize the heating and cooling system application, anticipating or delaying its activation based on the room habits and the advanced geolocation of users, with the aim to provide the best comfort conditions with the lowest possible consumption. Such a new advanced thermoregulation approach, called “AGC-Adaptive Gain Control”, allows to reduce the primary energy requirement that can be verified and read by the user, through the infographics sections of the Intelliclima+ App which display the savings data expressed in kW/year, reduction of CO2 and the equivalence of these data in “number of planted trees”.

  • Fantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 5DYNAMIC GEOLOCATION
  • Fantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 6PERCEIVED TEMPERATURE
  • Fantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 7ENVIRONMENTAL SAVINGS
  • Fantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 8ADAPTIVE GAIN CONTROL (AGC)
  • Fantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 9DOUBLE POWER SUPPLY
  • Fantini cosmi- Ca800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 10OPEN WINDOW DETECTION
  • Fantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 11  VOICE CONTROL
  • Fantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 12REMOTE CONTROL BY APP
  • Fantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 13INTEGRATED WIFI

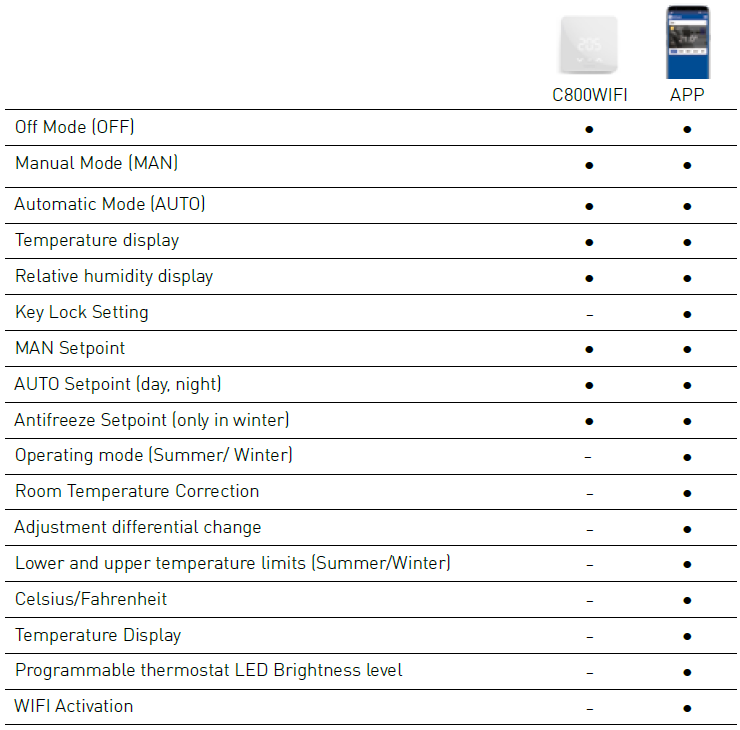

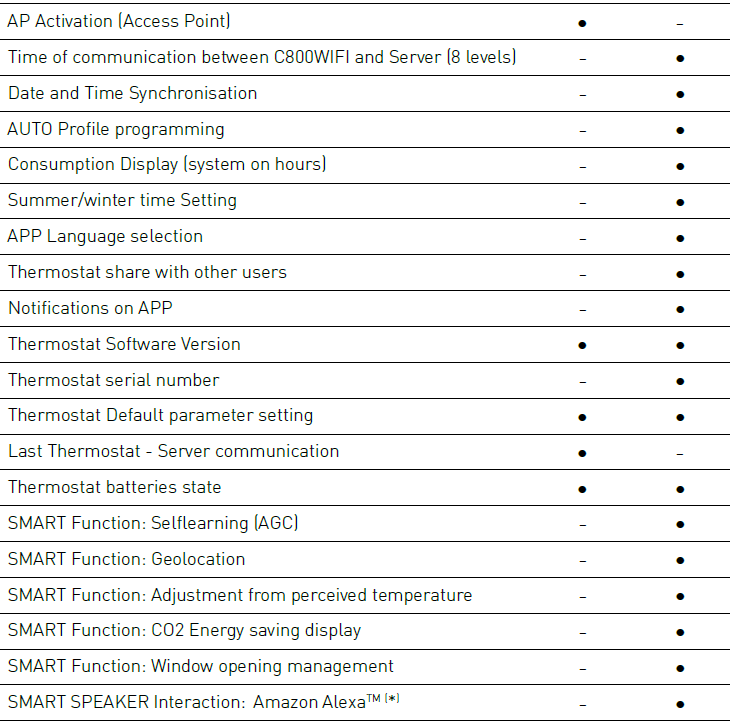

MODIFIABLE FUNCTIONS / PARAMETERS

The temperature can be adjusted in several ways: directly from the programmable thermostat and through the APP Intelliclima+. Below is a table to view the functions that can be managed from the programmable thermostat and the APP.Fantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 14 Fantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 15

OPERATION

  • The C800WIFI is a LED programmable thermostat with WIFI connection and integrated relay which, equipped with a temperature and relative humidity sensor, allows to control the apartment heating and cooling.
  • Equipped with a “virtual” graphical interface which can be used through the APP, it optimises the use of the room heating and cooling system with
  • Artificial Intelligence algorithms, with the purpose of providing the best comfortable conditions with the least possible consumption.
  • C800WIFI is provided with 6 keys and their minimal functions change according to the context. All the advanced functions and the programming of the operating modes can only be set from the APP.
  • The programmable thermostat allows different modes of use, called programs:
    • MAN Manual program
    • AUTO Weekly program
    • OFF Switched off system or antifreeze programFantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 16

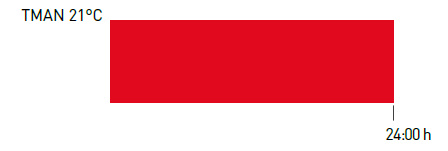

[ MAN ] MANUAL PROGRAM
The programmable thermostat adjust the room temperature using the temperature set in 24 hoursFantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 17

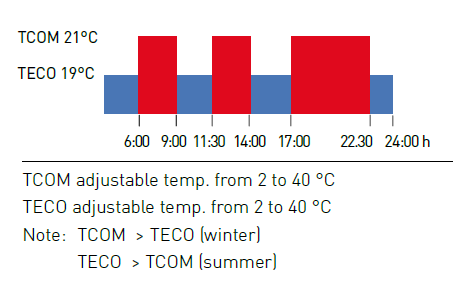

[AUTO] AUTO – WEEKLY PROGRAM
Il C800WIFI programmable thermostat manages the set temperatures according to the time programs on the weekly profile. It is provided with preset winter programs and preset summer programs, but modifiable by the user only by APP. In the AUTO mode it is possible to set 2 temperature levels TCOM e TECO (comfort temperature and economy temperature).

Fantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 18

OFF – SWITCHED OFF SYSTEM OR ANTIFREEZE PROGRAM
The selected system is switched off. During WINTER mode keeps the temperature antifreeze.

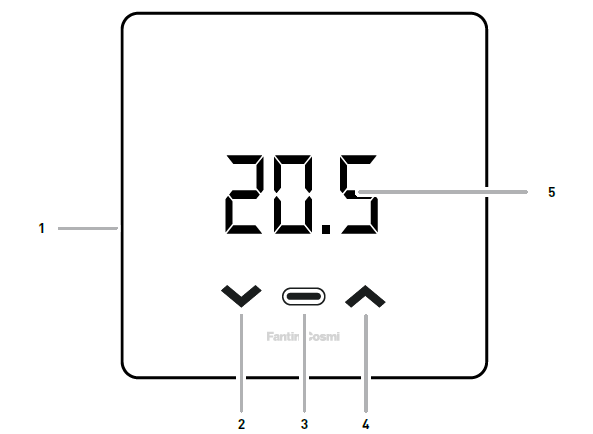

  1. Reset Switch
  2. Down Key – Decreases
  3. Mode key + heating/cooling LED
  4. Up Key – Increases
  5. Room temperature and basic functions display

REMOTE PROGRAMMING THROUGH APP
With the Intelliclima+ APP, from a smartphone or tablet, is possible to manage the functions described in the previous table.

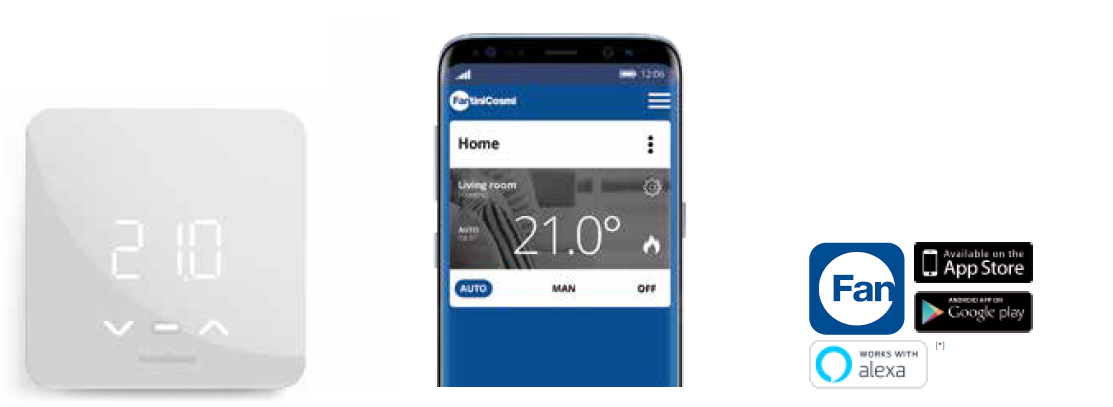

EXAMPLE OF INFORMATION FOR HEATING SYSTEMFantini cosmi- C800WIFI- SMART -PROGRAMMABLE- THERMOSTAT- 19
