Fantini cosmi C800WIFI SMART PROGRAMMABLE THERMOSTAT

Fantini cosmi C800WIFI SMART PROGRAMMABLE THERMOSTAT  pro

PRELIMINARY INFORMATION

The complete English manual is available at the following link: pdf.fantinicosmi.it, framing the QR-code you will be directed directly to the link.

CONTENTS OF PACKAGE

  • 1 programmable thermostat (C800WIFI model)
  • 2 screws to secure onto recessed box (only on C800WIFIPRO)
    • 1 quick guide
    • 1 mains feeder (optional) (only on C800WIFIPRO)

Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (1)

OPERATION

  • The C800WIFI is a LED programmable thermostat with WIFI connection and integrated relay which, equipped with a temperature and relative humidity sensor, allows to control the apartment heating and cooling.
  • Equipped with a “virtual” graphical interface which can be used through the APP, it optimises the use of the room heating and cooling system with Artificial Intelligence algorithms, with the purpose of providing the best comfortable conditions with the least possible consumption.

The temperature can be adjusted in several ways:

  • directly from the programmable thermostat
  • through the APP Intelliclima+
  • Below is a table to view the functions that can be managed from the programmable thermostat and the APP.

EDITABLE FUNCTIONS/PARAMETERSFantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (2) Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (3)

ELECTRICAL CONNECTIONFantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (4)

INSTALLATION

ATTENTION!

  • Installation must be done by qualified personnel in compliance with the requirements concerning installation of electrical equipment.
  • Installation operations must be done with the system’s power disconnected.
  • Depending on the purchased version, the installation of the programmable thermostat differs in:
  • C800WIFIQ : can be wallmounted or recessed in a 500 and 502 type box.
  • C800WIFIR : can be wallmounted or recessed in a 503 type box.

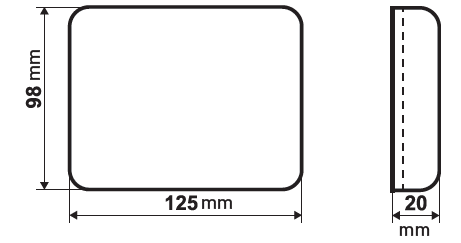

DimensionFantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (5)

It must be installed at a height of about 1.5m from the floor, in a suitable position to detect the room temperature correctly

Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (6)

WALL-MOUNTINGFantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (7)

RECESSED MOUNTING
(mains power supply 230V)

Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (9).

Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (10)

Note:

  •  square base for 500 and 502 type box
  •  rectangular base for 503 type box

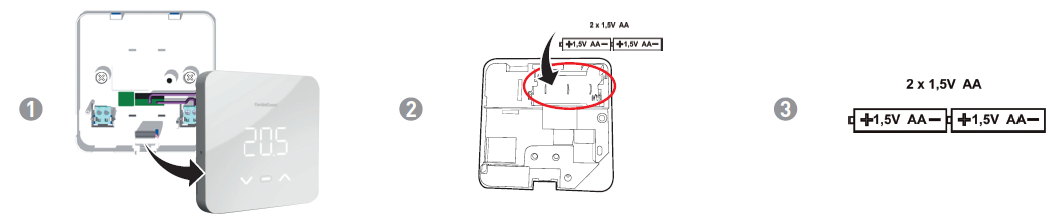

BATTERY REPLACEMENT UK

Note: When replacing the batteries, perform a reset (as indicated on page 29). We also recommend synchronization with the APP (as indicated on page 43).

Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (11)

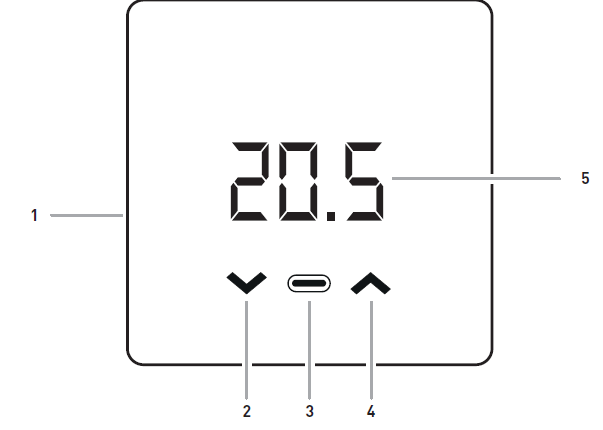

DESCRIPTION OF DISPLAY KEYS

  1.  Reset Switch
  2.  Down Key – Decreases
  3.  Mode key + heating/cooling LED
  4.  Up Key – Increases
  5.  Room temperature and basic functions display

Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (12)

LETHARGY STATE

  • If the C800WIFI is detached from the wall base, it is insensitive to any stimulation.
  • Once reconnected to the wall base, the C800WIFI enters the Stand-by state: in this state, the device is waiting to resume operating conditions and the display is always offFantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (13)

STAND-BY STATE OUTPUT

  • In Stand-by all the programmable thermostat LEDs are off. To reawaken it, press the MODE key (for 2 s).
  • Upon awakening, the measured room temperature is displayed. After a time that can be configured via the APP (default 10s), the device goes back to Stand-by.Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (14)

RESET

  • When first switched on, and if necessary, reset the device by pressing the side Reset Switch with a tip.
  • After a few seconds, the device enter Stand-by mode.Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (15)

DISPLAY

  • Press the MODE key (for 2S) to awaken the device.
  • The room temperature is displayed (View Temp) and the heating/cooling state.
    • Red LED: heating or cooling on;
    • White LED: heating or cooling offFantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (16)

CHANGE MODE  (MAN – AUTO – OFF)

  • Press the MODE key (for 1s) to switch to the View Mode screen.
  • Press the UP or DOWN key to change the operating mode.

Operating modes:

  •  MAN: manual
  •  AUTO: automatic
  •  OFF

Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (17)Note: after 10s where no key has been pressed, the device goes back to Stand-by modeFantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (18)

CHANGE TEMPERATURE  SET-POINT

  • From the View Temp screen, press the UP or DOWN key (for 3s) to switch to the View Set- Point screen.
  • Press the UP or DOWN key to change the set-point temperature.

Note:

  •  in MAN: 2°C<Tman<40°C
  •  in AUTO: 2°C<Teco<Tcom<40°C
    •  OFF: —,2°C<Toff<8°CFantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (19)

Note: after 10s where no key has been pressed, the device goes back to Stand-by mode

Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (20)

VIEW RELATIVE HUMIDITY

From the View Mode screen, press the MODE key (for 3s) to switch to the View Humidity screen.

Note: after 10s where no key has been pressed, the device goes back to Stand-by mode.Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (21)

LAST COMMUNICATION STATUS DISPLAY

View Communication
From the View Temp screen, press the MODE key (for 3s) to switch to the View Communication screen

Note: after 10s where no key has been pressed, the device goes back to Stand-by mode.Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (22)

*Digit1 (COMMUNICATION)
8 in progress
fail
V ok
*Digit2 (RSSI)
‘‘ empty no connection to AP
0 <- 80 very low, problems
1 <- 70 low
2 <- 50 good
3 >- 50 very good
*Digit3 (TRANSMISSION)
T always fixed

Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (23)

VIEW BATTERY STATUS

In case of low batteries from the View Temp screen, instead of displaying the last communication status, pressing the MODE key (for 3s) switches to the View Battery screen.

  • The battery state is displayed. Pressing the MODE key goes back to the View Temp screen.
  • xxT: batteries OK
  • LO BAT: batteries low by relay active; no Wifi communication.
  • OFF BAT: batteries very low, relay off

Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (24)

ACCESS POINT

  • Press the side Reset Switch using a tip
  • Press the UP and DOWN keys simultaneously for 3 secondsFantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (25)

Note: set the device in AP to associate it with the Intelliclima+ APP. The MAC address of the device is indicated on the label inside the product (see image).Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (26)

PROGRAMMING VIA APP

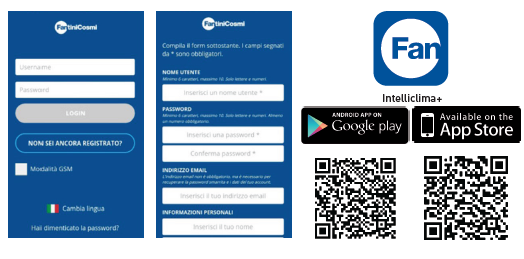

  • Install the APP Intelliclima+ and when first activated, create an account by entering the user name and passwordFantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (27)

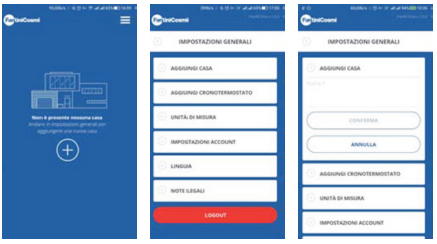

  • Create a new home by pressing ; enter the name and pressFantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (28)
  • Add the programmable thermostat by pressing the key and select C800WIFI.Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (29)

Follow the installation wizard.
At the end of the procedure, the new programmable thermostat is displayed inside the homeFantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (31)

C800WIFI-APP SYNCHRONISATION

  • After installing the APP, to synchronise data with the C800WIFI, force a transmission on the thermostat
  • From the View Temp screen, press the MODE key (for 3s) to switch to the View Communication screen
  • To force a transmission, press and hold the UP or DOWN keyFantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (32)

Auto Off

Fantini cosmi- C800WIFI -SMART -PROGRAMMABLE -THERMOSTAT- fig (33)

TECHNICAL FEATURES

Battery power supply 2 AA 1.5V alkaline batteries
Battery life: > 1 year (In STANDARD

mode)

Nominal power supply voltage (optional) 3.3 Vdc @1500 mA MAX
Max power absorbed by the network 5 W
LEDs Shutdown 5/10/15 s from last pressure always ON
Temperature regulation scale 2 – 40 °C, increase 0.1°C
Measurement scale/room T display – 50 to + 50 °C, resolution 0.1°C
Measurement scale /room relative humidity display 0 – 99%, increase 1%
Type of internal sensors digital
Relay output with potential- free changeover contacts 5(3)A 230 V ~
Terminals L phase, N neutral, COM relay, NC relay, NO relay
Micro disconnection 1 B.U.
Conductor rated cross- section for flexible cables from 0,5 to 1mm2
Connection of cables to terminals Type X
Minimum regulation differential STD, 0.3 ÷ 5 K
Reference thermal gradient 4 K/h
Maximum room temperature 45°C
Storage temperature -10°C to +60°C
Rated pulse voltage 4000V
Bezugs-Temperaturgradient 4 K/h
Max. Raumtemperatur 45 °C
Lagertemperatur -10 °C ÷ +60 °C
Nennstoßspannung 4000 V
Software Klasse A
WLAN-Verbindung 2,4 GHz (802.11 b/g/n)
Router- Kommunikationsanschluss 1080
Höchstleistung übertragene Funkfrequenz < 10 mW
Isoliergrad Klasse II
Schutzgrad IP 32
Umweltbelastung 2
Anzahl Bewegungszyklen für manuelle Tätigkeiten 3000
Anzahl Bewegungszyklen für automatische Tätigkeiten:

10000

Montage Wandmontage oder Montage in Unterputzdose


Abmessungen

■  98 x 98 x 20 mm (C800WIFIQ)

■  125 x 98 x 20 mm (C800WIFIR)

Gewicht 0,100 Kg




Entspricht den Normen

■  EN 60730-1 und zweite Teile

■  2014/53/EU (RED)

■  2014/30/EU (EMV)

■  2014/35/EU

(Niederspannung)

Klassifizierung ErP ErP Class IV, 2% (Reg. (EU) 811/2013 – 813/2013)
Nicht in Italien hergestelltes Produkt

DISPOSAL OF PRODUCTS

The crossed out wheeled dust bin symbol indicates that products must be collected and disposed of separately from household waste. Integrated batteries and accumulators can be disposed of with the product. They will be separated at the recycling centres. The black bar indicates that the product was placed on the market after August 13, 2005. By participating in separate collection of products and batteries, you will help to assure the proper disposal of products and batteries and thus help to prevent potential negative consequences for the environment and human health. For more detailed information about the collection and recycling programmes available in your country, please contact your local city office or the shop where you purchased the product.

GENERAL WARRANTY CONDITIONS
The conventional warranty lasts 24 months, starting from the date the equipment is installed. The warranty covers all parts of the equipment, with the exception of those subjected to normal wear.
