Installation

WALL MOUNTING
Install the programmable thermostat at 1,5 meters above the floor level, far from kitchens, heat sources, windows and doors. Make sure the base is fixed to a level surface, without strainsFantini cosmi -C58 -Daily -Programmable -Thermostat -1

ELECTRIC CONNECTIONS

Connect terminals 1 – 2 to the heating system with two wires thus replacing the traditional thermostat at any time and without adding further connections. When the ambient temperature increases, the relay will open terminals 1 – 2 and will close terminals 1-4. Terminal 4 is free and it may be used for signalling or other purposes, as requiredFantini cosmi -C58 -Daily -Programmable -Thermostat 2

OFF MODE SELECTION

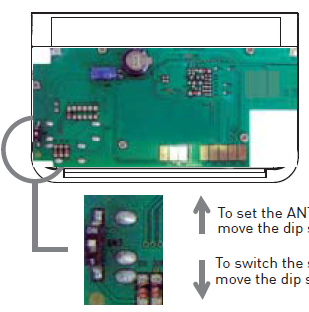

When in OFF mode, Intellitherm may be set to keep a fixed temperature of 5°C to protect the system from the risk of freezing. This selection must be carried out during the installation and before inserting the batteries.

Fantini cosmi -C58 -Daily -Programmable -Thermostat 3

Note: if this selection is needed to be changed after the installation, Intellitherm has to be reset and reprogrammed.

MOUNTING THE THERMOSTAT BODY ON THE BASE

INSERTING AND REPLACING THE BATTERIES
Insert two long life AA 1,5V alkaline batteries, paying attention to the indicated polarity. Batteries last approximately 2 years: when they begin to run down, the battery symbol starts to flash on the display. If the batteries are not replaced within 15 days, Intellitherm C68 will switch-off automatically and the display will indicate OFF

TIME SETTING
(see the picture on the right)

Fantini cosmi -C58 -Daily -Programmable -Thermostat 4

PROGRAMMABLE THERMOSTATFantini cosmi -C58 -Daily -Programmable -Thermostat 5

Display

Fantini cosmi -C58 -Daily -Programmable -Thermostat 6

Standard

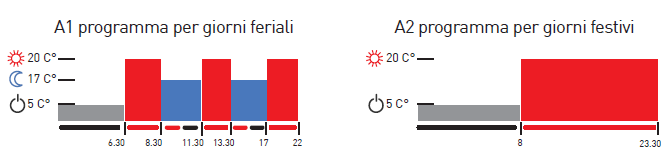

Once the C68 is installed and connected, it is possible to use the weekly program with the pre-set operating time and temperatures, just positioning the switch on the A1 or A2 position.Fantini cosmi -C58 -Daily -Programmable -Thermostat 10Verify that the switch is in the HEATING positionFantini cosmi -C58 -Daily -Programmable -Thermostat 12

CustomizationFantini cosmi -C58 -Daily -Programmable -Thermostat12

Jolly Function

  • With this function C68 enables you to cut out temporarily the automatic program at any time, without changing its settings, in order to have constantly the required temperature COMFORT – ECONOMY – OFF for a period from 1 to 240 hours
  • With the switch in the A1 or A2 position, press the keys Fantini cosmi -C58 -Daily -Programmable -Thermostat 13to set for how many hours the C57RF has to cut the automatic program out, in order to force temporarily the temperature. The ring on the display will change the colour according to the selected temperatureFantini cosmi -C58 -Daily -Programmable -Thermostat 13
  • Once the set time is passed, C68 will resume the automatic program. To reduce or cut out the JOLLY period before the set time, press a different colour key than the one shown on the ring

Operating Hours

With C68 it is possible to know for how many hours the heating system worked the day before (closed relay – ON) and from the last Intellitherm initialization (last reset or battery insertion). The display will show the heating working hours, positioning the switches as indicated in the pictureFantini cosmi -C58 -Daily -Programmable -Thermostat 14

Previous Day Minimum And Maximum Temperatures

  • With Intellitherm C68 it is possible to verify the MINIMUM and MAXIMUM temperatures reached the day before and what time they were measured.
  • Move the switch to the ECONOMY position to read the MINIMUM temperature or move to the COMFORT position to read the MAXIMUM temperature
  • Move the switch to PROGFantini cosmi -C58 -Daily -Programmable -Thermostat 15

Summer / Air- Conditioning ModeFantini cosmi -C58 -Daily -Programmable -Thermostat 16
Intellitherm C68 starts the AIR-CONDITIONING mode moving the switch to the SUMMER positionFantini cosmi -C58 -Daily -Programmable -Thermostat 19 The comfort temperature can be regulated by setting the COMFORT/TMAX knob. The red sectors on the ring indicate what time the air-conditioning is ON; the other colours indicate when the system is OFF

Technical Data

  • In compliance with EN 60730-1 and parts two.
  • Contact rating 5 (3)A 250V c.a.
  • Micro-disconnection (1BU).
  • Software class A.
  • Voltage-free switching contact.
  • Temperature regulation: COMFORT from 16° to 34°C and ECONOMY from 5° to 23°C.
  • Differential: +/- 0,25°C.
  • Thermal gradient: 4°K/h.
  • OFF mode with optional antifreeze protection (5°C) by a dip switch.
  • Maximum room temperature: T45.
  • double insulation.
  • Protection degree IP20.
  • Pollution degree 2.
  • Impulse voltage 4000V.
  • Power supply without connection to the electrical line with 2 AA 1,5V alkaline batteries (1-year battery life).
  • Automatic control of the battery charge; the display will indicate if the charge is inadequate.
  • Battery replacement without data dropout.
  • Switch for the winter or summer operating modes.
  • Reset the key to restore the set program.
  • Dimensions 135 x 85 x 19 mm.
  • ErP classification: ErP Class IV; 2% (EU Reg. 811/2013 – 813/2013)
