Eztofa EZ-BHT-002 WiFi Smart TouchScreen Thermostat
INSTALLATION
Your thermostat is suitable foe installation within a standard 86mm pattress box or European 60mm pattress box

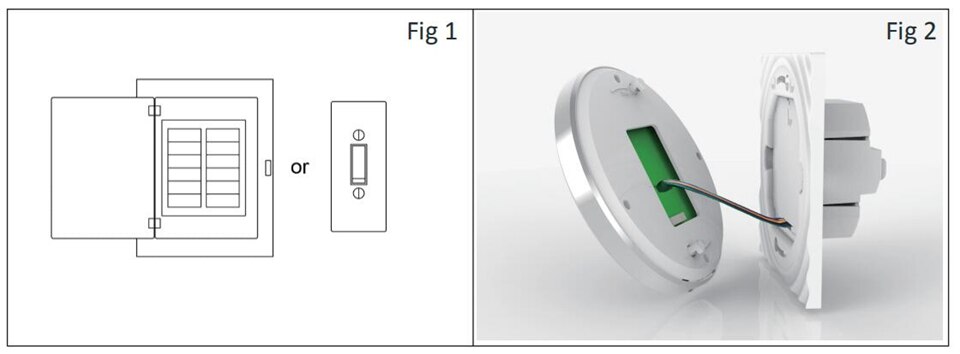

- Step 1. Keep power Off. See Fig 1
- Step 2. Remove the mounting Plate by rotating the LCD part. See Fig 2.

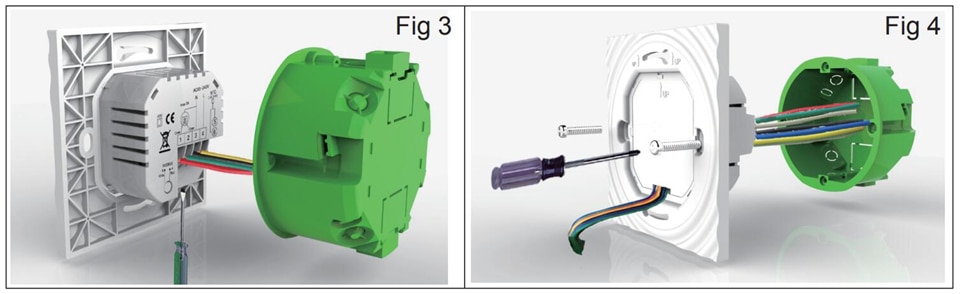

- Step 3. Connect power supply, load into the appropriate terminals. (see “Wiring your thermostat” for details and Fig 3).
- Step 4. Fix the mounting plate into the wall with screws in the box. See Fig 4.

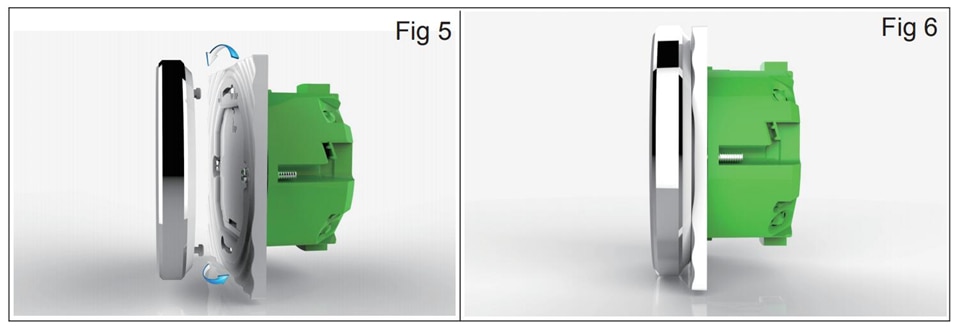

- Step 5. Fasten body of the thermoatat and the mounting plate through rotating. See Fig 5.
- Step 6. Installation complete. See Fig 6.
Technical Data
- Type: Water Heating/Electric Heating/Water Gas Boiler
- Sensor: NTC, 10K
- Accuracy: ±0.5℃ or ±0.1℉
- Set Temp. Range: 5-35℃
- Room Temp. Range: 5-99℃
- Power Consumption: <1.5W
- Timing Error: <1%
- Power Supply: 95-240VAC, 50-60Hz
- Current Load: 3A(Water heating, water/gas boiler)
- 16A(Electric heating)
- Shell Material: PC+ABS(Flame retardant)
- Dimension: 86x86x13.3mm
- Ambient Temp.: 0-45℃, 5-90% RH (non-condensing)
- Storage Temp.: -5-55℃
- Installation Hole Distance: 60mm
- Protection Level: IP20
Packing List
- Thermostat x1 + Screw x2 + English Manual x1
- Floor Sensor is included for the Electric floor heating thermostat.
- GA and GC is not included, if needed, choose together when place order.
What He Can Offer
- [Energy Saving]: Low consumption and energy saving. Help you save money
- [ Program]: The thermostat works automatically during holidays in programmable mode.
- [Kid Lock]: Kids lock function avoid kids mis-operate the thermostat
- [Dual Sensor]: Integrated Sensor to measure air temperature
- [Memory]: Built-in Battery, setting can be recovery even cutting electric power or power failure

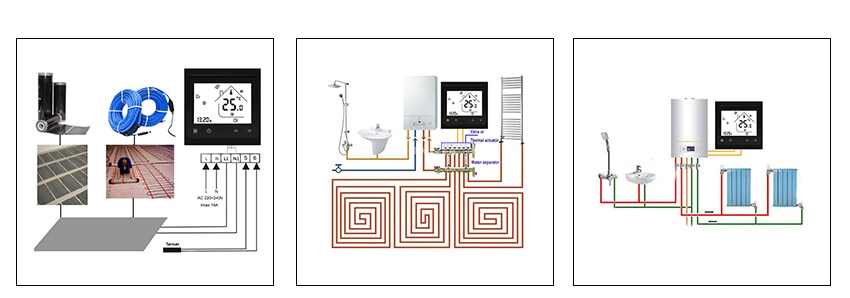

- Electric Floor Heating 16A
- Water Heating 3A
- Gas Boiler 3A
Smart Life Tuya APP Remote Control
remotely controls your devices wherever you are even when you are outside.

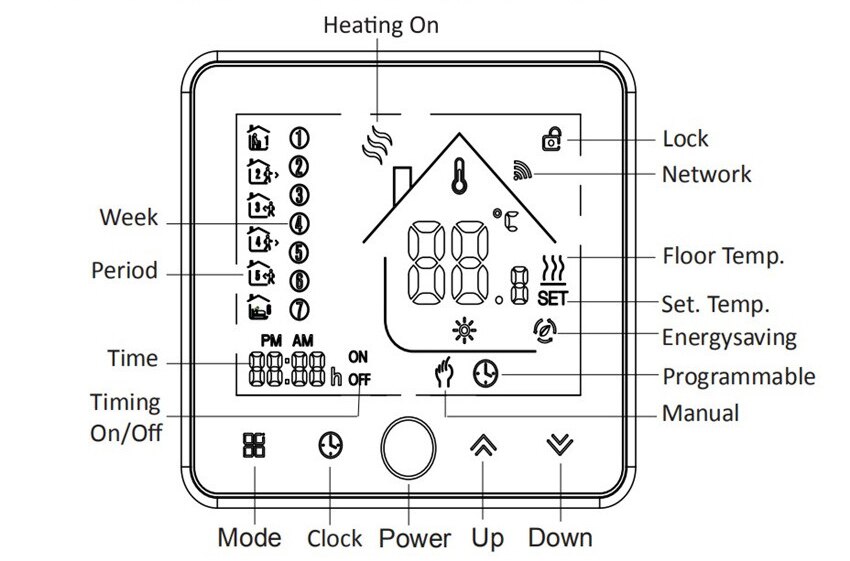

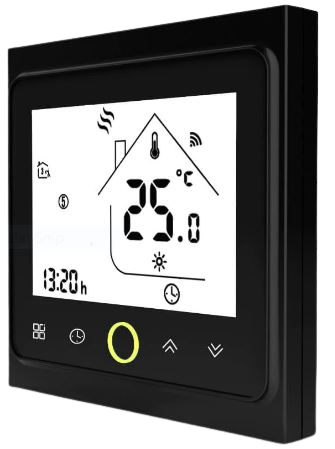

PRODUCT DISPLAY

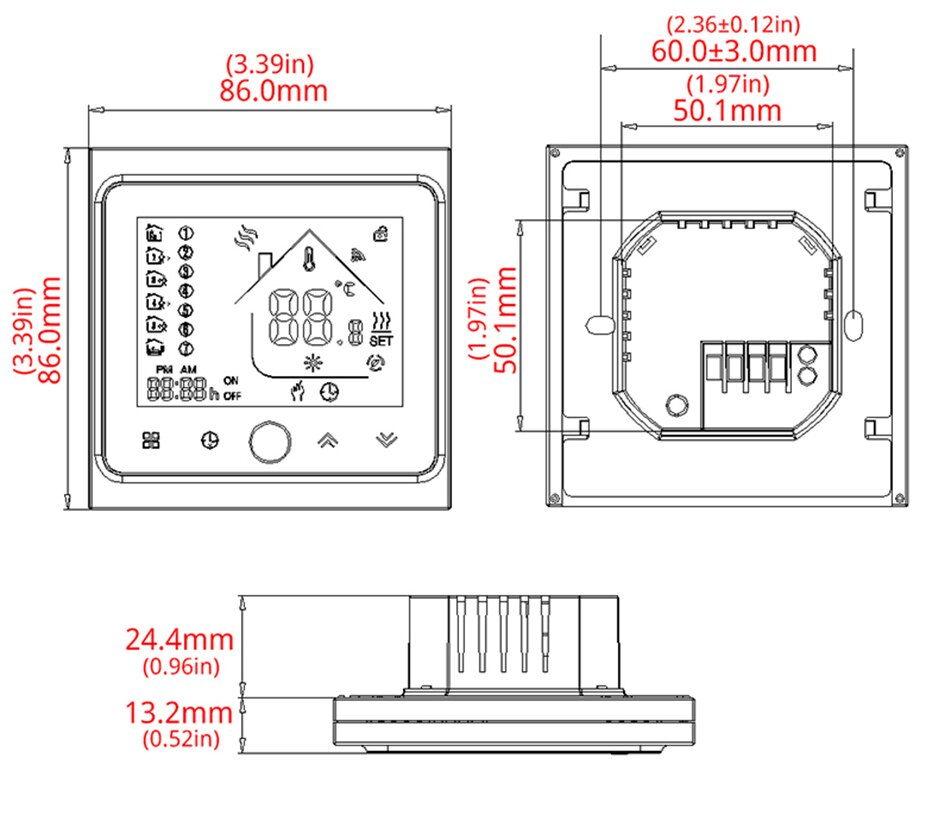

DIMENSION

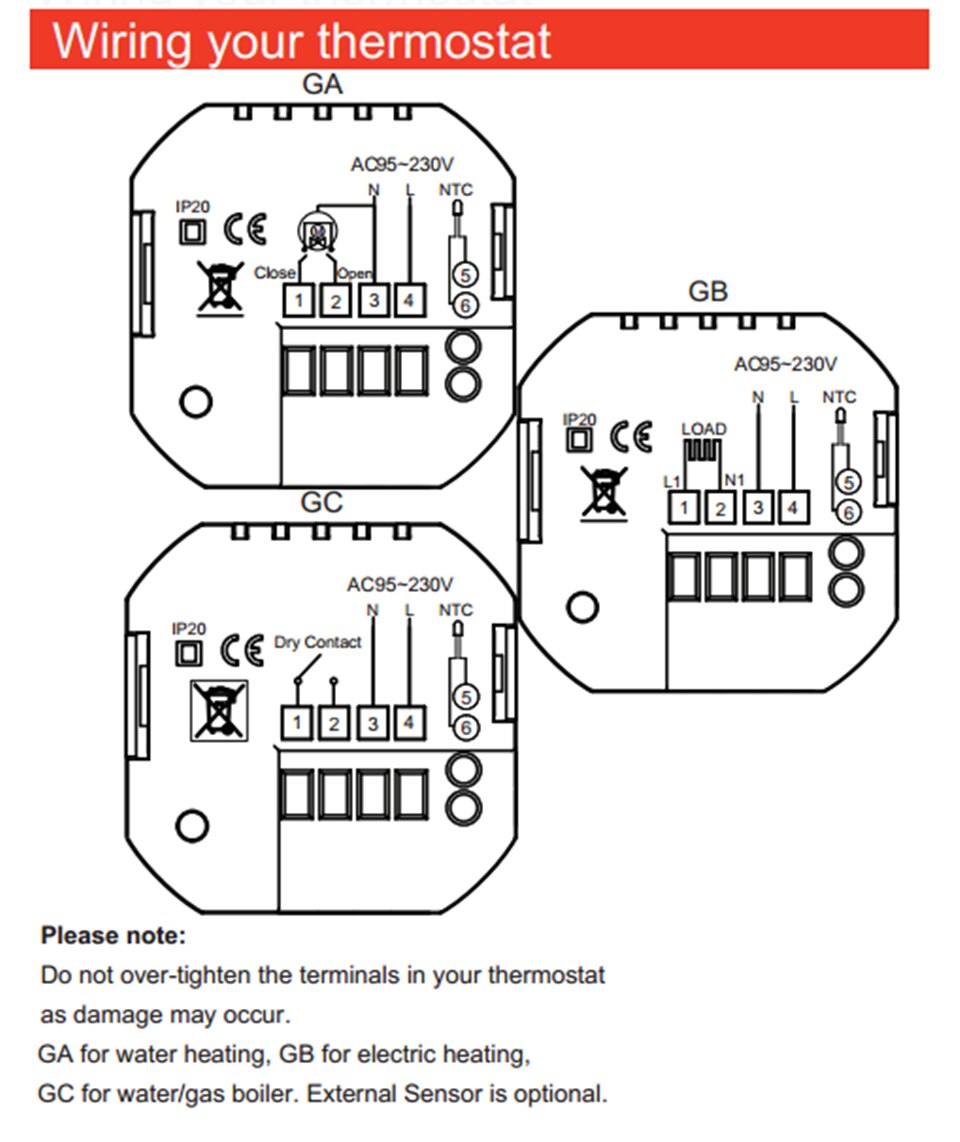

WIRING DIAGRAM
HOW TO OPERATE
You may do the following actions to use the Eztofa EZ-BHT-002 WiFi Smart TouchScreen Thermostat:
- Turn on the thermostat by making sure it is switched on and correctly connected to the power supply.
- Connect to Wi-Fi: Navigate to the thermostat’s settings and join your Wi-Fi network. Observe the on-screen prompts or directions in the thermostat’s user handbook.
- Get the smartphone application: Download the Eztofa thermostat app by searching for it in the Google Play Store or Apple App Store on your smartphone. Put the application on your phone.
- Create a profile: Open the app and, if necessary, register for a new account. Give the required details, including your email address and password, to create the account.
- associate the thermostat with the app: After setting up your account, use the app’s on-screen prompts to associate the thermostat with your smartphone. Typically, to do this, you must input a pairing code or scan a QR code located on the thermostat’s display.
- Configure thermostat settings: Once pairing is complete, you may set the thermostat settings. Setting the time, date, and desired temperature units (Celsius or Fahrenheit) are all included in this.
- Change the temperature and mode: The touchscreen display of the thermostat has buttons or icons for these functions. To browse the menus, tap or slide the screen.
- Create a heating/cooling plan by using the scheduling options available in the app or on the thermostat itself. To automate the thermostat’s functioning, set the desired temperatures at various times of the day.
- Remote control: You can operate the thermostat remotely if it is Wi-Fi connected and an app is loaded on your phone. Open the app, then utilize the UI to change the modes, alter the temperature, or change the schedule.
- Investigate more features: Additional features of the Eztofa EZ-BHT-002 thermostat might include voice control compatibility, vacation settings, or energy-saving modes. To find out more about these capabilities and how to utilize them, see the user guide or browse the app.
FAQS
The Eztofa EZ-BHT-002 WiFi Smart TouchScreen Thermostat is what it sounds like.
A WiFi-enabled smart touchscreen thermostat called the Eztofa EZ-BHT-002 is used to manage and regulate the temperature of heating and cooling systems in homes and workplaces.
Is it possible to remotely manage the Eztofa EZ-BHT-002 thermostat?
Using a smartphone app, the Eztofa EZ-BHT-002 thermostat may indeed be managed remotely. If you have an internet connection, you may monitor your heating and cooling system, modify settings, and control the temperature from any location.
Does the thermostat work with Google Assistant or Alexa speech assistants?
It is possible to manage the Eztofa EZ-BHT-002 thermostat with voice commands if it is compatible with well-known voice assistants like Alexa or Google Assistant.
Is there a touchscreen display on the thermostat?
The touchscreen display on the Eztofa EZ-BHT-002 allows for simple and intuitive operation. Direct temperature changes and menu navigation are also available on the screen.
Can I set the thermostat to operate on a set schedule?
Yes, there are programmable scheduling choices for the thermostat. The thermostat may be programmed to automatically regulate the temperature based on the time of day and various temperature settings you select.
Are there any energy-saving features on the thermostat?
The Eztofa EZ-BHT-002 thermostat does, in fact, provide energy-saving features like temperature presets, scheduling, and the option to set temperature setbacks for certain times of the day or while you’re away from home.
Can I use this thermostat to see my energy usage?
Data on energy use is provided by certain models of the Eztofa EZ-BHT-002 thermostat and may be viewed through a smartphone app. You may use this tool to keep an eye on your energy use and decide how to conserve energy.
Are numerous zones supported by the thermostat?
No, the Eztofa EZ-BHT-002 is designed for single-zone control, which means it regulates the temperature in a single location. You could need many thermostats if you have several zones.
Is the Eztofa EZ-BHT-002 thermostat necessary to be professionally installed?
The Eztofa EZ-BHT-002 thermostat installation procedure is dependent upon your HVAC system and degree of DIY project comfort. It is always advised to adhere to the installation instructions detailed in the user manual or, if necessary, seek expert help.
What kind of power supply is needed by the thermostat?
Typically, a conventional 24V AC electrical connection used in heating and cooling systems is used to power the Eztofa EZ-BHT-002 thermostat.
The thermostat supports geofencing, right?
Geofencing features are available on certain Eztofa EZ-BHT-002 thermostat models. The best possible comfort and energy efficiency are provided by this function, which enables the thermostat to automatically change the temperature depending on the position of your smartphone.
Can I use a single app to manage many thermostats?
Yes, the Eztofa EZ-BHT-002 thermostat offers smartphone app control of multiple thermostats. Multiple thermostats may be controlled and monitored from a single interface.
Is there a vacation mode on the thermostat?
Yes, there is a vacation mode on the Eztofa EZ-BHT-002 thermostat. When you use this option, you may establish a precise temperature range while you’re gone for a long time and still keep basic climate management.
Does the thermostat include a backlight so that you can view it easily at night?
Yes, the touchscreen display of the Eztofa EZ-BHT-002 thermostat normally has a backlight. This guarantees simple visibility and operation even in dim lighting.
Are all HVAC systems compatible with the thermostat?
The majority of common 24V AC heating and cooling systems, including gas, oil, electric, and heat pump systems, are compatible with the Eztofa EZ-BHT-002 thermostat. Before making a purchase, it is always advised to confirm compatibility with your particular HVAC system.
