EZAIOT R7C WiFi Smart Digital Thermostat User Manual

ezaiot logo

EZAIOT R7C WiFi Smart Digital Thermostat

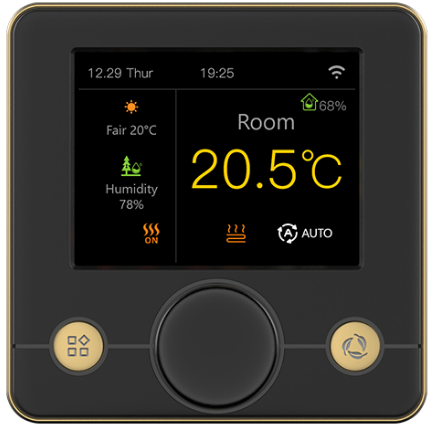

EZAIOT R7C WiFi Smart Digital Thermostat product

Specification

  • Model Number: R7C
  • Brand Name: EZAIOT
  • Origin: Mainland China
  • Certification: CE, RoHS,WEEE
  • Current Load (Electric floor heating): 16A
  • Current Load (water floor heating): 3A
  • Power Supply: AC 100~240V
  • Switch Deviation: 0.5~10℃ Adjustable
  • Set Temp.Range: 5~95℃
  • Floor Set Temp. Range: 20~90℃
  • Ambient Temperature: -5~50℃
  • APP Remote Control: Tuya Smart/Smart Life
  • Voice Control: Alice/Alexa/Google
  • Shell material: Anti-Flammable PC
  • Color: White
  • Apply System: Underfloor Heating System /Water Heating System
  • Upgrade 1: TFT Screen
  • Upgrade 2: Support 7 Languages
  • Upgrade 3: Dual Temp. Display

Introduction

The EZAIOT R7C WiFi Smart Digital Thermostat is an advanced and innovative device that allows you to control and manage the temperature of your home or office space conveniently. Designed to provide comfort, convenience, and energy efficiency, this thermostat combines the power of artificial intelligence and IoT (Internet of Things) technology.

The R7C thermostat is equipped with WiFi connectivity, enabling seamless integration with your home or office network. This connectivity feature allows you to control and monitor the thermostat remotely from your smartphone or other smart devices. Whether you’re in another room or away from home, you can easily adjust the temperature settings to ensure optimal comfort or make energy-saving adjustments.

One of the key highlights of the EZAIOT R7C thermostat is its intelligent AI capabilities. It utilizes advanced algorithms to learn your temperature preferences and behavior patterns over time, optimizing its performance to match your needs automatically. By analyzing data such as outdoor weather conditions, occupancy, and historical usage, the thermostat intelligently adjusts the temperature to create a comfortable environment while saving energy. The R7C thermostat features a user-friendly digital interface that displays the current temperature, humidity levels, and other relevant information. It also offers programmable scheduling options, allowing you to set different temperature levels for various times of the day or week. This feature enables you to create personalized heating and cooling schedules that align with your daily routine, further enhancing energy efficiency.

With the EZAIOT R7C thermostat, you can take advantage of energy-saving benefits. The thermostat provides energy usage reports and recommendations, helping you track and manage your energy consumption. By making informed decisions and implementing the suggested changes, you can reduce energy waste and lower your utility bills. The EZAIOT R7C WiFi Smart Digital Thermostat offers a blend of convenience, intelligence, and energy efficiency. With its WiFi connectivity, AI capabilities, programmable scheduling, and energy-saving features, it provides an intuitive and effective solution for maintaining the perfect indoor climate while optimizing energy usage.

What Is In The Box

  • Thermostat
  • User Manual
  • Screws
  • User Manual

R7C WIFI smart digital temperature controller is a floor heating system suitable for room temperature control and household temperature control. By comparing the ambient temperature with the set temperature, the operation of the floor heating thermostat is controlled to improve comfort and achieve the purpose of energy saving.

Main function

  1. Stunning color screen, and ultra-clear vision, make your home more colorful
  2. Large screen display, knobs, and touch buttons for easy user experience
  3. 5+2 or 6+1 or 7-day six periodprogram schedule
  4. Child lock function
  5. Output delay time setting
  6. Mobile APP remote control: Tuya Smart/Smart Life
  7. Yandex Alice/ Amazon Alexa/Google Home Voice Control
  8. Power-off memory function
  9. Real-time data saving function
  10. Anti-freezing function
  11. 3 sensor modes can be set
  12. Multilingual: English, German, Italian, French, Spanish, Russian, Chinese

Parameter

  • Power supply: AC 100~240V; 50~60HZ
  • Switch deviation: 0.5-10℃
  • Setting temperature range: 5~95℃
  • Ambient temperature: -5~50℃
  • Floor temperature limit: 20~90℃
  • APP control: Tuya Smart/Smart Life
  • Voice Control: Alexa/Google
  • Protection class: IP20
  • Material: Fireproof PC
  • Sensing element: NTC 10K 3380

SymbolEZAIOT R7C WiFi Smart Digital Thermostat  1

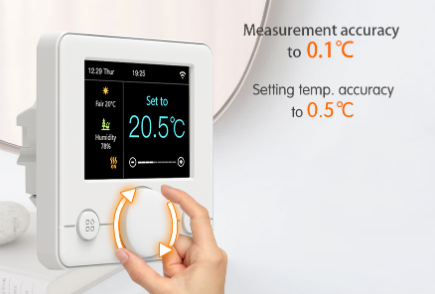

Precise temperature controlEZAIOT R7C WiFi Smart Digital Thermostat  2

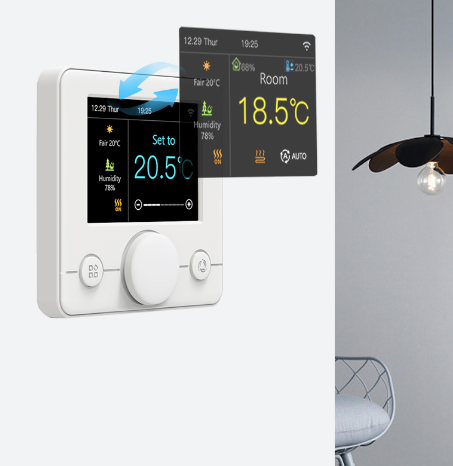

Dual-Temp DisplayEZAIOT R7C WiFi Smart Digital Thermostat  3

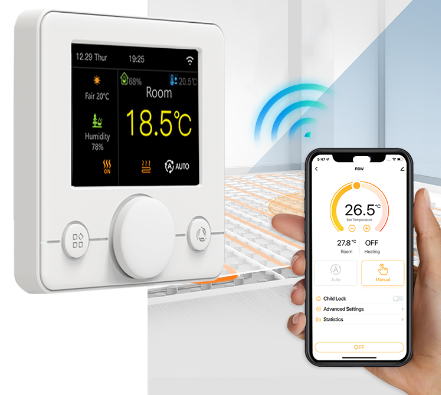

APP Remote ControlEZAIOT R7C WiFi Smart Digital Thermostat  4

5+2/6+1/7 days 6 periods programmableEZAIOT R7C WiFi Smart Digital Thermostat  5

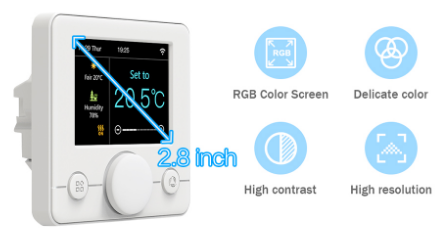

More delicate, more colorful

EZAIOT R7C WiFi Smart Digital Thermostat  6

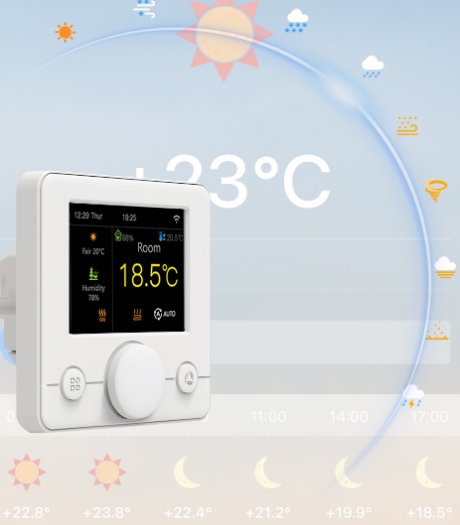

Real-Time Humidity 28 kinds of weather real-time displayEZAIOT R7C WiFi Smart Digital Thermostat  7

Child LockEZAIOT R7C WiFi Smart Digital Thermostat  8

Share device

EZAIOT R7C WiFi Smart Digital Thermostat  9

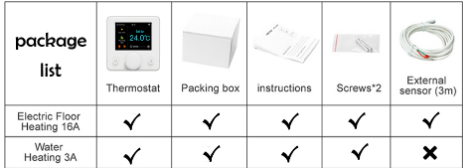

Thermostat and Accessories

EZAIOT R7C WiFi Smart Digital Thermostat  10

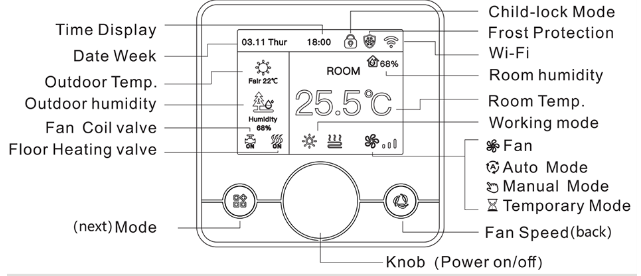

Display Symbols

EZAIOT R7C WiFi Smart Digital Thermostat  11

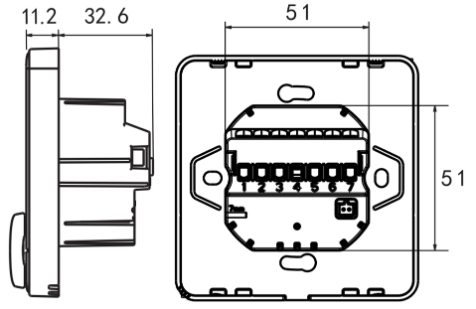

Dimension

EZAIOT R7C WiFi Smart Digital Thermostat  12

FAQS

Q: How does the EZAIOT R7C thermostat connect to my WiFi network?
A: The EZAIOT R7C thermostat connects to your WiFi network using built-in WiFi connectivity. You can connect it to your network through the thermostat’s settings menu by selecting your network and entering the password.

Q: Can I control the thermostat remotely using my smartphone?
A: Yes, you can control the EZAIOT R7C thermostat remotely using your smartphone. Once connected to your WiFi network, you can download the companion mobile app and use it to adjust temperature settings, monitor the thermostat’s status, and manage other features from anywhere.

Q: Does the thermostat have a programmable scheduling feature?
A: Yes, the EZAIOT R7C thermostat offers a programmable scheduling feature. You can set different temperature levels for different times of the day or week, allowing you to create personalized heating and cooling schedules to match your daily routine.

Q: How does the thermostat learn my temperature preferences?
A: The thermostat utilizes advanced AI algorithms to learn your temperature preferences over time. By analyzing your adjustments and behavior patterns, it adapts and optimizes its performance to provide the desired comfort levels automatically.

Q: Does the thermostat consider outdoor weather conditions when adjusting the temperature?
A: Yes, the EZAIOT R7C thermostat takes into account outdoor weather conditions. It uses this information, along with other factors like occupancy and historical usage, to intelligently adjust the temperature for optimal comfort and energy efficiency.

Q: Can the thermostat provide energy usage reports?
A: Yes, the thermostat provides energy usage reports. It tracks and records your energy consumption and can generate reports that help you monitor and manage your energy usage more effectively.

Q: Does the thermostat offer energy-saving recommendations?
A: Yes, the EZAIOT R7C thermostat offers energy-saving recommendations. Based on its analysis of your energy usage and patterns, it provides suggestions and tips to help you reduce energy waste and lower your utility bills.

Q: Is the thermostat compatible with voice assistants like Amazon Alexa or Google Assistant?
A: Yes, the EZAIOT R7C thermostat is compatible with popular voice assistants like Amazon Alexa and Google Assistant. You can control the thermostat using voice commands through these platforms, making it even more convenient to manage your home’s temperature.

Q: Can I manually override the thermostat’s settings?
A: Yes, you can manually override the thermostat’s settings. If you want to make immediate adjustments to the temperature, you can do so directly on the thermostat’s digital interface or through the mobile app.

Q: Does the thermostat have a touchscreen interface?
A: Yes, the EZAIOT R7C thermostat features a user-friendly touchscreen interface. It allows you to view and adjust temperature settings, access various features, and view relevant information such as humidity levels and energy usage data.

Q: What happens if there is a power outage? Will the thermostat lose its settings?
A: The thermostat has built-in memory to retain its settings during a power outage. When the power is restored, the thermostat will resume its previous settings and continue functioning normally.

Q: Can I integrate the thermostat with other smart home devices?
A: Yes, the EZAIOT R7C thermostat can be integrated with other smart home devices. It supports integration with popular smart home platforms, allowing you to create a connected ecosystem and automate various functions based on your preferences.

Q: Does the thermostat support multiple zones or rooms?
A: Yes, the thermostat supports multiple zones or rooms. You can install additional temperature sensors in different areas, and the thermostat will allow you to control and monitor the temperature independently for each zone or room.
