Evolve T100R Programmable Thermostat Product Specifications Guide

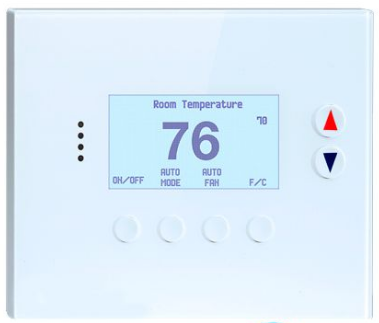

Evolve T100R Programmable Thermostat

Z-Wave Communicating Thermostat

•  All in One Design
• Z-Wave Certified
•  Standard or Heat Pump HVAC Systems
•  Programmable, 4 x 7 day schedule
•  128×64 Backlit Graphical Display
•  6 Buttons with On Screen Labels
•  Remote Control of All Thermostat Functions
•  Optional Remote Sensors
•  Wall mount or mounts on single-gang junction box

Overview

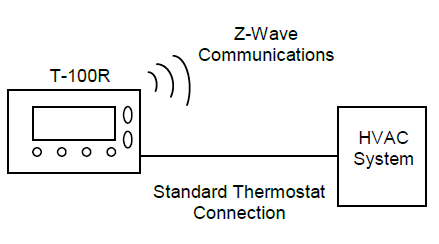

The T-100R is a Z-Wave wireless digital thermostat, designed to control the majority of HVAC systems. The T-100R contains a robust thermostat interface and is designed for use with communicating systems where remote monitoring and/or remote control are desired

Thermostat Features

• Graphical LCD with white backlight
•  Heating and Cooling Setpoint display
•  System Mode (Off, Auto, Heat, Cool)
•  Fan Mode display and control (Auto, On)
• On-screen setup of HVAC Type, Fan Type, Changeover type for HP systems, F/C mode and sensor calibration
•  4 x 7 day programmable schedule, multiple schedules
• Fan Cycler feature

Technical Specifications

HVAC System Compatibility

•  Central HVAC systems or separate heating/cooling systems with separate RH/RC transformers (split)
•  Standard gas/electric HVAC Systems: 2-stage heating, 2-stage cooling
•  Heat Pump HVAC Systems: 3-stage heating, 2-stage cooling
•  Fan system: Selectable for gas or electric heat systems.
•  Heat Pump Change Over valve (reversing valve): Selectable for change over with heat or change over with cool (O or B output)
• Emergency Heat: In Heat pump mode, Emergency Heat mode is selectable from the thermostat
•  Compressor short cycle protection delay of 6 minutes (adjustable)
•  Automatic heating and cooling changeover

Remote Sensors

• The T-100R supports up to 2 indoor remote sensors
• The remote sensor can replace the internal sensor or provide averaging

Wiring Requirements

• 18 AWG
• Uses standard thermostat connections (C, R, W1,W2, Y1, Y2, G)

Power Requirements

•  24VAC Note: Requires both 24VAC (R) and 24VAC common (C) wires from the HVAC System

Dimensions

• J6”x4”x3/4”

Model Number

• T-100R
• Z-Wave Thermostat
• PN: T-100R

Evolve

• DCN: 100-22711-01 02/11 Evolve,
• Inc. 85 Denton Avenue,
• New Hyde Park,
• NY 11040 516-328-6900
• www.eguestcontrols.com
