ESBE TPW214 Wireless Electronic Thermostats

ESBE- TPW214- Wireless- Electronic -Thermostats-  proAPPLICATION

The ESBE series TPx200 is a wireless ON/OFF electronic room thermostat for use in heating or cooling applications. The thermostat can be connected to 2-point or spring return actuator, a circulation pump or directly to the boiler.

VERSIONS

TPW214 is a wireless weekly programmable electronic room thermostat for use in heating or cooling application, operating with 2*AA (1,5V) batteries. The regulating temperature range is between 5°C and 35°C and has 3 individual operating modes, comfort, economic or antifrost/ Off. The modes are activated by the 7 days program with 48 programmable periods each day. The thermostat can also beset in holiday mode from 1 hour up to 99 days. The display shows the measured temperature, the activated mode and if the relay is activated. TPW214 comes with a one-channel receiver TWR911, operating with 230V AC power supply. The receiver has LED light to indicate status and errors as well as a button for manually driving the output relay. Contact rating for the relay is 6(1)A@250V AC.

TECHNICAL DATA

  • Ambient temperature:__________________________ max. 40°C
  • _ ______________________________________min. 0°C
  • Ambient humidity:_____________ 20…80% RH non-condensating
  • Sensor type:___________________________ NTC 4,7 kΩ@25°C
  • ErP Temperature controls class:__________________________ I
  • Energy efficiency contribution:__________________________ 1%
  • Enclosure rating — Room thermostat:__________________IP30
  • — Receiver:__________________________ IP4x
  • Contact rating:__________________________6(1)A @ 250V AC
  • Voltage, Room thermostat:________________ 2 x 1,5V LR6/AA
  • Battery endurance:____________________________>2,5 years
  • Voltage, Receiver:____________________ 230±10%V AC, 50Hz
  • Power consumption:_______________________________ 11W
  • Radio frequency:________________________________ 868MHz
  • Maximum receiver distance:___________>300 meters in free air _ __________________________ >50 meter in buildings (dependent on the building and environment)
  • Protection class:______________________________________ II
  • Material Housing — Room thermostat:___ ABS + PC self-extinguishing V0 — Receiver:_ ______________ABS self-extinguishing V0

SUITABLE ESBE ACTUATORS







Series



Control signal



ARA600



90



ARC300



ARD100



ARD200



ALG400



VZC/VZD



MBA100



ZRS100



TPx200



2-point

ARA6x5, ARA6x6, ARA6x7, ARA6x8

M97, M98



ARC361, ARC363



ARD155, ARD157



ARD255, ARD257



ALG434, ALG436







Dimension

ESBE- TPW214- Wireless- Electronic -Thermostats - 1

SERIES TPx200

Art. No. Reference Application Voltage Contact rating Setting range Weight [kg] Note
18003300 TPW214 Heating or cooling 2*AA (1,5V) 6(1)A@250V AC 5–35°C 0,18+0,16 Weekly programmable

WIRING

The wirings are typical examples of application; for further information, please check User instruction for all possibilitiesESBE- TPW214- Wireless- Electronic -Thermostats -3

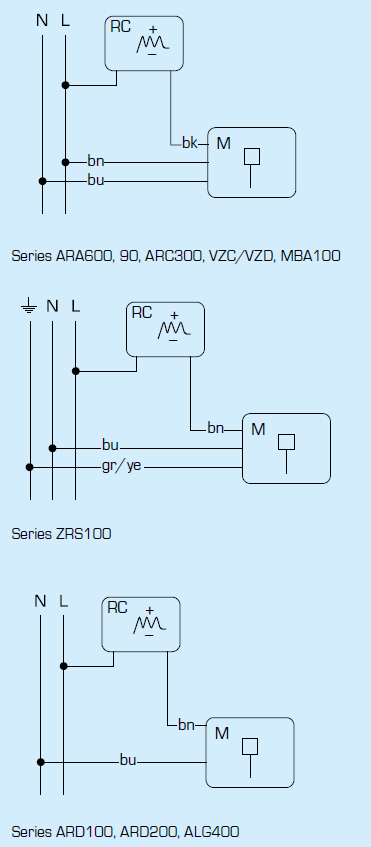

ELECTRICAL CONNECTION TO ESBE ACTUATORSESBE- TPW214- Wireless- Electronic -Thermostats -2

REFERENCE:

DOWNLOAD MANUALS:
