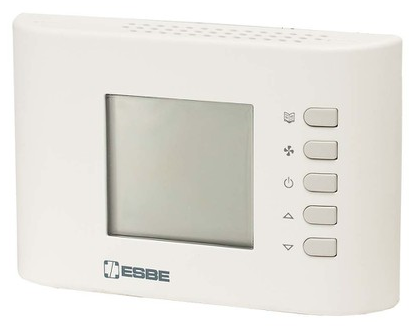

ESBE TFC139 Fan Coil Room Thermostats

ESBE -TFC139- Fan -Coil -Room -Thermostats -PRODUCT

APPLICATION

The ESBE series TFC100 is a fan coil room thermostat for use in heating or cooling applications. The thermostats can be connected to a 2-point or spring return actuator and fan.

VERSIONS
TFC139 is a fan coil thermostat for use in 4 pipes heating and cooling applications or 2 pipes heating or cooling applications, operating with 230V AC or 24V AC power supply. The thermostat has 0-10V heating signal output, 0-10V cooling signal output, and 0-10V fan signal output. There are also 3 ON/OFF relays for controlling actuators or fans with 3 speeds motor. The regulating temperature range is between 5°C and 35°C and has 3 individual operating modes, comfort, economic, or antifrost/Off. Heating or cooling mode can be set manually on the front cover, is set automatically or is set centralized. Fan speed can be manually or automatically set. The display shows, for example, the status of the fan speed, activated mode, and if heating or cooling is activated. The contact rating for the relay is 3(1)A@250V AC.

TECHNICAL DATA

  • Ambient temperature:__________________________ max. 40°C
    _ ______________________________________min. 0°C
  • Ambient humidity:_____________ 20…80% RH non-condensing
  • Setting range:___________________________________ 5–35°C
  • Sensor type:____________________________ NTC 10kΩ@25°C
  • ErP Temperature controls class _ — TFC139:_ ______________V
  • Energy efficiency contribution — TFC139:_ ______________ 3%
  • Enclosure rating:___________________________________IP30
  • Contact rating:_________________________________ see table
  • Voltage — TFC139:___________230−15/+10%V AC, 50Hz or
  • 24−15/+10%V AC, 50Hz
  • Power consumption — TFC139:_ ___________________ 1,2 VA
  • Protection class:______________________________________ II
  • Material
  • Housing:_ ___________________ ABS + PC self-extinguishing V0

SUITABLE ESBE ACTUATORS





Series



Control signal



ALG400



ARA600



90



ARC300



ARD100



ARD200



VZC/VZD



MBA100



ZRS100

TFC139

2-point 230V AC





ALG434



ARA6x5, ARA6x6





97, 98





ARC361





ARD155





ARD255















2-point 24V AC





ALG436



ARA6x7, ARA6x8





ARC363





ARD157





ARD257



proportional 24V AC





ALG438



ARA639, ARA659



92P,

92P2,

92P4



ARC368, ARC369





ARD169





ARD269

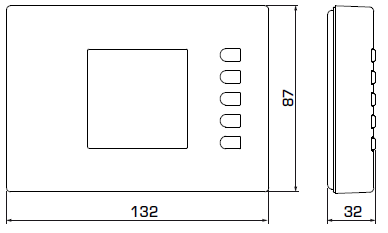

Dimension

ESBE -TFC139- Fan -Coil -Room -Thermostats -1

SERIES TFC100

Art. No. Reference Application Voltage Contact rating Setting range Weight [kg] Note
18004500 TFC139 Heating and

cooling

230V AC/ 24V AC 3(1)A @ 250V AC 5-35°C 0,19 0-10V DC control signal

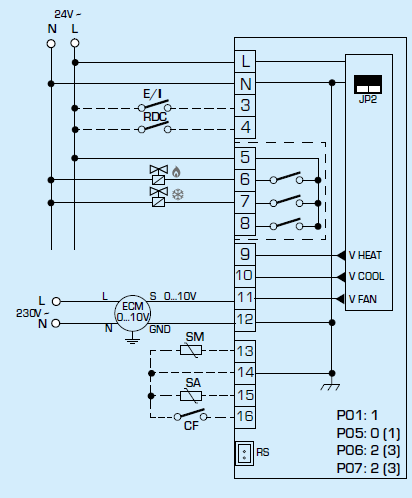

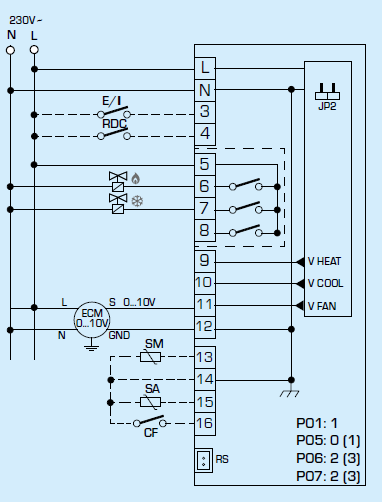

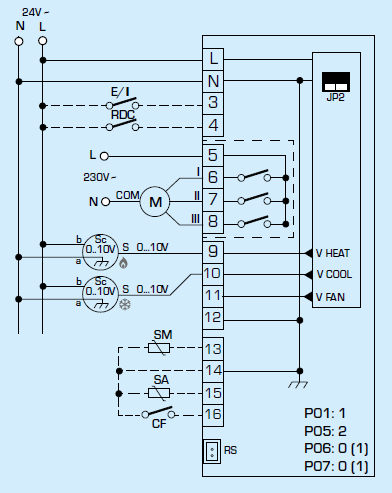

WIRING

The wirings are typical examples of application; for further information, please check User instructions for all possibilities

ESBE -TFC139- Fan -Coil -Room -Thermostats -2

ESBE -TFC139- Fan -Coil -Room -Thermostats -4 ESBE -TFC139- Fan -Coil -Room -Thermostats -6

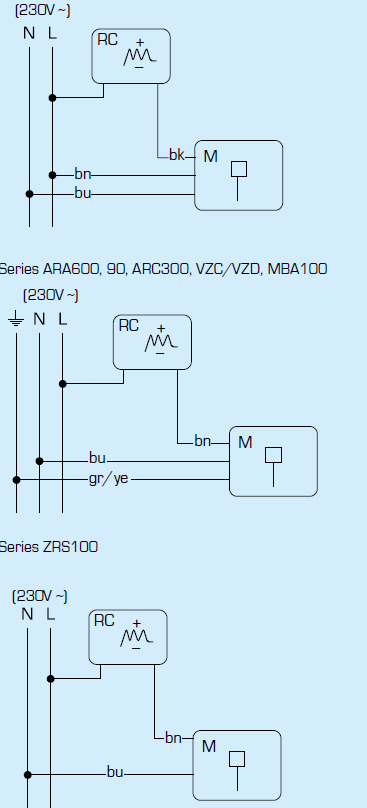

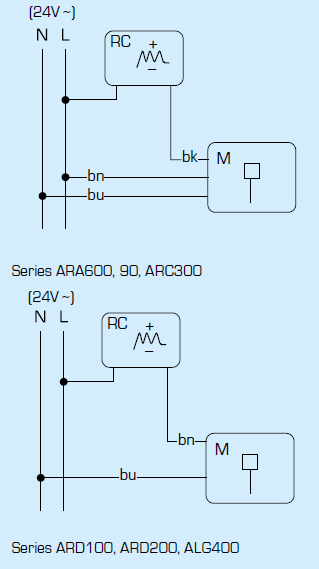

ELECTRICAL CONNECTION TO ESBE ACTUATORS

ESBE -TFC139- Fan -Coil -Room -Thermostats -3

ESBE -TFC139- Fan -Coil -Room -Thermostats -3 ESBE -TFC139- Fan -Coil -Room -Thermostats -5
