Engocontrols EONEBATW Programmable Room Thermostat QUICK GUIDE

Engocontrols EONEBATW Programmable Room Thermostat

Product Compliance
This product complies with the following EU Directives: 2014/30/EU, 2014/35/EU, 2014/53/ EU, 2011/65/EU.

SAFETY INFORMATION
Use in accordance with national and EU regulations. Use the device only as intended, keeping it in a dry condition. The product is for indoor use only. Please read the entire manual, before installation or use.

WARNING: This product must be used with a ZigBee EGATEZB gateway (purchased separately). Thermostat programming is done by ENGO Smart app.

Product advantages

Built-in Li-Ion 3,7V Battery
Communication in the ZigBee 3.0 standard
A multitude of functions available from ENGO Smart / Tuya Smart application
S1-S2 Input for additional sensor
ENGO binding function (devices connection in Online and Offline mode)

INTRODUCTION

ONEBAT is a surface-mounted room thermostat which works over ZigBee technology. It has a built-in humidity sensor and a minimum/maximum setpoint temperature limiting function. The ONEBAT has the ability to work in heating or cooling modes. The unique feature of this thermostat is the possibility of wireless control over ENGO binding function. In order to have the ability to controll wirelessly, ONEBAT needs to be used with ENGO Smart / TUYA Smart mobile application and EGATEZB internet gateway (sold separately). „ENGO binding” function provides wireless and direct connection to the receivers (e.g. ECB62ZB control box, EMODZB module or EREL1ZB12A relay) over the EGATEZB gateway. After adding to the mobile app, thermostat offer more functions, e.g. push notifications or possibility of programming time schedules.

Technical Information

Power supply	Built-in Li-Ion 3,7V Battery
Charging connector	USB type C, 5V DC
Temperature range	5,0°C – 45,0°C
Display temperature accuracy	0,1°C
Control algorithm	TPI or Histeresis (from ±0,1°C to ±2°C)
Communication	ZigBee 3.0 2,4GHz
S1/S2 multifunctional input	Floor temp sensor, external air sensor, occupancy sensor
IP protection class	IP30
Dimension [mm]	90 x 90 x 14 mm

Wireless communication diagram

Connection description

Legend

Temperature sensor
Thermostat input for ext. temperature sensor
Connection with ZigBee 3.0 network
Connection with WiFi 2.4GHz network

LCD Icon Description + Button

1. Current humidity reading
2. Current Temperature / Setpoint Temperature
3. Clock
4. Temperature unit
5. Heating indicator (icon is animating when there is heating demand)
6. Cooling indicator (icon is animating when there is cooling demand)
7. Schedule mode icon
8. Temporary override mode
9. External/Floor or Occupancy sensor
10. Button lock
11. Holiday mode
12. Settings icon
13. Battery indicator
14. Receiver pairing indicator
15. ZigBee network connection indicator
16. Settings icon/temperature settings

Button description

Installation of thermostat in the app

Make sure your router is within range of your smartphone. Make sure you are connected to the Internet. This will reduce the pairing time of the device.

STEP 1: DOWNLOAD THE ENGO SMART APP

• Download the ENGO Smart app from Google Play or Apple App Store and install it on your smartphone.

STEP 2: REGISTER THE NEW ACCOUNT

To register a new account, please follow the steps below:

1. Click „Register” to create a new account.
2. Enter the e-mail address to which the verification code will be sent.
3. Enter the verification code received in the email. Remember that you only have 60 seconds to enter the code!!
4. Then set the login password.

STEP 3: CONNECT THE THERMOSTAT TO ZigBee

• Make sure ZigBee gateway has been added to the Engo Smart app.
• Press and hold the and buttons on the thermostat for approx. 5 seconds until the display shows „PA”. Then release the keys. The pairing mode will be started up and counts the time back (180s).

1. In the app, click on + upper right corner.
2. Select: „Add Device”.
3. When the ZigBee gateway finds the thermostat click the „Add” button.

Binding

Binding thermostat with the module/relay
Make sure that the module/relay and thermostat are in the same ZigBee network (they are added to the same gateway EGATEZB).

• To properly link thermostat with the module/relay first click the button on the device 5 times. The LED diode will start flashing slowly on red, which means the device is in binding mode

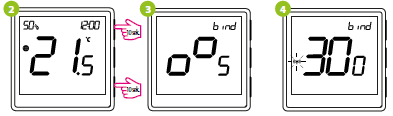

• On the EONE thermostat, hold and buttons until the “bind” message appears.

• Release the keys, binding function process of linking thermostat with control box
• The “binding” process takes up to 300 seconds.
• After successfull binding operation „End” message will be displayed. LED on the module will stop flashing.
• Both devices have been successfully linked. Thermostat displays the main screen, icon ” ” appeared on the screen indicating connection with the receiver (module/relay in this case).

ATTENTION: If the binding process fails, it must be repeated taking into account the distances between devices, obstacles and local radio signal interferences.

Remember: Radio range can be increased by Engo ZigBee repeaters.

Binding thermostat with the ECB62ZB wireless control box
Make sure that the ECB62ZB control box and thermostat are in the same ZigBee network (they are added to the same gateway EGATEZB) and the POWER LED lights up blue.

In order to correctly link the thermostat with the control box, first select the zone in the control box with the SELECT button (1) (zone which you want to link with the thermostat). The LED (2) will flash 3 times for the selected zone. Confirm your selection by clicking the PAIR button (2). The LED (2) will flash green with the previously selected zone – the binding process has started, it is active for 10 minutes and during this time you can link the thermostat with the selected zone.

1. On the EONE thermostat, holdand buttons until the “bind” message appears.
2. Release the keys, binding function process of linking thermostat with the control box is active.
3. The “binding” process takes up to 300 seconds.

1. After successfull binding operation „End” message will be displayed.
2. Both devices have been successfully linked. Thermostat displays the main screen, icon “ ” appeared on the screen indicating connection with the receiver (ECB62ZB in this case).

ATTENTION: If the binding process fails, it must be repeated taking into account the distances between devices, obstacles and local radio signal interferences.

Remember

• Radio range can be increased by Engo ZigBee repeaters.

Installer settings

To enter installer parameters press and hold button for 3 seconds.

Use or . button to move between parameters. Enter the parameter by . Edit the parameter using or . Confirm the new parameter value with the button.

Installer parameters

Pxx	Function	Value	Desription	Default value
P01	Clock format	12h	12 hour	24h
		24h	24 hour
P02	Heating/Cooling Selection		Heating
			Cooling
		TPI UFH	TPI for Underfloor Heating	TPI UFH for heating HIS 1.0 for cooling
		TPI RAD	TPI for Radiators
		TPI ELE	TPI for Electrical Heating
		HIS 0.2	SPAN +/-0,1°C
		HIS 0.4	SPAN +/-0,2°C
P03	Control algorithm	HIS 0.6	SPAN +/-0,3°C
		HIS 0.8	SPAN +/-0,4°C
		HIS 1.0	SPAN +/-0,5°C
		HIS 2.0	SPAN +/-1,0°C
		HIS 3.0	SPAN +/-1,5°C
		HIS 4.0	SPAN +/-2,0°C
P04	Offset temperature	-3.5°C do +3.5°C	If the thermostat indicates wrong temperature, you can correct it by max ± 3.5°C”	0°C
P05	“Minimum setpoint”	5°C – 45°C	Minimum heating / cooling temperature that can be set	5°C
P06	“Maximum setpoint”	5°C – 45°C	Maximum heating / cooling temperature that can be set	35°C
P07	S1/S2 Input	1	Disable	1
		2	External sensor as a floor sensor
		3	External sensor as an air sensor
		4	Occupnacy sensor (ON/OFF volt free input)
P08	Maximum floor temperature for heating (function active when P07=2)	5°C – 45°C	In order to protect the floor, the heating will be turned off, when the temperature of the floor sensor rises above the maximum value.	35°C
P09	Minimum floor temperature for heating (function active when P07=2)	5°C – 45°C	In order to protect the floor, the heating will be switched on, when the temperature of the floor sensor drops below the minimum value.	10°C
P10	Maximum floor temperature for cooling (function active when P07=2)	5°C – 45°C	In order to protect the floor, cooling will be switched on, when the temperature of the floor sensor exceeds the maximum value.	15°C
P11	Minimum floor temperature for cooling (function active when P07=2)	5°C – 45°C	In order to protect the floor, cooling will be turned off, when the temperature of the floor sensor drops below the minimum value	7°C
P12	Comfort warm floor	OFF	This function helps to keep the floor warm, even if there is no heating demand from the room thermostat.This feature is available only for Heating Mode. User can select 5 levels of warm floor feature. Note that comfort warm floor function will activate heating for specified amount of time (in relation to Level setting choosen by user). Heating will be activated only if in the past 1 hour heating was OFF.	OFF
		Level 1 = 7min
		Level 2 = 11min
		Level 3 = 15min
		Level 4 = 19min
		Level 5 = 23min
P13	Valve protection	ON	Function disabled	OFF
		OFF	Function enabled
P14	Backlight brightness	10% – 100%	Adjustable in the range from 10 to 100%	50%
P15	PIN Code for settings access	NO	Function disabled	NO
		PIN	Function enabled
P16	Require a PIN to unlock the keys every time (function active when P15=PIN)	NO	Function disabled	NO
		YES	Function enabled
CLR	Clear settings factory reset	NO	No action	NO
		YES	Factory Reset

Factory reset

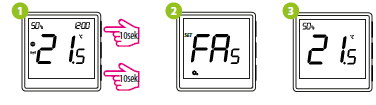

To RESET thermostat to factory settings, hold the and buttons for approx. 15 seconds. FA will be displayed. Then release the keys. Thermostat will restart, restore default (factory) settings and displays the home screen. The device will be removed from the ZigBee network you will need to add/pair it again.

Producer

• Engo Controls S.C. 43-200 Pszczyna
• 3E Górnośląska St. Poland

Distributor

• QL CONTROLS Sp z o.o. Sp. k.
• 43-262 Kobielice 4 Rolna St. Poland
