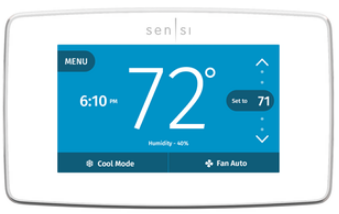

Emerson 1F95U-42WF Sensi Touch Smart Thermostats
PARTS AND ACCESSORIES
|
DESCRIPTION |
MODEL NUMBER | ITEM NUMBER |
| Thermostat Guard Clear Plastic | F29-0198 | F29-0198 |
| Wallplate (White) 6.75″W X 4.5″H | F61-2689 | F61-2689 |
| Wallplate (Black) 6.75″W X 4.5″H | SA5B | SA5B |
| Wallplate (Silver) 6.75″W X 4.5″H | SA5S | SA5S |
| Thermostat Common Wire Kit | SA11 | SA11 |
FEATURES
- HD color touchscreen display features easy-to-read temperatures and intuitive menus.
- Easy to install with easy-click terminals and built in level & easy to connect to Wi-Fi with a step-by-step guide in the app.
- Contractor-On-Call feature stores your contact information so when your customer needs service, you’re just a tap away. Sign up at sensiregistration.com
- Provides multiple thermostat control for easy management for schools and light commercial applications.
- Smart alerts notify homeowners of extreme temperature and humidity levels.
- Controls humidification and dehumidification
- The circulating fan may improve indoor air quality by helping to regulate temperature.
- ENERGY STAR Certified and Title 24 compliant. Check for eligible utility rebates at Sensi.Emerson.com/rebates
- Saves about 23% of HVAC energy by adjusting the temperature using flexible scheduling, remote access and geofencing.
- Geofencing allows temperatures to change automatically based on the location of the homeowner’s smartphone.
- Integrates directly with smart home platforms including Amazon Alexa, the Google
- Assistant, Apple HomeKit and Samsung SmartThings.
SPECIFICATIONS
- Electrical Rating Hardwire ………………………………………………30 VAC, NEC Class II, 50/60 Hz
- Electrical Rating Battery Power…………………………………………………………………………… N/A
- Terminal Load…………. 1.5 Amps per terminal, 2.5 Amps maximum (all terminals combined)
- Set-point Range……………………………………………………………………….. 45 to 99°F (7 to 37°C)
- Heat Differential (Conventional / Gas / Oil / Elec)……………..Fast 0.5°F, Med. 0.75°, Slow 1.9°F
- Cool Differential (Central Air)…………………………………………Fast 0.9°F, Med. 1.2°, Slow 1.7°F
- Heat Pump Differential (Heat and Cool)…………………………..Fast 0.9°F, Med. 1.2°, Slow 1.7°F
- Aux. Heat Differential …………………………………………………Fast 0.5°F, Med. 0.75°, Slow 1.9°F
- Operating Humidity ………………………………………………….0%-90% RH non-condensing max.
- Dimensions ………………………………………………………………………. 5.63″W X 3.38″H X 1.00″D
- Storage Temperature Range………………………………………………….-40 to 150°F (-40 to 65°C)
UNIVERSAL – 4 HEAT / 2 COOL SENSI TOUCH WI-FI THERMOSTAT
|
PROGRAMS |
STAGES BY SYSTEM | SYSTEM TYPE |
MODEL NUMBER |
ITEM NUMBER |
APPLICATIONS |
POWER SOURCE | SELECTABLE PERFORMANCE FEATURES | AVAILABLE CONNECTIONS | |||||||||||||||
|
Program Options |
Periods Per Day Options | Single Stage Heat / Cool | Multi-Stage Heat / Cool | Heat Pump Heat / Cool | Universal / Single Stage
/ Multi-Stage / Heat Pump 1 |
Gas / Oil / Electric | 3 Wire Zone Valve | Millivolt Compatible | Economizer | Humidity Control | Dual Fuel Heat Pump Control Logic (L) Outdoor Sensor (O) | Remote Sensor Options Indoor (I) Outdoor (O) | Battery (B) Hardwire / Common (H)
Power Sharing (PS) |
Auto Changeover | Programmable Fan (PF) Comfort Circulating Fan (CC) | Filter Change Reminder | Energy Mgt. Recovery / Early Start | Total Keypad Lockout (T) Partial Keypad Lockout (P) | Set-Point Temperature Limits Adjustable Max / Min | Display Size, Backlight with Key Press (K) Continuous Backlight with Common (C) |
TERMINALS |
||
| 7, NP,
Geo |
8
Max |
1/1 |
2/2 |
4/2 |
Univrsl. Sensi Touch | 1F95U-42WF (White)
1F95U-42WFB (Black) 1F95U-42WFS (Silver) |
1F95U-42WF (White)
1F95U-42WFB (Black) 1F95U-42WFS (Silver) |
√ |
√ |
— |
— |
H, D |
L |
— |
H |
√ |
CC |
√ |
√ |
T |
√ |
8″ Color |
RC, RH, C, W/E,
W2/*, Y, Y2/*, O/B/6, G, L |
| 7, NP,
Geo |
8
Max |
1/1 |
2/2 |
4/2 |
Univrsl. Sensi Touch | 1F95U-42WFC (White)
1F95U-42WFBC (Black) 1F95U-42WFSC (Silver) |
1F95U-42WFC (White)
1F95U-42WFBC (Black) 1F95U-42WFSC (Silver) |
√ |
√ |
— |
— |
H, D |
L |
— |
H |
√ |
CC |
√ |
√ |
T |
√ |
8″ Color |
RC, RH, C, W/E,
W2/*, Y, Y2/*, O/B/6, G, L |
Reference
Download Manual:
Emerson 1F95U-42WF Sensi Touch Smart Thermostats Product Specifications Guide
Emerson 1F95U-42WF Sensi Touch Smart Thermostats Product Specifications Guide
