ELSONIC W331 LCD display Thermostat User Manual

elsonic logo

ELSONIC W331 LCD display Thermostat

ELSONIC W331 LCD display Thermostat pro

Specification

  • Warranty: 1 Year
  • After-sale Service: Online technical support, Free spare parts
  • Project Solution Capability: graphic design, 3D model design, Others
  • Place of Origin: Fujian, China
  • Brand Name: ELSONIC
  • Model Number: W331
  • Backlight: Blue Backlight
  • sensors: PM2.5, CO2, TVOC, temperature, humidity, etc
  • Material: Acrylic
  • Screen: Digital LCD
  • Shape: Square Shaped
  • Size: 86mm*86mm*16mm
  • Accuracy: ±1℃
  • Temperature control range: 5℃-35℃
  • Working environment temperature range: 0℃-50℃
  • Interface: RS485 MODBUS WiFi

Introduction

The ELSONIC W331 LCD display Thermostat is a versatile and user-friendly thermostat designed to control and regulate the temperature in residential and commercial settings. Featuring a clear LCD display, it provides easy-to-read information and intuitive controls for efficient temperature management. With its programmable capabilities, the ELSONIC W331 thermostat allows users to create customized temperature schedules based on their preferences and daily routines. This flexibility enables energy savings by adjusting the temperature according to occupancy patterns, ensuring comfort when needed and reducing energy consumption when spaces are unoccupied. The thermostat is compatible with various heating and cooling systems, including gas furnaces, electric furnaces, heat pumps, and central air conditioning systems. This broad compatibility ensures that the ELSONIC W331 can be easily integrated into existing HVAC setups, providing reliable and accurate temperature control.

The LCD display of the ELSONIC W331 thermostat offers clear and concise information, including current temperature readings, programmed temperature settings, and system status indicators. This allows users to monitor and adjust the temperature with ease, ensuring optimal comfort levels in their environment. Installation of the ELSONIC W331 thermostat involves connecting it to the appropriate wiring and mounting it on the wall. While specific installation procedures may vary depending on the HVAC system, the product manual provides step-by-step instructions for a hassle-free setup.

In addition to its programmable features, the ELSONIC W331 thermostat often includes advanced functions such as temperature calibration, fan control, and system mode selection (heating or cooling). These features provide further customization and control options, allowing users to fine-tune their temperature settings based on their specific needs. The ELSONIC W331 LCD display Thermostat combines ease of use, programmability, and compatibility with a wide range of HVAC systems. With its clear LCD display and intuitive controls, it offers efficient temperature control, energy savings, and enhanced comfort for residential and commercial applications.w331 series controller for ven system by using a large-screen LCD display, through the thermostat internal NTC (negative temperature index) temperature sensor, detecting the indoor temperature and display. By setting the working mode to control the bypass valve closed and open, meanwhile controlling the three-speed fan. It can be programmed for a week to achieve the timer switch and work in the set mode.

What Is In The Box

  • Thermostat
  • User Manual
  • Screws
  • External Sensor

This device is compatible with ceiling-type heat recovery ventilators (HRV) and economic recovery ventilators (ERV), central air conditioners, dehumidifiers, and more with typical 86-box installation. It might use a relay or intelligent control over RS485. Additionally, a wifi module that could track the data and equipment functioning status in real-time has been included.ELSONIC W331 LCD display Thermostat  1

High-quality sensors
Customers can alter PM2.5 sensors, CO2 sensors, TVOC sensors, temperature sensors, and other sensors based on their requirements. Customized services are offered.ELSONIC W331 LCD display Thermostat  2

Localized action
Through the key button, you may change the ventilation, fan speed, and mode (manual, automated, sleep).

ELSONIC W331 LCD display Thermostat  3

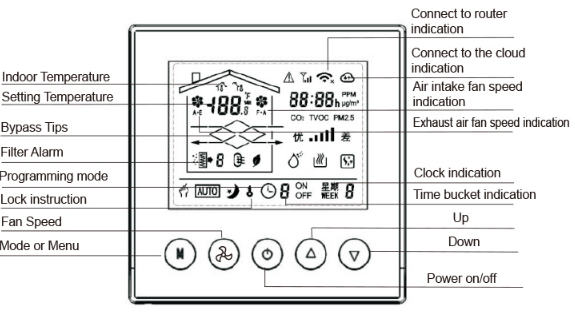

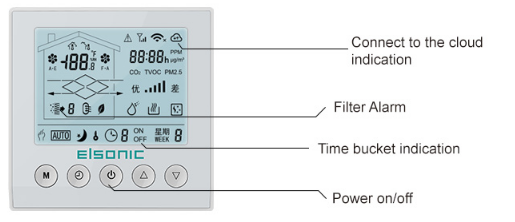

DISPLAY

ELSONIC W331 LCD display Thermostat  4

Wiring Diagram

ELSONIC W331 LCD display Thermostat  5

FAQS

Q: What is the ELSONIC W331 LCD display Thermostat?
A: The ELSONIC W331 LCD display Thermostat is a thermostat designed to control and regulate the temperature in residential and commercial settings.

Q: What are the main features of the ELSONIC W331 thermostat?
A: The main features of the ELSONIC W331 thermostat include an LCD display, programmable temperature schedules, compatibility with various HVAC systems, temperature calibration, fan control, and system mode selection.

Q: Is the ELSONIC W331 thermostat compatible with all HVAC systems?
A: The ELSONIC W331 thermostat is compatible with a wide range of heating and cooling systems, including gas furnaces, electric furnaces, heat pumps, and central air conditioning systems.

Q: How do I install the ELSONIC W331 thermostat?
A: Installation of the ELSONIC W331 thermostat involves connecting it to the appropriate wiring and mounting it on the wall. The product manual provides detailed instructions for installation.

Q: Can I program temperature schedules with the ELSONIC W331 thermostat?
A: Yes, the ELSONIC W331 thermostat offers programmable temperature schedules, allowing you to customize temperature settings based on your preferences and daily routines.

Q: Does the ELSONIC W331 thermostat have an LCD display?
A: Yes, the ELSONIC W331 thermostat features an LCD display that provides clear and easy-to-read information, including current temperature readings, programmed settings, and system status indicators.

Q: Does the thermostat support temperature calibration?
A: Yes, the ELSONIC W331 thermostat typically offers temperature calibration functionality, allowing you to adjust the displayed temperature to match the actual room temperature.

Q: Can I control the fan with the ELSONIC W331 thermostat?
A: Yes, the ELSONIC W331 thermostat often includes fan control features, allowing you to adjust fan settings based on your preferences and comfort requirements.

Q: How can I switch between heating and cooling modes on the ELSONIC W331 thermostat?
A: Most digital thermostats, including the ELSONIC W331, offer a mode selection feature accessible through the thermostat’s interface. Use the controls to switch between heating and cooling modes.

Q: Does the ELSONIC W331 thermostat have a battery backup?
A: The availability of a battery backup may vary depending on the specific model or version of the ELSONIC W331 thermostat. Check the product specifications or manual for information on battery backup functionality.

Q: Can I manually override the programmed temperature settings?
A: Yes, the ELSONIC W331 thermostat typically allows manual override of the programmed temperature settings, allowing temporary adjustments to the temperature without affecting the overall schedule.

Q: Does the thermostat have a vacation mode?
A: The availability of a vacation mode may vary depending on the specific model or version of the ELSONIC W331 thermostat. Refer to the product manual for information on vacation mode functionality.

Q: Can I set different temperature schedules for weekdays and weekends?
A: Yes, the ELSONIC W331 thermostat usually provides the ability to set separate temperature schedules for weekdays and weekends, allowing you to customize temperature settings based on your weekly routine.

Q: Can I adjust the thermostat’s display brightness?
A: The availability of adjustable display brightness may vary depending on the specific model or version of the ELSONIC W331 thermostat. Consult the product manual for instructions on adjusting display brightness.

Q: Is the ELSONIC W331 thermostat user-friendly for programming and operation?
A: The ELSONIC W331 thermostat is designed to be user-friendly, with an intuitive interface and easy-to-understand controls. However, it’s recommended to refer to the product manual for detailed instructions and guidance during setup and programming.
