Elechico TP618RFW WIFI Wireless Thermostat

About your thermostat

TP618RFW is a modern touch type wifi smart thermostat. You could use mobile to control your thermostat anywhere. It can replace most common residential thermostat and is designed to be used with electric, gas or oil heating control system. Unlike ordinary single unit design thermostat, this unit is a new type of thermostat separating the thermostat function into two units. Receiver and Control Center.The distance over 150M in the open air.It can be used to control boilers,thermal actuators,motorized valves etc. Thermostat all passed CE and Rohs standard.

Service

We offer the warranty of 24 months from the sales day. If it is not the problem of quality or beyond the warranty time, we will charge for the after-sale service.

Technical Data of your thermostat

• Power source :Control Centre 2 AA batteries Receiver 95-240VAC±10% 50/60HZ
• Frequency band:868MHZ
• Relay contact:3A for water heating/gas boile heating 16A for electric heating
• Room temperature setting range:5℃-35℃
• Working environment temperature range:0℃-50℃
• Storage Temperature range:-10℃-60℃
• Accuracy:0.5℃
• Control Center/Receiver Dimension：86mm*86mm*15mm
• Installation:Wall mount or Desktop

Features of your thermostat

• Temperature display of Celsius
• Programming Period: 5+1+1, 6 separate periods per day.
• WIFI APP control with IOS&Andriod
• Anti-freezing protection
• Modern desgin similar as a cell phone.
• White/Black Colour option creates elegant life.
• Acrylic lenses to avoid the finger scrath.
• Touch Button makes simple operation.
• Large VA screen display with backlight is easy to read—even in the dark.
• One-touch temp control overrides program schedule at any time.
• Precise comfort control keeps temperature within 0.5°C of the level you set.
• Data memory when power is off.

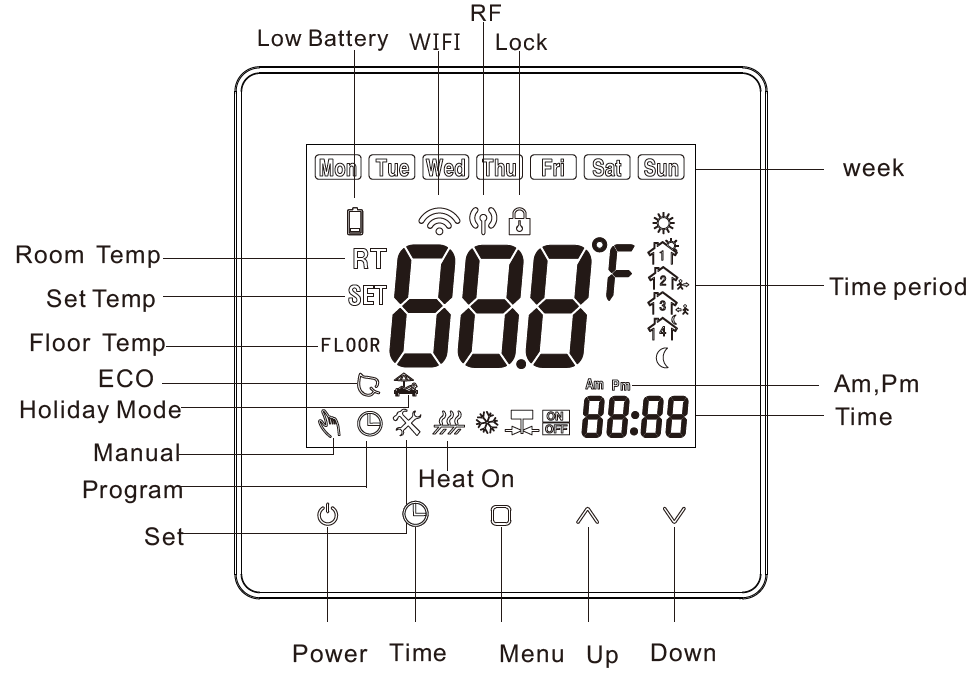

LCD Display Reference

Operation

1. Press this button to power on /off your thermostat
2. Press this button to set min/hour/week
3. Press this button to select manual /programm mode
   Manual mode: Press the button to select manual mode. When you select manual mode,the symbol will show in the bottom left corner. Press buttons to change the desire temperature
   Program mode: Press the button to select program mode. When you select this mode, the symbol will show in the bottom left corner. Press buttons over 5 seconds to activate weekly program set mode. Press the button to select (5+1+1)six periods of time and temp. When you set the Desire time and time. Press the button to save the set and return back home screen.
   Temporary mode: During program mode. If you need to change the temp, The icon will appear. The presetting program will return in the next period
4. Child clock:
   You could press 7 seconds to lock/unlock  your thermostat
   1. Holiday mode:
      Press 7 seconds to enter holiday mode when powered on. The icon will display on the left button, Short press to set desired day and temp. Press the button to change the day range 0-99 or desired temp. Press the button to save the set and return back home screen. Press the button to exit this mode
5. Factory reset:
   1. weekly program reset, Press the button over 7 seconds to enter program mode. Then press 7 seconds to go factory setting. The LCD will display” def” in the bottom right corner.
   2. Configuration menu reset. Press the button for over 7 seconds to enter the configuration menu when powered off. Then press to go factory setting. The LCD will display” def” in the bottom right corner.
6. Low battery alarm
   Low Battery symbol will display on LCD when power <= 10%. APP will remind you to replace batteries flash when battery power uses almost 99%, RF will stop working. You have to replace new batteries immediately

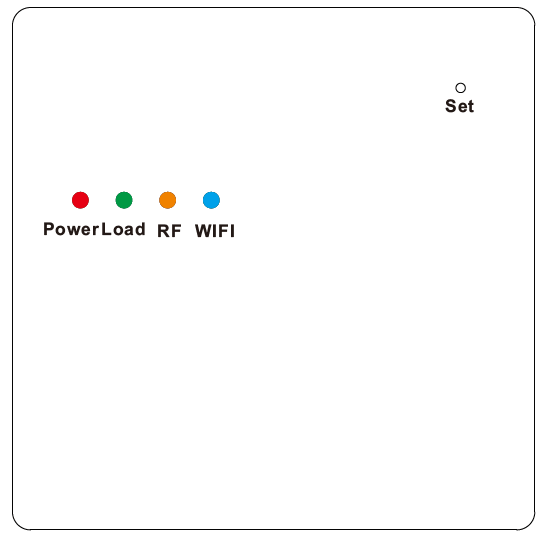

Receiver button function

1. Power Indicator(Red light): Press the SET button to power on /off the receiver, Power on a RED light on.Power off the RED light off
2. WIFI signal indicator(Blue light): Press the SET button over 7 seconds when power is on. It will enter WIFI connection mode. Continuous fast flashing means it is in WIFI EZ network configuration mode; continuous slow flashing means it is in WIFI AP network configuration mode; When WIFI connects successfully. The blue light will always be on. The WIFI connection fails, and the light will not on.
3. Load indicator(Green light): In normal operation, the load output is turned on,.The green light will be on. When their load output is off. The green light will be off. When the green light quickly flashes it indicator of the External sensor error
4. RF signal indicator(Yellow light).
   1. The yellow light is always on. It means the receiver enters the pair with the transmitter When the power is off. Press SETButton over 7 seconds. RF light will on. Lose the button. The receiver will enter the match code status. The yellow light will flash 3 times when matching success with the transmitter.
   2. Yellow light flash quickly, Which means the receiver receives the signal successfully, It will flash one time when the receiver receives the signal from the transmitter each time.
   3. Yellow light flash slowly, Which means the receiver matches success with the transmitter
5. Emergency output method(Manual output):
   When the transmitter is broken or can’t control your receiver. You could use this method. Power off your receiver.Long press the Set button.RF signal light(Yellow light)on all the time. After 18seconds.Load light(Green light) and RF light (Yellow light) at the same time. The emergency output will work. Short press Set to quit this function.

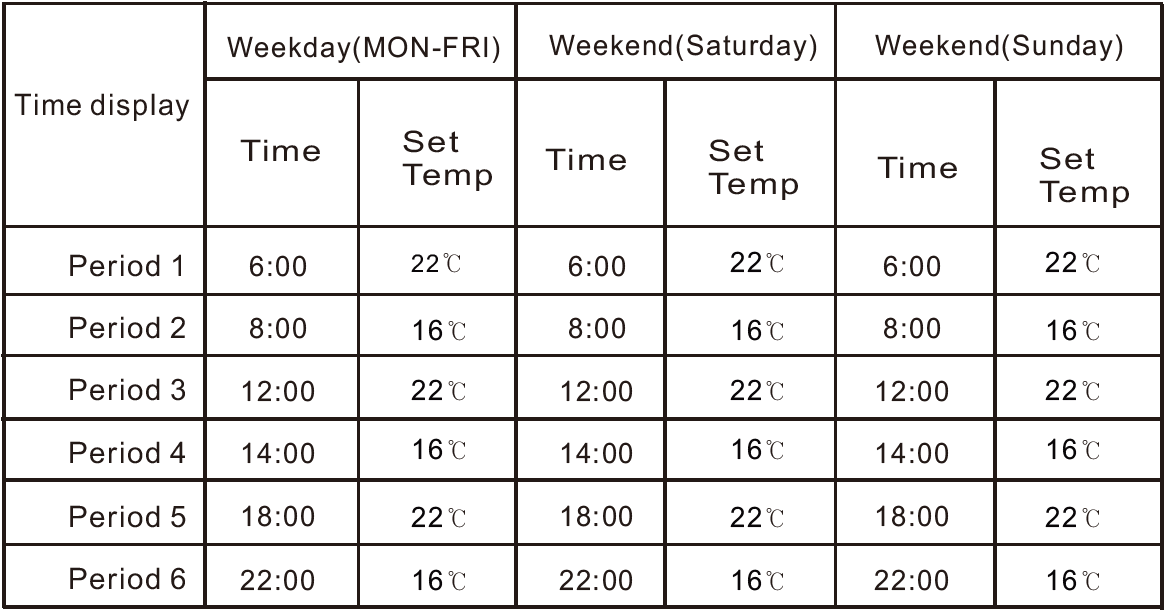

Programm Settings

When power is on, press for 7 seconds to enter program mode.Press to change the different items.Press to set the relative values. The order is Week-time-Temp(Monday-Friday, Saturday, Sunday=5+1+1)Each day has a 6-period setting.

How to match the code between the transmitter and the receiver?

Normally you don’t need to need a match pair code, All match well in the factory,Each pair will have the same series of match numbers. However, if your transmitter lost signal with your receiver.You could connect according to to follow steps

1. On your receiver, make sure the receiver is during match code status. When the power is off.Press SET for 7 seconds. Yellow lights on, means the receiver enters pair with the transmitter standby.
2. On your thermostat, press, and 7 seconds. The LCD will display:” —.”After the match code is successful.The transmitter LCD will display numbers (1-9 range all ok)
3. Transmitter’s RF symbol will be on it. The receiver’s yellow light will flash 3 times.
   NOTE:
   1. Flash means RF does not match the code.
   2. Disappear means no RF signal.
   3. Always on the screen means RF working normally.

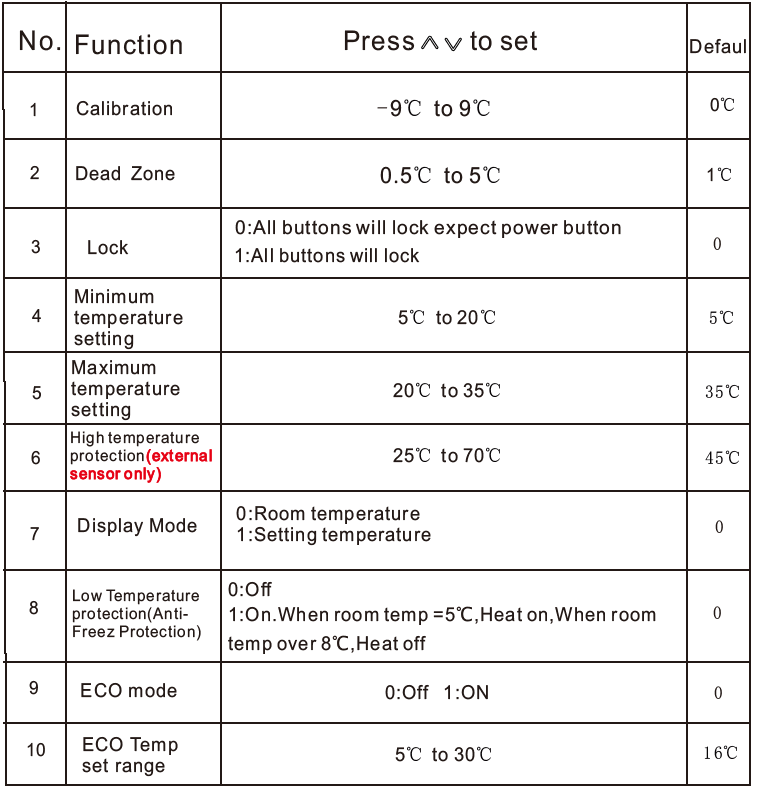

Configuration menu

Turn off the thermostat. Press 7 seconds to enter the configuration menu. During this menu, short press to change parameters.Press to confirm the setting.

High-temperature protection

1. When the external sensor detects the floor temp is over 45℃, the Thermostat will turn off the heat
2. When you connect the external sensor. This function will work. In your thermostat, You could press 7 seconds to check the floor temperature. App in settings could check floor temp. Thermostat LCD Will display ERR when the external sensor is broken or loosened. The app also alerts floor sensor errors If you don’t connect the external sensor. Then you couldn’t check the external sensor temp both the thermostat and app.

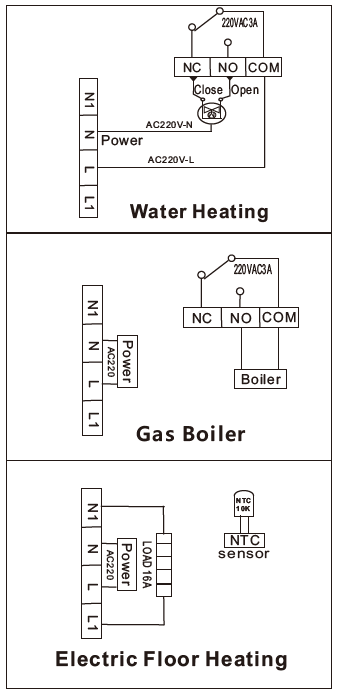

Wiring Diagram

WIFI connection with APP

To help with pairing your device for the first time, we recommend having your phone close to the router or modem . Search “Smart Life”app from Google play and app store. Download it or scan the QR code below(Fig1-1)

Open the “Smart Life” app. Follow registration instruction
Through the app, you can control the devices with voice control by integrating amazon echo or google assistant. The app arrives with an easy-to-use interface with elegant features. As a result, using the app is extremely straightforward. One of the notable things about the app is you can control the appliances of your home from another part of the world. The app also allows you to add and control a variety of devices at once. You can also let the device to automatically start or stop based on the location, time, and temperature. It also allows you to share the control of the devices among the family members. It also includes a real-time safety feature that will enable you to ensure protection in case if anything went wrong

How to use the Smart Life App
The app manufacturer. Start with installing the app on your device. Then open the application and register for an account. Then the app will automatically detect your country code. In case it does not detect, you will require entering the code manually. Then you will need to enter your phone number or email address. There will be a verification code sent that you will require entering for confirming the registration. Then click on the plus icon in the top right of the app to add a device. The app should automatically pair with the devices. In case you see a message that says failed to add, then it means the connection is not paired. You will require pairing with the app manually. After successfully pairing with the application, you can set the name of the device. Now you will be able to control the devices from your app interface.

CONNECT TO WIFI – EASY PAIR(EZ MODE)

1. Once your thermostat is installed and turned on it will automatically search for a device to pair with(Fig2-2). The Wi-Fi symbol will repeatedly flash to indicate it is searching.Turn on your phone’s bluetooth

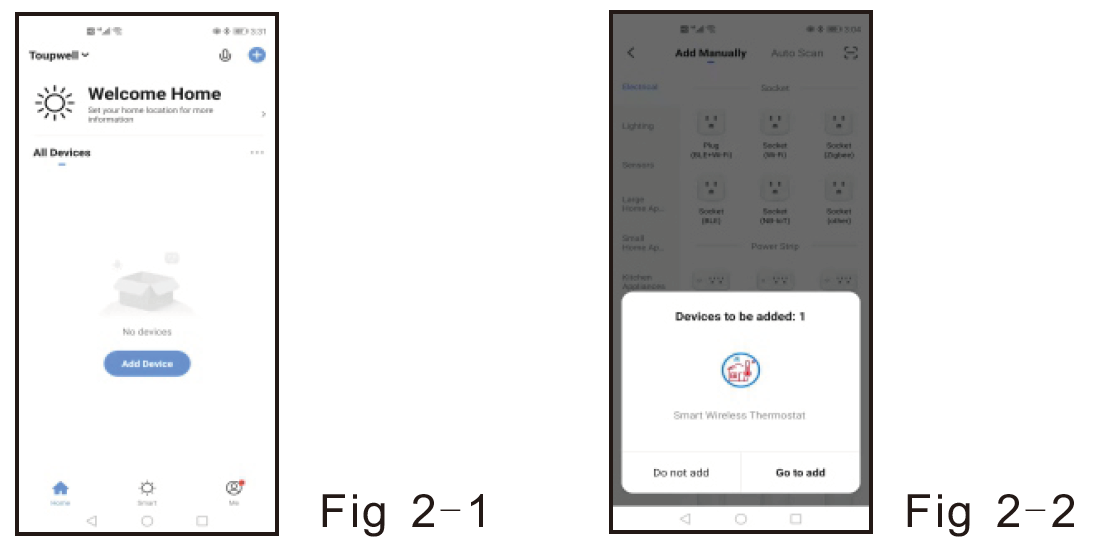

2. Open smart life app “Add Device”(Fig2-1)
3. Hold phone near Thermostat. The device will appear on the screen.(Fig2-2)

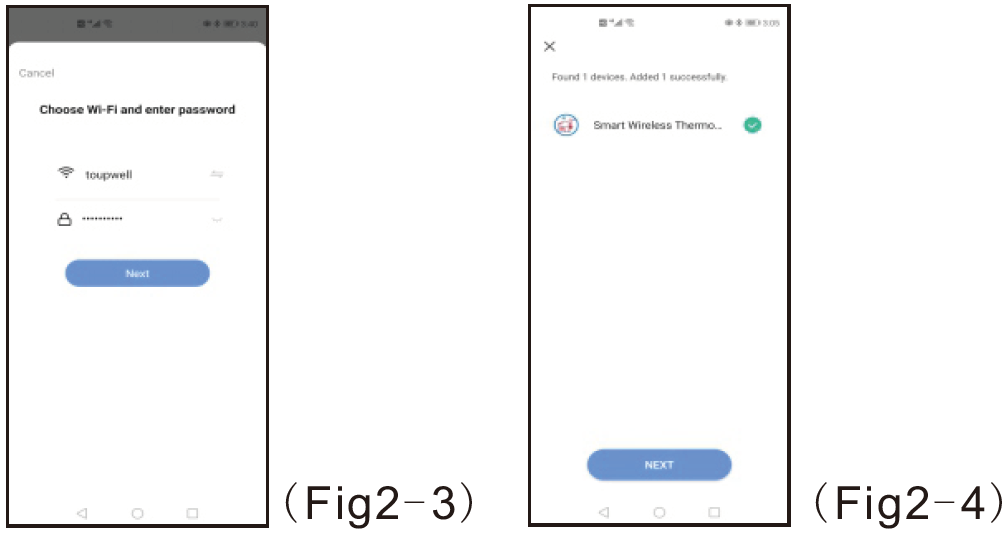

4. Press ‘Go to add’. The app will instruct you to select a Wi-Fi router and password.(Fig2-3)
5. When WI-FI is connected the device will be paired. (Fig2-4)

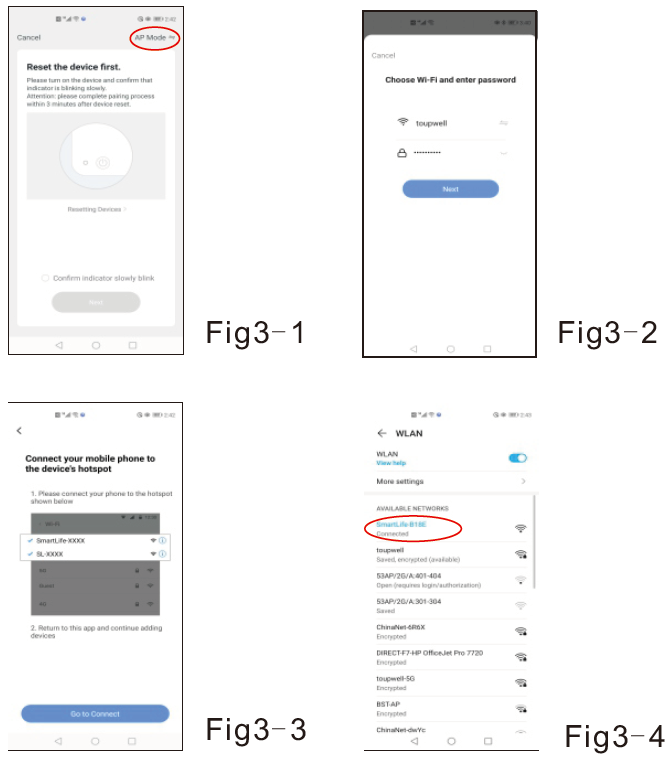

AP MODE WIFI CONNECTION

If your WIFI signal is weak or you can’t connect with EZ mode. You could choose AP mode to connect with WIFI. Normally WIFI chooses EZ mode(Factory setting) On your thermostat Please make sure your thermostat power is on. Press the button the wifi symbol flashes one time per second. On the app Click Confirm indicator slowly blink (Fig 3-1) then select your network and back to your app to enter the password of your wireless router (Fig 3-2) and confirm. The app will go into the page in (Fig 3-3). Press Go to connect to select the wif signal Smartlife-XXXX of your thermostat （Fig 3-4). Then the app will connect automatically. This will take 12 seconds

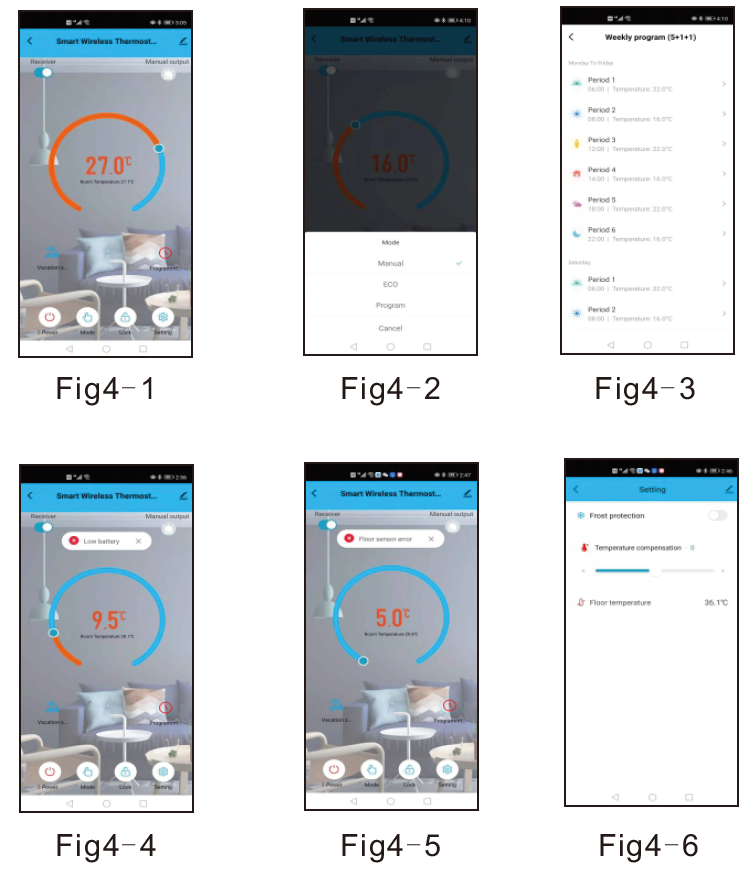

APP FEATURES

Power: On/Off Red = Power ON, Blue = Power OFF
Mode: You can select between; Manual, ECO or Program mode (Fig4-1,Fig4-2)
Manual Mode: In this setting, you can change the temperature manually
Eco Mode: In this mode, your thermostat will run at 16 °C. The temperature cannot be changed whilst in eco mode.
Program Mode: In this mode, you can program your thermostat. Click Program mode the select program on the landing page to enter the program page. During program mode you can set your desired time periods and temperatures for

• (Mon-Fri + Sat + Sun) = (5+1+1)
• 6 time periods per day.

You also have the option to re-name time periods. Once you have selected your desired; times, temperatures and name press save in top (Fig4-3)

Lock/Unlock your thermostat. Red = Locked Blue = unlocked
Holiday mode: You can set the temperature and holiday days
Battery alarm: The app will show as per the picture(Fig4-4)
Floor sensor error: This will work ONLY if you buy a thermostat with an external sensor.(Fig4-5)
Manual output(Emergency output): White=OFF.Red=ON
Settings: In Settings, you are able to set (Fig4-6)

1. temperature Compensation: You can manually configure/calibrate your thermostat temperature
2. Turn on/off frost protection
3. Floor Temperature: This only display when you connect with an external sensor

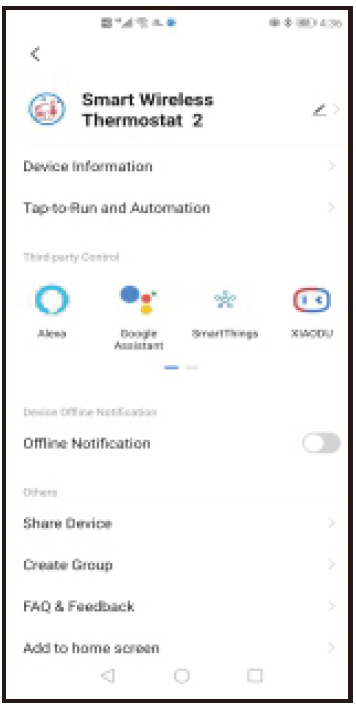

CONNECT WITH AMAZON ALEXA AND GOOGLE ASSISTANCE
In settings, select in the top right corner or On the app home page to access third-party control settings. Select your desired Smart 3 rd party device and follow the on-screen instructions. You could also choose” share devices” and “create group” with your family.

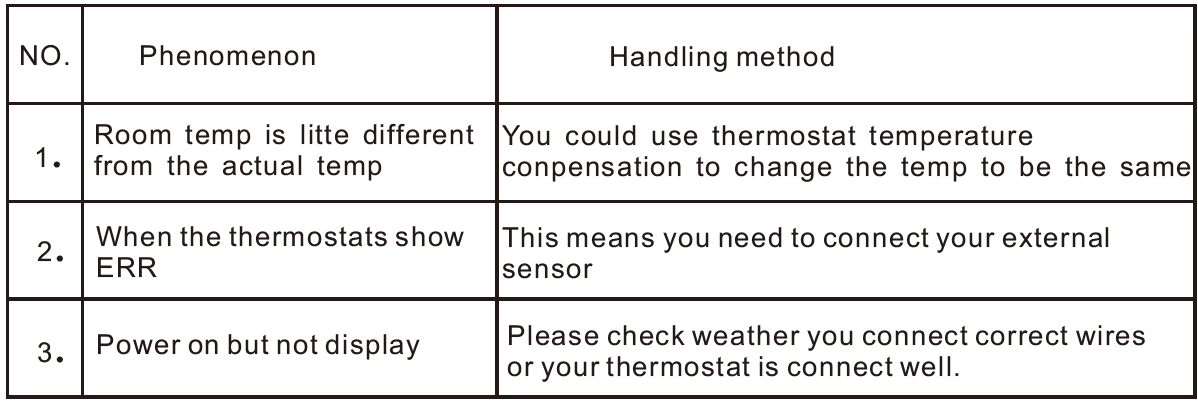

Thermostats Trouble Shooting

Cautions on Installation and Use

1. To prevent the thermostat display from high fluctuation, special treatment has been made to the program. Therefore, it is normal that the thermostat cannot immediately display a sudden change in temperature.
2. The thermostat shall be placed 1.5m above the ground.
3. For the thermostat installed, please take care not to install it on the wall corner, door/window side or behind the door, or in such unheated area as the exterior wall. Avoid hot/cold air ducts, radiators, flue, or thermal pipes. If the wireless thermostat with battery seat is placed in a position where the air ventilation is poor, the temperature displayed on the thermostat might be inconsistent with the indoor average temperature.
4. Only professional technicians are permitted to open the transmitting and receiving box of the thermostat for installation. When installing the power supply, make sure that the power cable is well insulated.
5. To install the receiving box, please install the base plate firstly and then connect the power and signal wire correctly before installing the upper cover and fix it. The thermostat is an unrepairable product. The user shall not open the internal circuit board.
6. Before installing the thermostat, make sure that the system is disconnected. The maximum voltage of the system shall meet the requirements specified in the Instruction Manual (Max. AC Voltage: 250V).

Model： TP618RFW
