ELECHICO THP6001-3 Digital Wifi Temperature Controller Thermostat User Manual

ELECHICO LOGO

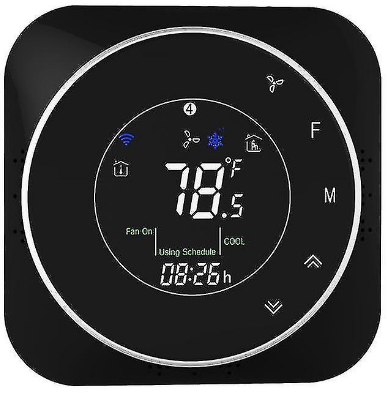

ELECHICO THP6001-3 Digital Wifi Temperature Controller Thermostat

ELECHICO- THP6001-3- Digital- Wifi- Temperature- Controller- Thermostat- pro -

Introduction

The ELECHICO THP6001-3 Digital WiFi Temperature Controller Thermostat is an advanced home automation device that offers precise control over your heating and cooling systems. With its digital interface, WiFi connectivity, and temperature control features, it provides convenience and energy efficiency for maintaining a comfortable indoor environment. The THP6001-3 thermostat features a sleek and modern design with a clear LCD display that provides real-time temperature readings and system status information. Its user-friendly interface allows for easy navigation and programming, making it accessible for homeowners of all levels of technical expertise.

One of the key features of the THP6001-3 thermostat is its built-in WiFi connectivity. By connecting the thermostat to your home’s WiFi network, you can remotely control and monitor your HVAC system using a smartphone or tablet. Through a dedicated mobile app, you can adjust the temperature, set schedules, and receive alerts, ensuring that your home is always at the desired temperature, even when you’re away. The THP6001-3 thermostat is compatible with a wide range of heating and cooling systems, including gas, electric, and heat pump systems. It supports both single-stage and multi-stage systems, allowing for versatile installation options in various home setups.

With its temperature control features, the THP6001-3 thermostat offers precise temperature adjustments for optimal comfort and energy efficiency. You can set custom temperature schedules to automatically adjust the temperature based on your preferences throughout the day, helping to save energy and reduce utility costs. The thermostat’s WiFi connectivity also enables integration with popular smart home platforms like Amazon Alexa and Google Assistant, allowing for voice control capabilities. This allows you to conveniently adjust the temperature and control other thermostat settings using simple voice commands.

Installation of the THP6001-3 thermostat is relatively straightforward, and it comes with detailed instructions to guide you through the process. However, if you are unsure or uncomfortable with the installation process, it is recommended to seek professional assistance from an HVAC technician. The ELECHICO THP6001-3 Digital WiFi Temperature Controller Thermostat combines a sleek design, user-friendly interface, WiFi connectivity, and temperature control features to provide an advanced and convenient solution for managing your home’s HVAC system. With its remote access capabilities and compatibility with voice assistants, it seamlessly integrates into your smart home ecosystem, offering comfort, control, and energy efficiency.

Specification

  • Warranty: 1 Year, 24 Months
  • After-sale Service: Online technical support, Free spare parts, Return and Replacement
  • Project Solution Capability: graphic design
  • Design Style: Modern
  • Place of Origin: Guangdong, China
  • Brand Name: ELECHICO
  • Model Number: THP6001-3
  • Product name: Heat pump thermostat
  • Power supply: 24V
  • Color: Black
  • Accuracy: ±1℉
  • Buttons: Capacitive Touch Buttons
  • Shell Material: PC+ABS(Fireproof)
  • Function: Ventilation
  • Installation: Wall Mounted Installation

What Is In The Box

  • Thermostat
  • User Manual
  • External Sensor
  • Screws

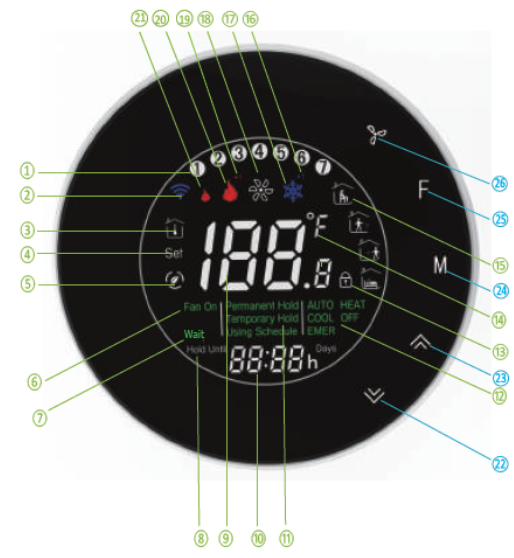

Display

ELECHICO- THP6001-3- Digital- Wifi- Temperature- Controller- Thermostat- 2

24V Heat Pump Thermostat

  •  Gas, oil, or electric heat with air conditioning.
  •  Warm air, hot water, high efficiency furnaces, heat pumps, steam, gravity.
  •  Heat only–including power to open and close zone valves, and normally open zone valves.
  •  Heat only with the fan.
  •  Cool only.

ELECHICO- THP6001-3- Digital- Wifi- Temperature- Controller- Thermostat- 1

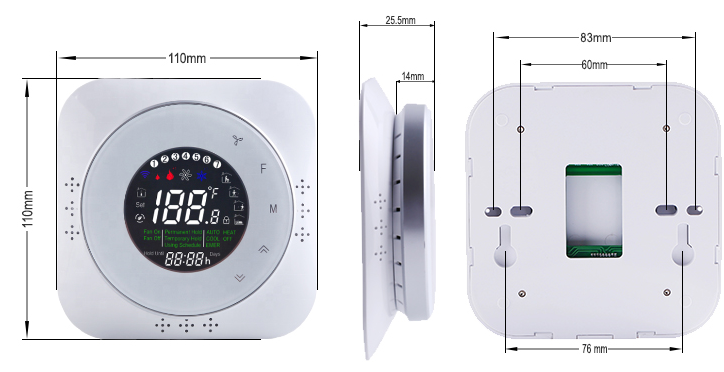

Dimension

ELECHICO- THP6001-3- Digital- Wifi- Temperature- Controller- Thermostat- 3

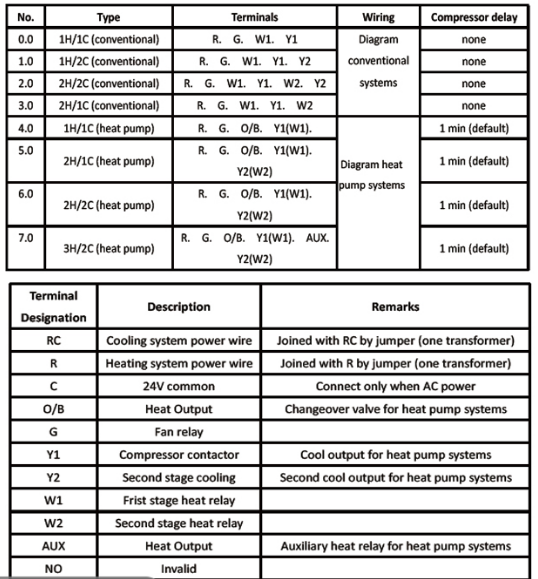

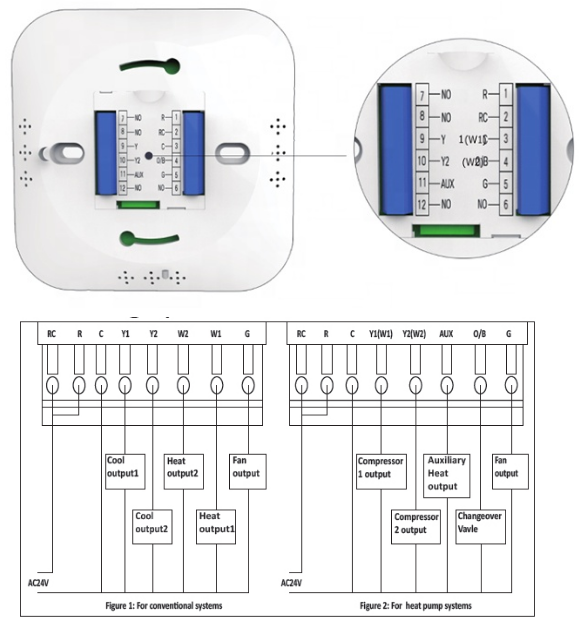

Wiring

ELECHICO- THP6001-3- Digital- Wifi- Temperature- Controller- Thermostat- 4

ELECHICO- THP6001-3- Digital- Wifi- Temperature- Controller- Thermostat- 5

Features

On Appearance

  •  Negative black seen will bring you a to a secret world.
  •  51mm round display area helps to protect your eyes.
  •  Glass or Acrylic Lens is for your selection. (Optional)
  •  Touch buttons to make simple operation.
  •  Amazing Silver Frame opens your modern life.
  •  The visible thickness above the wall IS only 11mm.
  •  Rotation to connect gives you easy installation.
  •  Wall mounted or suitable for installation of Europe, China, Japan, USA and Italy.
  • White, black or brushless stainless steel housing creates your colorful life.

On Functionality

  •  Powerful functions are available such as Modbus/WIFIetc,.
  •  0.5°C accuracy keeps the temperature within the level you set.
  •  °C&°Fis changeable. (Customized Function)
  •  Data memory when power is off
  •  5+1+1 four periods programmable.
  •  Temporary programmable.
  •  Holiday mode.
  •  All setting languages synchronize your time zone. address and language.
  •  No limit to add thermostats in the App.
  •  Support Smart Scene.
  •  Support to make group and two-stage groups.
  •  Support device sharing.

FAQS

What is the purpose of the ELECHICO THP6001-3 Digital WiFi Temperature Controller Thermostat?
The thermostat is designed to control and monitor the temperature of your home’s heating and cooling systems for optimal comfort and energy efficiency.

Does the THP6001-3 thermostat require WiFi connectivity?
Yes, it features built-in WiFi connectivity, allowing you to control it remotely using a smartphone or tablet.

What types of heating and cooling systems is the THP6001-3 thermostat compatible with?
The thermostat is compatible with a wide range of systems, including gas, electric, and heat pump systems.

Can I control the THP6001-3 thermostat using voice commands?
The THP6001-3 thermostat does not have built-in voice control, but it can be integrated with smart home platforms like Amazon Alexa or Google Assistant for voice control capabilities.

Is the THP6001-3 thermostat programmable?
Yes, you can program custom temperature schedules to automatically adjust the temperature throughout the day based on your preferences.

Does the THP6001-3 thermostat provide energy usage reports?
The THP6001-3 thermostat does not have energy usage reporting capabilities.

Does the THP6001-3 thermostat support multiple temperature zones?
The THP6001-3 thermostat is designed for single-zone temperature control and does not have support for multiple zones.

Can I control the THP6001-3 thermostat from multiple devices?
Yes, as long as the devices have access to the same WiFi network and the thermostat’s mobile app, you can control it from multiple devices.

Does the THP6001-3 thermostat have a touchscreen display?
Yes, it features a digital LCD display for easy temperature reading and programming.

Does the THP6001-3 thermostat have a vacation mode?
Yes, the thermostat usually includes a vacation mode that allows you to set a temporary schedule for energy savings when you’re away.

Can I receive temperature alerts and notifications on my smartphone?
Yes, the THP6001-3 thermostat can send alerts and notifications to your smartphone, keeping you informed about temperature changes or system issues.

Is professional installation required for the THP6001-3 thermostat?
The THP6001-3 thermostat can usually be installed by homeowners, but if you are unsure or uncomfortable with the process, it is recommended to seek professional assistance.

Does the THP6001-3 thermostat have a battery backup?
The thermostat is typically powered by the HVAC system’s wiring and does not require a battery backup.

Can I adjust the temperature remotely when I’m not at home?
Yes, as long as you have an internet connection, you can control the THP6001-3 thermostat remotely using the mobile app.

Can I set different temperature schedules for different days of the week?
Yes, the THP6001-3 thermostat usually allows for setting different temperature schedules for weekdays and weekends, providing flexibility for your lifestyle.
