Elechico THP1002 Programmable Room Thermostat

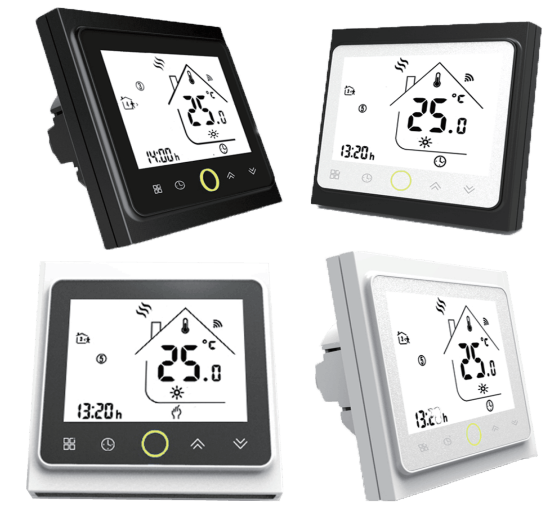

- (002FB: full black
- 002WB: white and black
- 002 BW: black and white
- 002FW: full white
Welcome
Thank you for your purchase.
Your new thermostat will provide uniform and comfortable temperature control throughout
every room in your property. We bring together technology, craftsmanship and the highest quality materials to provide you with a safe, reliable product combined with sleek, contemporary design. Please read this installation/programming manual for comprehensive instructions on installing and operating your thermostat. Please ensure a suitably qualified person installs your thermostat and complies with all local regulations.
Contents
- Thermostat: 1pc
- Screws: 1pc
- Installation/programming manual Wall plate: 1pc
- 2.5m External (Floor) Sensor(optional): 1pc
Warranty
Your thermostat carries an 24 month warranty from date of purchase. Service outwith the warranty period may incur a charge.
Your thermostat
The THP1002 range has been developed to control electric underfloor or water heating or water/gas boiler system. These units are designed for use in commercial, industrial, civil and domestic properties.
Features
- Simple installation
- Acrylic face plate
- Large, backlit display
- Sleek, contemporary design
- Elegant chrome frame
- Feather touch control panel
- 5+2 six period per day programming
- . Simple, one-touch temperature control over-ride Pre-set temperatures maintained within +/- 1°C Internal and external sensors allow control of both air and/or floor temperatures
- Suitable for installation in a standard single pattress box or European 60mm round box
- RS485/MODBUS communication optional
Home screen quick reference
Technical Data
- Sensor ：NTC
- Accuracy：±1℃
- Set T emp. Range：5-35℃
- Room Temp. Range：5-99℃
- Power Consumption：< 1.5W
- Timing Error：<1％
- Power Supply：95 ~ 240VAC, 50 ~60Hz
- Current Load：3A（water heating, water/gas boiler), 16A（electric heating)
- Shell material：PC+ABS (flame retardant)
- Dimension：86x86x13.3mm
- Ambient Temp.：0-45℃，5-95％RH （Non-condensing）
- Storage Temp.：-5-55℃
- Installation Hole distance: 60mm
Operation/programming
- Power on/off
Press
to turn on/off. - Adjusting/setting the temperature
Press
to set the desired temperature. - Adjusting/Setting the clock
Touch the icon
to set minute, hour and weekday (1 = Monday, 2 = Tuesday etc.) by using the arrows. Press once more to confirm and exit. - Locking your thermostat
Press and hold theand arrows for 5 seconds to lock/unlock your thermostat. - Adjusting/setting the program schedules
Your thermostat provides six scheduled heating periods each day – three Comfort periods – 1, 3 & 5 (the temperature required when room is occupied) and three Economy periods – 2, 4 & 6 (the temperature required when room is unoccupied).
You can set both the time temperature for each of these six daily periods. Adjusting/setting the schedules can only be carried out when in program mode; Touch
(mode) to change between manual mode and programme mode. In manual mode, will show in the screen.
- Touch the icon for four times until the weekday schedule settings appear (1 2 3 4 5 will show along the top of the screen).
- Use the
arrows to adjust the time for the 1st (Comfort) period - Press the icon and use the and arrows to set the temperature for the 1st period.
- Repeat this process for periods 2 – 6.
- Press the icon once more to enter the weekend schedule settings (6 & 7 will show along the top of the screen).
- Repeat the above process to set the weekend schedule. Press once more to confirm and exit.
Default settings for program schedule
| Time display | WEEKDAY (MON. – FRI.) | WEEKEND (SAT. – SUN.) | ||
| TIME | TEMP. | TIME | TEMP. | |
| Period 1 (Comfort) | 06.00 waken | 20°C | 06.00 waken | 20°C |
| Period 2 (Economy) | 08.00 leave | 15°C | 08.00 leave | 20°C |
| Period 3 (Comfort) | 11.30 home | 15°C | 11.30 home | 20°C |
| Period 4 (Economy) | 13.30 leave | 15°C | 13.30 leave | 20°C |
| Period 5 (Comfort) | 17.00 home | 22°C | 17.00 home | 15°C |
| Period 6 (Economy) | 22.00 bed | 15°C | 22.00 bed | 15°C |
Default settings above assume a 5+2 (day) weekly program.

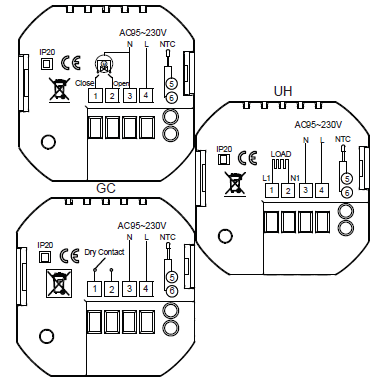

Wiring your thermostat
Please note:
- Do not over-tighten the terminals in your thermostat as damage may occur.
- WH for water heating, UH for electric heating,
- GC for water/gas boiler. External Sensor is optional.
System function settings
With power off, press and hold both and for 5 seconds to enter the System Functions. Press to scroll through the available functions, and use the arrows to change the available options. Your thermostat will automatically exit the System Functions settings after approximately 15 – 20 seconds of inactivity. All settings are automatically
|
Code |
Function |
Setting & options |
Default |
|
1 |
Air temperature calibration |
Range is -9°C to +9°C for internal sensor |
-2 |
|
2 |
Deadzone temperature |
1-5 ℃ |
1 |
|
3 |
Button locking |
0: = All buttons will lock except the Power button 1: = All buttons will lock |
1 |
|
4 |
Sensor selection |
In = control temperature using the internal sensor
Ou = control temperature using the external (floor) sensor Al = control temperature using internal sensor to control temperature, and external sensor to limit the floor temperature Remark: Please make sure the right sensor. If choose the wrong or bad one, LCD will display Err. |
In for GA/GC Al for GB |
|
5 |
Minimum temperature setting | Range is 5°C – 15°C. |
05 |
|
6 |
Maximum temperature setting | Range is 15°C – 45°C. |
35 |
|
7 |
12/24 hour clock |
0: 12h: = 12 Hour clock
1: 24h: = 24 hour clock |
1 |
|
8 |
Display Mode | 0：display both set temp. and room temp. 1：display set temp. only |
0 |
|
9 |
High temperature protection setting. |
25-70℃ |
45 |
Please note:
- Err” on your thermostat indicates a fault without the external (floor) sensor. Your thermostat will be inoperative until the error is rectified.
- When sensor selection is “AL” (option 3 above) the room temperature will be displayed on your thermostat by default. The floor temperature can be displayed temporarily by pressing ︾ the button for three seconds. Your thermostat will revert to display the room temperature after several seconds.
Installing your thermostat
Your thermostat is suitable for installation within a standard 86mm pattress box or European 60mm
round pattress box.
Step 1. Keep power off.
Step 2. Remove the mounting Plate.

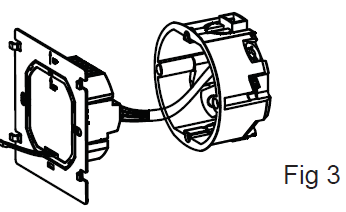

Step 3. Connect power supply, load and external (floor) sensor into the appropriate terminals if there is external sensor.

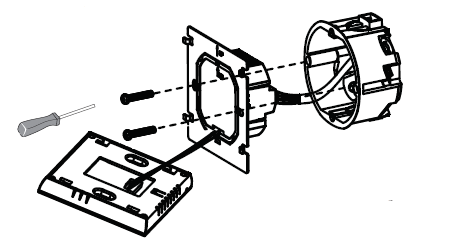

Step 4. Fix the mounting plate into the wall with screws in the box.

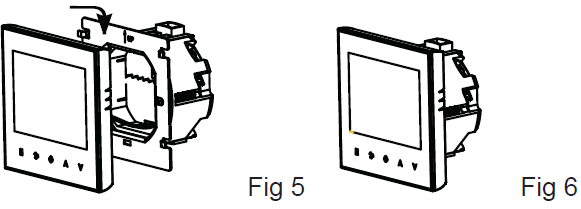

Step 5. Fasten body of thermostat and the mounting plate through the groove.
Step 6. Installation complete.

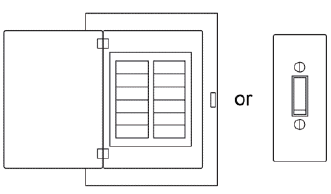

RISK OF ELECTRICAL SHOCK. Disconnect/isolate power supply prior to making electrical connections. Contact with high voltage components can cause electrical shock, severe injury or death.
