Attention!
This unit must be mounted by an electrical expert, according to the wiring diagram inside the housing cover. The existing safty regulations must be observed.
This room thermostat which can be mounted independently is for controlling normal ambient temperature in dry and humid rooms. It has radio interference suppression in accordance with VDE 0875 or EN 55014 and operates to efficiency 1 C.
Possible applications and dimensioning particularly technical data may be found in our technical leaflets.
Purpose of application
Type DTR-E 3102
This unit is used for cost-saving control of eaves gutter heating.
The critical temperature range is recorded exactly by two controllers, so that the heating is only in operation, when there is really the danger of freezing wetness.
A functional example of Type DTR-E 3102
Setting the controller with the „Temp (+)“: +5°C (above this thawing). On the temperature dropping to +4°C the heating is switched on.
Setting the controller with the „Temp (-)“: –5°C. On the temperature dropping the heating is switched off Ice and snow are dry, there is no melted snow and ice that could freeze.
When the temperature rises to –4°C, the heating is switched on again.
The heating is, therefore, only operated for the range critical for the eaves gutter of –5°C to +5°C.
Types FTR-E 3121
These units are used for controlling the heating or ventilators in moist or dusty rooms, e.g. garages, storage rooms, washrooms, stables, glasshouses, etc.
Mounting
The location for mounting should be selected in such a manner that the unit is not subject to a constant draught or heat radiation and where unhindered air circulation is ensured. The mounting height is approx. 1,6 m.
The north side of the building should be preferably used for mounting outside. Should this not be possible, then a screen shielding should be mounted as protection against direct – sunlight.
Attention: Only outside mounting for unit DTR-E 3102 is used for eaves gutter heating.

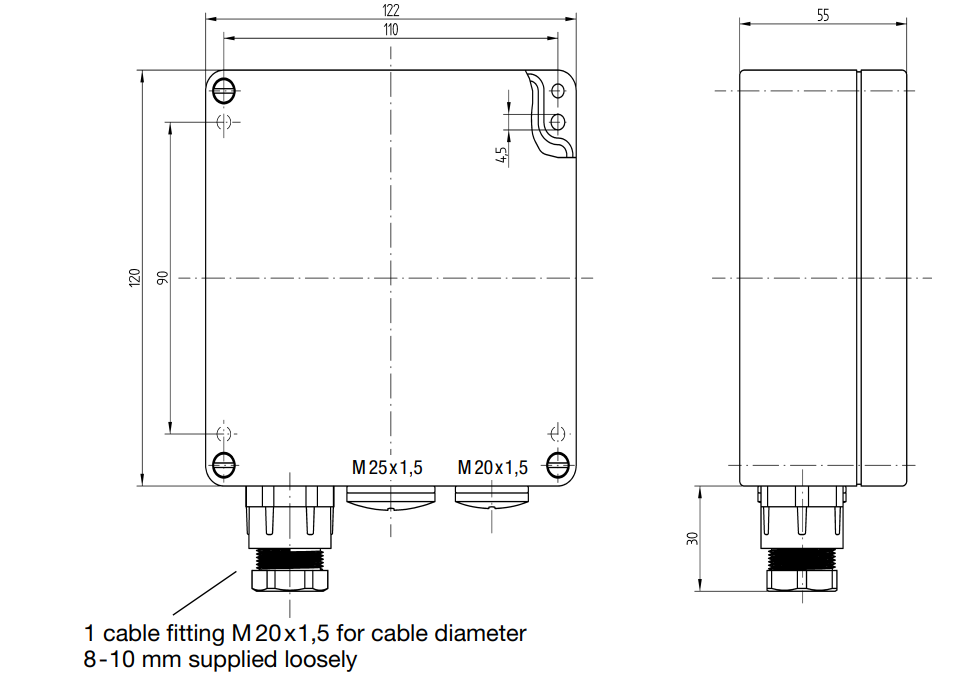

Dimensioned drawing

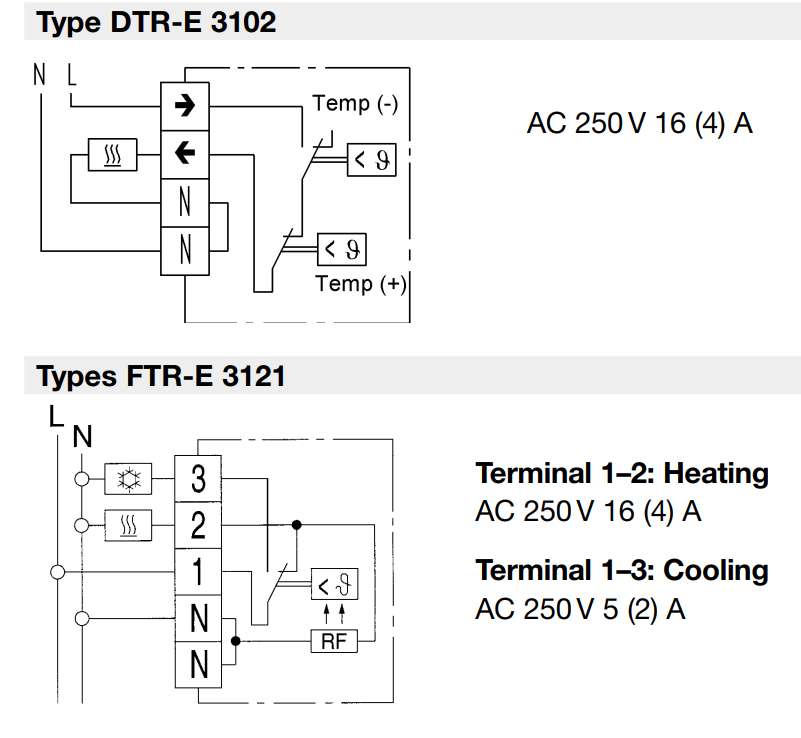

Connection diagrams
Please pay close attention to the technical data on the connection diagram on the unit’s cover. Make connections according to the following diagrams.
Technical data
| 4. Technical data | ||
| Type | DTR-E 3102 | FTR-E 3121 |
| Ref. No. | 191 5901 90900 | 191 5701 59900 |
| Temperature range | –20 to 25 °C | –20 to 35 °C |
| Operating voltage | AC 230 V | AC 230 V |
| Switch. current at AC 250 V | 16 (4) A | – |
| Heating (terminal 1-2) | – | 16 (4) A |
| Cooling (terminal 1-3) | – | 5 (2) A |
| Switching capacity (kW) | 3,6 | – |
| Heating (terminal 1-2) | – | 3,6 |
| Cooling (terminal 1-3) | – | 1,1 |
| Contact | 1 n/c
1 n/o |
1 c/o |
| Adm. ambient temperature | –25…T55 | –25…T55 |
| Switch temp. diff. | 1-3 K | 1-3 K |
| Acceleration | – | included |
| Temperature setting | under the housing | cover |
Protective system DIN 40 050: IP 65 IP 65
Rel. humidity max. 95 % without condensation Will be met by the corresponding installation (acc. to VDE 0100).
Reference
Download Manual:
Eberle FTR-E 3121 Indoor thermostat Operating Instruction
