EARUELETRIC M4AHGB WiFi Smart Temperature Controller Thermostat
Specification
- Voltage: 230V
- Floor Heating Part Type: Floor Heating Thermostats
- Model Number: M4AHGB
- Floor Heating Valve: Automatic Deflation Valve
- Type: Floor Heating Parts
- Material: Anti-flammable PC
- Origin: Mainland China
- Certification: CE
- Brand Name: EARUELETRIC
- Current: 16A/3A/3A
- Power Supply: AC 95-240V
- Sensor: Build-in Sensor and Floor Sensor
- Temp Setting Range: 5 ~ 60℃
- Support APP: Tuya Smart / Smart Life
- Voice Control: Alexa / Google Home
Introduction
The EARUELETRIC M4AHGB WiFi Smart Temperature Controller Thermostat is an advanced and innovative device designed to regulate and control the temperature of your home or office space. With its smart features and connectivity capabilities, it offers convenient and efficient temperature management, enhancing both comfort and energy efficiency. This thermostat utilizes WiFi connectivity, allowing you to remotely control and monitor your temperature settings through a dedicated smartphone app. By connecting to your home network, you can adjust the temperature, create schedules, and receive real-time updates from anywhere, providing you with optimal control and flexibility.
The M4AHGB thermostat features a sleek and modern design with an easy-to-read LCD display. It offers a user-friendly interface, making it simple to set up and operate. The intuitive controls allow you to quickly adjust the temperature, switch between heating and cooling modes, and customize settings according to your preferences. One of the standout features of the EARUELETRIC M4AHGB thermostat is its compatibility with voice assistants like Amazon Alexa and Google Assistant. This means you can conveniently control your thermostat using voice commands, adding an extra layer of convenience and hands-free operation to your smart home setup.
The thermostat also incorporates advanced temperature sensing technology, ensuring accurate and precise temperature readings. This enables efficient and responsive temperature control, maintaining a comfortable environment while minimizing energy consumption and reducing utility costs. The EARUELETRIC M4AHGB WiFi Smart Temperature Controller Thermostat is a cutting-edge device that combines smart technology, intuitive controls, and remote connectivity to provide enhanced temperature management for your home or office. Its versatile features, including WiFi connectivity, voice control compatibility, and precise temperature sensing, make it an excellent choice for those seeking comfort, convenience, and energy efficiency.
What Is In The Box
- Thermostat
- User Manual
- Screws
- External Sensor
User Operation
- Press the”⊙” button, power on/power off.
- Press the”■” button and choose auto/manual mode.
- Under auto mode, press the”▲”or”▼”button will enter automatic temporary mode.
- Long press the “■” and”▲”buttons will enter time setting mode. Press the”■” button to toggle setting options, and press”▲”or”▼”to adjust the value.
- Hold on to the”▲”and”▼”button 5s at the same time to add or remove the child lock.
- WiFi connection: after powering on, hold on “▲”button 5s until the wifi signal flashes.
Advanced option settings
- Under power off, press “⊙” and”■”buttons 5s at the same time, and it will enter the advanced option setting ■: enter the next option
- ▲/▼: adjust the value
- ⊙: exit advance option setting

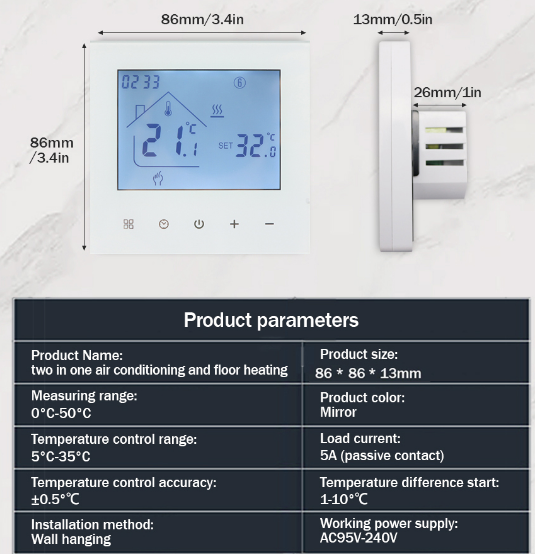

Parameter

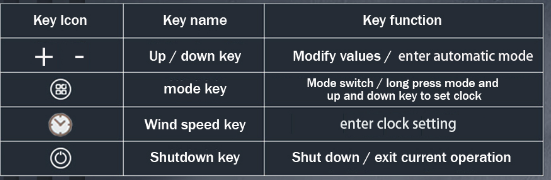

Touch Function Key

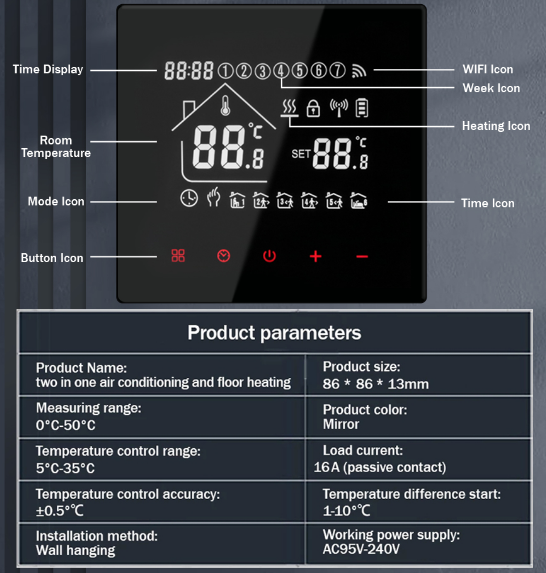

Key Icon

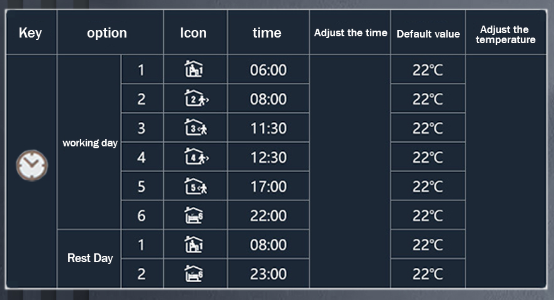

Time programming description
Long press the 88 to enter programming settings, short press the 88 to switch options, press the ^ or V to adjust the parameters of each option, and press the U to exit saving
Five breakthrough functions
- Precise temperature control
- The temperature control precision is 0.5
- Time programming
- 5 + 2 / 6 + 1 working day mode supports
- kinds of temperature operation in 6 periods every day
- Child lock
- Child lock key can be set
- Adjustable temperature difference
- That is, the range of automatic start and stop of air conditioner (1-10 °C)
- Mode setting
- Set manual and automatic mode control

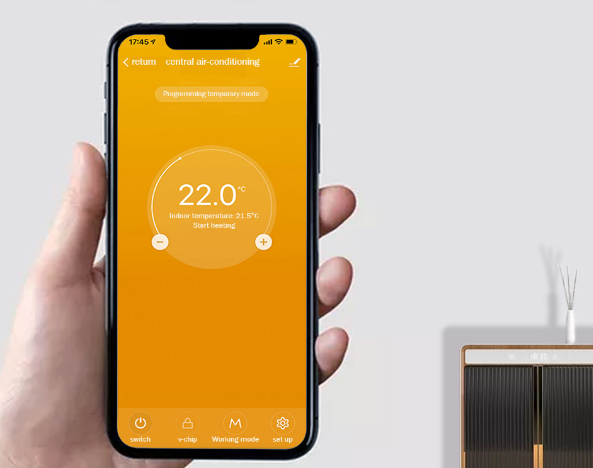

Intelligent app remote control
Download Graffiti Genie app can realize intelligent operation, even if people in the field can also control the temperature controller at home
Intelligent Al voice control
Voice control frees hands Connect the intelligent speaker, talk with the temperature controller through voice command, free hands, and easily upgrade Al intelligent life

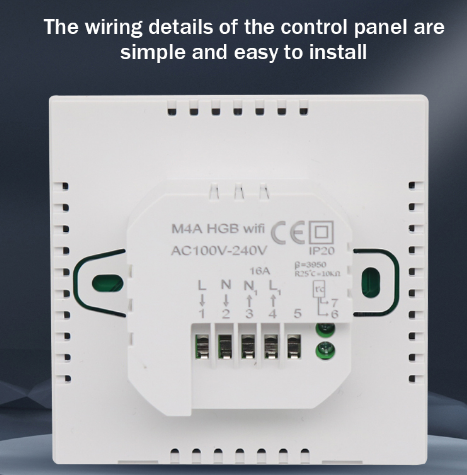

Passive contact host linkage
The wiring details of the control panel are simple and easy to install
FAQS
Q: How does the EARUELETRIC M4AHGB thermostat connect to my home network?
A: The EARUELETRIC M4AHGB thermostat connects to your home network using WiFi.
Q: Can I control the thermostat remotely?
A: Yes, you can control the thermostat remotely using a dedicated smartphone app.
Q: What mobile platforms are supported by the thermostat app?
A: The thermostat app is available for both iOS and Android devices.
Q: Does the EARUELETRIC M4AHGB thermostat support voice control?
A: Yes, the thermostat is compatible with voice assistants like Amazon Alexa and Google Assistant for voice control.
Q: Does the thermostat have a display?
A: Yes, the EARUELETRIC M4AHGB thermostat has an LCD display for easy reading and operation.
Q: Can I create temperature schedules with this thermostat?
A: Yes, you can create custom temperature schedules to fit your daily routine and preferences.
Q: Does the thermostat support both heating and cooling modes?
A: Yes, the thermostat supports both heating and cooling modes for versatile temperature control.
Q: How accurate is the temperature sensing technology?
A: The M4AHGB thermostat utilizes advanced temperature sensing technology for accurate and precise temperature readings.
Q: Can I receive real-time temperature updates?
A: Yes, you can receive real-time temperature updates through the smartphone app.
Q: Does the thermostat have energy-saving features?
A: Yes, the EARUELETRIC M4AHGB thermostat offers energy-saving features to help optimize energy efficiency and reduce utility costs.
Q: Can I integrate multiple M4AHGB thermostats in my home?
A: Yes, you can integrate and control multiple M4AHGB thermostats in your home using the same smartphone app.
Q: Is the thermostat compatible with multi-zone heating and cooling systems?
A: Yes, the thermostat is compatible with multi-zone heating and cooling systems for independent temperature control in different areas of your home.
Q: What is the voltage requirement for the thermostat?
A: The EARUELETRIC M4AHGB thermostat operates on a standard voltage of 110-240V.
Q: Does the thermostat have a battery backup in case of power outages?
A: No, the M4AHGB thermostat does not have a battery backup. It requires a continuous power supply.
Q: Is the installation of the thermostat complicated?
A: The installation process may vary depending on your existing HVAC system, but generally, the EARUELETRIC M4AHGB thermostat is designed for easy installation and setup. It is recommended to consult the installation manual or seek professional assistance if needed.
EARUELETRIC M4AHGB WiFi Smart Temperature Controller Thermostat User Manual
