E-Top HT-07 Programmable Wireless Thermostat User Manual

E TOP LOGO

E-Top HT-07 Programmable Wireless Thermostat

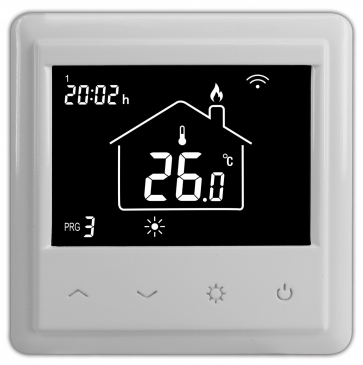

E-Top HT-07 Programmable Wireless Thermostat PRO

SPECIFICATION

  • Warranty: 1 Year
  • Material: Anti-flammable PC +ABS
  • Place of Origin: Fujian, China
  • Model Number: HT-07
  • Floor Heating Part Type: Floor Heating Thermostats
  • After-sale Service: Online technical support, Return and Replacement
  • Project Solution Capability: graphic design, total solution for projects
  • Design Style: Modern
  • Brand Name: E-Top
  • Type: Floor Heating Parts
  • Voltage : AC100- 240V  50/60Hz
  • Power load: 16A / 3500W
  • Room Setting range:  5°c~35°c
  • Floor Temperature range: 5~60°c
  • Switching differential: ±0.5°c
  • Ambient temperature:   -5~50°c
  • Protective housing: IP21
  • Floor sensor:  NTC10K sensor, Thermoplastic Rubber NTC sensor, cable length is 3 m
  • Dimension: 86mm X 86mm X16mm   flush mount

INTRODUCTION

The E-Top HT-07 Programmable Wireless Thermostat is a device designed to help you control the temperature of your home or office with ease. This thermostat uses wireless technology to communicate with your heating and cooling system, allowing you to program it according to your specific needs. One of the key features of the E-Top HT-07 thermostat is its programmability. You can set the temperature to your desired level at specific times of the day, so you don’t have to manually adjust it every time you want to make a change. This feature can help you save money on your energy bills, as you can set the temperature to be lower when you’re not at home or when you’re sleeping. Another important feature of the E-Top HT-07 thermostat is its compatibility with various heating and cooling systems. It can be used with a variety of systems, including gas, oil, and electric systems, as well as heat pumps. It is also compatible with most HVAC systems and can be used to control both heating and cooling.

WHAT IS IN THE BOX

  • Thermostat
  • User Manual
  • External Sensor
  • Screws

Product FeaturesE-Top HT-07 Programmable Wireless Thermostat 1

APPLICATION

E-Top HT-07 Programmable Wireless Thermostat 2

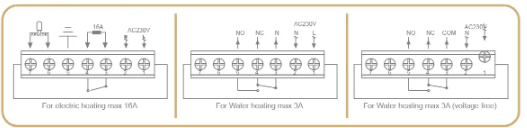

WIRING DIAGRAME-Top HT-07 Programmable Wireless Thermostat 3

HOT TO USE

  • Install the thermostat: Follow the manufacturer’s instructions to install the thermostat. Make sure it is installed correctly and securely.
  • Connect to Wi-Fi: Connect the thermostat to your home’s Wi-Fi network by following the instructions provided in the manual.
  • Set up the schedule: Use the thermostat’s programming feature to create a heating and cooling schedule that suits your needs. You can set different temperatures for different times of the day.
  • Use the app: Download and install the E-Top app on your smartphone or tablet. This will allow you to control the thermostat remotely, from anywhere with an internet connection.
  • Adjust temperature remotely: Once you have the app installed, you can adjust the temperature remotely. This is especially useful if you are away from home and want to ensure that the temperature is set to your preferred level when you return.
  • Monitor energy usage: The E-Top HT-07 Programmable Wireless Thermostat has an energy monitoring feature that allows you to track your energy usage. Use this feature to identify ways to reduce your energy consumption and save money on your utility bills.
  • Troubleshoot: If you experience any issues with the thermostat, refer to the manual for troubleshooting tips. If you are still unable to resolve the issue, contact the manufacturer for assistance.

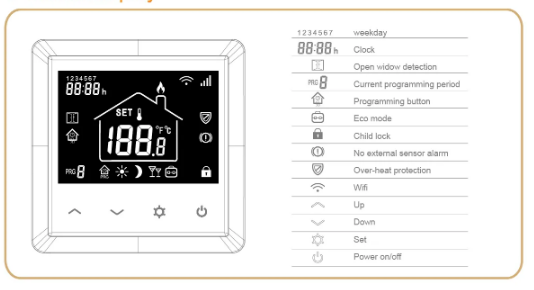

PRODUCT DISPLAYE-Top HT-07 Programmable Wireless Thermostat 4

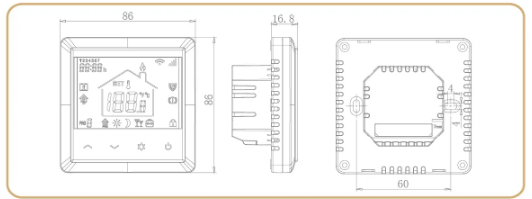

DIMENSIONSE-Top HT-07 Programmable Wireless Thermostat 5

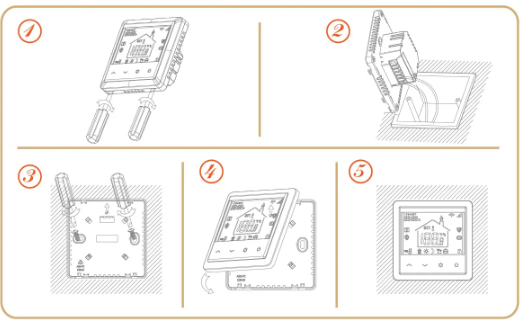

INSTALLATIONE-Top HT-07 Programmable Wireless Thermostat 6

FAQS

What is the E-Top HT-07 Programmable Wireless Thermostat used for?
The E-Top HT-07 Programmable Wireless Thermostat is used to control the temperature of a heating or cooling system in a building. It allows users to program temperature settings for different times of the day and can be controlled remotely using a smartphone app.

Is the E-Top HT-07 easy to install?
Yes, the E-Top HT-07 is designed to be easy to install. It comes with an installation manual and can be installed by a homeowner without the need for professional assistance.

Can the E-Top HT-07 be used with different types of heating and cooling systems?
Yes, the E-Top HT-07 is compatible with most heating and cooling systems, including gas, oil, and electric systems.

Does the E-Top HT-07 require an internet connection to function?
No, the E-Top HT-07 can be used without an internet connection. However, an internet connection is required to control the thermostat remotely using a smartphone app.

What is the range of the E-Top HT-07 wireless signal?
The range of the E-Top HT-07 wireless signal is up to 100 feet indoors and up to 300 feet outdoors, depending on the strength of the signal.

How long does the battery in the E-Top HT-07 last?
The battery in the E-Top HT-07 can last up to 2 years depending on usage.

Can multiple E-Top HT-07 thermostats be used in the same building?
Yes, multiple E-Top HT-07 thermostats can be used in the same building and can be controlled separately using the smartphone app.

Is there a warranty for the E-Top HT-07?
Yes, the E-Top HT-07 comes with a one-year warranty.

How do I set up the E-Top HT-07 Programmable Wireless Thermostat?
To set up the E-Top HT-07 Programmable Wireless Thermostat, you will need to download the app, create an account, and follow the instructions provided in the app.

Can I control multiple E-Top HT-07 Programmable Wireless Thermostats with one app?
Yes, you can control multiple E-Top HT-07  Programmable Wireless Thermostats with one app as long as they are all connected to the same Wi-Fi network.

Does the E-Top HT-07 Programmable Wireless Thermostat have a vacation mode?
Yes, the E-Top HT-07 Programmable Wireless Thermostat has a vacation mode that allows you to set the temperature to a lower setting while you are away to save energy.

Can I program the E-Top HT-07 Programmable Wireless Thermostat to adjust the temperature automatically based on my schedule?
Yes, the E-Top HT-07 Programmable Wireless Thermostat allows you to program the temperature to adjust automatically based on your schedule, saving energy when you are away from home.
