Dwyer PLVT1 Digital Thermostat with Heat Pump Control

Dwyer- PLVT1- Digital -Thermostat- with- Heat- Pump- Control- PRO

INTRODUCTION

The Model PLVT1 Compact Digital Thermostat with Heat Pump directly controls the furnace, small boiler, air conditioner, circulator fan, and heat pump in commercial or residential buildings. A large easy-to-read LCD display shows the current temperature and the operating mode. In case of a power outage, the thermostat can be operated off batteries. In order to reduce the need to switch modes for different seasons, the thermostat can be set to automatically switch between heating and cooling

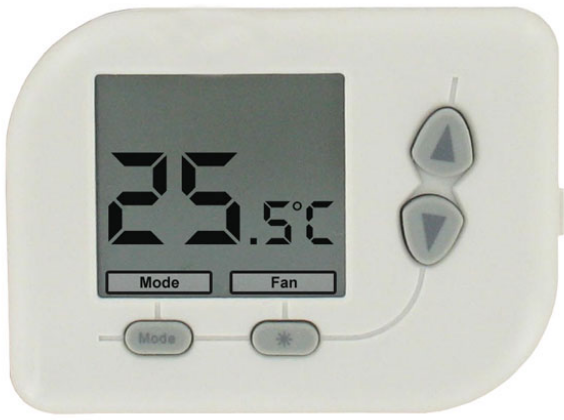

Model PLVT1, Compact Digital Thermostat with Heat Pump

ACCESSORIES

  • TG-1, Large Thermostat Cover
  • TG-2, Small Thermostat Cover

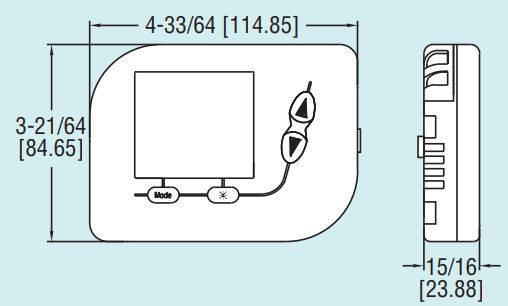

DIMENSIONS

Dwyer- PLVT1- Digital -Thermostat- with- Heat- Pump- Control- 1

SPECIFICATIONS

Range:

  • Measurement: 32 to 99°F (0 to 40°C);
  • Adjustment:
  • Heat/Cool Mode:
  • Heat/Cool Setting: 40 to 95°F (5 to 35°C);
  • Auto Mode:
  • Heat Setting: 40 to 85°F (5 to 30°C);
  • Cool Setting: 50 to 95°F (10 to 35°C).
  • Accuracy: ±1°F (0.5°C).
  • Sensor Type: NTC thermistor.
  • Resolution: 1°F (0.5°C).
  • Power Requirements: 24 VAC ±10% or (2) AAA alkaline batteries, not included.
  • Output: 1 A @ 24 VAC @ 50/60 Hz.

Temperature Limits:

  • Operating: 32 to 122°F (0 to 50°C);
  • Storage: 23 to 122°F (-5 to 50°C).
  • Weight: 4.5 oz (127.6 g).
  • Agency Approval: RoHS.
