Drayton RF901 Wireless Programmable Room Thermostat User Guide

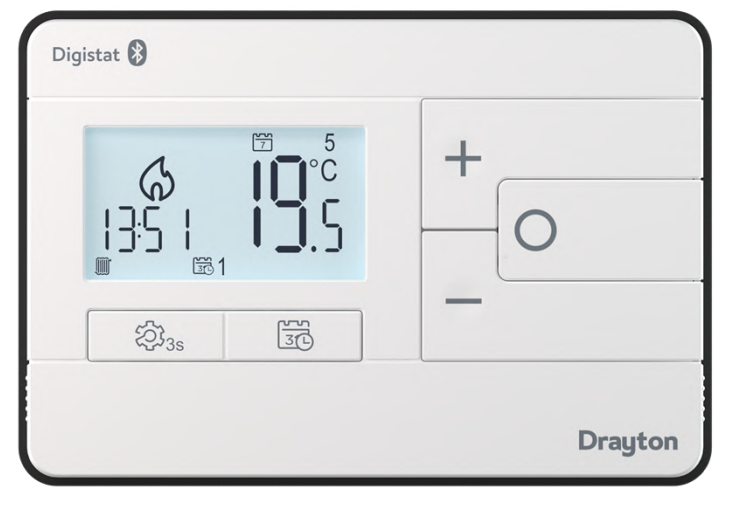

Drayton RF901 Wireless Programmable Room Thermostat



Using the new Drayton Digistat

Drayton’s latest generation of wired and wireless Digistat Thermostats bridges the gap between traditional thermostats and smart systems Providing unparalleled flexibility and the ultimate in control for the homeowner via the app You can control your heating directly from the Digistat itself using the 5 buttons and the backlit display Or if you prefer you can connect your smartphone to the Digistat using Bluetooth and control everything for the palm of your hand

Controlling the Digistat using the Wiser Home app

Of course, using your Digistat is so much easier if you use your smartphone with the free smartphone app you can adjust schedules, boost your heating, set a holiday period and set away mode, all from your smartphone in the palm of your hand with the app downloaded your smartphone connects directly to your Digistat using the phone’s Bluetooth technology with no need for home Wi-Fi, internet broadband or cloud connectivity. It’s just a simple way to use your Digistat from anywhere in the home (typical Bluetooth range)The use of the Wiser Home app will need mobile data to be enabled on your smartphone

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Schneider Electric is under license. Other trademarks and trade names are those of their respective owners.

Download the Wiser Home app to your smartphone

1. Step 1: Download the Wiser Home app
   Download the Wiser Home app for your mobile device from the App Store® or Google Play™
   • Search for Wiser Home
   • Download the Wiser Home app
     The Wiser Home app guides you through the whole setup process
     System requirements
     The Wiser Home app is available for Apple® iOS and Android™ mobile devices. Due to a large number of mobile devices available on the market, compatibility cannot be guaranteed with every model. The mobile device must fulfill the following minimum technical requirements:
     • Android™ Version 9 or higher
     • Apple® iOS 12 or higher
     • Bluetooth version 4.2 or higher
2. Step 2: Open Wiser Home app

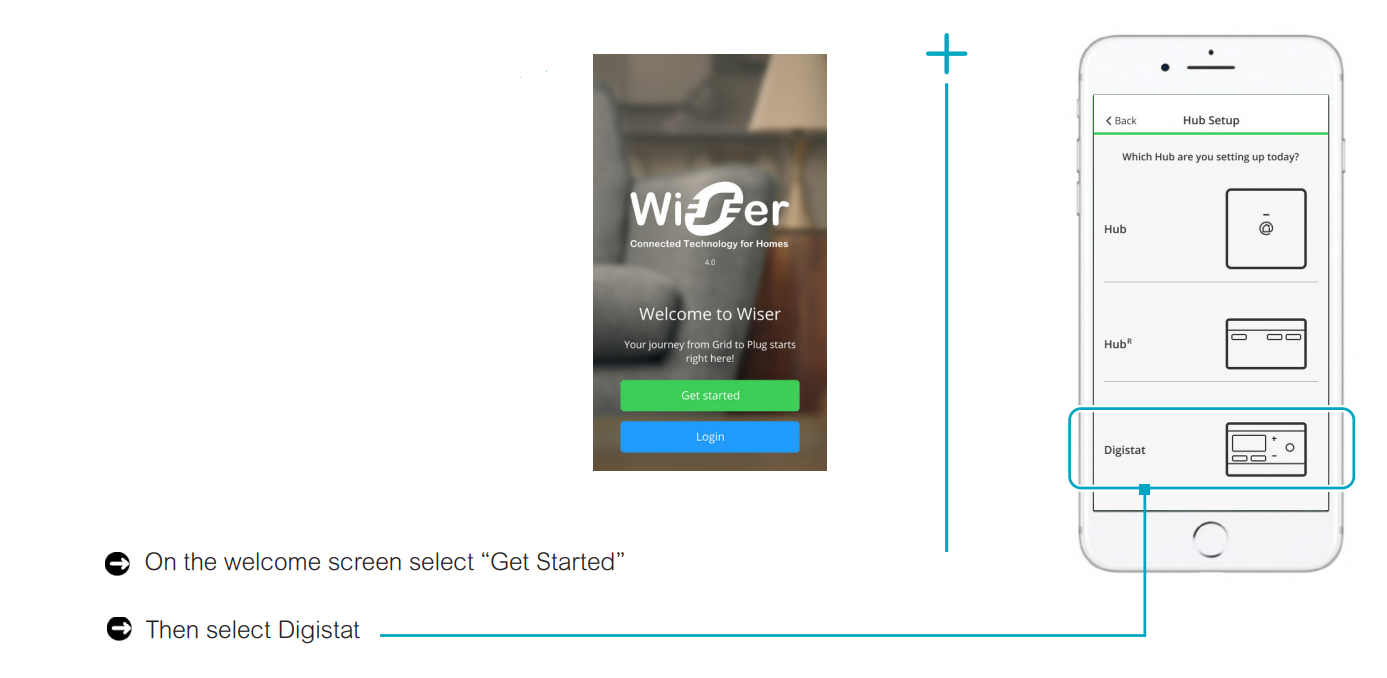

Pairing the app with your Digistat and create your account

Just follow the instructions in the app…

Note that using the Wiser Home app will lock the buttons on the Digistat while the app is open. A lock symbol will appear in the display top left. To go back to using the controls on the Digistat, please close all open apps.
You’re done!
Now start playing with your Digistat…..

Control your heating

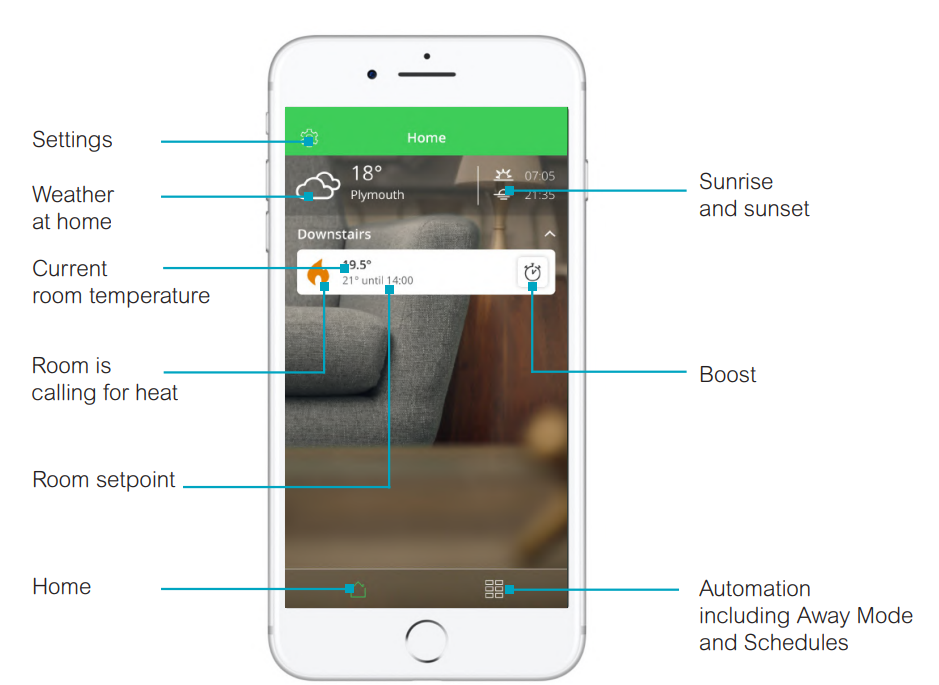

Home screen

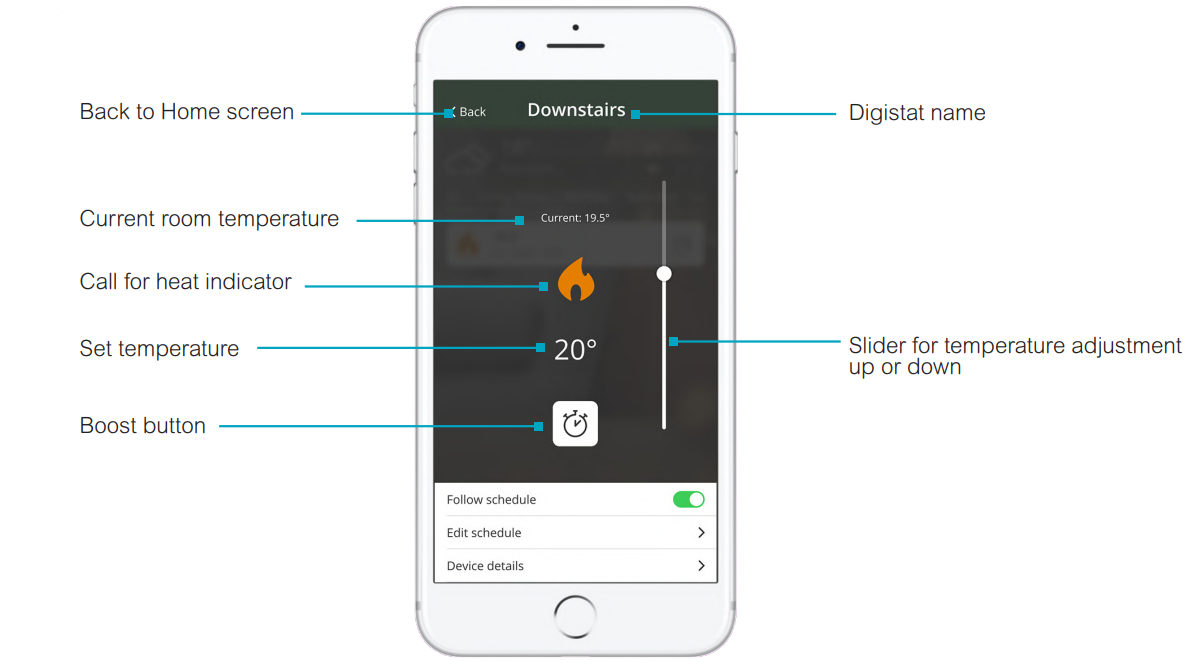

Room View

The Schedule Screen

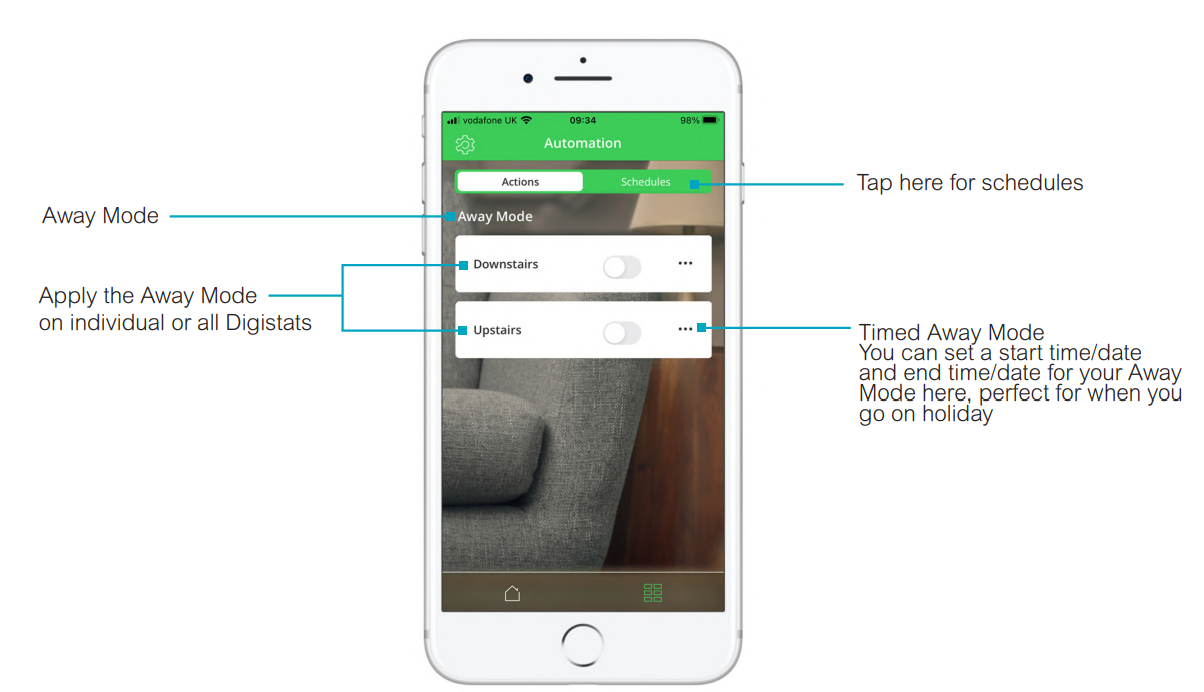

Using Away Mode

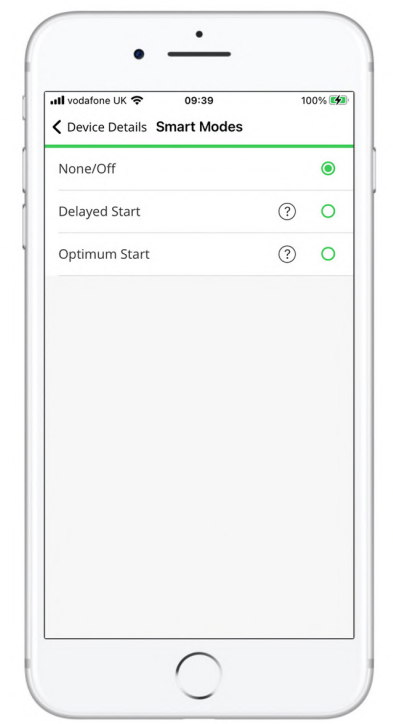

Using Smart Modes

Smart modes help to save you money or to improve comfort levels

Delayed Start
When activated Delayed Start will save you money by delaying start times, effectively adapting your schedule to optimize energy usage based on a learning mode that takes into account the thermal characteristics of your home and the weather forecast
Optimum Start
When activated Optimum Start will improve comfort on colder days when the home takes longer to heat up. This is a learning mode that takes into account the thermal characteristics of your home and the weather forecast, and it will turn on your heating earlier to ensure that the set temperature is achieved by the required time in the schedule.

Using the Digistat without the app

The new Digistat can also be used without the app
The next pages explain how you set up the Digistat according to your lifestyle and how you make day-to-day changes such as applying a BOOST or setting Holiday Mode

Getting to know your new Drayton Digistat – the essentials

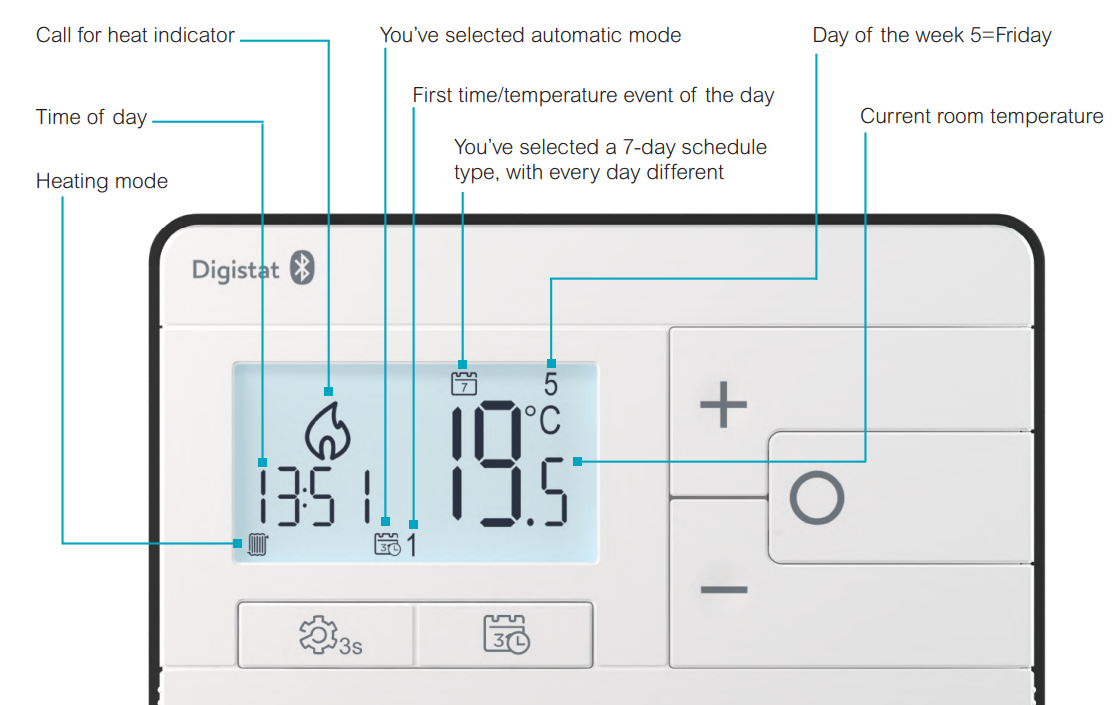

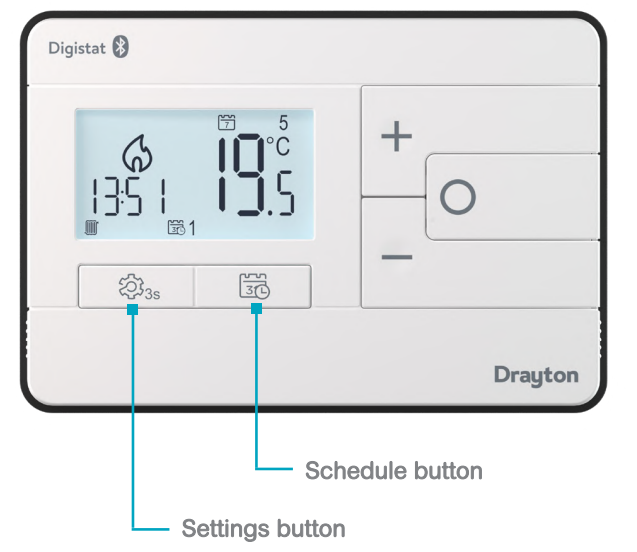

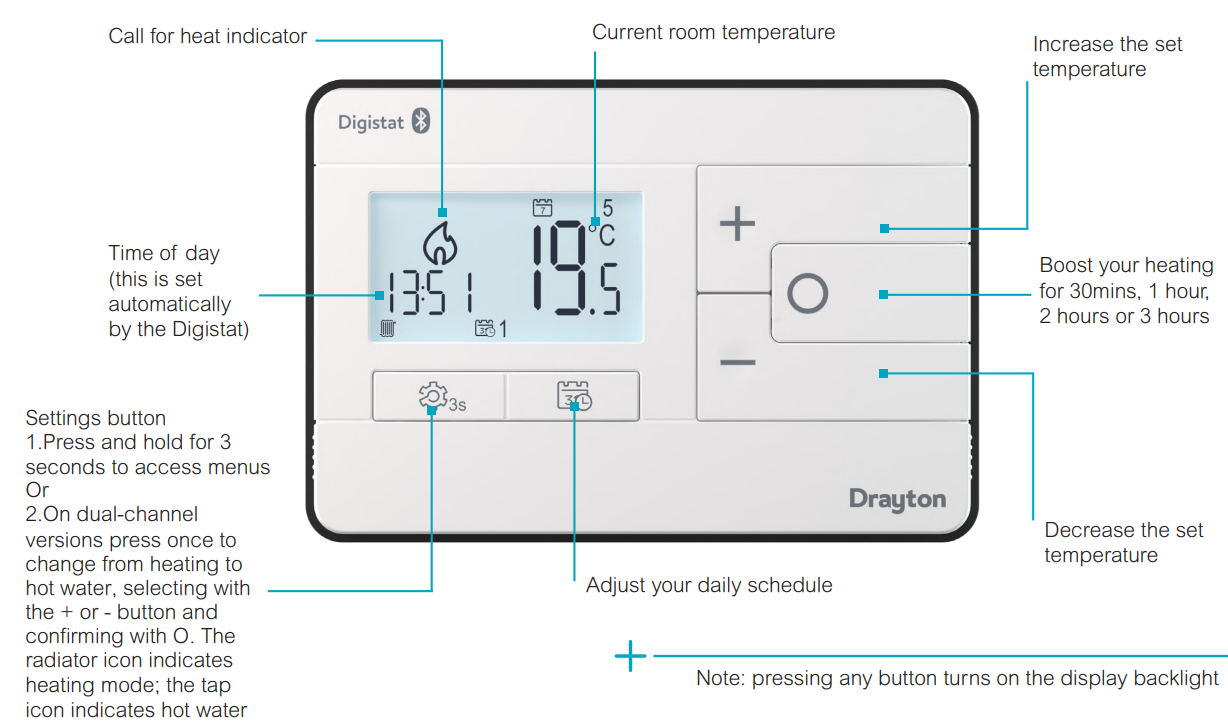

The display in more detail

The settings menu

Before you start it’s worth checking that the Digistat has been correctly set for your specific needs
Use these settings to adjust:
User settings (USEr 01 menu):

• Change from automatic to manual mode, or turn the thermostat OFF
• Set a holiday period (turn OFF the thermostat for a set period)

Advanced user settings (AdvU 02 menu):

• Set the time of day
• Set the date
• Choose a 12-hour or 24-hour clock
• Switch OFF daylight saving time
• Apply a temperature offset
• Lock the display
• Set the backlight ON time
• Choose between a 7-day, 5/2-day, 24hour or manual schedule
• Choose between 3 preset schedules
• Return to factory settings

In this menu, you will also find the Installer Menu (InSt 03) and the Service Interval menu (Ser 04) but these should only be adjusted by the installer

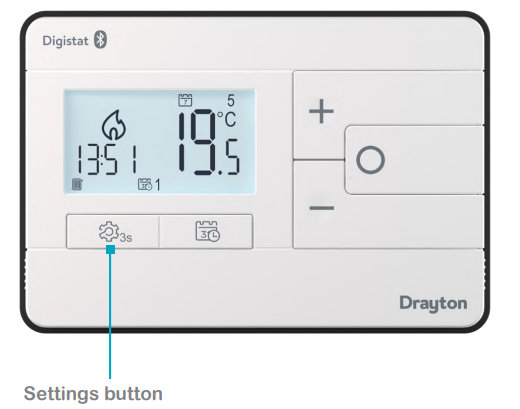

• Press and hold for 3 seconds to access
• Then use the + and – buttons to navigate
  And the O button to confirm any new settings
• In the mode, the Settings button can be used as a back button to exit

User Settings, options, and defaults

USEr 01 Menu		OptionsAutomatic (AUTO), Manual (MAn)	DefaultAutomatic (AUTO)	Note
	Mode			The automatic mode applies the set schedule
		Set the start date and time	Today’s date and time	Manual mode provides temperature control only
	Holiday Mode (HOL)
		Set the end date and time	In 7 days’ time
		Set the temperature while you are away	10°C

Advanced User Settings, options and defaults

AdvU 02 Menu	Menu item name	Options	Default	Note
Time of day	tIME 01	Set or adjust the time	Automatically factory-set
		of day	by the Digistat
Date	Date 02	Set or adjust the date	Automatically factory-set
			by the Digistat
Clock format	12:24 03	12-hour or 24-hour	12-hour clock
		clock display
Daylight saving time	dSt 04	ON or OFF	ON
Temperature Offset	OSEt 05	-5° to +5°C in 0.1°C	0.0°C
		increments
Display Lock	LOC 06	ON or OFF	ON	Set a 3-digit
				code to lock
Backlight ON time	bALt 07	OFF, 10secs, 20 secs	10 secs
Schedule Type	ProG 08	7 day, 5/2 day, 24 hour,	7 day
		none
Preset schedule	PSEt 09	1 (heating morning and evening), 2 (heating morning, noon, and evening) or 3	1
		(heating all day)
Reset to factory settings	rPSt 12	Yes or No	No

Understanding schedules

Schedule Types	Select in Advanced User settings, item Prog 08
7 day	Every day can be programmed differently –This is great if you have a very flexible lifestyle
5/2 day	Weekdays all the same but weekend programmed differently –This schedule is ideal if your work days are the same every day
24 hour	Every day the same –If you work from home or are retired then this schedule will be more suitable
None	The thermostat controls temperature only all the time –Use this setting if you want to keep your home at the same temperature at all times

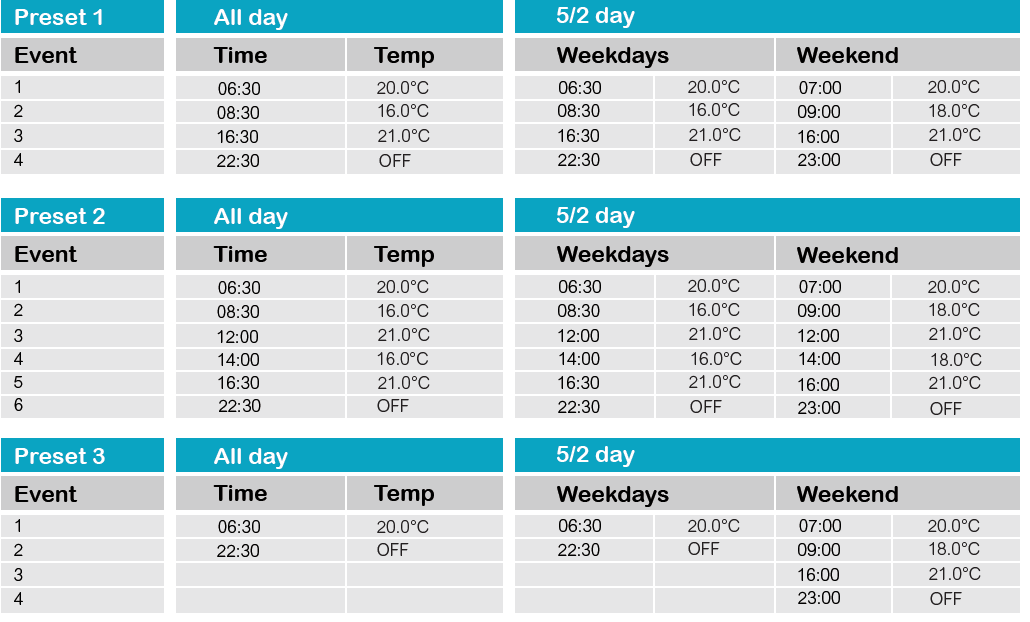

Understanding preset schedules (selected in Advanced User settings, item PSEt 09)

Customizing your schedule

Setting up Times/Temperatures on the Digistat

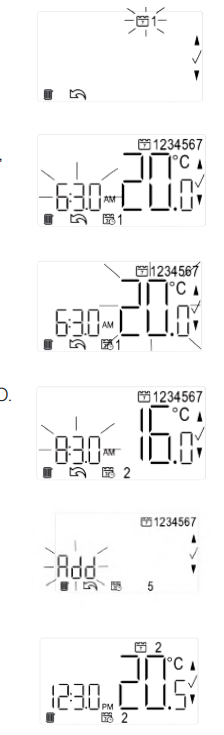

1. With the product operating as normal in Auto Mode, press once. Use + and – to select the day or set of days you want to adjust the times and temperatures for. Press O to confirm.
2. The time on the display will now be flashing as shown, use + and – to adjust the first-period start time. Press O to confirm.
3. Once the time has been set the temperature on the display will now be flashing, use + and – to adjust the temperature for the first time period. Press O to confirm.
4. Move to the next time and temperature periods and adjust as needed, confirming the changes by pressing O. The new schedule will be saved by pressing O when the word SAVE is flashing.
5. In Pre-set Program 1 you will have 4 time periods available, to add more (max. 8 per day) press + when you see the SAVE option on-screen and time period 5 at the bottom of the screen, to scroll to the Add option. Press O to add time period then adjust time and temperature as required.
6. To exit press to go back until you return to the home screen.

If you are using the dual-channel RF901 you can toggle between heating and hot water by pressing briefly the settings button and using the up and down buttons to select heating or hot water mode. In hot water mode ON/OFF times can be adjusted.

Boosting your heating

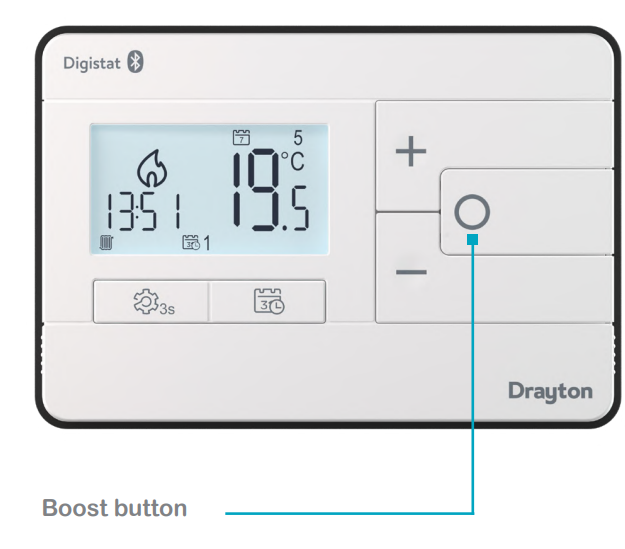

Setting a BOOST means applying a new set temperature for a short period of timeYou can boost for 30 minutes, one hour, two hours, or three hoursA timer symbol will appear bottom right of the LCD to indicate that a boost has been setWhen the BOOST has expired the normal schedule takes overAfter pressing the Boost Button (O) you set the length of time for the boost and then the temperature, adjusting with the + and – buttons confirming each one with O buttonThe Digistat remembers your last BOOST so if you want to repeat the previous boost you just press O onceThe BOOST can also be used to setback your heating so you can avoid heating your home while you are out. Select 15°C and up to 3 hours and confirm with the O button. If this is the previous boost you then just need to press O once to setback the heating for the time you have selected.

Trademarks
The Bluetooth® word mark and logos are registered trademarks owned by BluetoothSIG, Inc., and any use of such marks by Schneider Electric is under license. Other trademarks and trade names are those of their respective owners.
Other brands and registered trademarks are the property of the relevant owner.
Please Note: Information in this guide is subject to change as these products evolve. Screen graphics and descriptions in this guide may not reflect exactly the latest product configuration.

Customer Service Tel: +44 333 6000 622*
Technical Helpline: +44 333 6000 622*
*Please note that international call charges may apply to those calling from outside of the UK.
Website: wiser.draytoncontrols.co.uk
E-mail: [email protected]
@DraytonHome /DraytonControls /DraytonHome /DraytonHome
