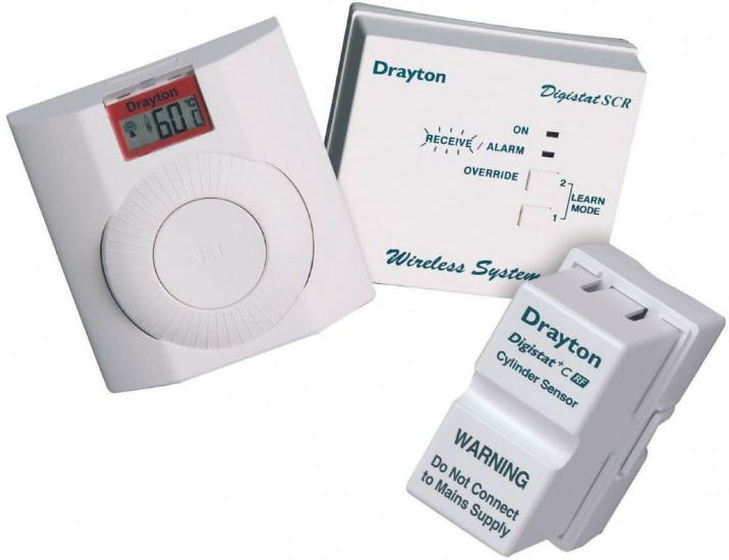

Drayton Digistat +CRF 13616 Cylinder Thermostat
INTRODUCTION
The Digistat+ CRF cylinder thermostat controls the domestic hot water temperature to suit your lifestyle and gives energy savings when set between the recommended 60ºC to 65ºC.
- User adjustable Min/Max temperature setting
- Digital display situated above dial for ease of reading
Features
- Conventional dial adjustment Tactile dial
- 5ºC setting steps
- Tactile & audible feedback via click of the dial
- Visual feedback via digital display
- Min/Max temperature setting
- Battery powered
- Digital display situated above dial for ease of reading
Wiring
Getting Technical
| Model: | Digistat +CRF | SCR (receiver) |
| Power supply: | 2 X 1.5V IEC LR6(AA) alkaline batteries | 230V a.c. 50Hz |
| Switch type and rating: | N/A | SPDT (voltage free) 2(1)A 230V a.c. or 24V a.c../d.c |
|

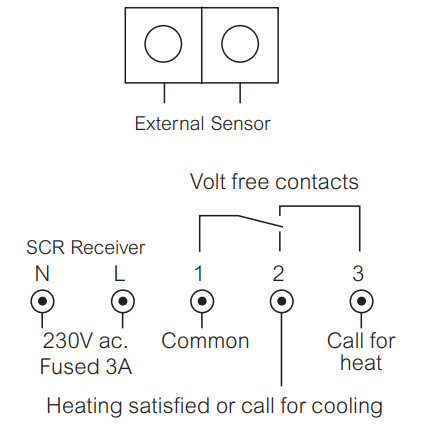

Wiring: |
Designed for fixed wiring only, to comply with current IET wiring regulations (BS7671). | Ø 0.5mm² 2 core cable between sensor and thermostat |
|
Mounting: |
Thermostat: Suitable for surface or conduit box mounting
Sensor: Direct mounting onto cylinder |
Industry standard wall plate |
| Battery life: | 2 years typical | N/A |
| Ambient temperature: | Operating 0°C to 50°C / Storage – 20°C to 55°C | |
| Ambient humidity (non condensing): | Operating 25% to 90% / Storage 15% to 95% | |
| Temperature range: | 40°C to 70°C | |
| Control accuracy: | +0/-8ºC | |
| Control algorithm: | On / Off | |
| Temperature resolution: | 5°C | |
| Ball pressure test: | 75°C | |
| Pollution situation: | Degree 2 | |
| Protection level: | IP30 | |
| Pollution class: | 2 | |
| Software class: | A | |
| Radio frequency: | 433 MHz | |
| Radio signal range: | 30m typically. The range may be affected by the composition / density and number of walls between the thermostat and receiver. | |
|
Relevant directives: |
2014/53/EU Radio Equipment Directive Batteries Directive 2006/66/EC, 2011/65/EU RoHS Directive | |
| Applied standards: | EN60730-1; EN60730-2-9 EN 300 220-2; EN 301 489-3 | |
Digistat+C RF
| Product | Part No. |
| Digistat+CRF cylinder thermostat & SCR & sensor | 13616 |
| Digistat+CRF SCR receiver spare | 22598 |
| Digistat+CRF transmitter spare | 13618 |
| Digistat+CRF thermostat spare | 13619 |
