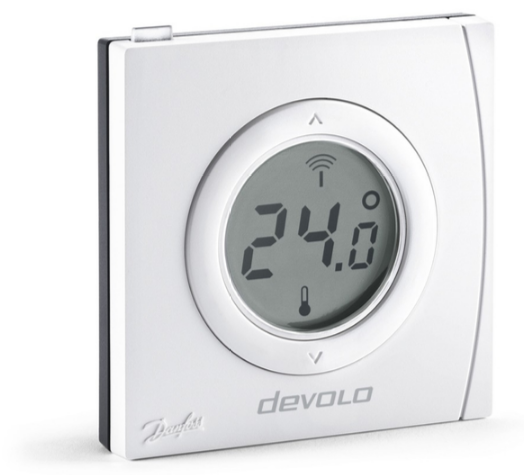

Devolo 9606 Home Control Room Thermostat
Technical data
| Wireless standard | Z-wave |
| Frequency | 868.42 MHz |
| Range | up to 20 m indoors, up to 100 m outdoors |
| Transmission capacity | < 1 mW |
| IP protection class | 21 (use indoors) |
| Dimensions | 75 x 75 x 24 mm |
| Temperature (operation) | 0 – 40 °C |
| Ambient conditions | 10 – 95 % Humidity (non-condensing) |
| Display | Grey digital, background illuminated |
| Buttons | 3, one of which includes LED |
| Battery | 2x 1.5 V AA |
| Operating systems | Windows 7 (32 Bit), Windows 7 (64 Bit)
Windows 8.x (32-bit), Windows 8.x (64-bit), Windows 8.x Pro (32-bit), Windows 8.x Pro (64-bit) Windows 10 (32 Bit), Windows 10 (64 Bit) Ubuntu Linux 12.04 (32-bit) MAC OS X 10.6, MAC OS X 10.7, MAC OS X 10.8, MAC OS X 10.9 |
| Certifications | CE Class B (EU, CH, NO) |
Sales information
| Warranty | 3 years |
| Accessories | § Printed Install Flyer
§ Batteries |
Single adapter
| Order number: | 09507 (UK) |
| EAN: | 4250059695078 |
| Size: | 81 x 19 x 115 mm |
| Weight: | 250 g |
|
WEEE additional information |
|
| Weight WEEE: | 110 g |
| Paper (Green Dot): | 100 g |
| Plastic (Green Dot): | 6 g |
| Other (Green Dot): | 0 g |
© 2015 devolo AG, Germany. All rights reserved. Technical data is subject to change without notice.devolo AG. Charlottenburger Allee 60 . D-52068 Aachen. Phone: +49 (0)241-182 79 0. Fax: +49 (0)241-182 79 99. www.devolo.de . [email protected]
