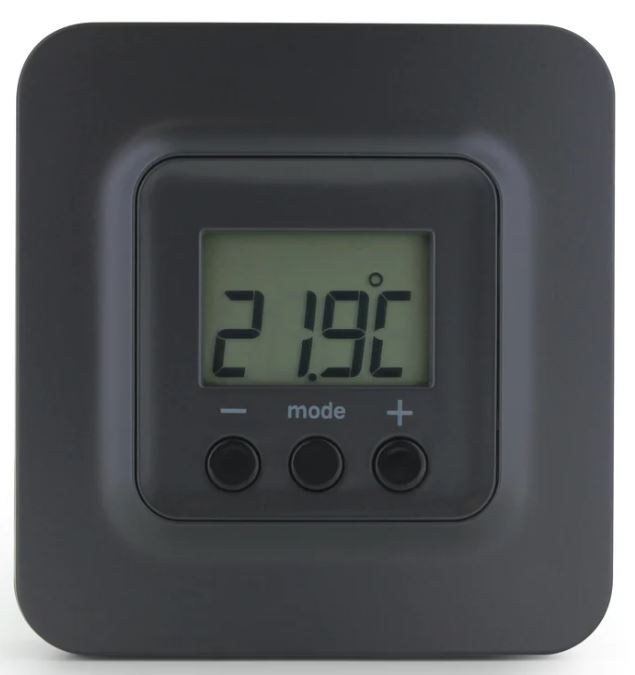

Deltadore TYBOX 5101 Wireless Room Thermostat USER GUIDE

Deltadore TYBOX 5101 Wireless Room Thermostat

Mounting

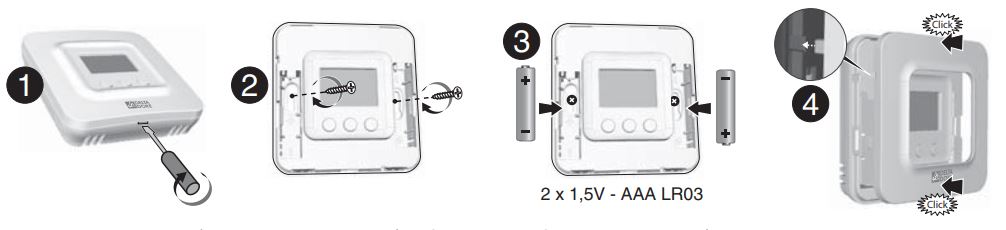

Wall mounting

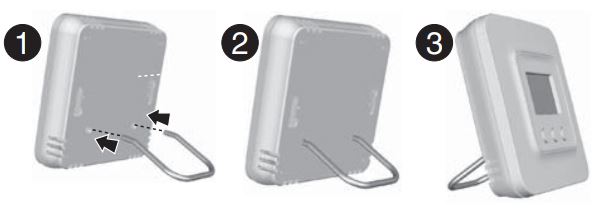

Mounted on a base

Mounting the receiver

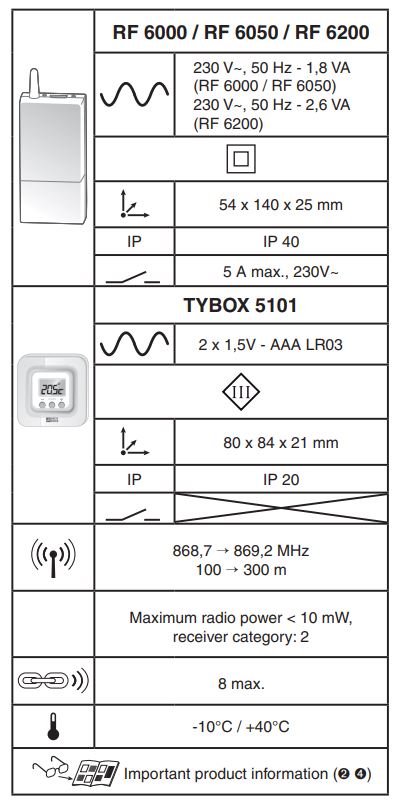

Specifications

TYBOX 5100 (TYBOX 5101 + RF 6000)
Boiler Plus compliant

TYBOX 5200 (TYBOX 5101 + RF 6050)

• Certificate eu.bac N° 215494
• Applications : Water Floor Heating system, Hot Water Radiator
• Temperature Sensor : NTC 100 K Omega / 25°C.
• CA : 0,5 (Floor Heating) – 0,3 (Radiator)

Connection

Activation

RF 6000 (TYBOX 5100) – RF 6050 (TYBOX 5200):
When the device is switched on, the right indicator light flashes: Mode selection (press and release

Associate the thermostat with the receiver

1. Press and hold the receiver button for 3 seconds until the LED flashes. Release.
2. Press and hold the MODE and + buttons on the TYBOX 5101 simultaneously for 3 seconds.
   The screen will display rF00. Release.
3. Press + briefly. The screen will flash, then display rF01.
4. Make sure that the receiver LED has stopped flashing. To exit the mode, press the MODE and + buttons simultaneously.

Associate another transmitter

1. Switch on the installation.
2. Press and hold the receiver button for 3 seconds until the LED flashes. Release.
3. Send the association command to the transmitter (see user guide).
4. Make sure that the receiver LED has stopped flashing. The products are now associated.

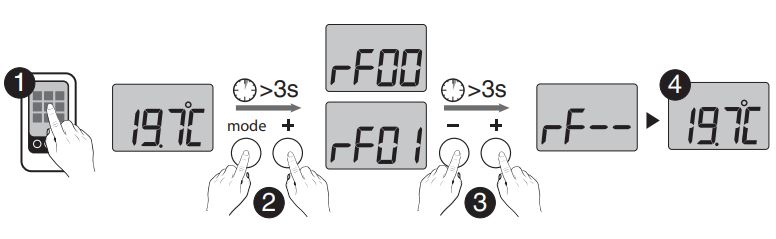

Associate the thermostat for solar optimisation

1. Set the energy manager to “Associate a room sensor” mode (see user guide).
2. Press and hold the MODE and + buttons on the TYBOX 5101 simultaneously for 3 seconds until it displays rF01 (rF00 if TYBOX 5101 is used alone)
3. Press and hold the + and – buttons simultane-ously for 3 seconds.
   The screen will display rF–.
4. The mode is automatically exited.

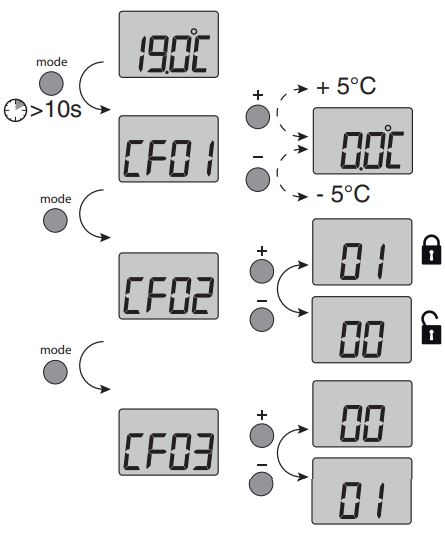

Configuration

• CF01: Correcting the measured temperature
• CF02: Locking the button

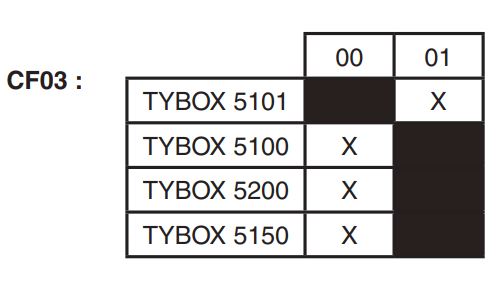

• CF03:

Thermostat function
Temperature sensor function only (solar optimization, sensor)

Use

1. Press any button to activate the display screen. The current mode will be displayed: ON = start authorisation, Power Button= shutdown. To change the mode, press Mode.
2. From the ON mode, press the ‘+’ or ‘-’ buttons to display the temperature setting and change it.
3. Press on Mode or wait 5 seconds to exit. When switching over from the Power button mode to the ON mode, the setting’s default value is restored: 20°C.

Indicates that the system is in Frost Protection mode (10°C non modifiable).
Example: open window

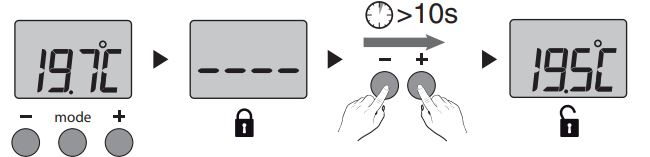

Unlock the buttons

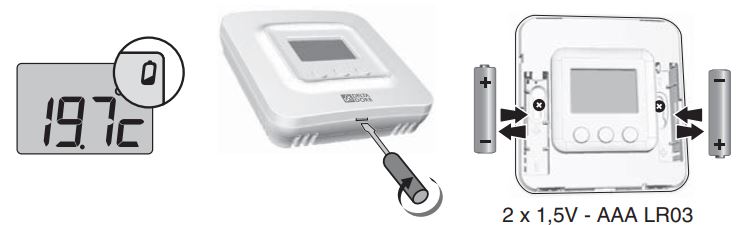

Replace the batteries

Remove the associations

On the receiver

Troubleshooting

• Indicates a temperature setting override on the associated transmitter (e.g.: TYBOX 2020 WT).
• Temporarily indicates that there has been a wireless transmission conflict and that the command was not sent. Repeat the operation.
• Refer to § Association.
