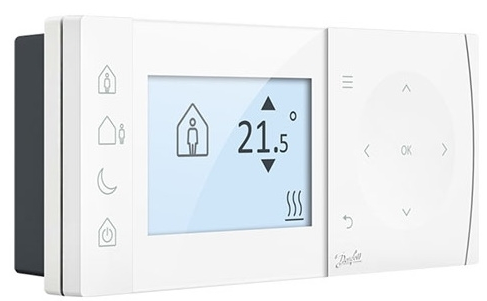

Danfoss TPOne-RF+RX1-S Programmable Thermostat
Introducing the TPOne
Intelligent controls made easy
With our new TPOne programmable room thermostat, Danfoss has made intelligent heating control easier than ever before. Packed with practical and easy-to-use innovations, TPOne has been designed to suit almost any domestic heating control application. Easy to install and beautifully simple to live with, TPOne elegantly combines all the functionality of our existing TP models into one stylish unit.
Volumetric Information
| Product | Type | Code No. | Single Pack (L x W x H) (mm) | Single Pack Weight (kg) | Multi Pack
(L x W x H) (mm) |
Multi Pack Weight (kg) |
| TPOne-B | Battery | 087N785100 | 200 x 100 x 45 | 0.270 | 438 x 270 x 235 | 7.0 |
| TPOne-M | Mains | 087N785200 | 200 x 100 x 45 | 0.270 | 438 x 270 x 235 | 6.0 |
| TPOne-RF + RX1S | Wireless | 087N785400 | 232 x 103 x 77 | 0.430 | 531 x 240 x 172 | 5.3 |
Product highlights
- Homeowners can easily access comfort modes or change settings
- Intuitive user interface with clear icons
- Fast installation with familiar wiring
- Quick-start setup wizard and separate installer menu with lock
- Versatile and simple 7-day programming
- Standby with Frost Protect
- Chrono-proportional control offering energy-saving benefits
- Boiler service timer and optional external sensor input
- Selectable domestic hot water channel (TPOne-M only)
- Standard, delayed or optimized start-up
- Available in battery, wired, or wireless versions
Introducing new fast-access comfort modes to easily change home comfort settings.
ICONS
PRODUCT OVERVIEW
Danfoss A/S · Heating · Haarupvaenget 11 · DK-8600 Silkeborg
Telephone: +45 7488 8000
Email: [email protected] · heating.danfoss.com
Danfoss can accept no responsibility for possible errors in catalogs, brochures, and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes being necessary for specifications already agreed upon. All trademarks in this material are the property of the respective companies. Danfoss and the Danfoss logotype are trademarks of Danfoss A/S. All rights reserved.
Reference
Download Manual:
Danfoss TPOne-RF+RX1-S programmable thermostat Product Specifications Guide
Danfoss TPOne-RF+RX1-S Programmable Thermostat Product Specifications Guide
