Danfoss eco HOME thermostat Product Specifications Guide

Danfoss-logo

Danfoss eco HOME thermostat

Danfoss -eco- HOME- thermostat-PRO

Application

Danfoss Eco™ is a stand-alone radiator thermostat for residential use. Danfoss Eco™ is battery-powered, compact and easy to operate with a manual hand wheel and single button. Danfoss Eco™ is programmed with a smartphone App using Bluetooth connectivity. Danfoss Eco™ is easy to install, in just 30 seconds! Adapters are available for all thermostatic valves manufactured by Danfoss and most other radiator valve manufacturers.

Features

  • Easy App programming via Bluetooth on smartphone or tablet
  • Energy savings
  • Easy to install
  • Easy to operate
  • Manual mode
  • Open-window function
  • PID Accurate temperature control
  • Adaptive learning
  • Night & day set-back, Weekly scheduling,
  • Holiday and Pause
  • Easy-to-read LCD display
  • Display rotation -180 degrees
  • Min./max. temp. range
  • Child lock
  • Frost protection

Ordering

Language Adapters (included) Code no.
Danfoss Eco™ Installer Pack

EN

RA, M30 014G1001
Danfoss Eco™ Retail Pack RA, M30, RAVL, RAV 014G1115

Accessories

Type Code no.
Adapters for RAV & RAVL valves 014G0250
Adapter for RA valves 014G0251
Adapter for K (M30 x1.5) valves 014G0252
Adapter for RTD valves 014G0253
Adapter for M28 MMA valves

014G0264

Adapter for M28 Herz valves
Adapter for M28 COMAP valves
Adapter for M28 Orkli valves 014G0257
Adapter for Caleffi valves

014G0263

Adapter for Giacomini valves

Specifications

Thermostat type Programmable electronic radiator valve controller
Recommended use Residential (pollution degree 2)
Actuator Electromechanical
Display LCD with white backlight
Software classification A
Control PID
Power supply 2 x 1.5 V alkaline AA batteries
Power consumption 3 mW in standby, 1.2 W when active
Trasmission Frequency / Power 2,4 GHz / <2,1mW
Battery life Up to 2 years
Low battery signal Battery icon will flash in display.

If battery level is critical the red ring will flash.

Ambient temperature range 0 to 40 °C
Transportation temperature range -20 to 65 °C
Maximum water temperature 90 °C
Temperature setting range 4 to 28 °C
Measurement interval Measures temperature every minute
Clock accuracy +/- 10 min/year
Spindle movement Linear, up to 4.5 mm, max. 2 mm on valve (1 mm/s)
Noise level <30 dBA
Safety classification Type 1
Open-window function Activated at a temperature decrease
Color RAL 9016
Weight (incl. batteries) 198 g (with RA adapter)
IP class 20 (not to be used in hazardous installations or in places where it will be exposed to water)




Approvals, markings etc.

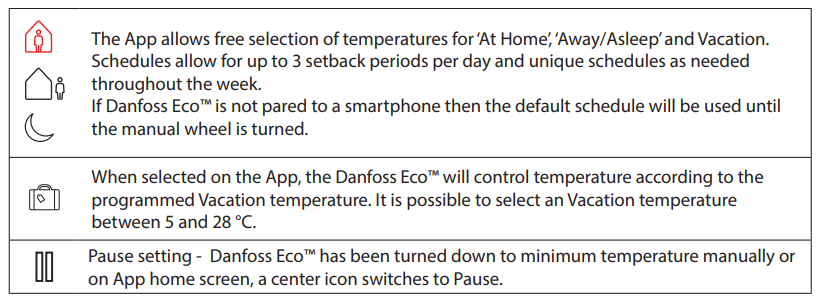

App Advanced SettingsDanfoss -eco- HOME- thermostat -1

Measuring the room temperature
Danfoss Eco™ is measuring the temperature with multiple built-in sensors to ensure accurate control. Based on these readings the room temperature is calculated for an area approx. 20 cm in front of the display. This allows Danfoss Eco™ to control the actual room temperature very accurately. Be aware that sources of cold or heat, e.g. fireplace, direct sun or draft, might affect the function of Danfoss Eco™.Danfoss -eco- HOME- thermostat -2

Main features

  • App Scheduling
    • Easy App programming via Bluetooth on smartphone or tablet. Up to 3 setback periods per day and the option to copy the schedule across to other days.
  • Software Updates
    • Software updates are automatic, and prompted via the App. The data security for of the Danfoss Eco™ thermostat and App that is paired to your smartphone is guaranteed. The system is tested by independent specialists.
  • Open-window function
    • Danfoss Eco™ features an Open-window function, which closes the valve if the room temperature is falling dramatically, thus reducing the heat loss. The radiator heat is shut off for up to 30 minutes, before Danfoss Eco™ returns to its original settings. When Open-window has been activated, the function is quarantined for 45 minutes.
  • Adjusting to the valve
    • During the first night of operation, Danfoss Eco™ will shut off the radiator heat and then open again to detect the exact opening point of the valve. This will allow Danfoss Eco™ to control the heat as efficiently as possible. If necessary, the procedure is repeated once a night for up to a week. You might experience the valve being warm during the adjustment procedure, regardless of the room temperature.
  • Child lock
    • Activating the child lock feature will protect the settings from tampering.
  • Adaptive learning
    • During the first week of operation Danfoss Eco™ learns when it is necessary to start heating the room in order to reach the correct temperature at the correct time. The intelligent control will continuously adjust the heating time compared to seasonal temperature changes.
  • Automatic valve exercising
    • To keep the radiator valve functional and at its best, Danfoss Eco™ automatically exercises the valve every Thursday at approx. 11:00 hrs by fully opening and then returning to its normal setting.

Installation

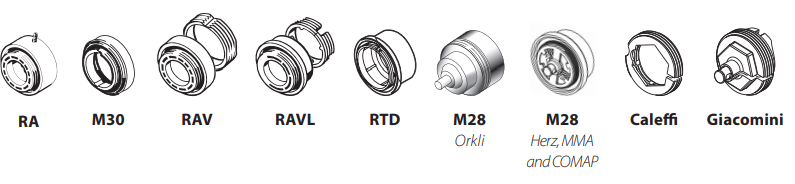

  • Start by mounting the appropriate adapter. Identify the needed adapter with the adapter guide.Danfoss -eco- HOME- thermostat -3

ADAPTERS

Danfoss -eco- HOME- thermostat -4

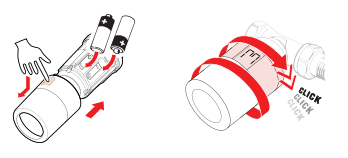

  • Insert the batteries, then mount the thermostat onto the adapter by turning it until you hear a click.Danfoss -eco- HOME- thermostat -5

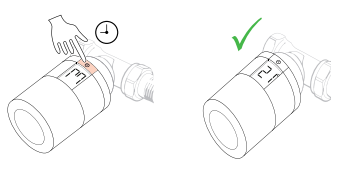

  • Press and hold the button for 3 seconds. The Danfoss Eco™ is now mounted and will display the current temperature.Danfoss -eco- HOME- thermostat -6
  • Download the Danfoss Eco™ App from Apple App Store or Google Play Store. Danfoss -eco- HOME- thermostat -7
  • Search Danfoss Eco™ or follow the link:- Danfoss -eco- HOME- thermostat -8

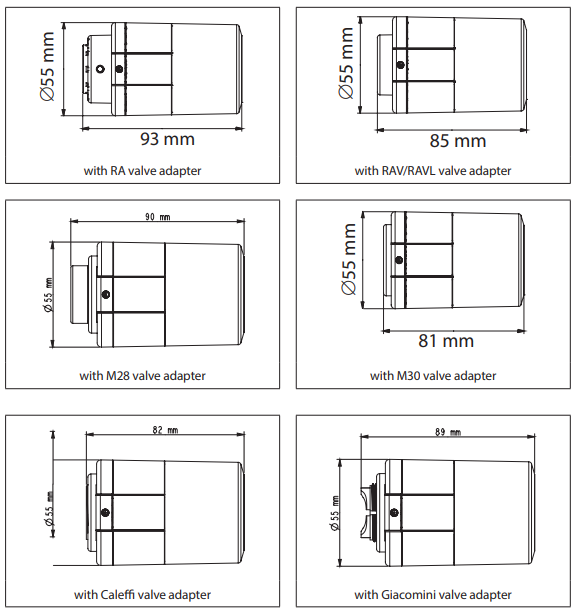

DimensionsDanfoss -eco- HOME- thermostat -9
