ComfortNet CTK01AA Non-Programmable Touch-Screen THERMOSTAT

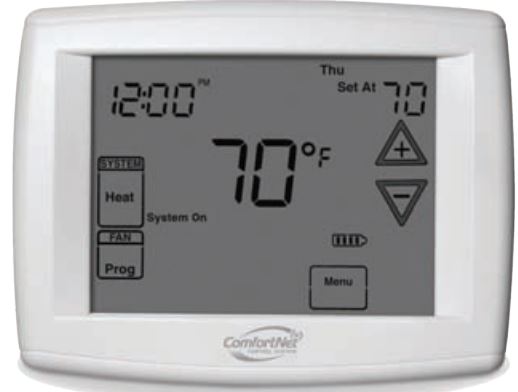

ComfortNet-CTK01AA-Non-Programmable-Touch-Screen-THERMOSTAT -PRODUCT

The ComfortNet™ brand programmable or nonprogrammable touch-screen digital control works with both the Amana® brand and Goodman® brand ComfortNet-ready heating and cooling systems.

Features

Display Features

  • Large 12 square-inch touchscreen display
  • Extra-large touch keys for easy operation
  • Blue, lighted display for easier low-light viewing
  • Easy-to-read character size
  • Humidity display
  • Advanced diagnostics and fault code display
  • Fahrenheit/Celsius display
  • Optional continuous LED back-lighted display

Programming Features

  • Seven-day programmable or non-programmable
  • Auto heat / cool change-over option: automatically switches between heating and cooling programs
  • Selectable continuous fan speeds
  • Dehumidification control
  • Airflow speed trimming adjustment
  • Four steps per daily schedule sequence
  • Simultaneous heat and cool program storage
  • Energy Management Recovery Program (EMR)
  • Program-loss, start-up temperature

Performance & Set-Up Features

  • Maximum four-wire low-voltage control wiring connection
  • Only two wires are required for the outdoor unit when used with included outdoor transformer
  • Auto-setup and configuration of dipswitches
  • Hard-wired with battery back-up
  • Meets California Building Code, Title 24
  • Fast or slow heating cycle anticipation
  • Fast energizing between stages of heat and cool
  • Active system diagnostics
  • Exclusive “Call for Service” diagnostic indicator
  • Dual-fuel heat pump compatible
  • Filter change-out indicator
  • Audio beep alert on keypress

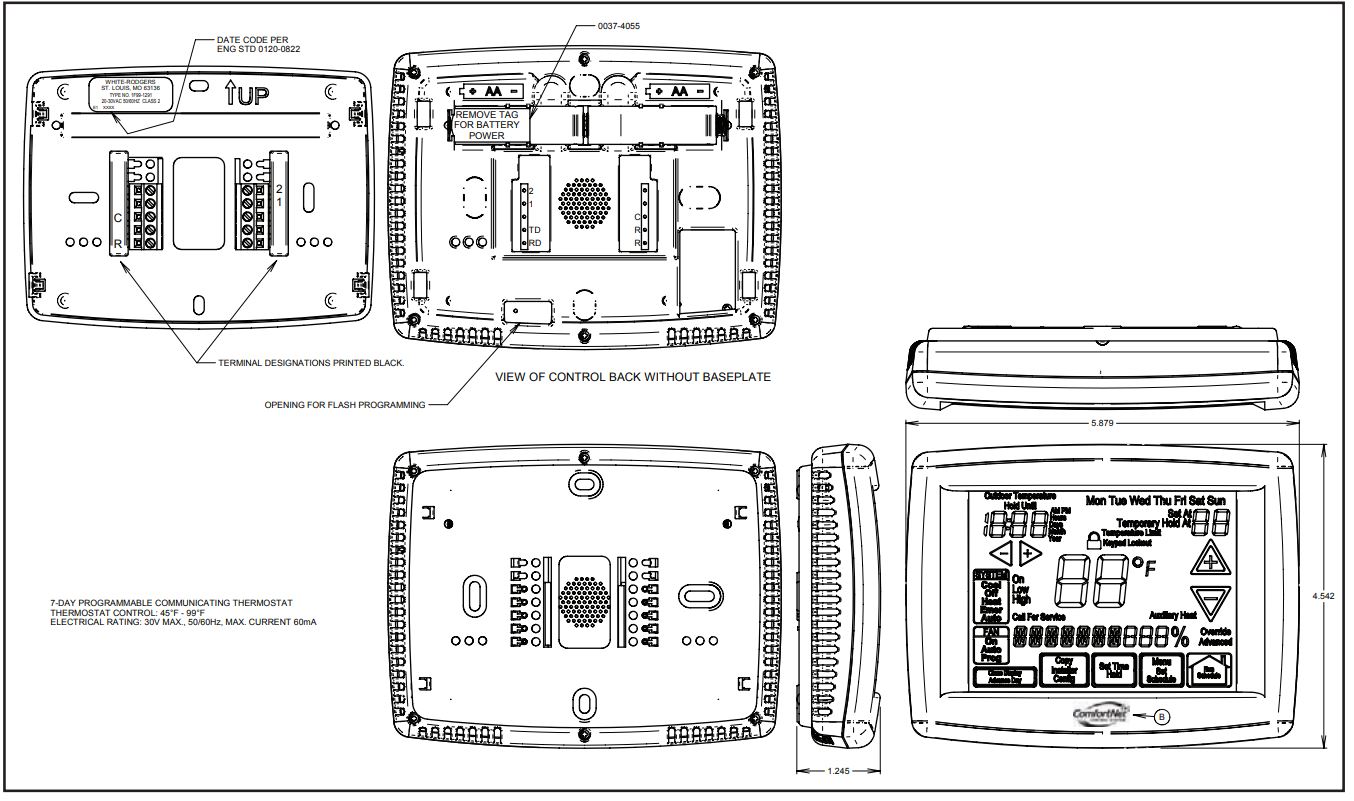

Dimensions

ComfortNet-CTK01AA-Non-Programmable-Touch-Screen-THERMOSTAT -FIG.1

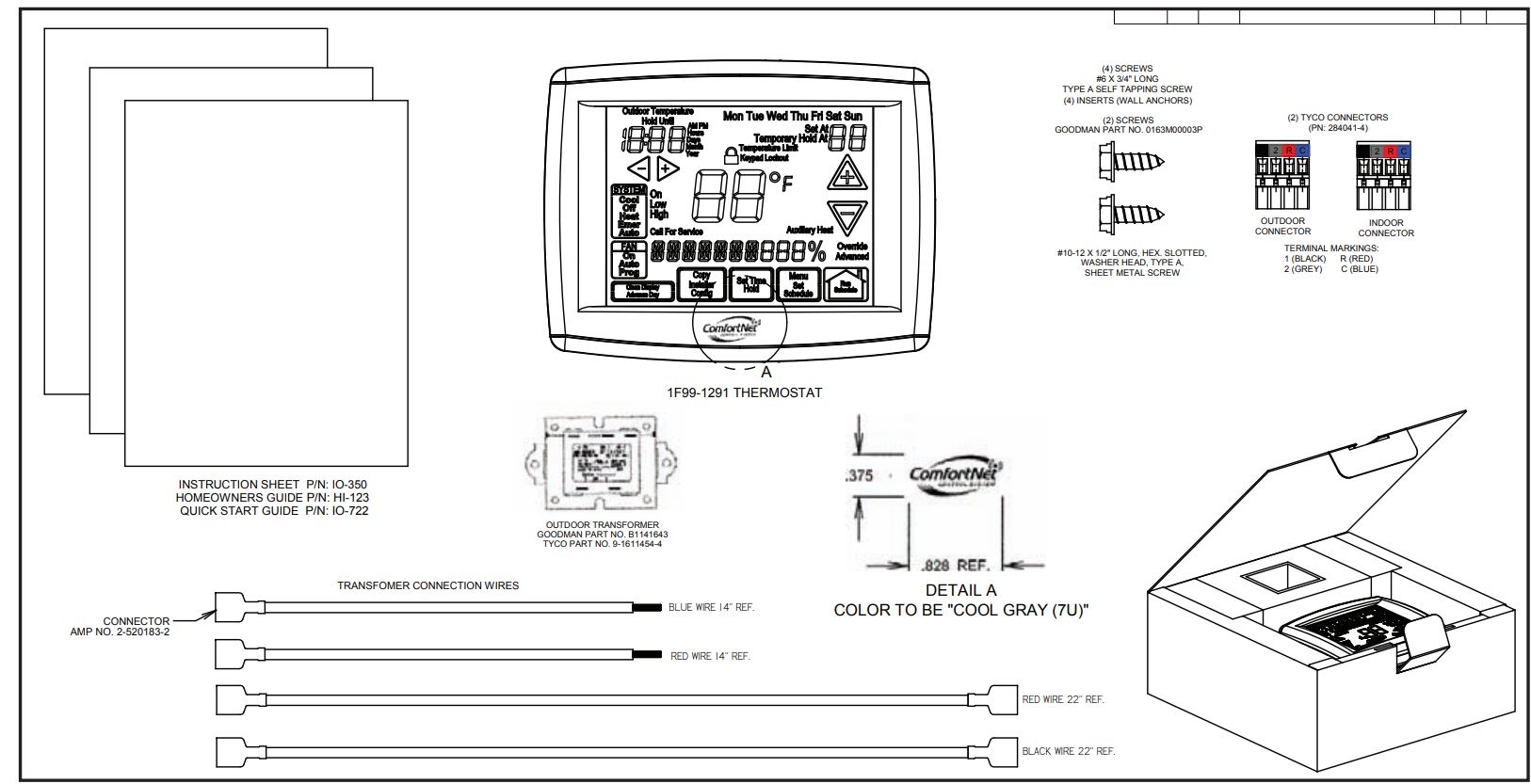

Kit Diagram

ComfortNet-CTK01AA-Non-Programmable-Touch-Screen-THERMOSTAT -FIG.2

* To receive the 10-Year Control Limited Warranty, the control must be installed in conjunction with a new furnace or air handler containing a communicating system that is compatible with the control and, if that furnace/air handler is a Goodman® or Amana® brand unit, that furnace/air handler must have been registered online within 60 days of installation of the furnace/air handler. Failure by Quebec or California residents to have registered a Goodman® or Amana® brand furnace/air handler does not diminish their warranty rights. For full warranty details go to www.goodmanmfg.com or www.amana-hac.com.

Goodman Manufacturing Company, L.P., reserves the right to discontinue or change at any time, specifications, or designs without notice or without incurring obligations. © 2011
Goodman Manufacturing Company, L.P.
Houston, Texa
Printed in the USA.
